Toyota Crown Comfort
1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General
Discontinued model
Data version 2018-07

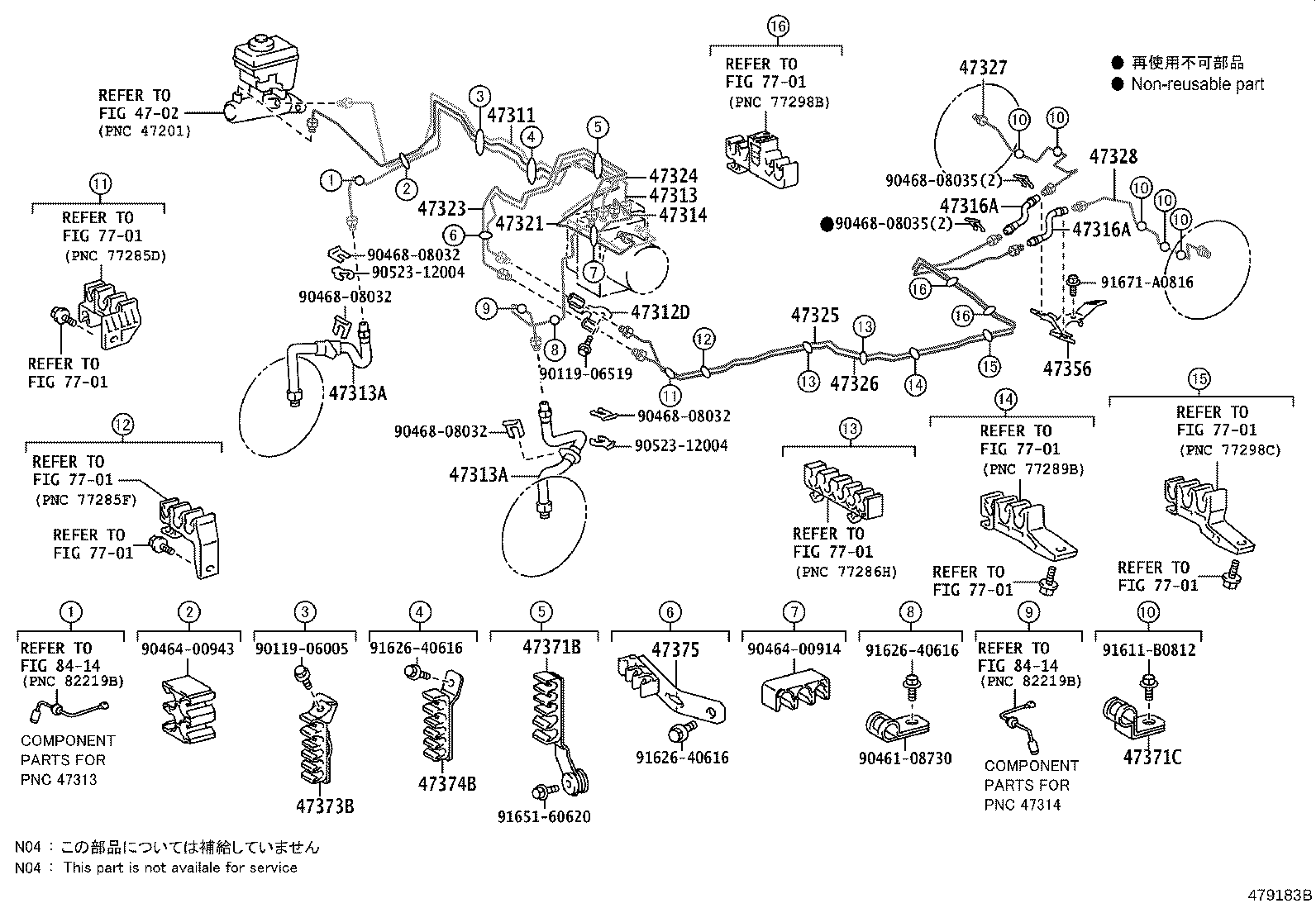

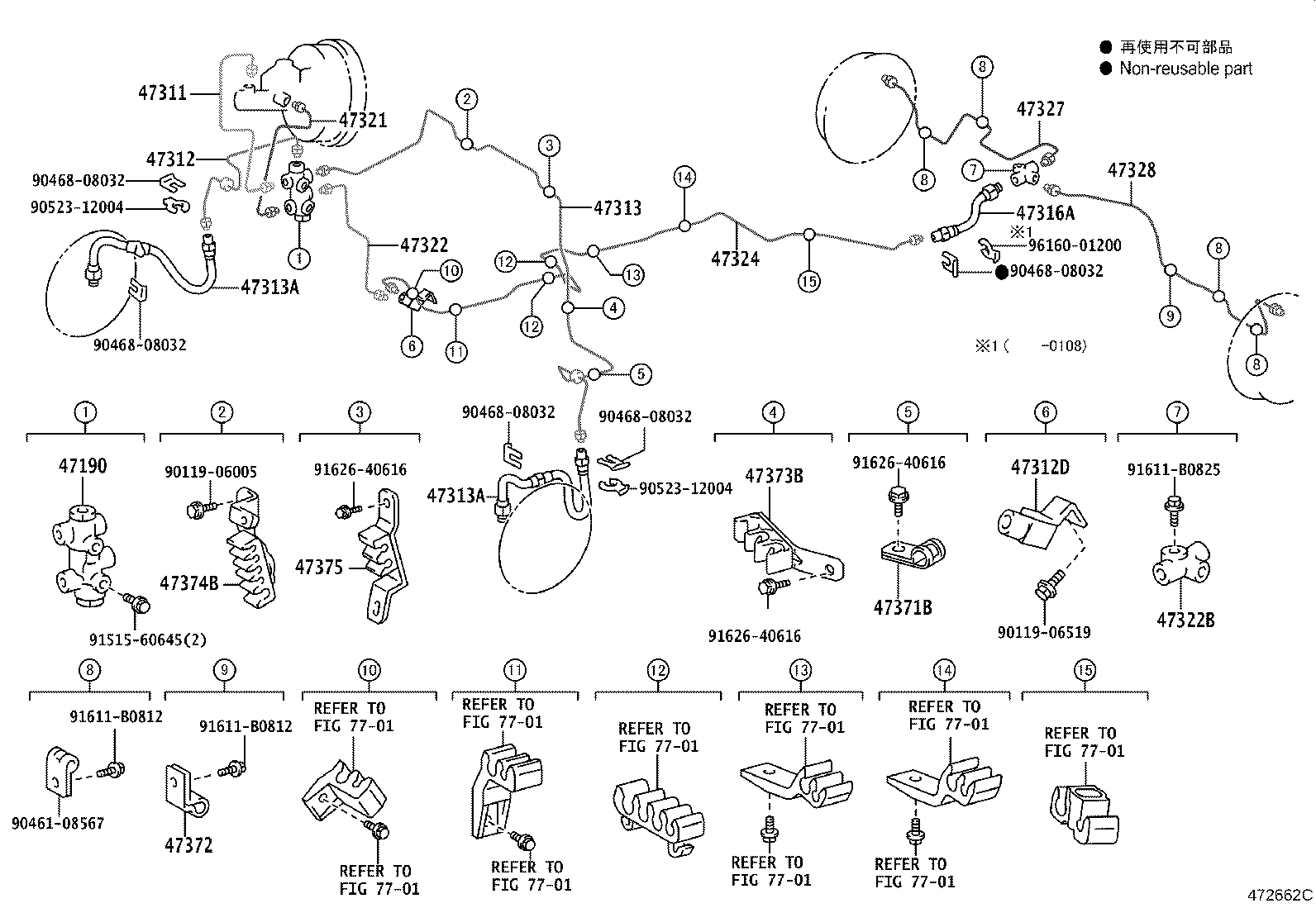

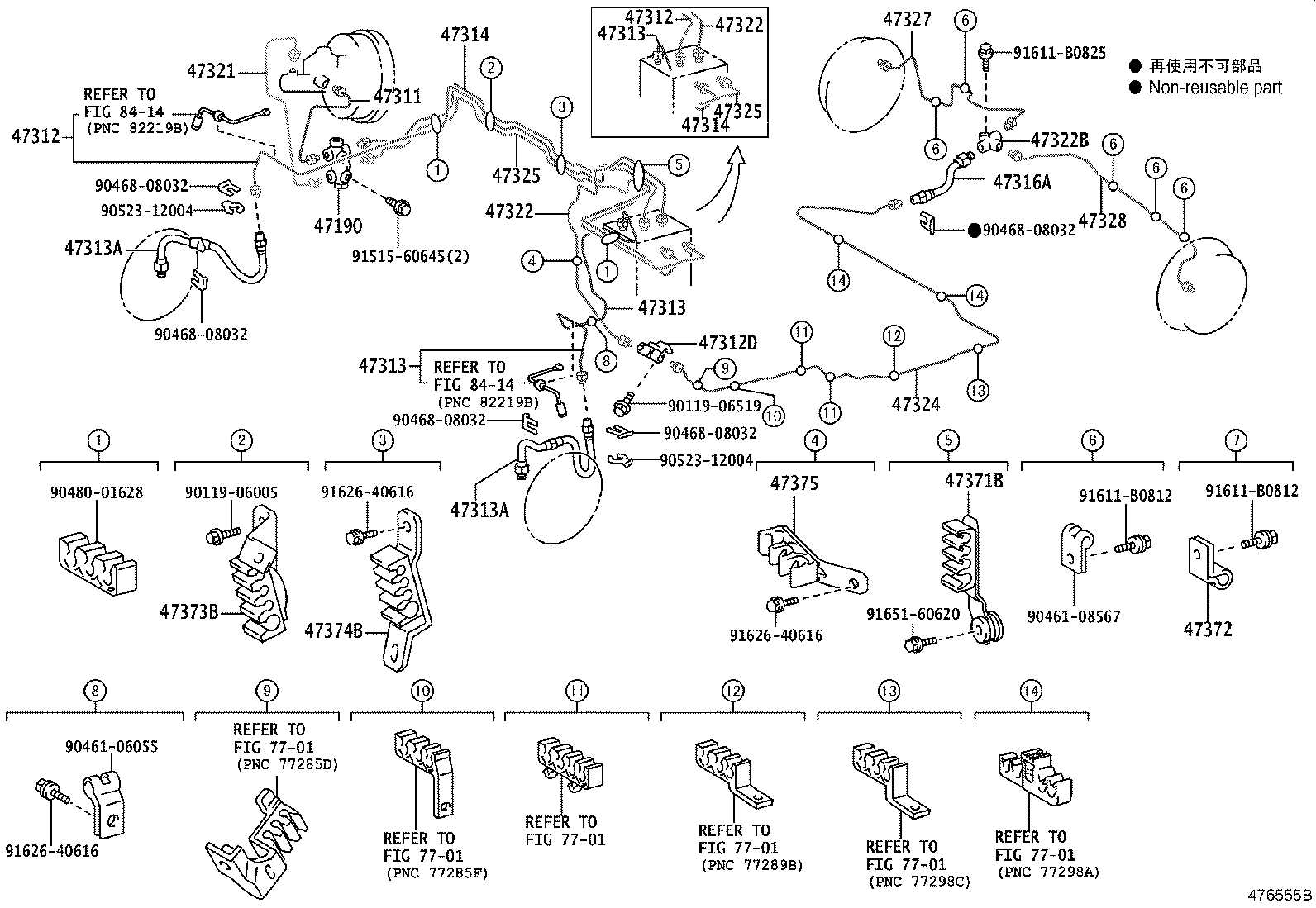

Brake Tube & Clamp
31 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

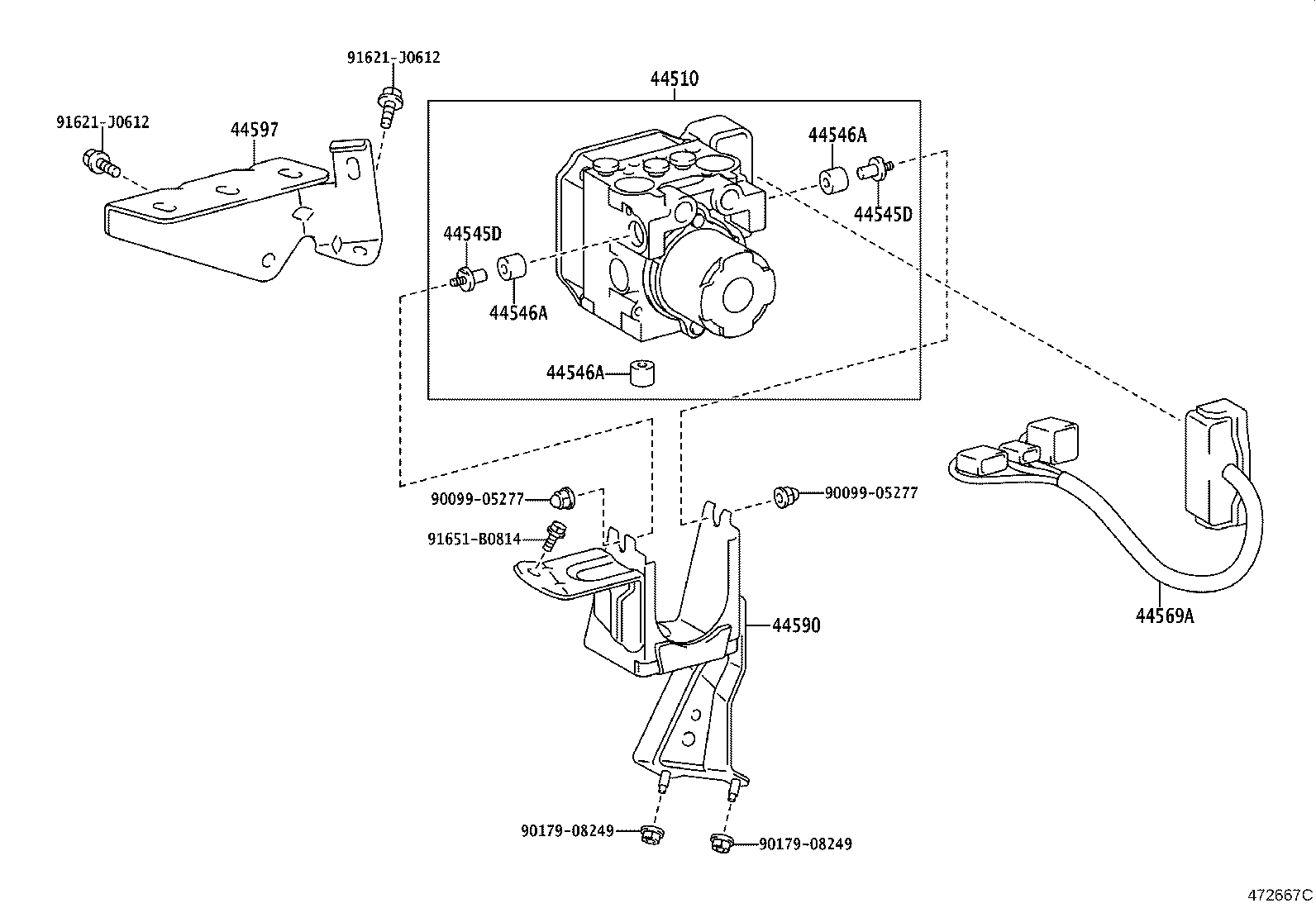

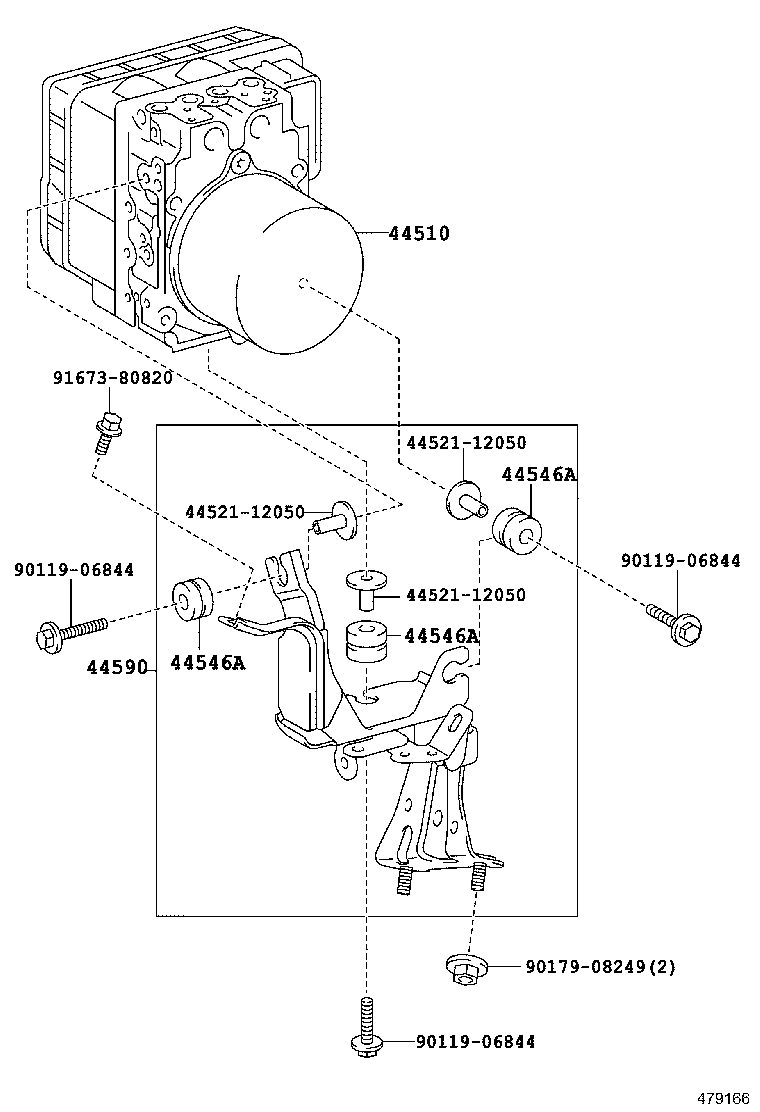

| 44510 | Actuator Assy, Brake |
| 44545D | Holder, Brake Actuator Bolt |
| 44546A | Cushion, Brake Actuator Bolt |
| 44569A | Harness, Brake Actuator |
| 44590 | Bracket Assy, Brake Actuator |
| 44597 | Clamp, Brake Actuator Connector, NO.1 |
| 47190 | Valve Assy, Proportioning & By-pass |
| 47311 | Tube, Front Brake, NO.1 |
| 47312 | Tube, Front Brake, NO.2 |
| 47312D | Way, 2(FOR REAR BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47314 | Tube, Front Brake, NO.4 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47328 | Tube, Rear Brake, NO.8 |
| 47356 | Bracket, Flexible Hose, NO.6 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
