Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

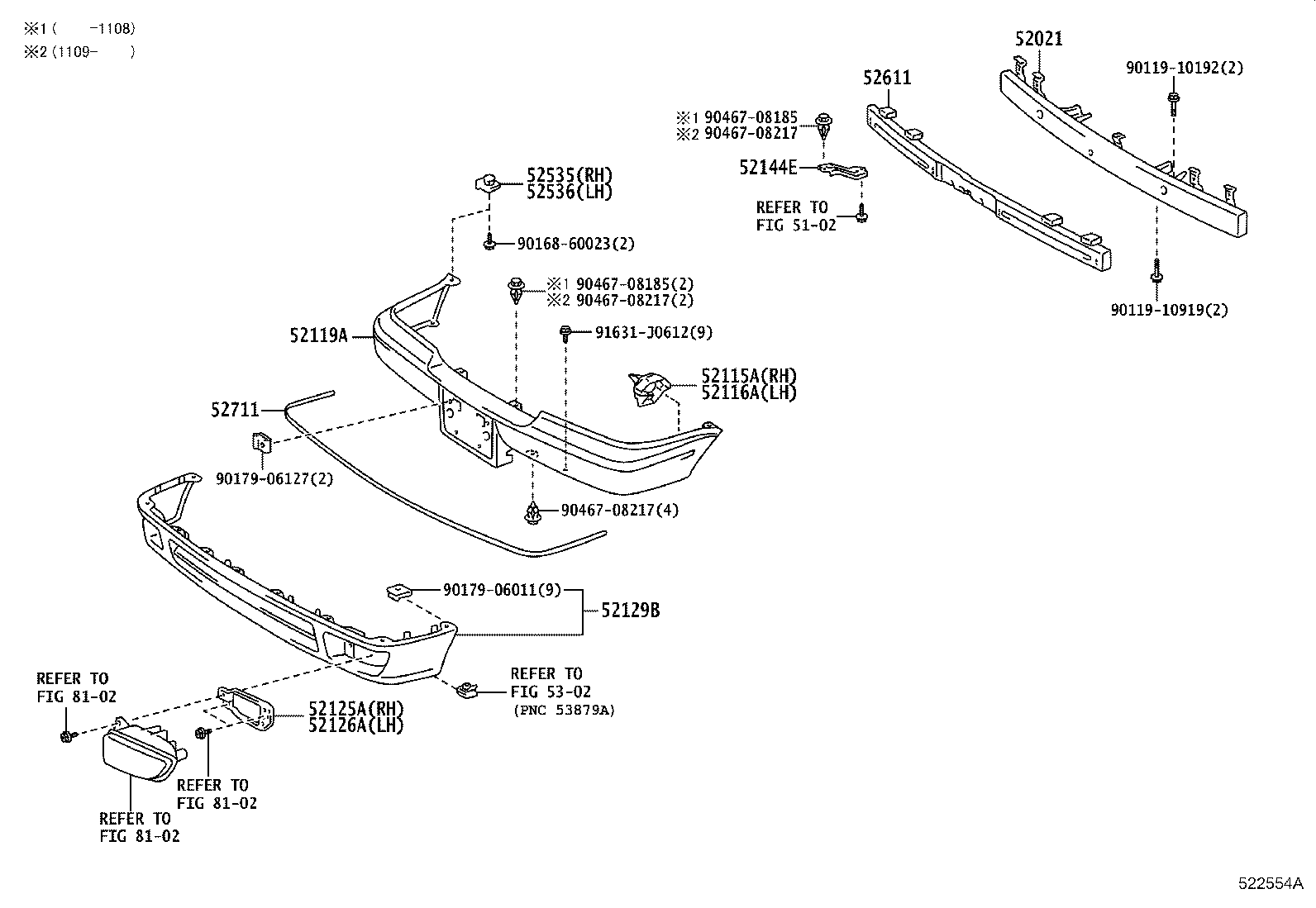

Figure 520399F 520399F 1996-01 → 2007-09 Figure 522554A 522554A 2007-09 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52129B Cover, Front Bumper, Lower
52144E Stay, Front Bumper, Center
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
53112D Grille, Radiator, Lower RH
53113D Grille, Radiator, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
