Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 2 illustrations

Illustrations

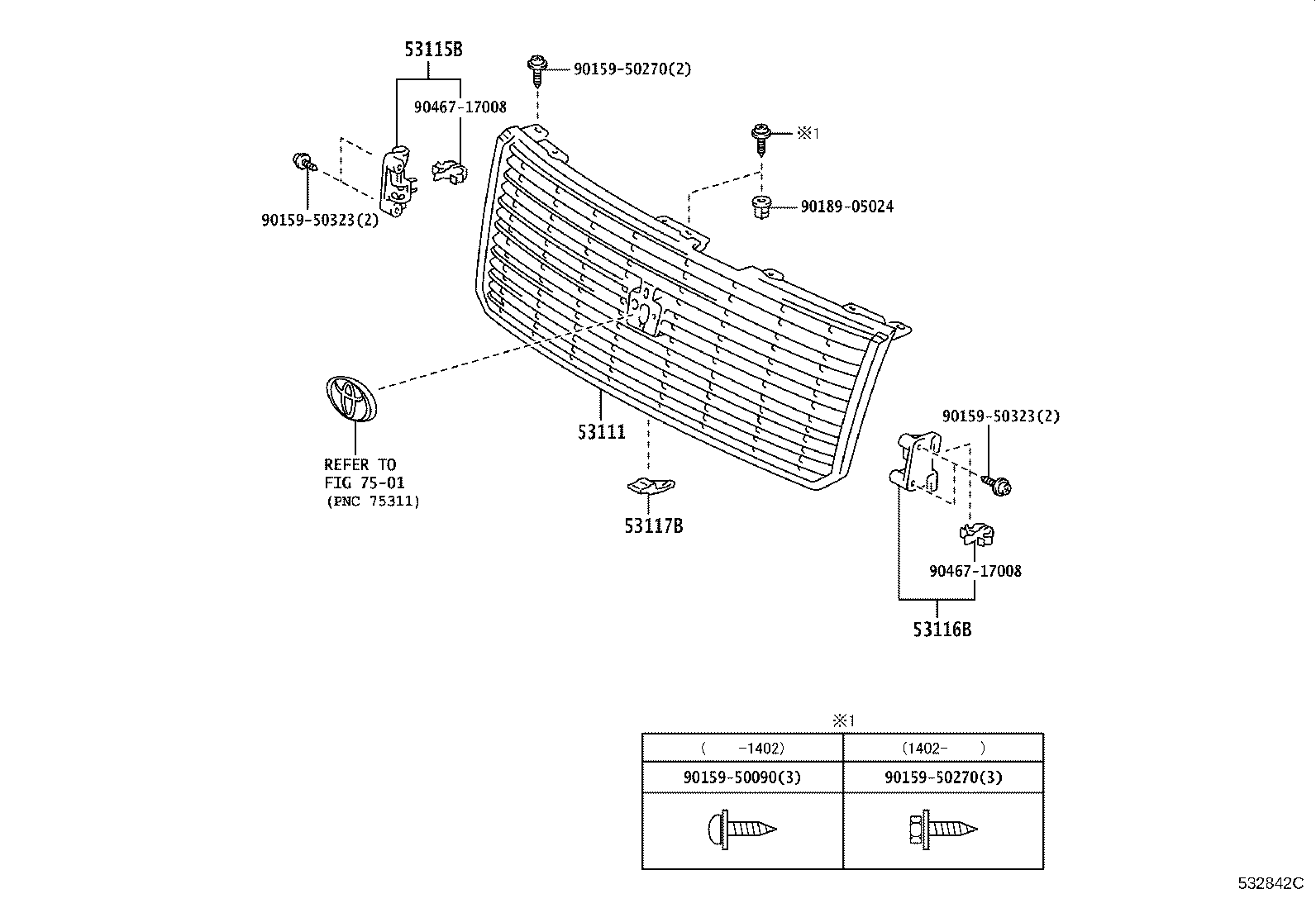

Figure 534247C 534247C 1996-01 → 2007-09 Figure 532842C 532842C 2007-09 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53116B Bracket, Radiator Grille, NO.2
53117B Bracket, Radiator Grille, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
