Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07

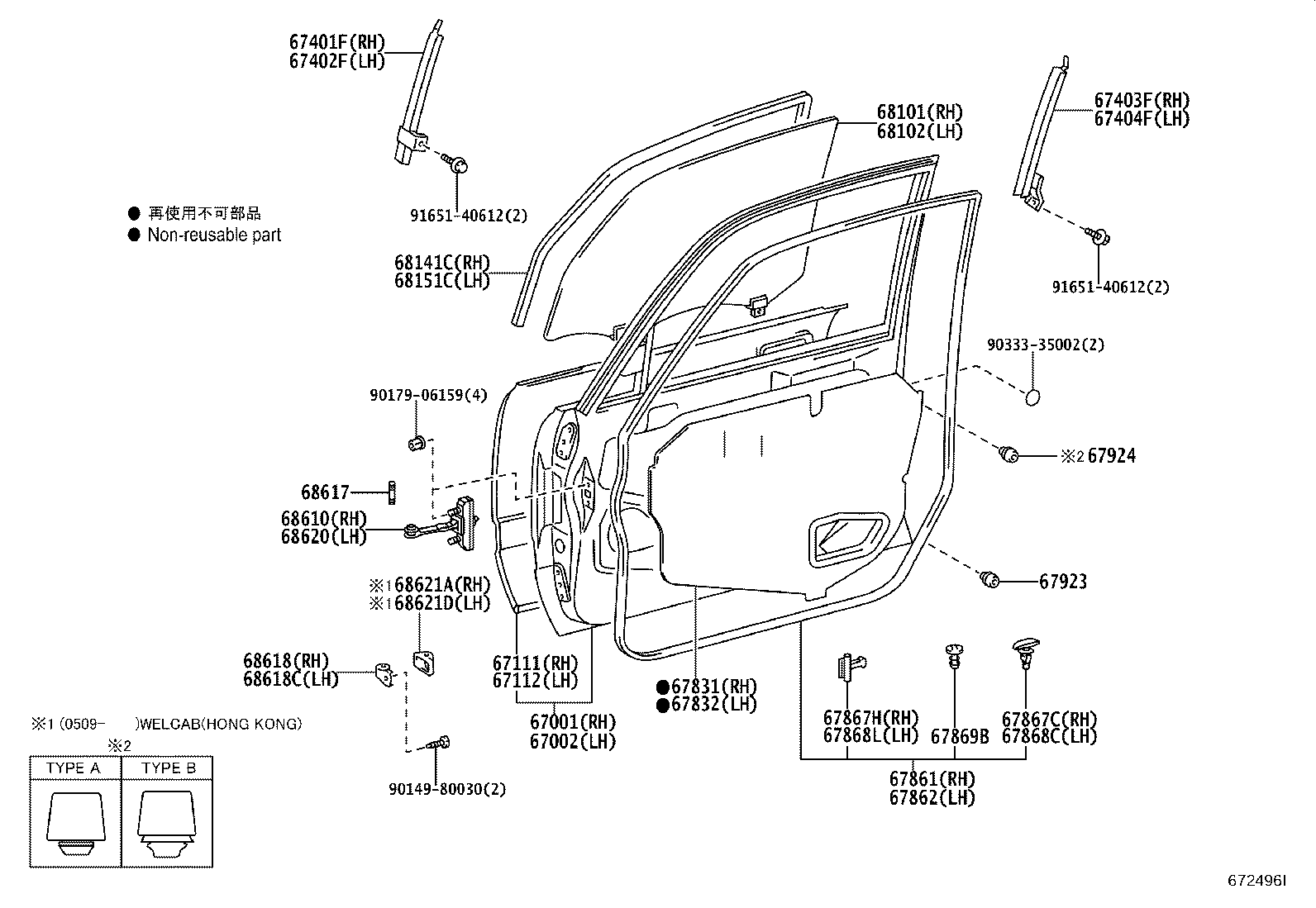

Front Door Panel & Glass

39 part groups · 3 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67401F	Frame Sub-assy, Front Door, Front Lower RH
67402F	Frame Sub-assy, Front Door, Front Lower LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67601H	Retainer, Door Trim, RH
67602	Board Sub-assy, Front Door Trim, LH
67602A	Retainer, Door Trim, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67867C	Retainer, Front Door Weatherstrip, RH
67867H	Retainer, Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67868L	Retainer, Door Weatherstrip, LH
67869B	Clip, Front Door Weatherstrip
67923	Cushion, Front Door Stiffener, NO.1
67924	Cushion, Front Door Stiffener, NO.2
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141C	Run, Front Door Glass, RH
68151C	Run, Front Door Glass, LH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68610	Check Assy, Front Door
68617	Pin, Front Door Check
68618	Bracket, Front Door Check Arm, RH
68618C	Bracket, Front Door Check Arm, LH
68620	Check Assy, Front Door, LH
68621A	Cover, Front Door Check, RH
68621D	Cover, Front Door Check, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
