Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

31 part groups · 2 illustrations

Illustrations

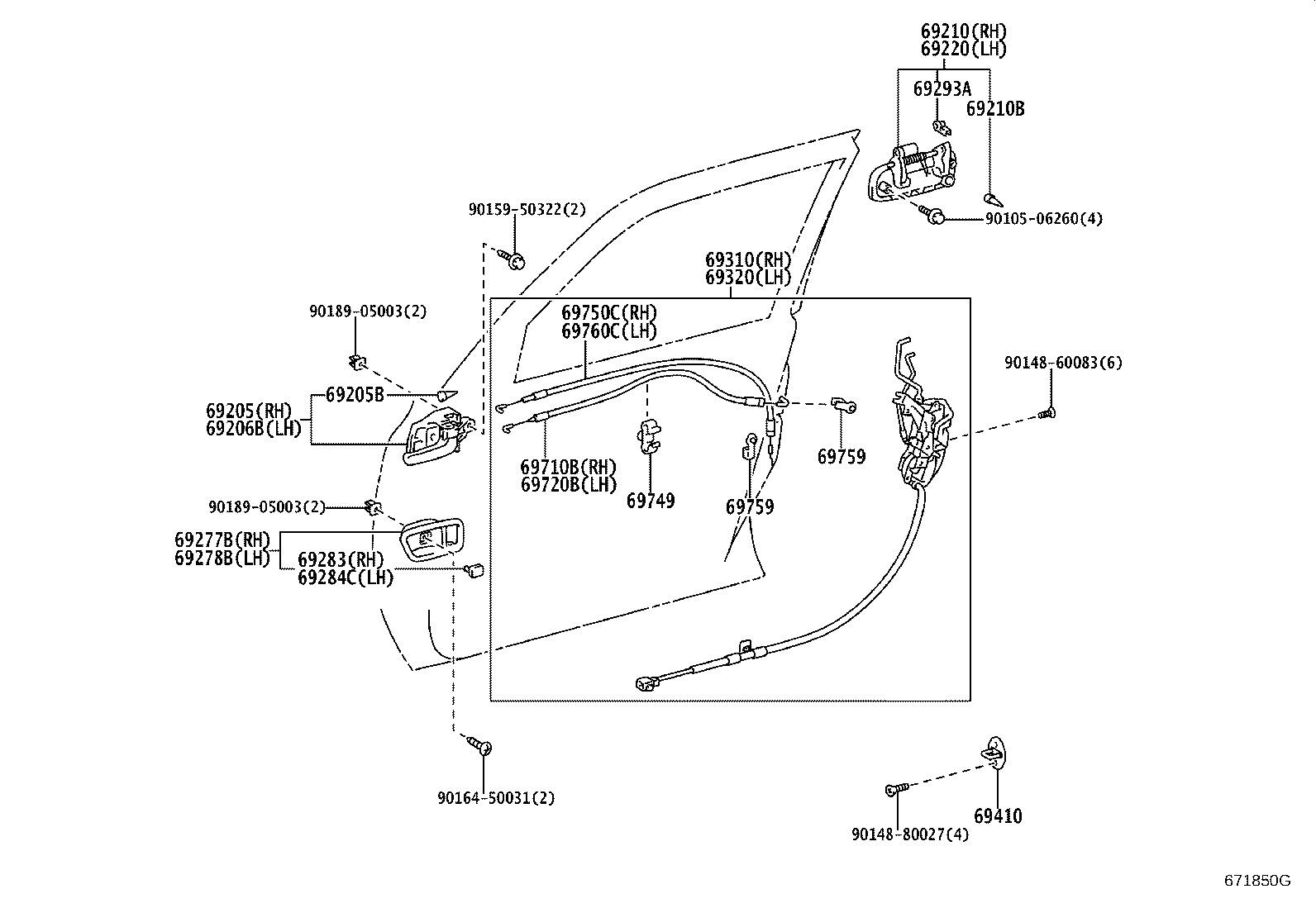

Figure 670953E 670953E 1996-01 → 2000-01 Figure 671850G 671850G 2000-01 → —

Part groups

PNCDescription
69205 Handle Sub-assy, Front Door Inside, RH
69205B Cushion(FOR FRONT DOOR INSIDE HANDLE)
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69210B Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
69220 Handle Assy, Front Door Outside, LH
69277B Bezel, Front Door Inside Handle, RH
69278B Bezel, Front Door Inside Handle, LH
69283 Plug, Front Door Inside Handle Bezel, RH
69284C Plug, Front Door Inside Handle Bezel, LH
69293A Snap, Front Door Outside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69710 Link Assy, Front Door Open Control, RH
69710B Cable Assy, Front Door Lock Remote Control, RH
69711B Link, Front Door Lock Remote Control, RH
69712A Link, Front Door Lock Remote Control, LH
69720 Link Assy, Front Door Open Control, LH
69720B Cable Assy, Front Door Lock Remote Control, LH
69731 Link, Front Door Inside Locking, NO.1 RH
69732 Link, Front Door Inside Locking, NO.1 LH
69749 Clamp, Front Door Lock Link
69749A Clamp, Front Door Lock Link, NO.1
69750C Cable Assy, Front Door Inside Locking, RH
69753 Bellcrank, Door Lock Control, RH
69754C Bellcrank, Door Lock Control, LH
69759 Snap, Door Lock Control Link, NO.1
69759H Snap, Door Lock Control Link, NO.2
69759K Snap, Door Lock Control Link
69760C Cable Assy, Front Door Inside Locking LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
