Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Lock & Handle

29 part groups · 2 illustrations

Illustrations

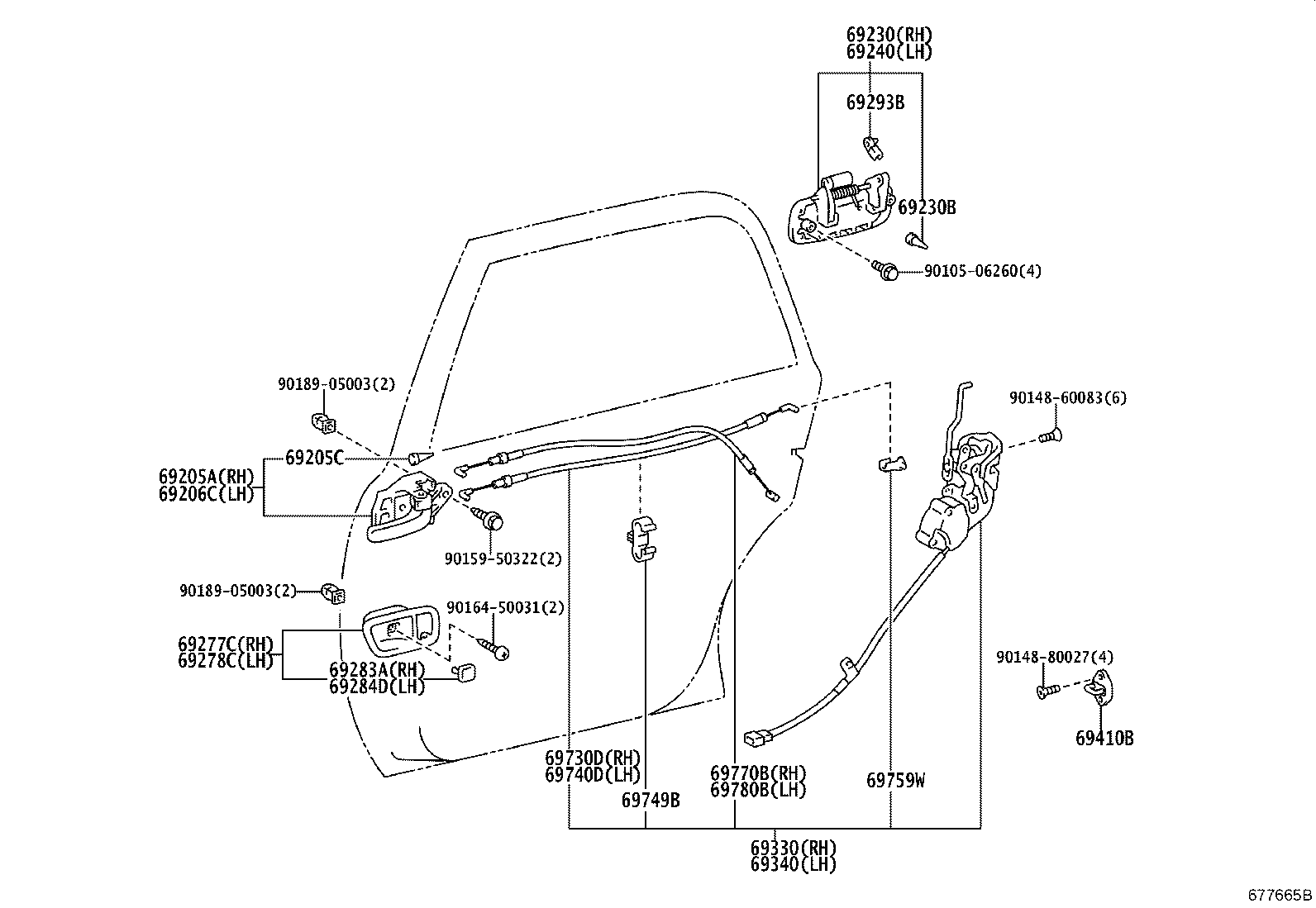

Figure 670952C 670952C 1996-01 → 2000-01 Figure 677665B 677665B 2000-01 → —

Part groups

PNCDescription
69205A Handle Sub-assy, Rear Door Inside, RH
69205C Cushion(FOR REAR DOOR INSIDE HANDLE)
69206C Handle Sub-assy, Rear Door Inside, LH
69230 Handle Assy, Rear Door Outside, RH
69230B Cushion(FOR REAR DOOR OUTSIDE HANDLE)
69240 Handle Assy, Rear Door Outside, LH
69277C Bezel, Rear Door Inside Handle, RH
69278C Bezel, Rear Door Inside Handle, LH
69283A Plug, Rear Door Inside Handle Bezel, RH
69284D Plug, Rear Door Inside Handle Bezel, LH
69293B Snap, Rear Door Outside Handle
69330 Lock Assy, Rear Door, RH
69340 Lock Assy, Rear Door, LH
69410B Plate Assy, Rear Door Lock Striker
69717B Link, Rear Door Lock Remote Control, RH
69718B Link, Rear Door Lock Remote Control, LH
69730A Link Assy, Rear Door Lock Control, RH
69730D Cable Assy, Rear Door Lock Remote Control, RH
69737 Link, Rear Door Inside Locking, RH
69738 Link, Rear Door Inside Locking, LH
69740A Link Assy, Rear Door Lock Control, LH
69740D Cable Assy, Rear Door Lock Remote Control LH
69749B Clamp, Rear Door Lock Link
69755D Bellcrank, Rear Door Locking Control, Front
69759M Snap, Door Lock Control Link
69759N Snap, Door Lock Control Link
69759W Snap, Rear Door Lock Control Link
69770B Cable Assy, Rear Door Inside Locking, RH
69780B Cable Assy, Rear Door Inside Locking, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
