Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

17 part groups · 3 illustrations

Illustrations

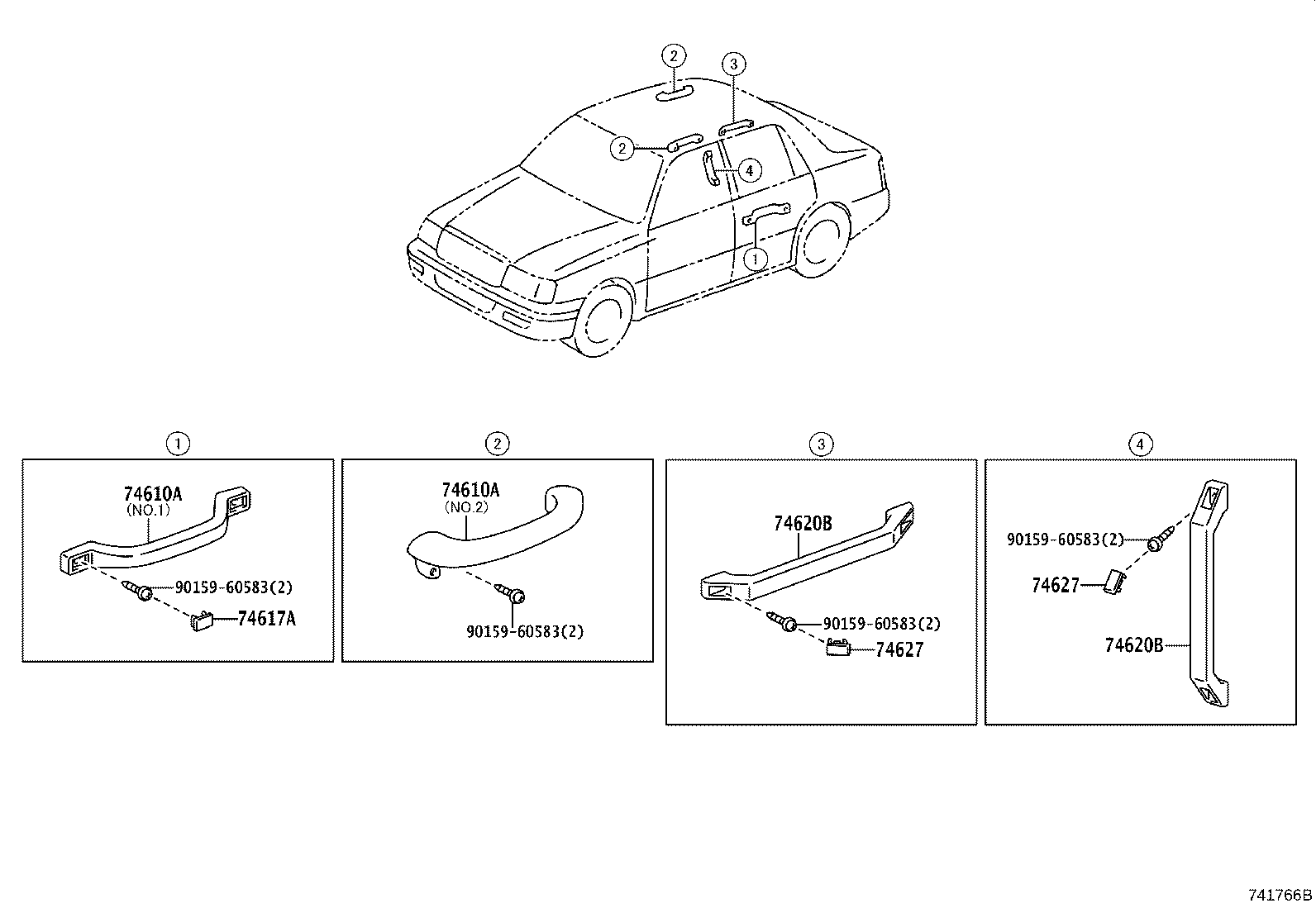

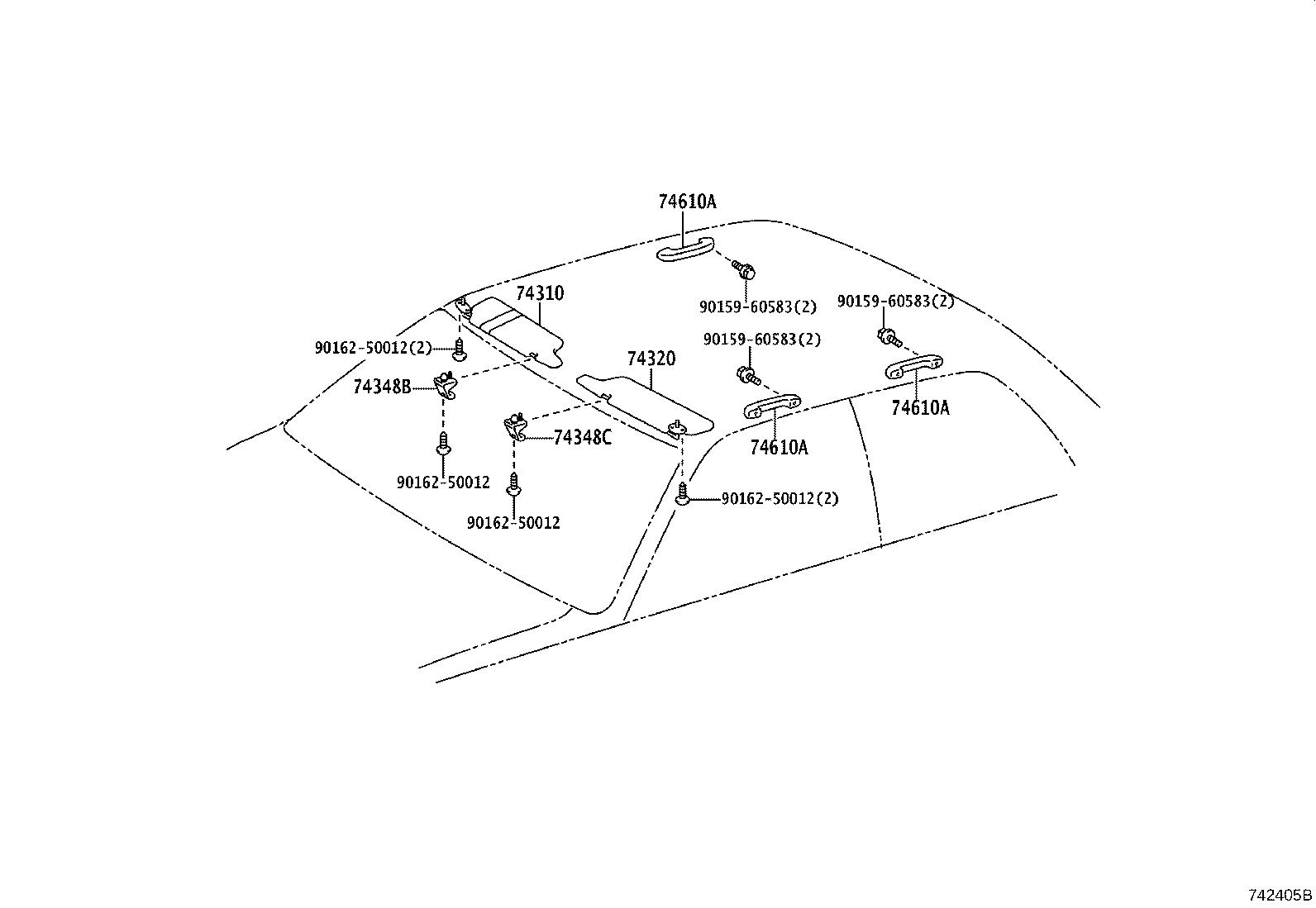

Figure 740707D 740707D 1996-01 → — Figure 742405B 742405B 1996-01 → — Figure 741766B 741766B 2005-09 → —

Part groups

PNCDescription
67231D Support, Front Door Armrest
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74240 Armrest Assy, Rear, LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74610A Grip Sub-assy, Assist
74617A Plug, Assist Grip
74620B Grip Assy, Assist, Rear
74627 Plug, Rear Assist Grip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
