Toyota Crown Comfort
1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General
Discontinued model
Data version 2018-07

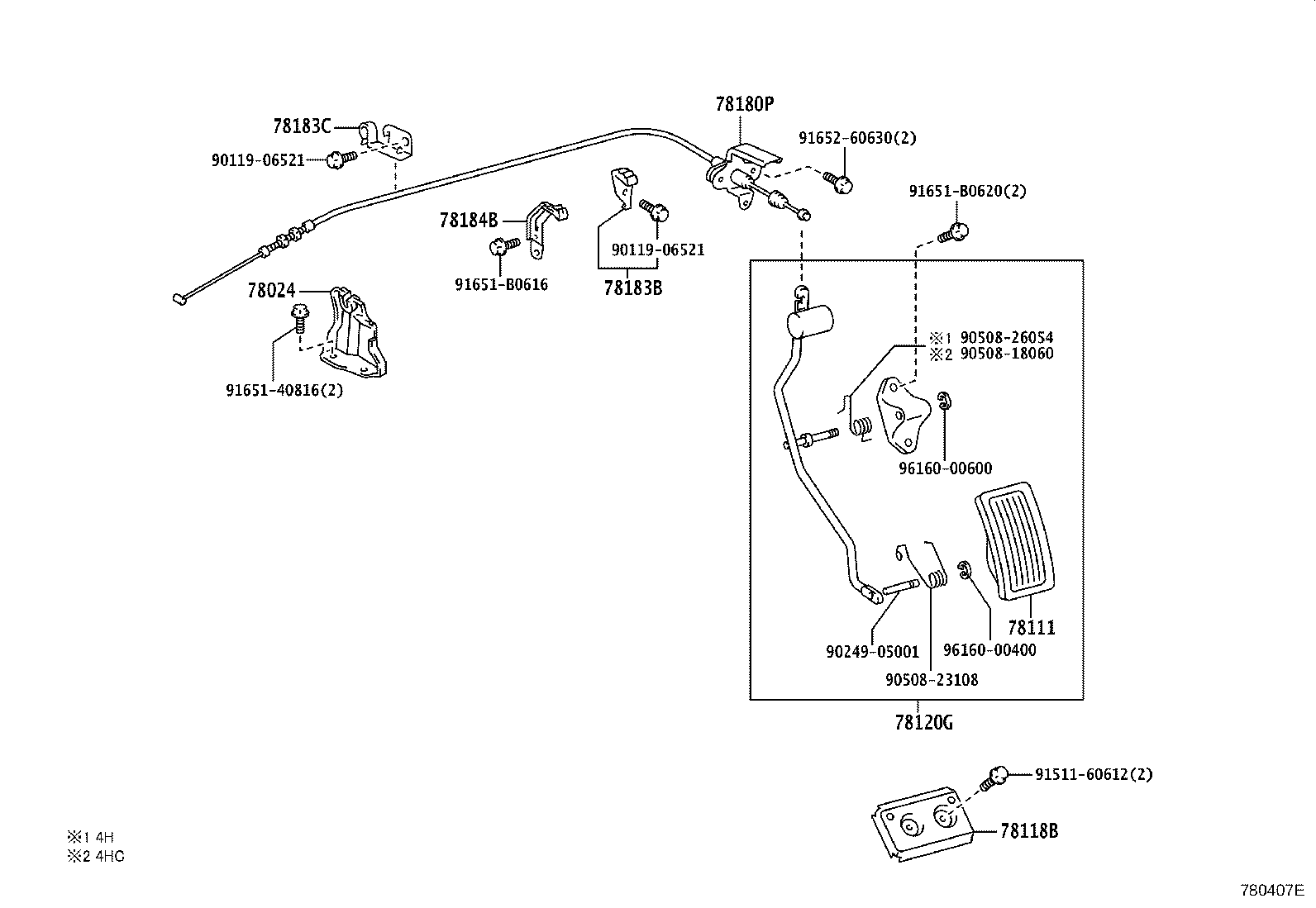

Accelerator Link
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 21960 | Wire Assy, Accelerator Link |
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78100 | Link Assy, Accelerator |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78111 | Pedal, Accelerator |
| 78118B | Stopper, Accelerator Pedal |
| 78120G | Rod Assy, Accelerator Pedal |
| 78180P | Cable Assy, Accelerator Control |
| 78183B | Clamp, Accelerator Control Cable |
| 78183C | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78472 | Support, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
