Toyota Crown Comfort
1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General
Discontinued model
Data version 2018-07

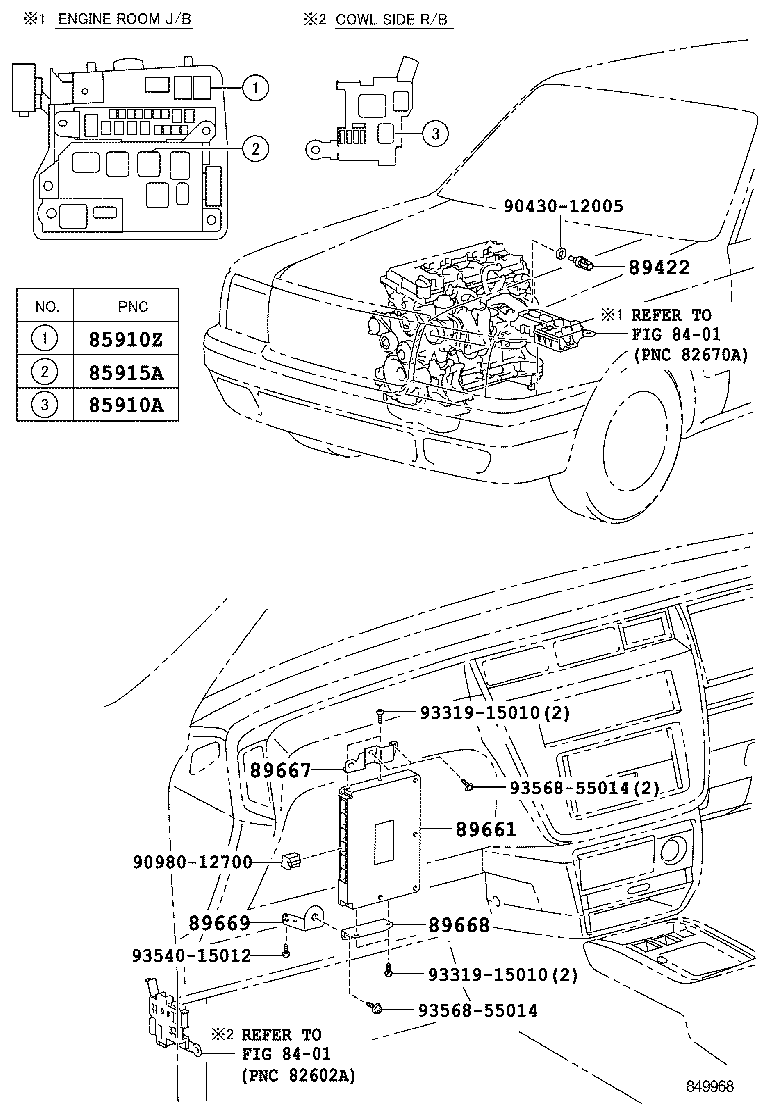

Electronic Fuel Injection System
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28515 | Resistor, Solenoid |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910Z | Relay, Injection (FOR EFI) |
| 85915A | Relay, Main |
| 89412A | Sensor, E.G.R Gas Temperature |
| 89420 | Sensor Assy, Vacuum |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89669 | Bracket, Engine Control Computer, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
