Toyota Crown Comfort
1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General
Discontinued model
Data version 2018-07
Abs & Vsc

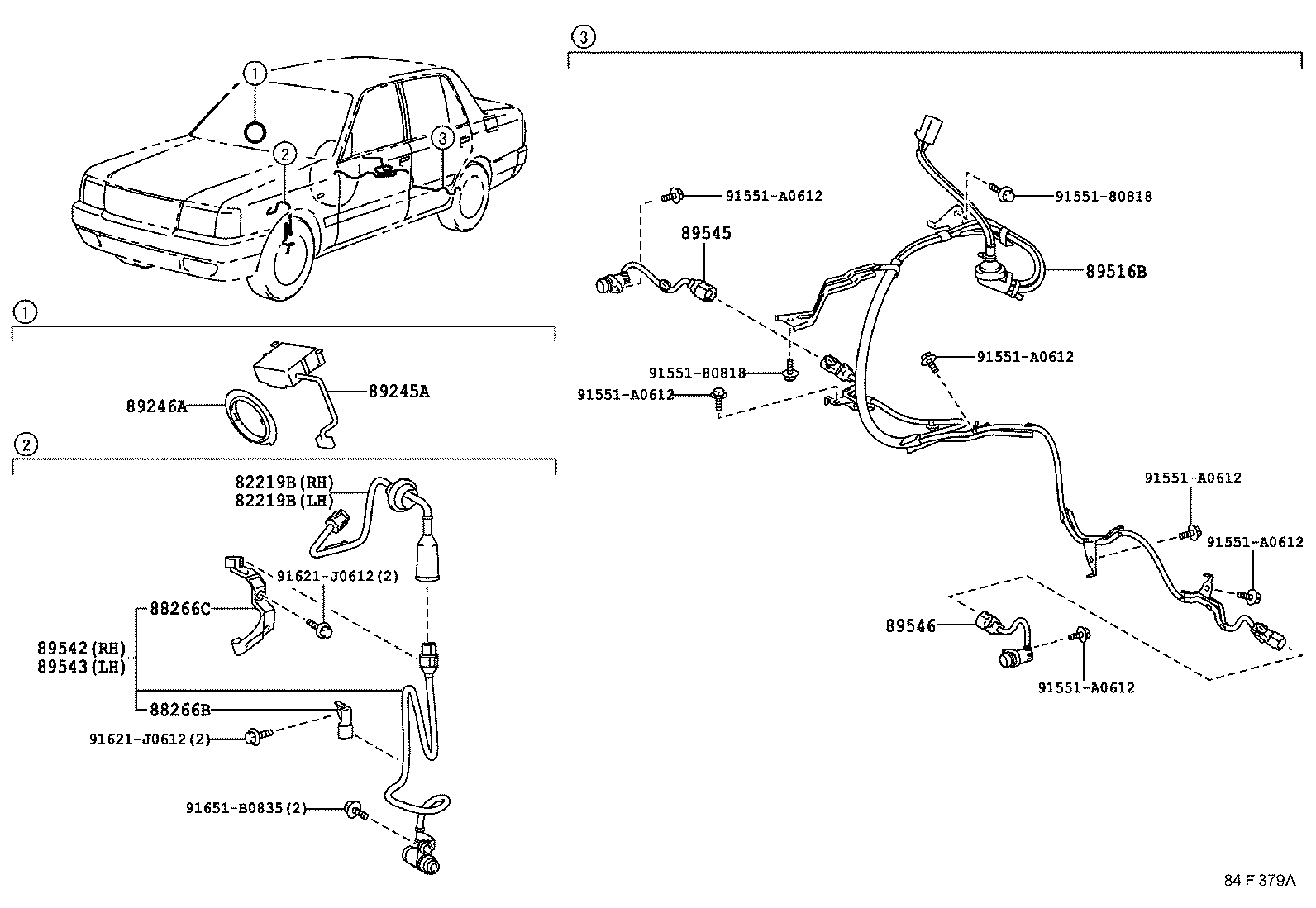

14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82219B | Wire, Sensor |
| 85999M | Bracket, Relay |
| 88263A | Relay, Skid Control |
| 88266B | Clamp, Skid Control Sensor, NO.1 |
| 88266C | Clamp, Skid Control Sensor, NO.2 |
| 89245A | Sensor, Steering |
| 89246A | Disc, Sensor Steering |
| 89516B | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
