Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

23 part groups · 6 illustrations

Illustrations

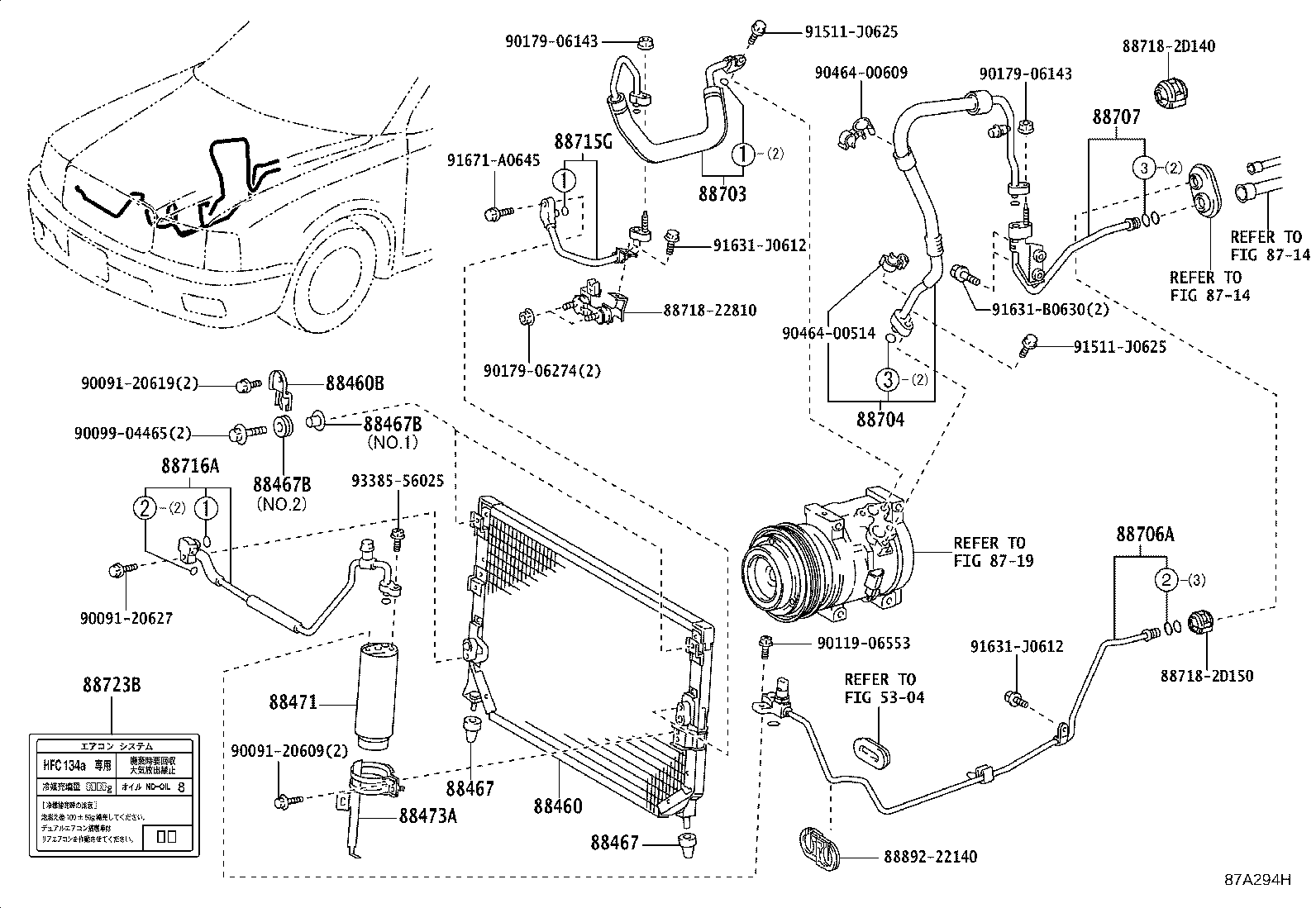

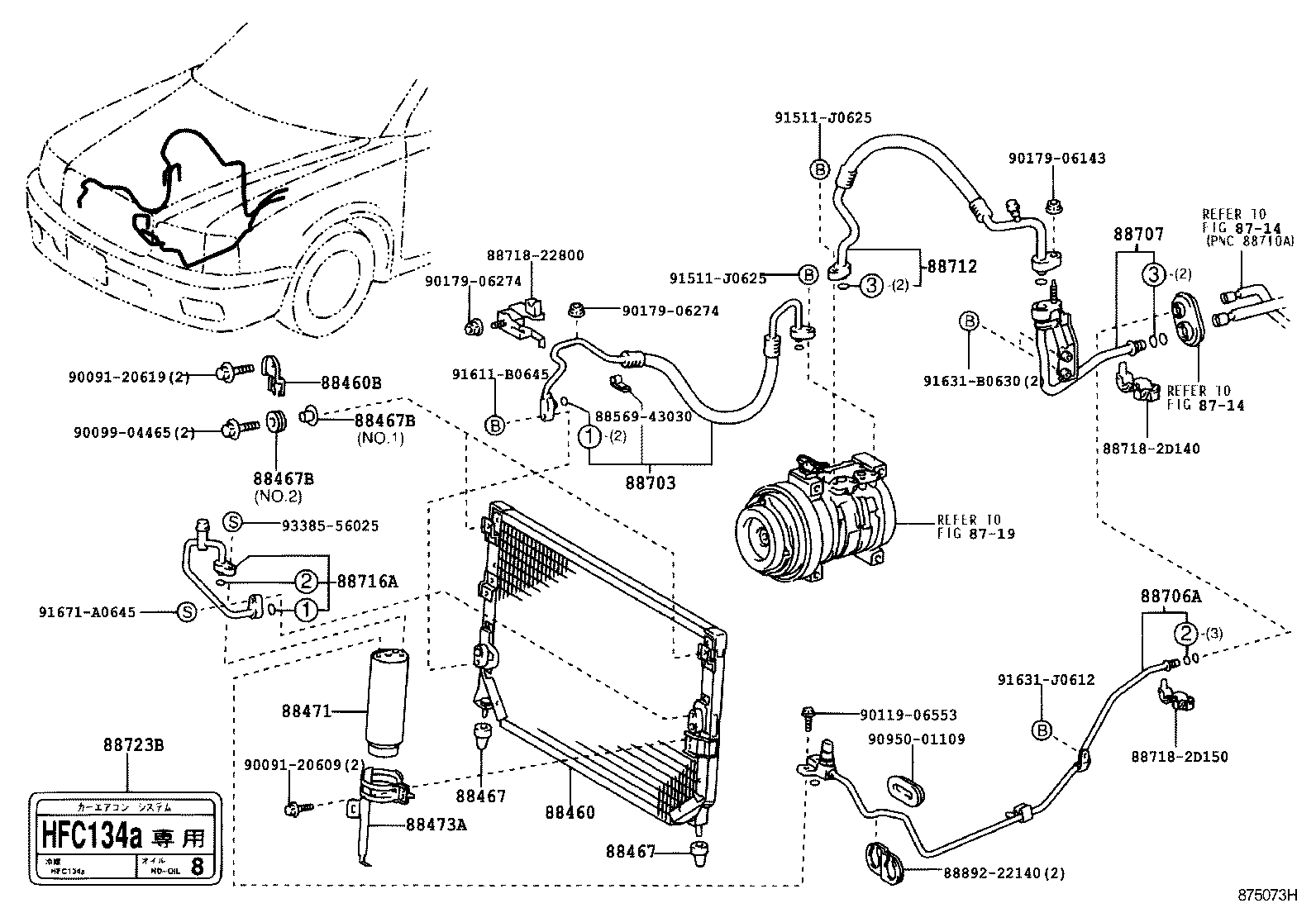

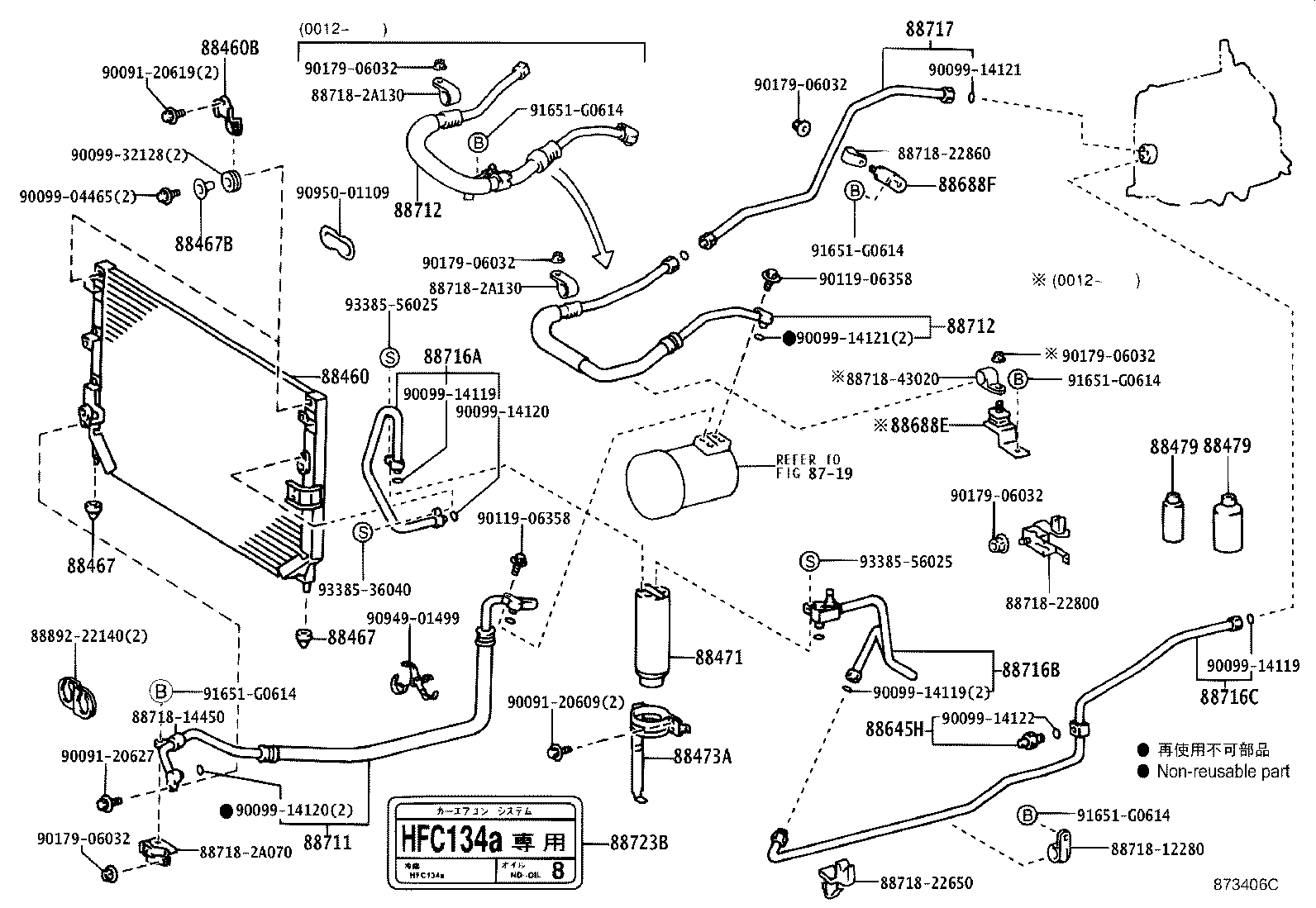

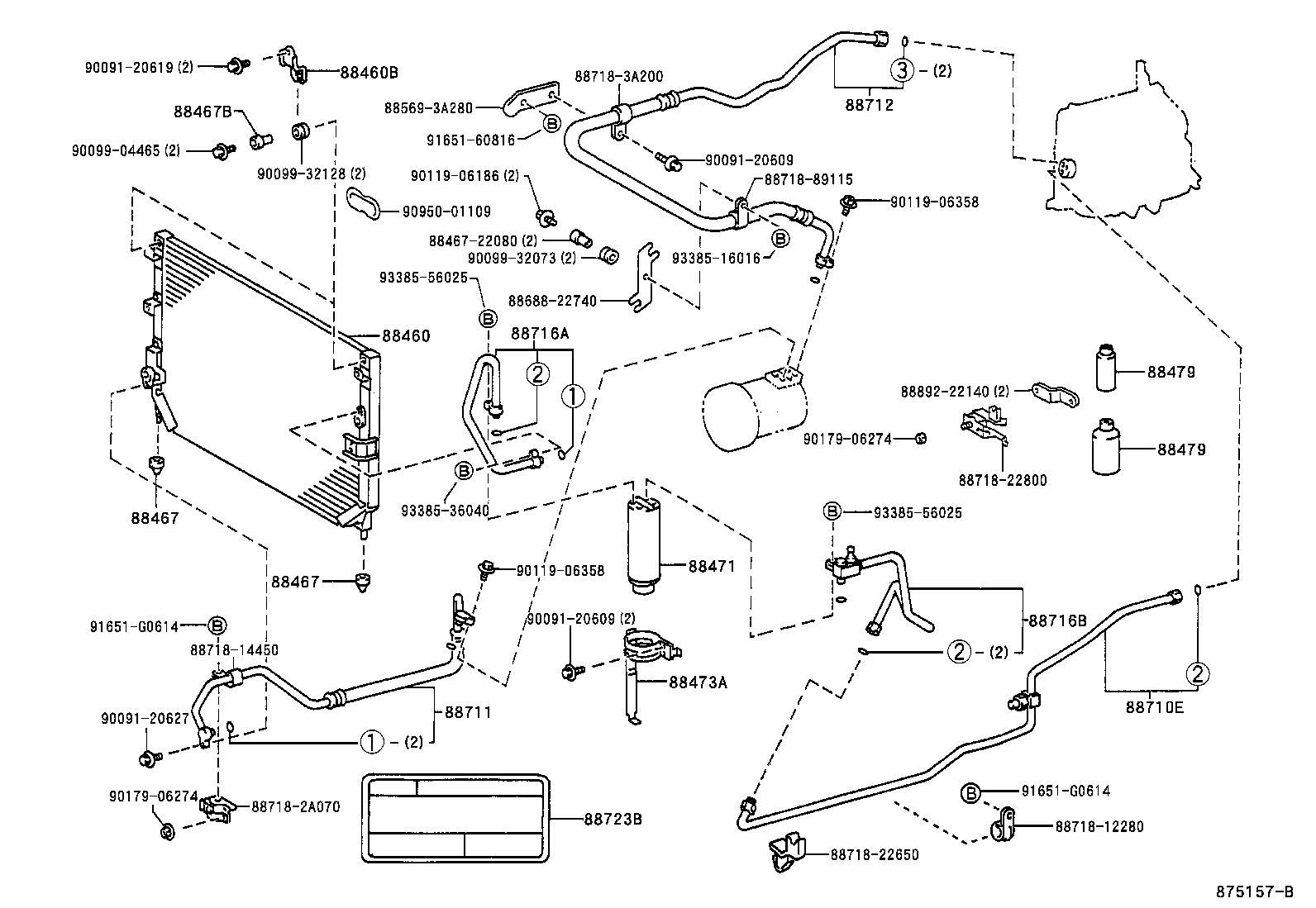

Figure 871651C 871651C 1996-01 → 2001-08 Figure 873406C 873406C 1999-08 → 2001-08 Figure 875157B 875157B 2001-08 → — Figure 875073H 875073H 2001-08 → — Figure 87A294H 87A294H 2008-08 → — Figure 874869G 874869G 1996-01 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
88467B Insulator, Cooler Condenser Mounting
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
