Toyota Comfort
2017-10 → present · chassis NTP10 · catalogue 333320 · General
Supported model
Data version 2017-10

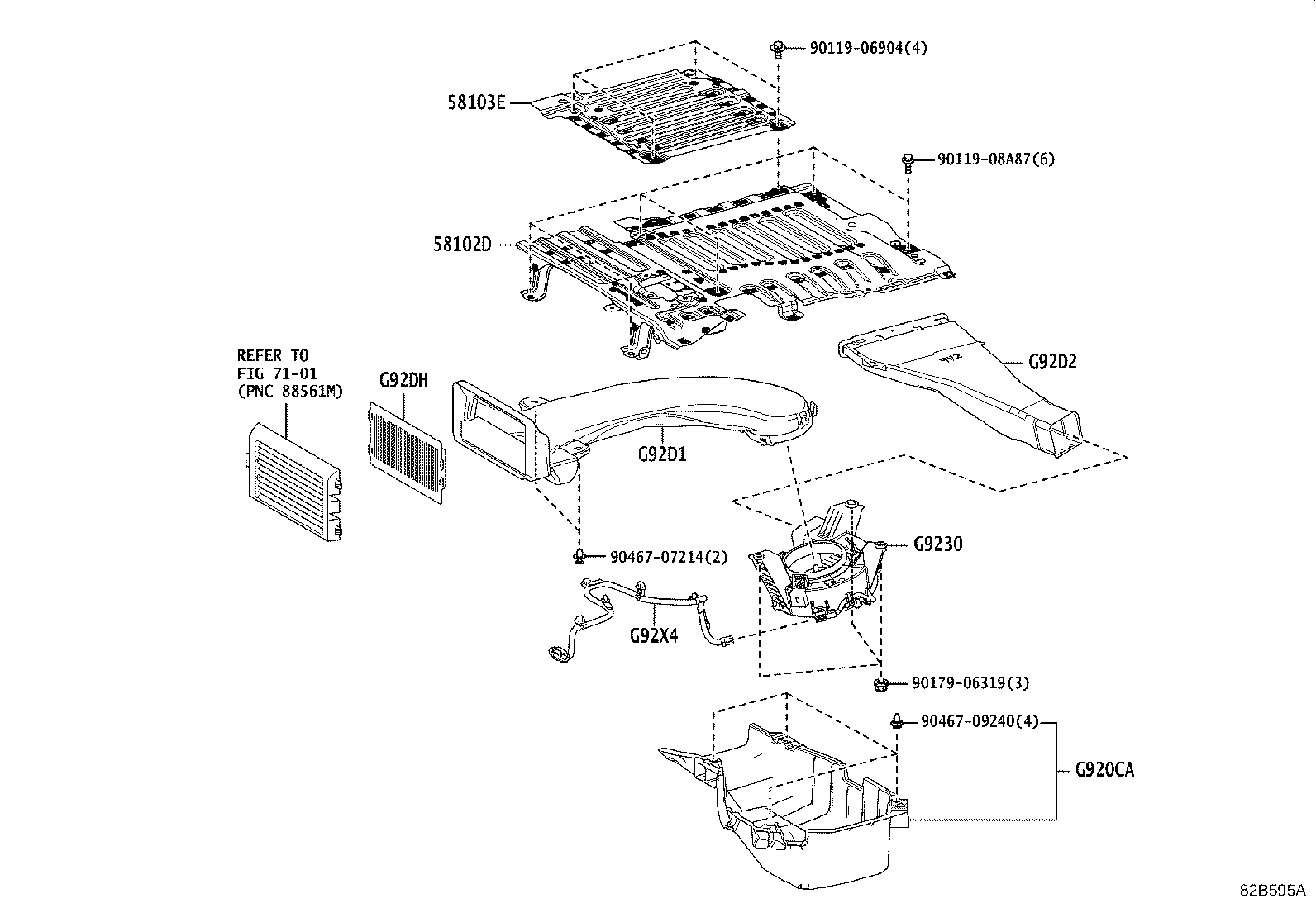

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58102D — Panel Sub-assy, Front Floor, LH | ||||
| 58102-15010 |
Panel Sub-assy, Front Floor, LH
2017-10 → —
|
NTP10 | — | |
| 58103E — Reinforcement Sub-assy, Front Floor, Front | ||||
| 58103-15020 |
Reinforcement Sub-assy, Front Floor, Front
2017-10 → —
|
NTP10 | — | |
| G920CA — Tray Sub-assy, HV Battery, NO.2 | ||||
| G920C-52010 |
Tray Sub-assy, HV Battery, NO.2
2017-10 → —
|
NTP10 | — | |
| G9230 — Blower Assy, Battery Cooling | ||||
| G9230-52030 |
Blower Assy, Battery Cooling
2017-10 → —
|
NTP10 | — | |
| G92D1 — Duct, Hybrid Battery Intake, NO.1 | ||||
| G92D1-15010 |
Duct, Hybrid Battery Intake, NO.1
2017-10 → —
|
NTP10 | — | |
| G92D2 — Duct, Hybrid Battery Intake, NO.2 | ||||
| G92D2-52010 |
Duct, Hybrid Battery Intake, NO.2
2017-10 → —
|
NTP10 | — | |
| G92DH — Filter, HV Battery Intake, NO.1 | ||||
| G92DH-15010 |
Filter, HV Battery Intake, NO.1
2017-10 → —
|
NTP10 | — | |
| G92X4 — Wire, HV Battery Pack, NO.4 | ||||
| G92X4-15010 |
Wire, HV Battery Pack, NO.4
2017-10 → —
|
NTP10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
