Toyota Comfort
2017-10 → present · chassis NTP10 · catalogue 333320 · General
Supported model
Data version 2017-10

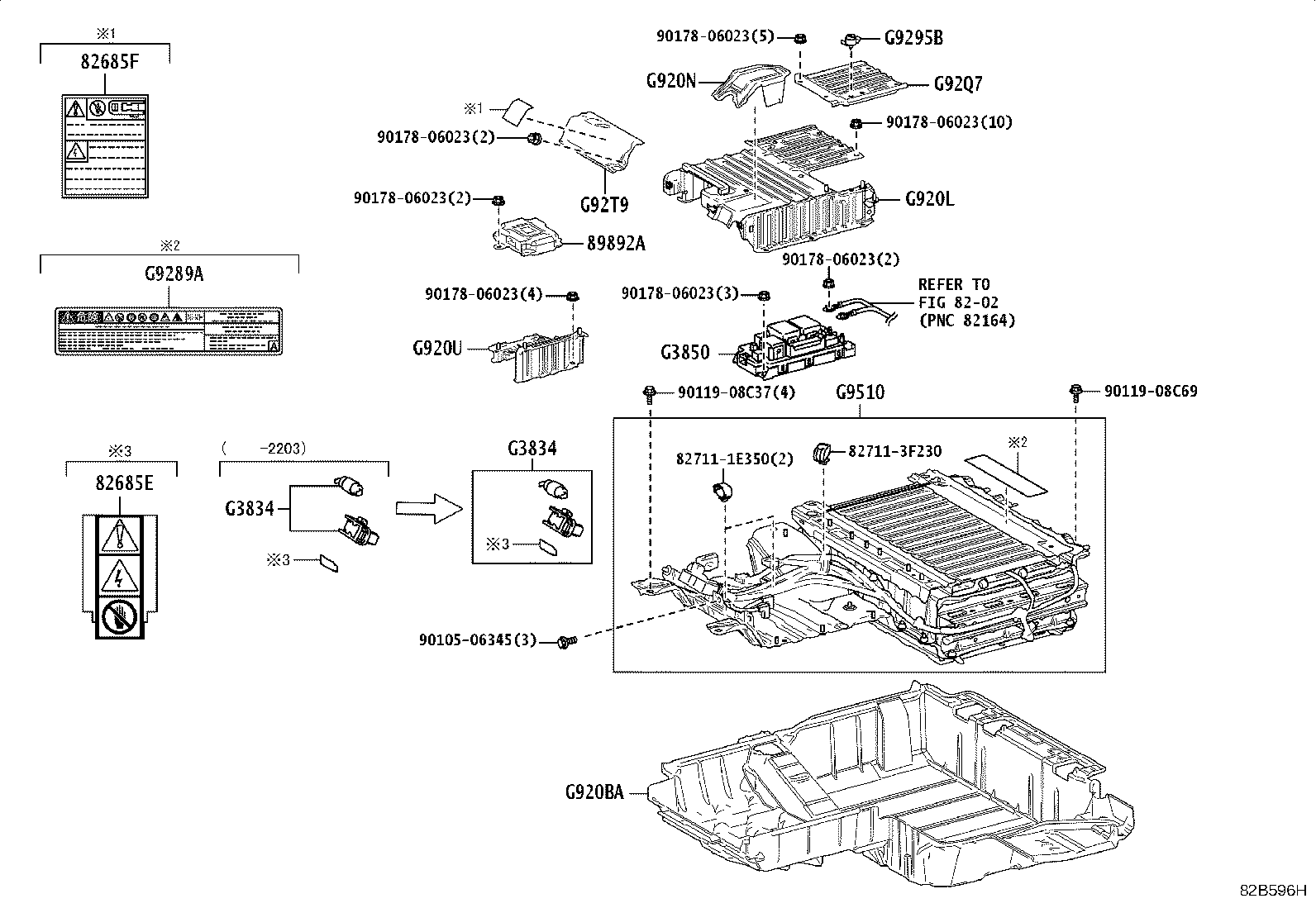

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82685E — Plate, Service Plug Caution | ||||
| 82685-76020 |
Plate, Service Plug Caution
2017-10 → 2021-03
ended
|
NTP10 | — | |
| 82685-76021 |
Plate, Service Plug Caution
2021-04 → 2022-03
ended
|
NTP10 | — | |
| 82685-76021 |
Plate, Service Plug Caution
2022-07 → —
|
NTP10 | — | |
| 82685F — Main Battery Caution Plate, NO.1 | ||||
| 82685-76010 |
Main Battery Caution Plate, NO.1
2017-10 → 2021-05
ended
|
NTP10 | — | |
| 82685-76011 |
Main Battery Caution Plate, NO.1
2021-06 → 2021-09
ended
|
NTP10 | — | |
| G9118-62011 |
Main Battery Caution Plate, NO.1
2021-10 → —
|
NTP10 | — | |
| 89892A — Sensor, Battery Voltage | ||||
| 89892-52020 |
Sensor, Battery Voltage
2017-10 → —
|
NTP10 | — | |
| G3834 — Grip, Service Plug | ||||
| G3834-48010 |
Grip, Service Plug
2017-10 → 2022-03
ended
|
NTP10 | — | |
| G9530-52010 |
Grip, Service Plug
2022-03 → —
|
NTP10 | — | |
| G3850 — Box Assy, Traction Battery Device, NO.1 | ||||
| G3850-15020 |
Box Assy, Traction Battery Device, NO.1
2017-10 → —
|
NTP10 | — | |
| G920BA — Tray Sub-assy, HV Battery, NO.1 | ||||
| G920B-52010 |
Tray Sub-assy, HV Battery, NO.1
2017-10 → —
|
NTP10 | — | |
| G920L — Cover Sub-assy, Hybrid Battery, Upper NO.1 | ||||
| G920L-52020 |
Cover Sub-assy, Hybrid Battery, Upper NO.1
2017-10 → 2017-12
ended
|
NTP10 | — | |
| G920L-52021 |
Cover Sub-assy, Hybrid Battery, Upper NO.1
2018-01 → —
|
NTP10 | — | |
| G920N — Cover Sub-assy, HV Battery, Upper NO.2 | ||||
| G92H9-52010 |
Cover Sub-assy, HV Battery, Upper NO.2
2017-10 → 2018-01
ended
|
NTP10 | — | |
| G920U — Bracket Sub-assy, HV Battery Carrier, NO.4 | ||||
| G920U-52010 |
Bracket Sub-assy, HV Battery Carrier, NO.4
2017-10 → —
|
NTP10 | — | |
| G9289A — Label, Battery Caution | ||||
| G9288-48040 |
Label, Battery Caution
2017-10 → 2023-05
ended
|
NTP10 | — | |
| G9288-48080 |
Label, Battery Caution
2023-06 → —
|
NTP10 | — | |
| G9295B — Striker, Battery Cover Lock | ||||
| G9295-30020 |
Striker, Battery Cover Lock
2017-10 → —
|
NTP10 | — | |
| G92Q7 — Panel, HV Battery Shield, NO.5 | ||||
| G92Q7-52010 |
Panel, HV Battery Shield, NO.5
2017-10 → —
|
NTP10 | — | |
| G92T9 — Cover, Hybrid Battery Service Plug | ||||
| G92T9-52020 |
Cover, Hybrid Battery Service Plug
2017-10 → —
|
NTP10 | — | |
| G9510 — Battery Assy, HV Supply | ||||
| G9510-52050 |
Battery Assy, HV Supply
2017-10 → —
|
NTP10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
