Toyota Comfort
2017-10 → present · chassis NTP10 · catalogue 333320 · General
Supported model
Data version 2017-10
Lpg OR Cng Injection System

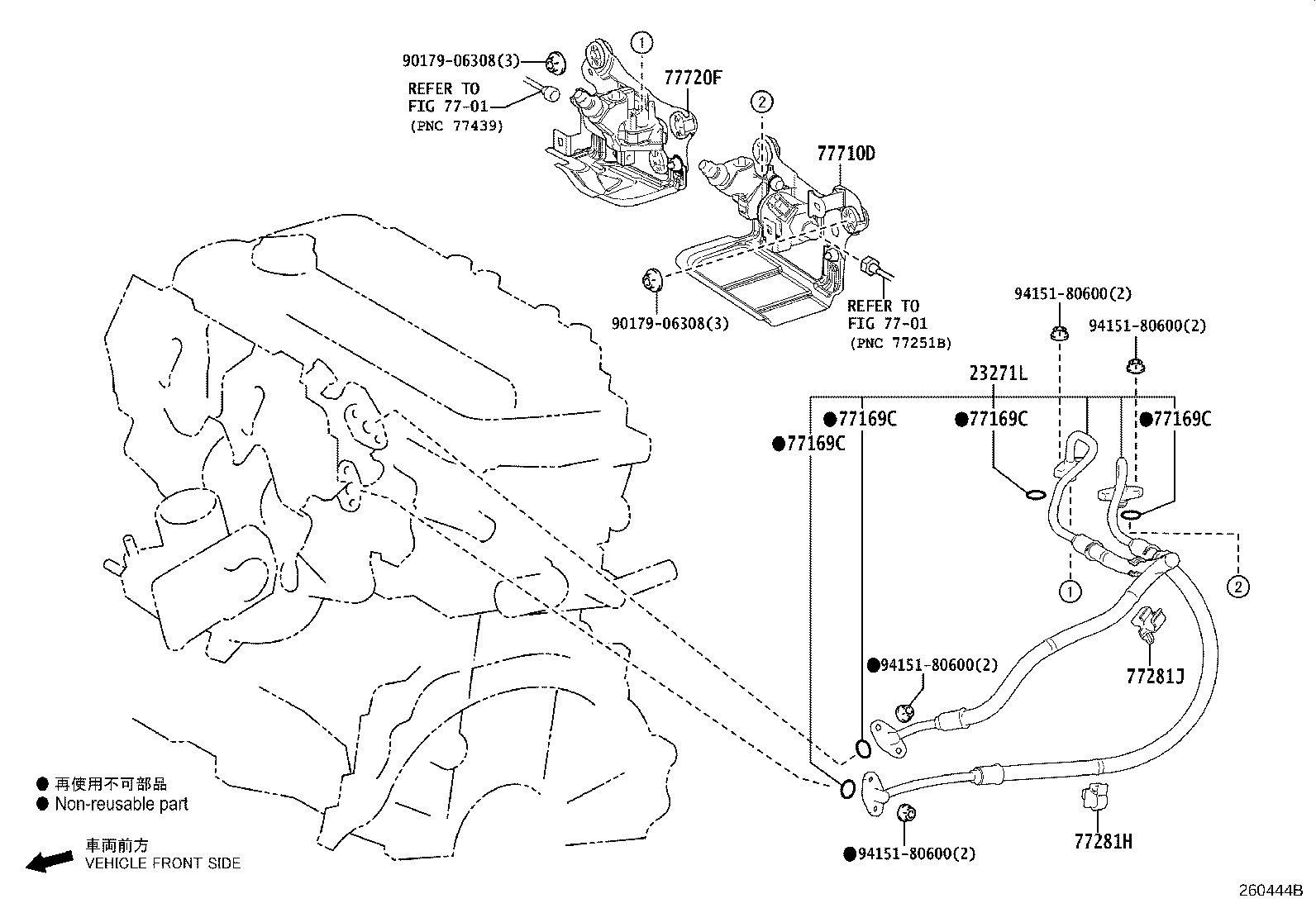

20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22030A | Body Assy, Throttle W/Throttle Position Sensor |
| 22271B | Gasket, Throttle Body |
| 23260F | Ring, O(FOR LPG OR CNG INJECTOR NO.1) |
| 23260G | Ring, O(FOR LPG OR CNG INJECTOR NO.2) |
| 23260H | Ring, O(FOR LPG OR CNG INJECTOR NO.3) |
| 23260J | Injector Assy, Lpg |
| 23261B | Cover, Injector |
| 23271L | Hose, Fuel |
| 23280L | Regulator Assy, Fuel Pressure |
| 23291B | Insulator, Injector Vibration |
| 232A0 | Insulator Assy, Fuel Injector |
| 23804E | Pipe Sub-assy, Fuel Inlet |
| 23870 | Pipe Assy, Fuel Delivery W/Lpg Injector |
| 23891A | Spacer, Fuel Delivery, NO.1 |
| 25621B | Cover(FOR FUEL DELIVERY PIPE) |
| 77169C | Gasket, Fuel Suction Tube Set |
| 77281H | Clamp, Fuel Hose, NO.1 |
| 77281J | Clamp, Fuel Hose, NO.2 |
| 77710D | Valve Assy, Fuel Solenoid Main |
| 77720F | Valve Assy, Fuel Solenoid Return |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
