Toyota Comfort

2017-10 → present · chassis NTP10 · catalogue 333320 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 2 illustrations

Illustrations

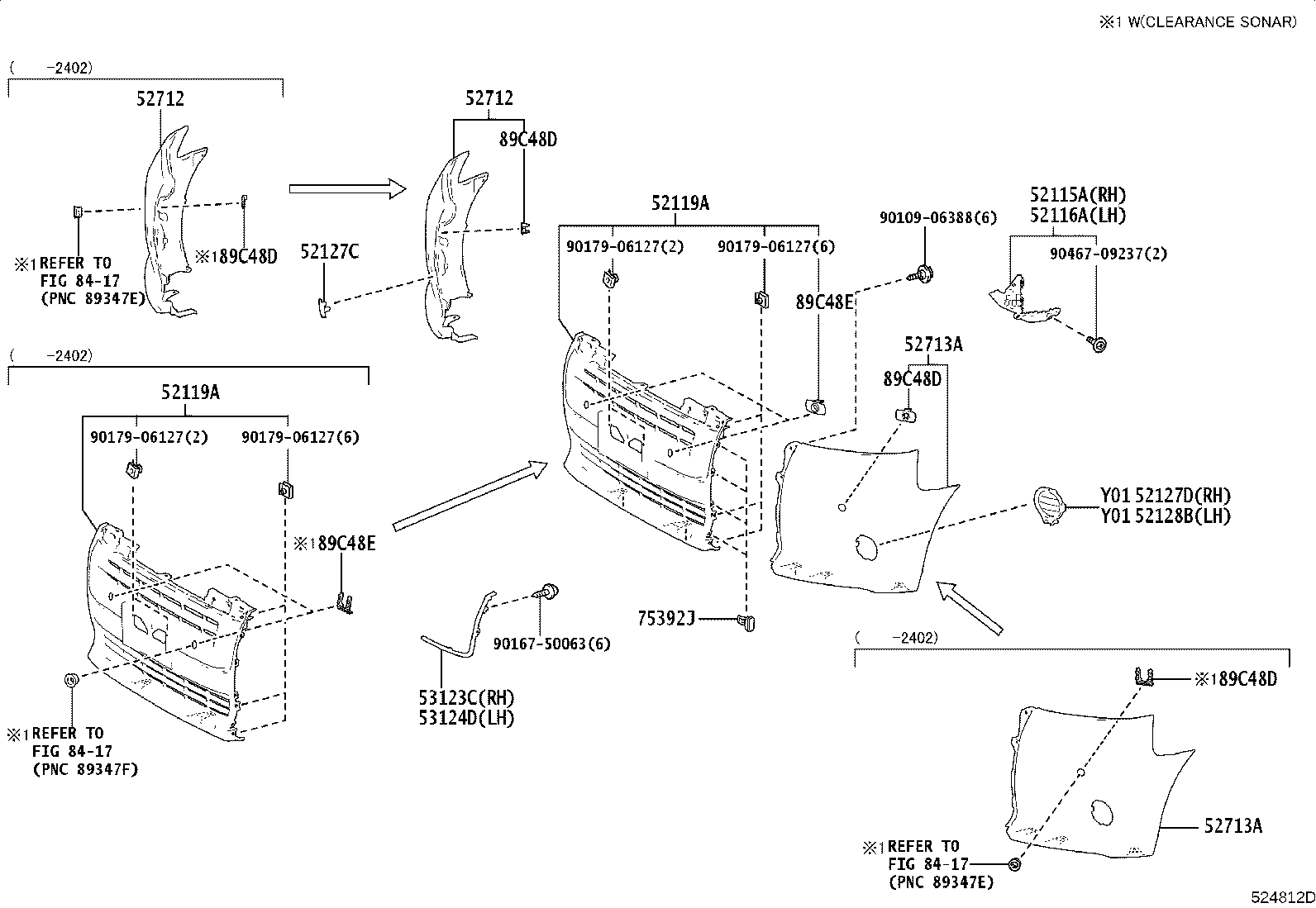

Figure 523696H 523696H 2017-10 → — Figure 524812D 524812D 2017-10 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52601 Absorber Sub-assy, Front Bumper Energy
52611 Absorber, Front Bumper Energy
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53123C Moulding, Radiator Grille, Lower RH
53124D Moulding, Radiator Grille, Lower LH
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
75392K Retainer, Outside Moulding, NO.2
76851G Grommet, Screw, NO.1
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
