Toyota Comfort

2017-10 → present · chassis NTP10 · catalogue 333320 · General

Supported model Data version 2017-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

84 part groups · 3 illustrations

Illustrations

615891A 2017-10 → —

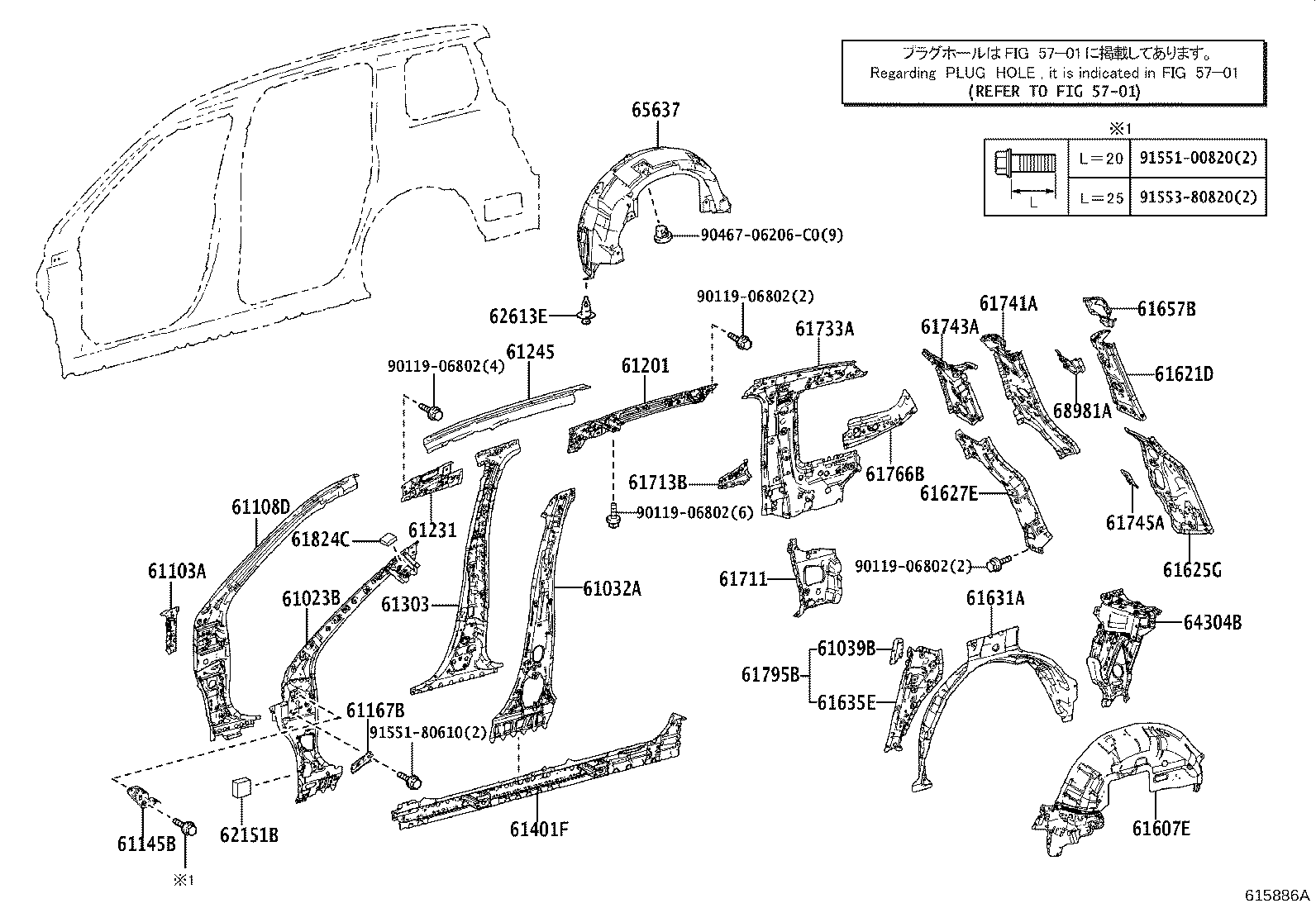

615886A 2017-10 → —

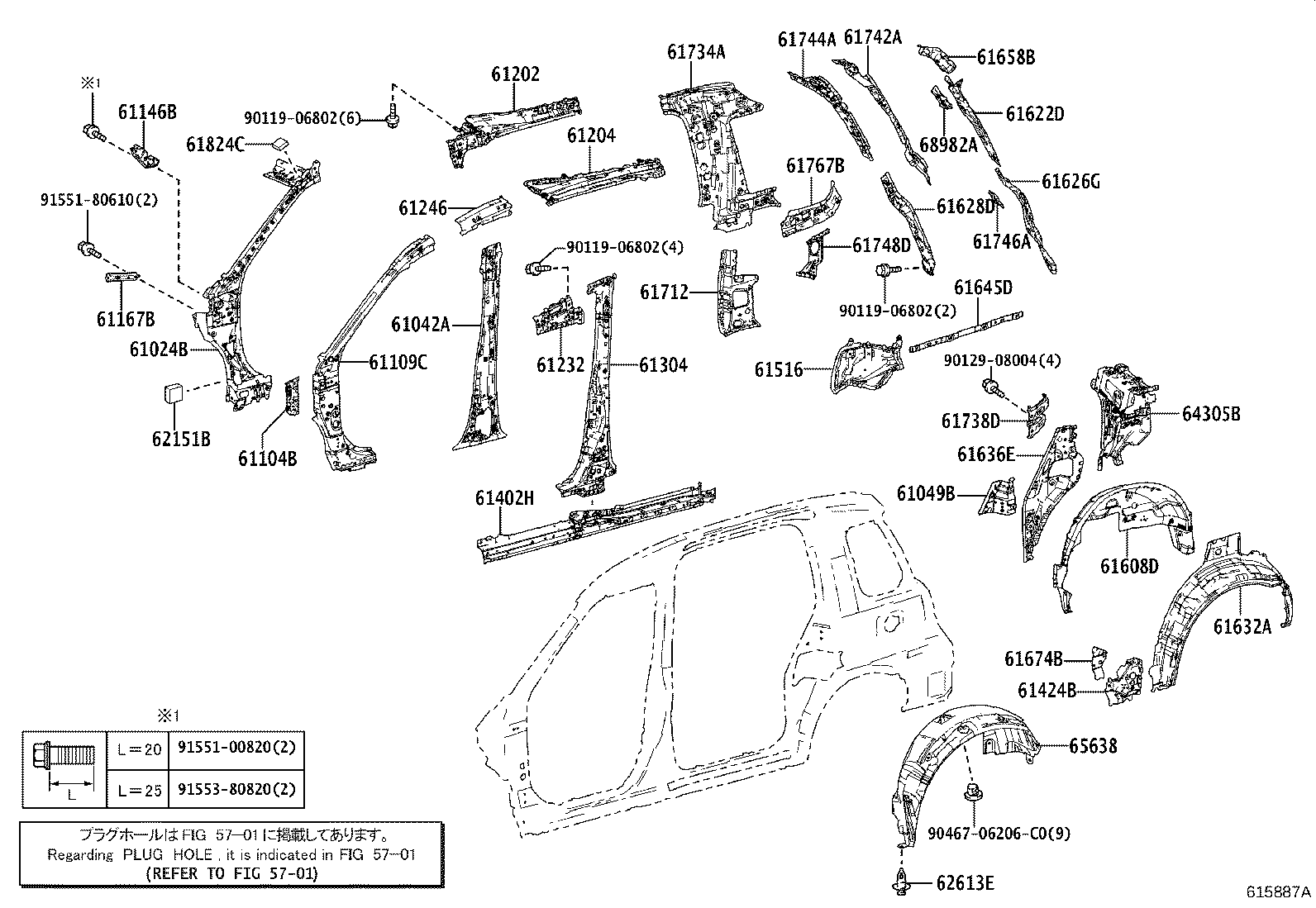

615887A 2017-10 → —

Part groups

PNC	Description
53821B	Bracket, Front Fender, Rear RH
53821F	Bracket, Front Fender, Rear NO.2 RH
53822B	Bracket, Front Fender, Rear LH
53822E	Bracket, Front Fender, Rear NO.2 LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61032A	Pillar Sub-assy, NO.1 Inner, RH
61039B	Reinforce Sub-assy, Rear Pillar, Upper RH
61042A	Pillar Sub-assy, NO.1 Inner, LH
61049B	Reinforce Sub-assy, Rear Pillar, Upper LH
61058A	Extension Sub-assy, Quarter Lock Pillar, LH
61103A	Reinforcement Sub-assy, Cowl Side, RH
61104B	Reinforcement Sub-assy, Cowl Side, LH
61108D	Reinforcement Sub-assy, Front Pillar, Lower RH
61109C	Reinforcement Sub-assy, Front Pillar, Lower LH
61131C	Pillar, Front Body, Outer RH
61132B	Pillar, Front Body, Outer LH
61145B	Gusset, Front Body Pillar, Lower RH
61146B	Gusset, Front Body Pillar, Lower LH
61167B	Brace, Front Body Pillar, Lower
61201	Rail Sub-assy, Roof Side, RH
61202	Rail Sub-assy, Roof Side, LH
61204	Rail Sub-assy, Roof Side, Inner LH
61213B	Rail, Roof Side, Outer NO.2 RH
61214B	Rail, Roof Side, Outer NO.2 LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61245	Reinforcement, Roof Side Rail, Outer RH
61246	Reinforcement, Roof Side Rail, Outer LH
61303	Reinforce Sub-assy, Center Body Pillar, Upper RH
61304	Reinforce Sub-assy, Center Body Pillar, Upper LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61401F	Reinforcement Sub-assy, Rocker Panel, RH
61402H	Reinforcement Sub-assy, Rocker Panel, LH
61424B	Reinforcement, Rocker Panel, NO.3 LH
61516	Extension, Quarter Lock Pillar, LH
61607E	Panel, Quarter Wheel House, Inner RH
61608D	Panel, Quarter Wheel House, Inner LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61625G	Extension, Quarter Panel, Rear RH
61626G	Extension, Quarter Panel, Rear LH
61627E	Extension, Quarter Panel, Rear Lower RH
61628D	Extension, Quarter Panel, Rear Lower LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61635E	Extension, Quarter Wheel House, RH
61636E	Extension, Quarter Wheel House, LH
61645D	Retainer, Quarter, Inner
61657B	Housing, Quarter Panel End, Lower RH
61658B	Housing, Quarter Panel End, Lower LH
61674B	Reinforcement, Quarter Wheel House, Inner LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61713B	Reinforce, Roof Side, Outer RH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61738D	Reinforcement, Roof Side, Inner LH
61741A	Reinforcement, Back Door Opening, Upper RH
61742A	Reinforcement, Back Door Opening, Upper LH
61743A	Reinforcement, Back Door Opening Side, RH
61744A	Reinforcement, Back Door Opening Side, LH
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61748D	Reinforcement, Roof Side, Inner Rear LH
61766B	Reinforcement, Belt Anchor TO Roof Side, Inner RH
61767B	Reinforcement, Belt Anchor TO Roof Side, Inner LH
61795B	Extension, Quarter Wheel House, RH
61824C	Pad, Noise Shutter, NO.1
62151B	Pad, Cowl Side Silencer
62613E	Clip (FOR QUARTER WHEEL HOUSE COVER)
64304B	Reinforce Sub-assy, Package Tray Bracket, RH
64305B	Reinforce Sub-assy, Package Tray Bracket, LH
65637	Liner, Rear Wheel House, RH
65638	Liner, Rear Wheel House, LH
65853A	Spacer, Slide Door Center Rail Cover, NO.1
65853B	Spacer, Slide Door Center Rail Cover, NO.2
68346	Cover, Slide Door Center Rail, LH
68981A	Retainer, Back Door Stay, RH
68982A	Retainer, Back Door Stay, LH
75396H	Clip, Outside Moulding, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
