Toyota Comfort
2017-10 → present · chassis NTP10 · catalogue 333320 · General
Supported model
Data version 2017-10

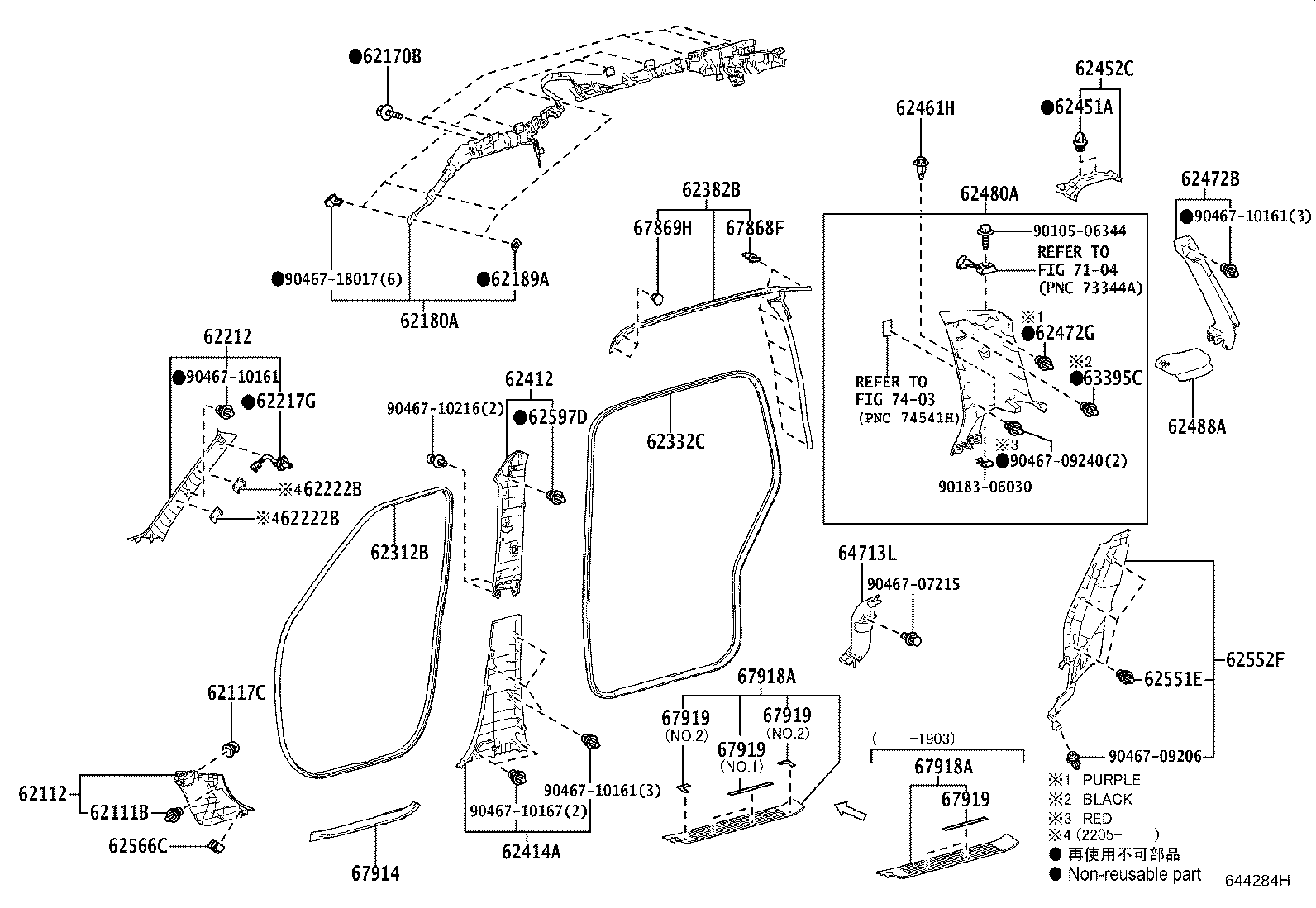

Inside Trim Board & Door Opening Trim Moulding
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62189A | Spacer, Curtain Shield Airbag Clip |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62222B | Cover, Front Pillar Garnish, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62382B | Weatherstrip, Roof Side Rail, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62451A | Clip, Side Garnish |
| 62451C | Garnish, Roof Side Rail, Rear RH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472B | Cover, Rear Pillar, LH |
| 62472G | Clip (FOR ROOF SIDE GARNISH) |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62487A | Cover, Roof Side Inner Garnish, RH |
| 62488A | Cover, Roof Side Inner Garnish, LH |
| 62551E | Clip(FOR REAR SEAT SIDE GARNISH) |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62566C | Clamp, Cowl Side Trim |
| 62597D | Clip |
| 63395C | Clip(FOR ROOF SIDE INNER GARNISH) |
| 64713L | Cover, Deck Side Trim, Front LH |
| 67868F | Retainer, Door Weatherstrip, LH |
| 67869H | Clip, Roof Side Rail Weatherstrip |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67919 | Ornament, Door Scuff |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
