Toyota Comfort

2017-10 → present · chassis NTP10 · catalogue 333320 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

18 part groups · 2 illustrations

Illustrations

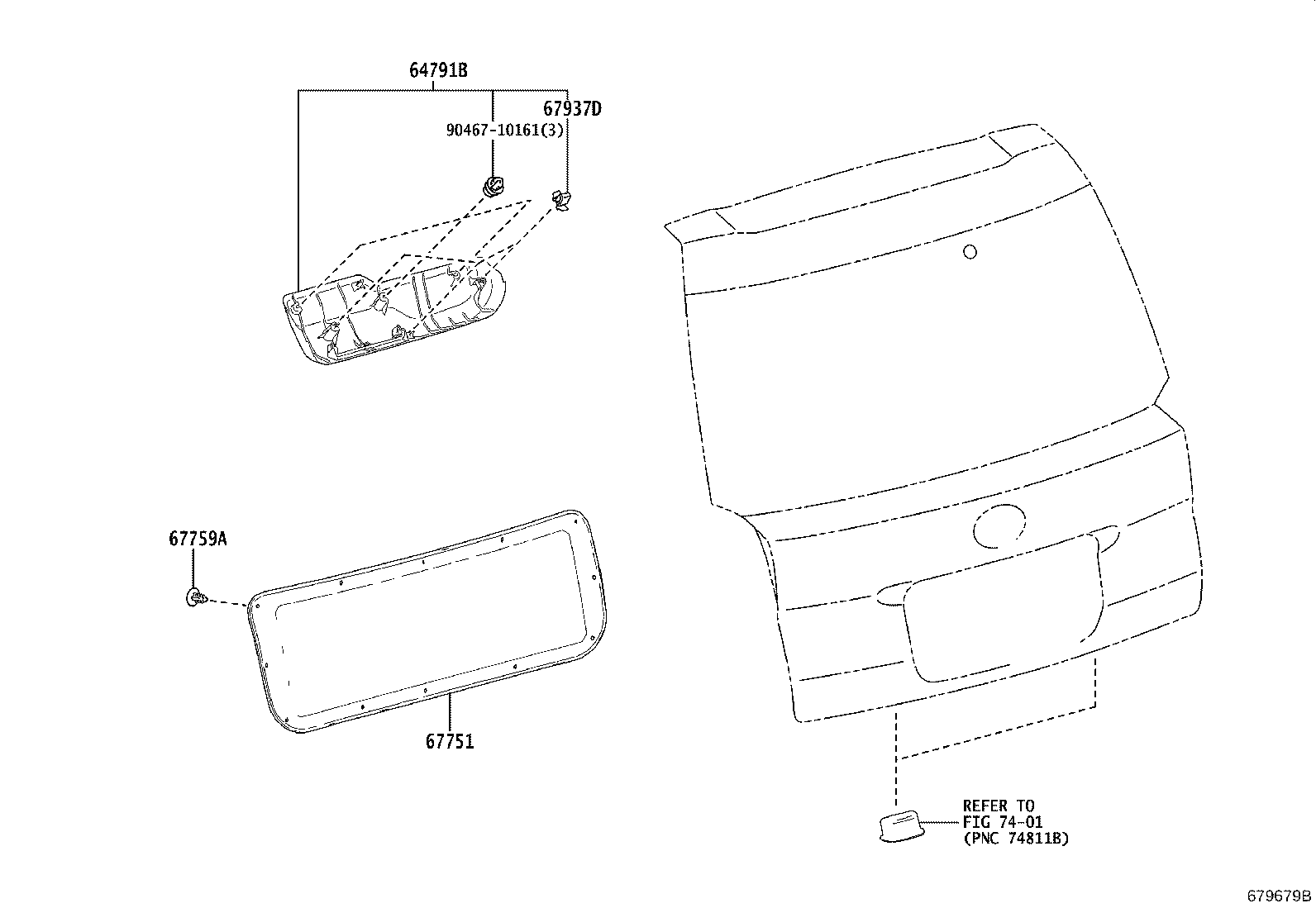

Figure 679678E 679678E 2017-10 → — Figure 679679B 679679B 2017-10 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64791B Cover, Back Door Trim
64818B Spacer, Back Door Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
64885A Channel, Back Window Glass, RH
64886 Channel, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67281B Stopper, Back Door, Lower
67293A Cushion, Back Door Stopper
67751 Board, Back Door Trim
67759A Clip(FOR BACK DOOR TRIM BOARD)
67881A Weatherstrip, Back Door
67937D Retainer, Door Trim
68131 Glass, Back Door
75129C Cushion, Rear Licence Plate
75573G Moulding, Back Window, Outside RH NO.1
75574C Moulding, Back Window, Outside LH NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
