Toyota Comfort
2017-10 → present · chassis NTP10 · catalogue 333320 · General
Supported model
Data version 2017-10

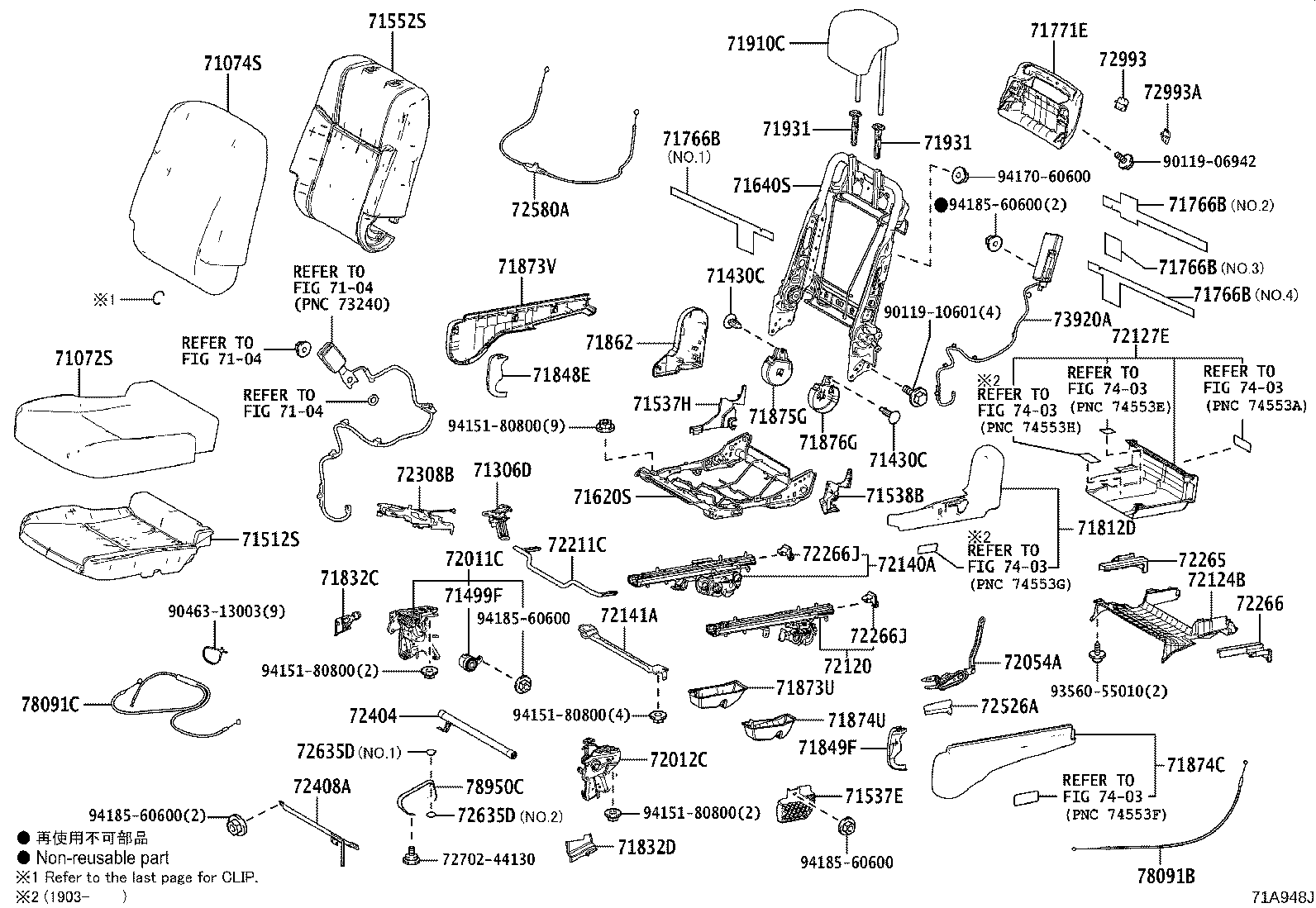

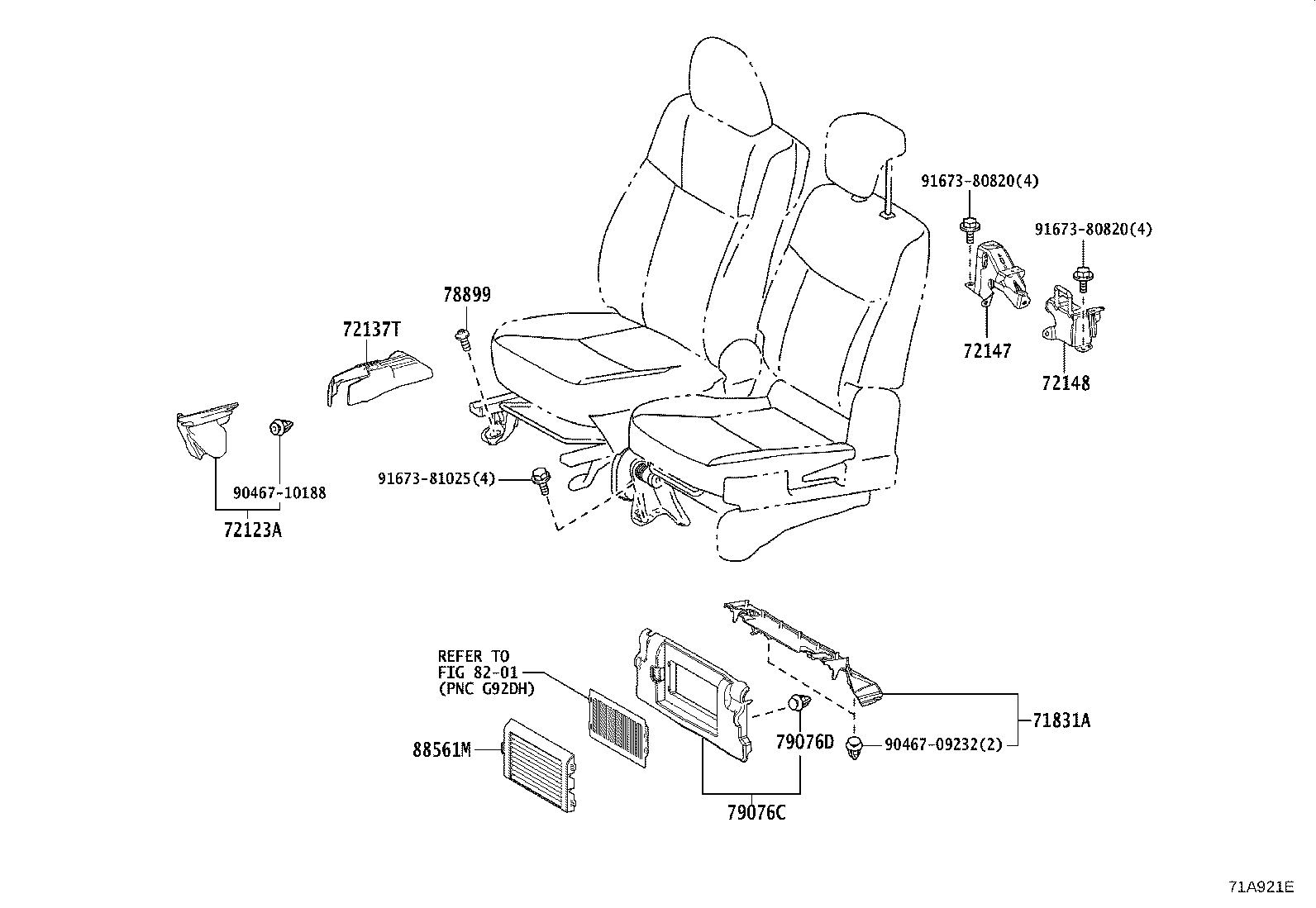

Front Seat & Seat Track
97 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71306D | Bracket Sub-assy, Front Seat Set |
| 71430C | Clip |
| 71499F | Damper, Seatback Spring, LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537E | Protector, Front Seat Cushion, NO.1 |
| 71537H | Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) |
| 71538A | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538B | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630 | Spring Assy, Front Seatback, RH |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71739A | Bezel, Front Seatback |
| 71766B | Protector, Front Seatback, LH |
| 71771A | Board, Front Seatback |
| 71771E | Board, Front Seatback, LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831A | Cover, Front Seat Hinge |
| 71832C | Cover, Front LH Seat Hinge |
| 71832D | Cover, Front Seat Hinge, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71848D | Cap, Seat Adjuster Cover, RH(FOR RH SEAT) |
| 71848E | Cap, Seat Adjuster Cover, RH(FOR LH SEAT) |
| 71849F | Cap, Seat Adjuster Cover, LH(FOR LH SEAT) |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71873U | Shield, Front Seat Cushion, Lower RH |
| 71873V | Shield, Front Seat Cushion, Lower RH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71874C | Shield, Front Seat Cushion, Lower |
| 71874U | Shield, Front Seat Cushion, Lower LH |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71910C | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71935 | Clip |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72011C | Adjuster Sub-assy, Front Seat, RH |
| 72012C | Adjuster Sub-assy, Front Seat, LH |
| 72054A | Lever Sub-assy, Reclining Remote Control, LH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124B | Plate, Inner Seat Track Lock, LH |
| 72127E | Cover, Seat Track Bracket, Inner Front |
| 72129 | Protector, Seat Track Lower Rail, NO.1 |
| 72129A | Protector, Seat Track Lower Rail, NO.2 |
| 72137T | Cover, Seat Track Bracket, Outer Rear RH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72141A | Bracket, Seat Track, Lower FR |
| 72147 | Bracket, Front Inner Seat Track, Lower Rear RH |
| 72148 | Bracket, Front Inner Seat Track, Lower Rear LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72265E | Cover, Seat Track Upper Rail, RH |
| 72265M | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72266C | Cover, Seat Track Upper Rail, LH |
| 72266J | Cover, Seat Track Upper Rail, LH |
| 72308B | Cam Sub-assy, Reclining Adjuster |
| 72404 | Link Sub-assy, Vertical Seat |
| 72408A | Shaft Sub-assy, Reclining Adjuster, LH |
| 72429 | Plate, Front Seat Adjuster, RH |
| 72494 | Handle, Vertical Adjusting, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72580A | Cable Assy, Reclining Adjusting, LH |
| 72635D | Hook, Seatback Lock |
| 72791 | Lever, Lumbar Support |
| 72993 | Cover, Front Seatback |
| 72993A | Cover, Front Seatback |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 73949 | Cap |
| 78060A | Table Assy, Front Seatback, RH |
| 78091B | Cable Sub-assy, Fold Seat Lock Control |
| 78091C | Cable Sub-assy, Fold Seat Lock Control |
| 78899 | Bolt, Front Seat |
| 78950C | Band Assy, Fold Seat Stopper |
| 79076C | Cover Sub-assy, Front Seat Leg |
| 79076D | Clip, Seat Leg Cover |
| 79977A | Felt, Seatback |
| 79977G | Felt, Front Seatback, RH |
| 88561M | Grille, Air Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
