Toyota Comfort

2017-10 → present · chassis NTP10 · catalogue 333320 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

29 part groups · 3 illustrations

Illustrations

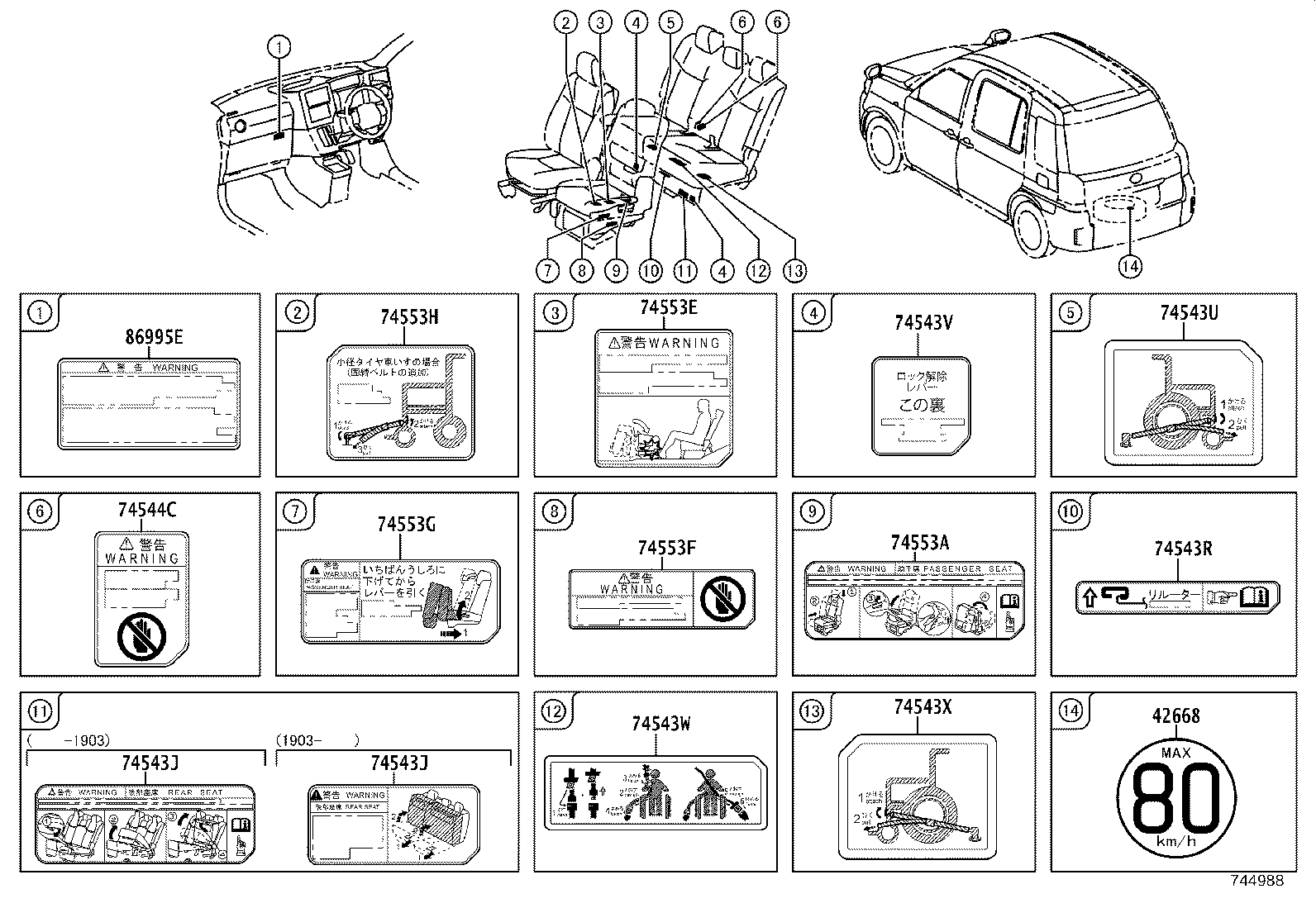

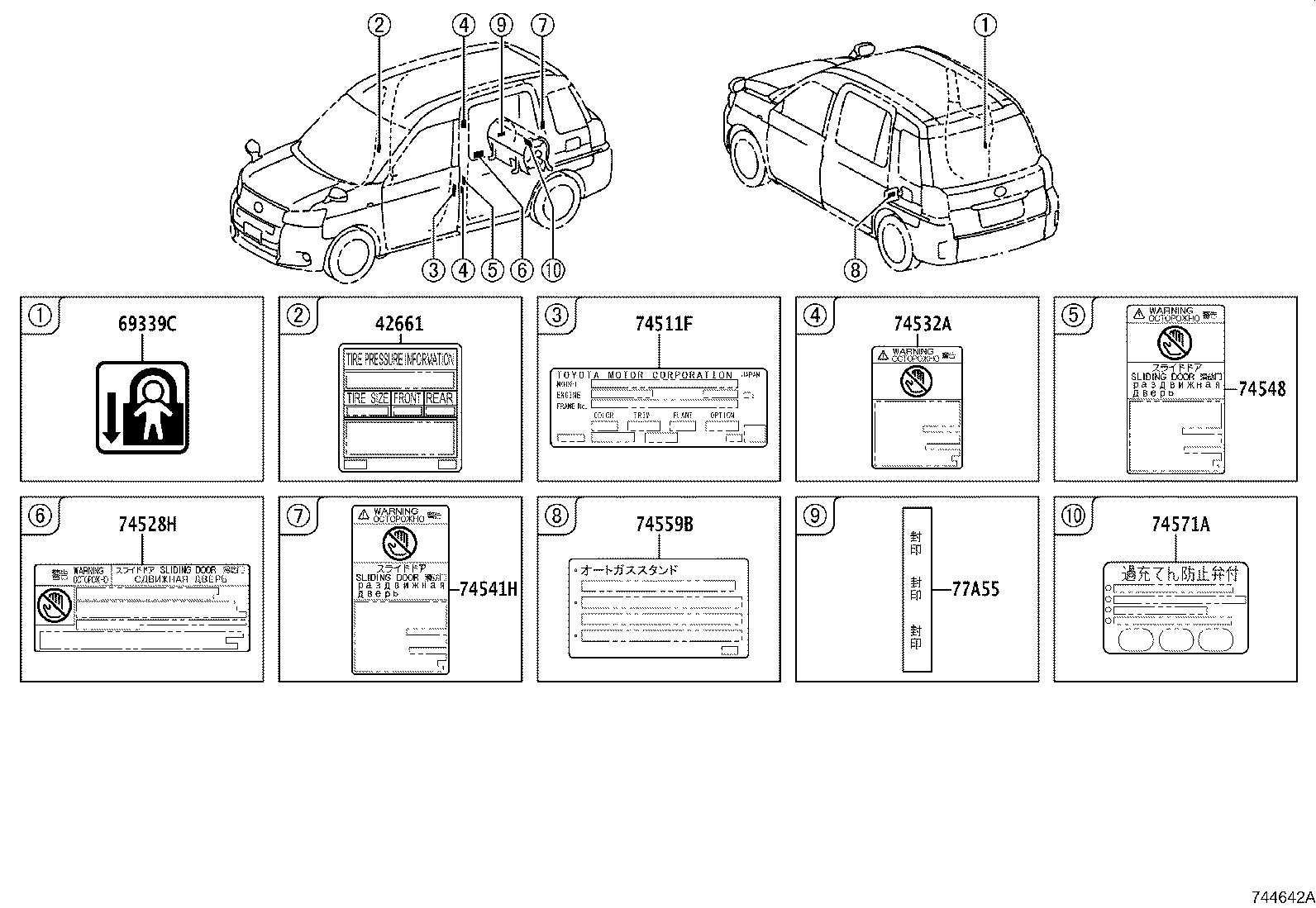

Figure 744641 744641 2017-10 → — Figure 744642A 744642A 2017-10 → — Figure 744988 744988 2017-10 → —

Part groups

PNCDescription
11293D Label, Engine Caution
16793B Label, Cooling Fan Information
42661 Label, Tire Pressure Information
42668 Label, Compact Spare Tire Caution
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74518 Plate, Maintenance Caution
74528H Label, Power Slide Door Caution
74532A Plate, Caution
74541H Plate, Body Caution
74543J Label, Rear Seat Caution
74543R Label, Rear Seat Caution
74543U Label, Rear Seat Information, NO.1
74543V Label, Rear Seat Information, NO.2
74543W Label, Rear Seat Information, NO.3
74543X Label, Rear Seat Information, NO.4
74544C Plate, Rear Seat Caution
74548 Plate, Body Caution
74553A Plate, Front Seat Caution
74553E Label, Front Seat Caution
74553F Label, Front Seat Caution
74553G Label, Front Seat Information, NO.1
74553H Label, Front Seat Information, NO.2
74559B Label, Fuel Information
74571A Film, Label Cover
77A55 Label, Certification Mark Information
86995E Label, Caution
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
