Toyota Comfort
2017-10 → present · chassis NTP10 · catalogue 333320 · General
Supported model
Data version 2017-10
Wiring & Clamp
45 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82114 | Wire, Engine Room, NO.4 |

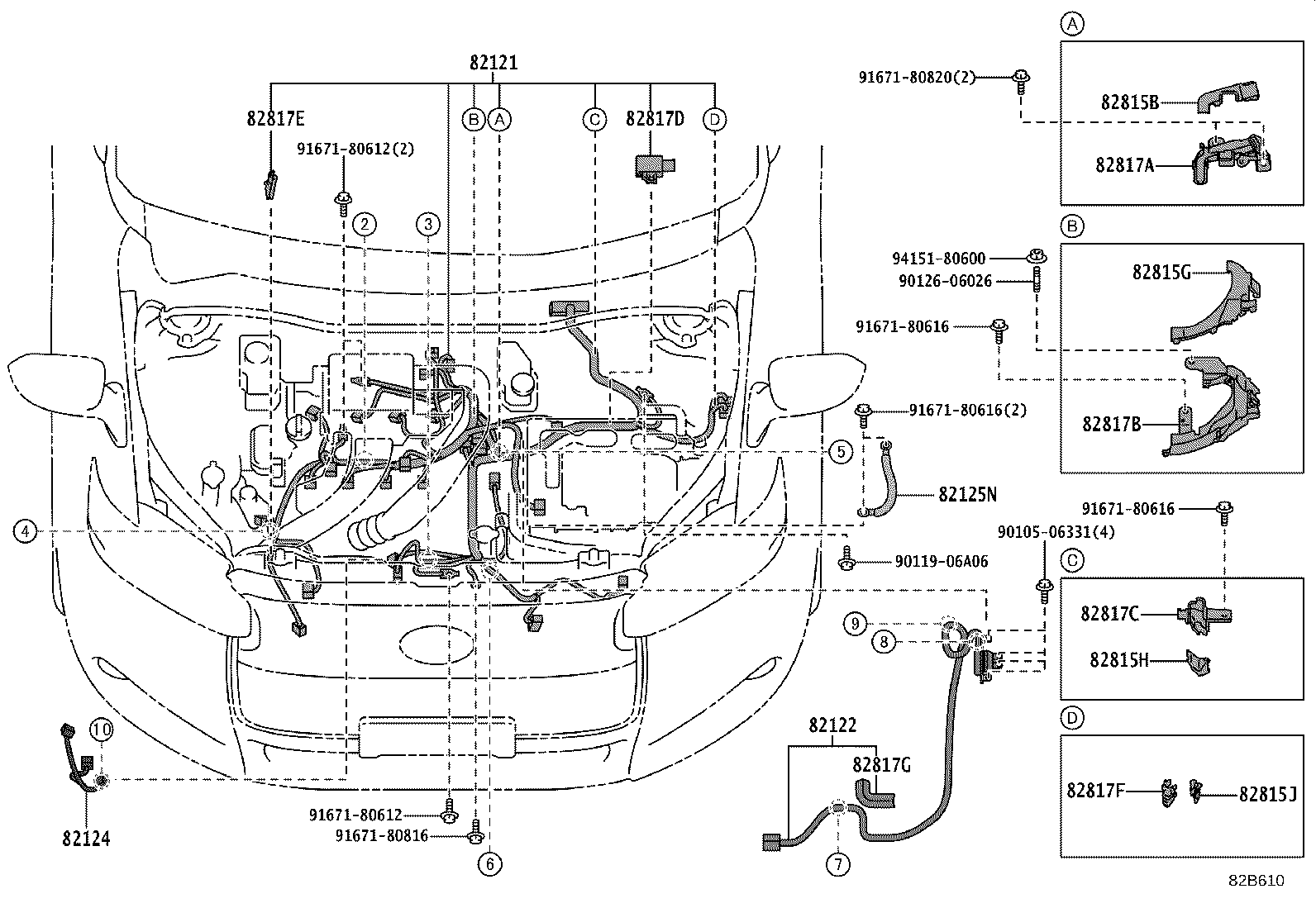

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82124 | Wire, Engine, NO.4 |
| 82125N | Wire, Engine, NO.5 |

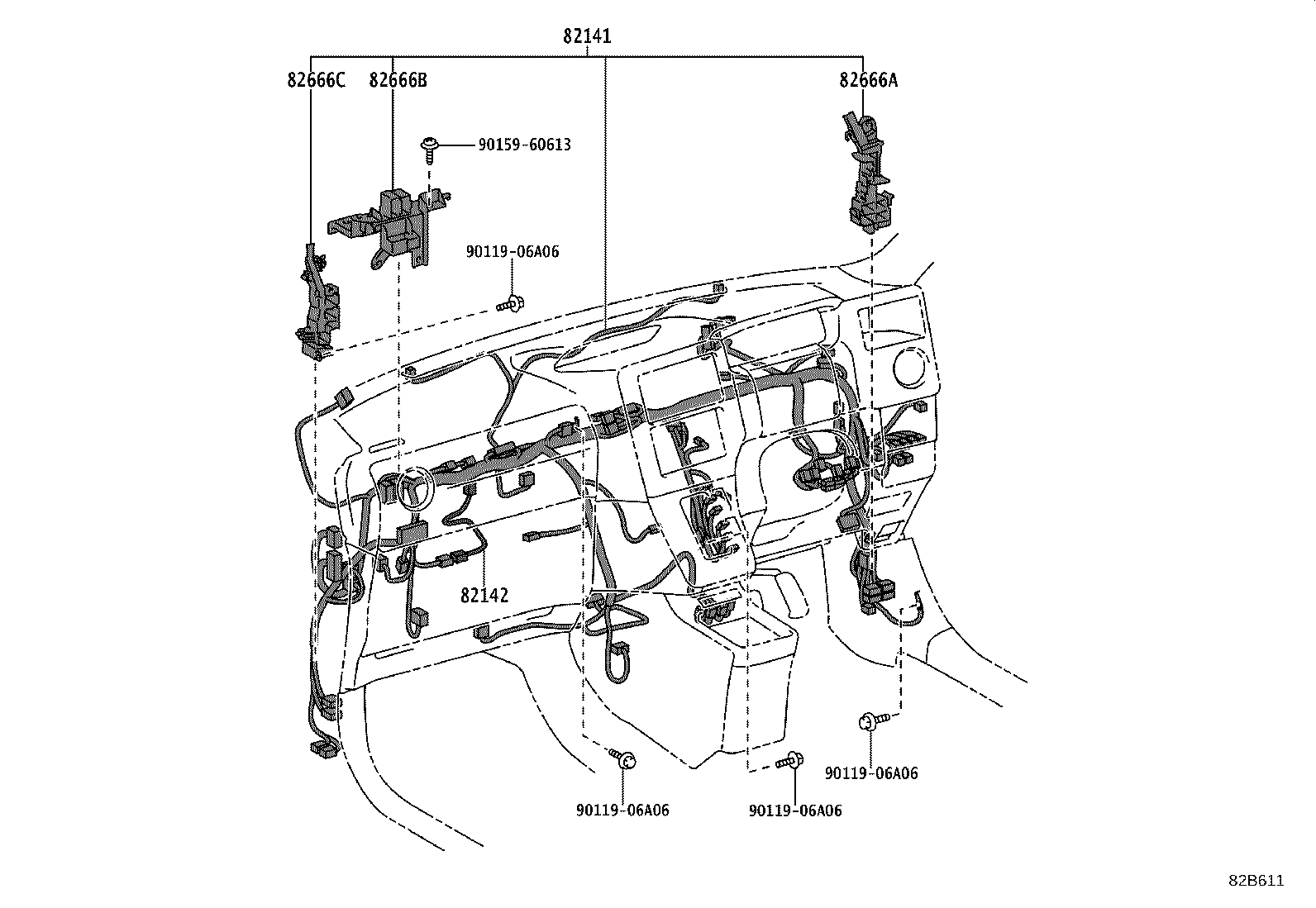

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |

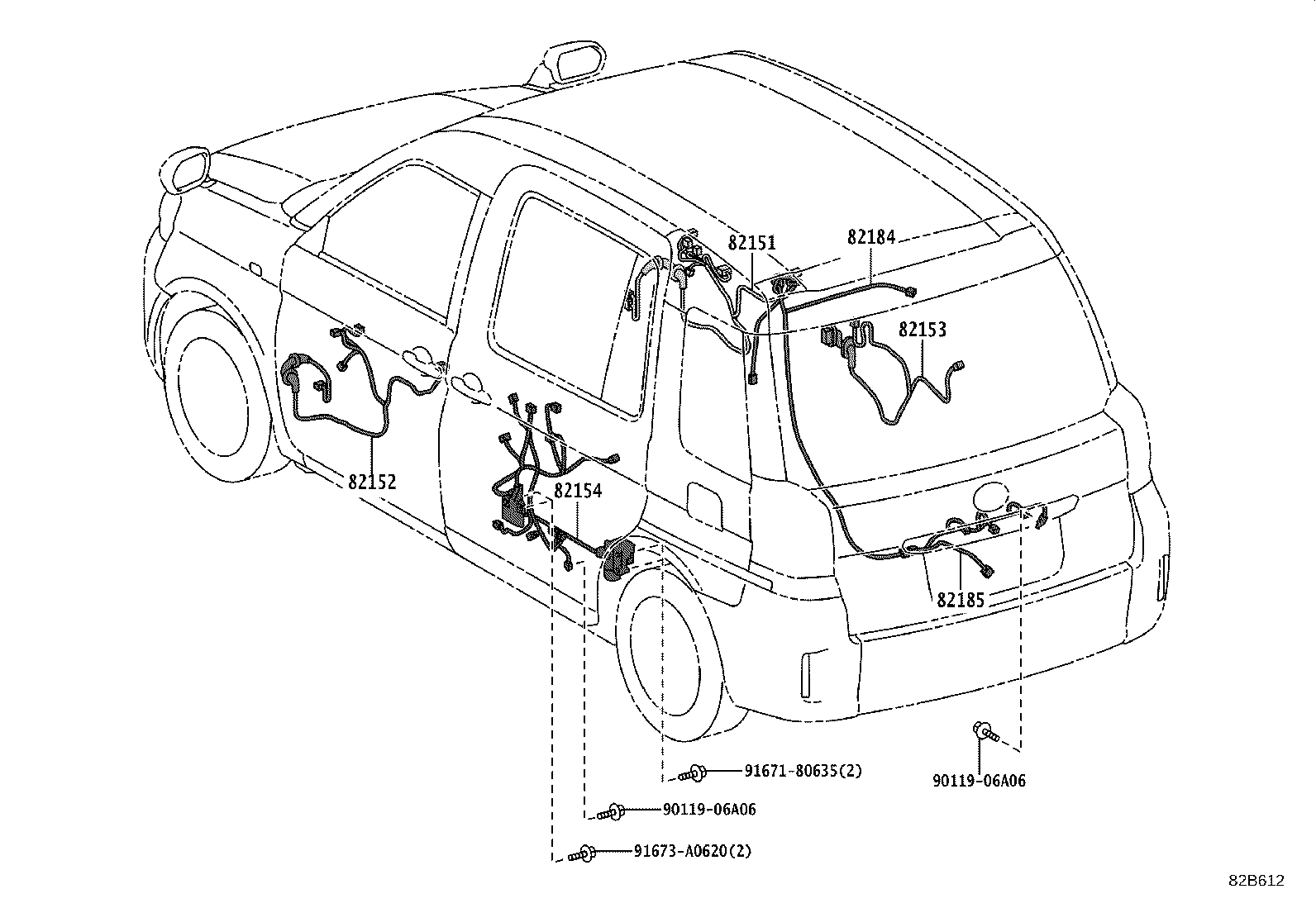

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |

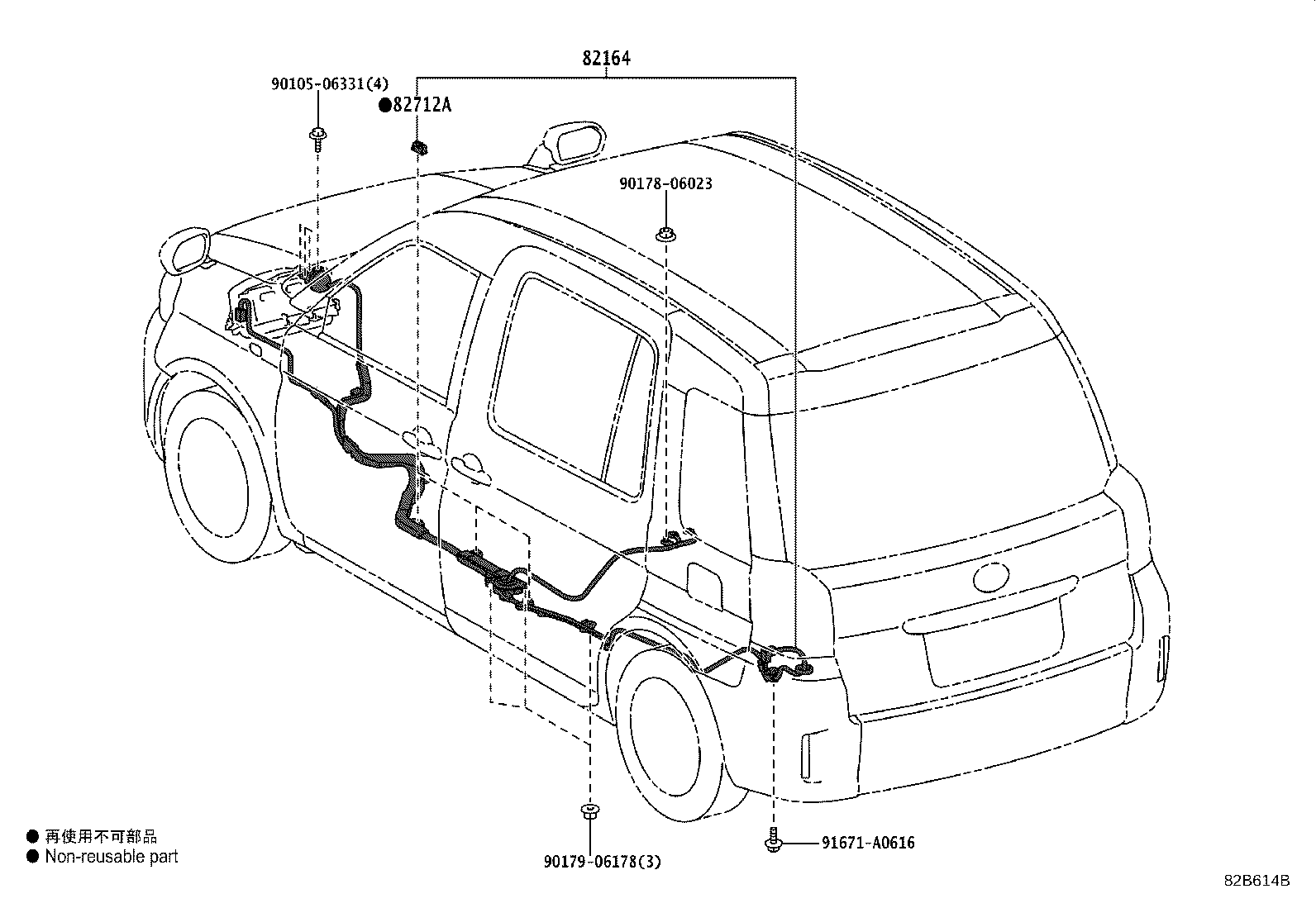

| 82164 | Wire, Frame |

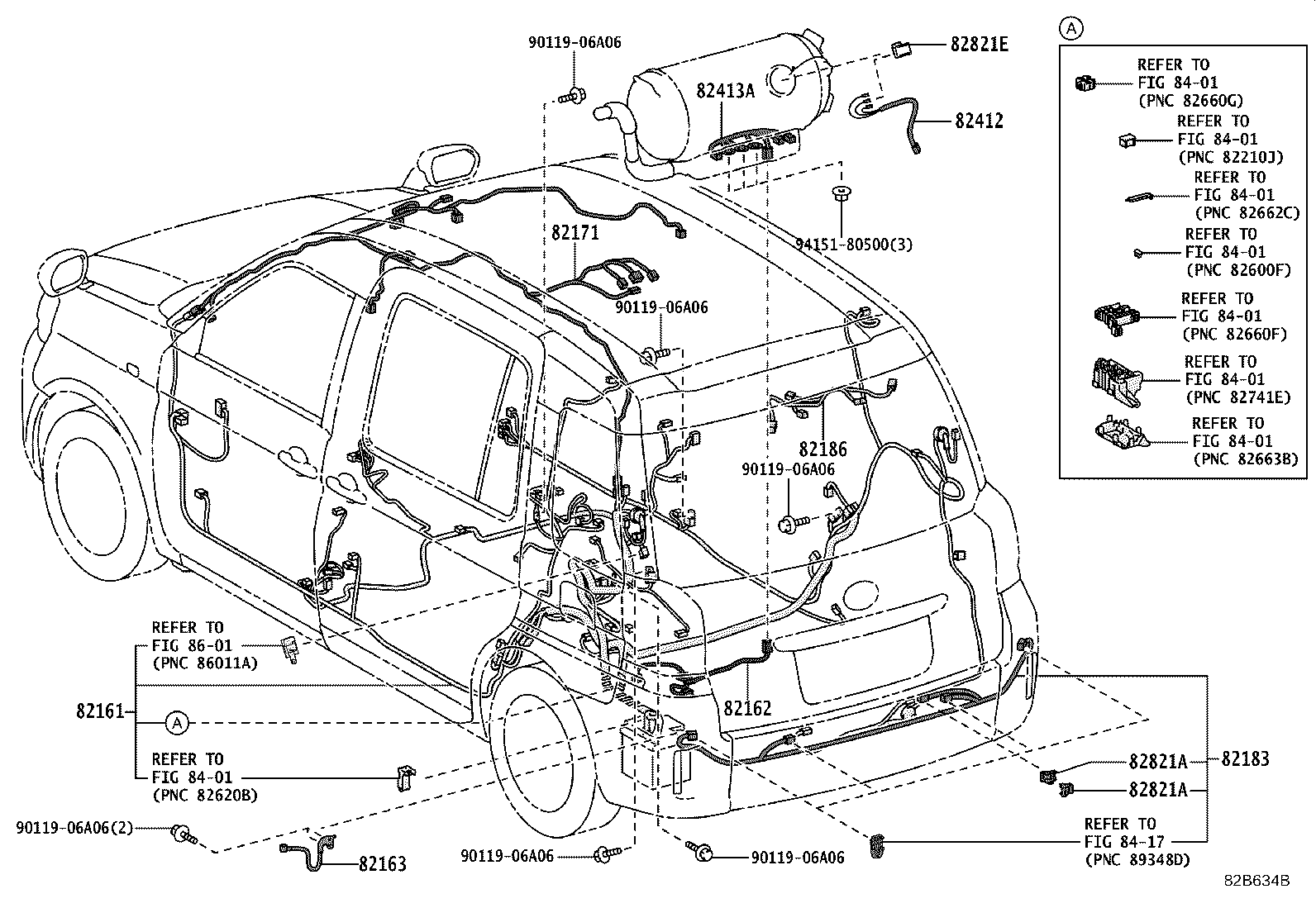

| 82171 | Wire, Roof, NO.1 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82186 | Wire, Rear Window, NO.1 |

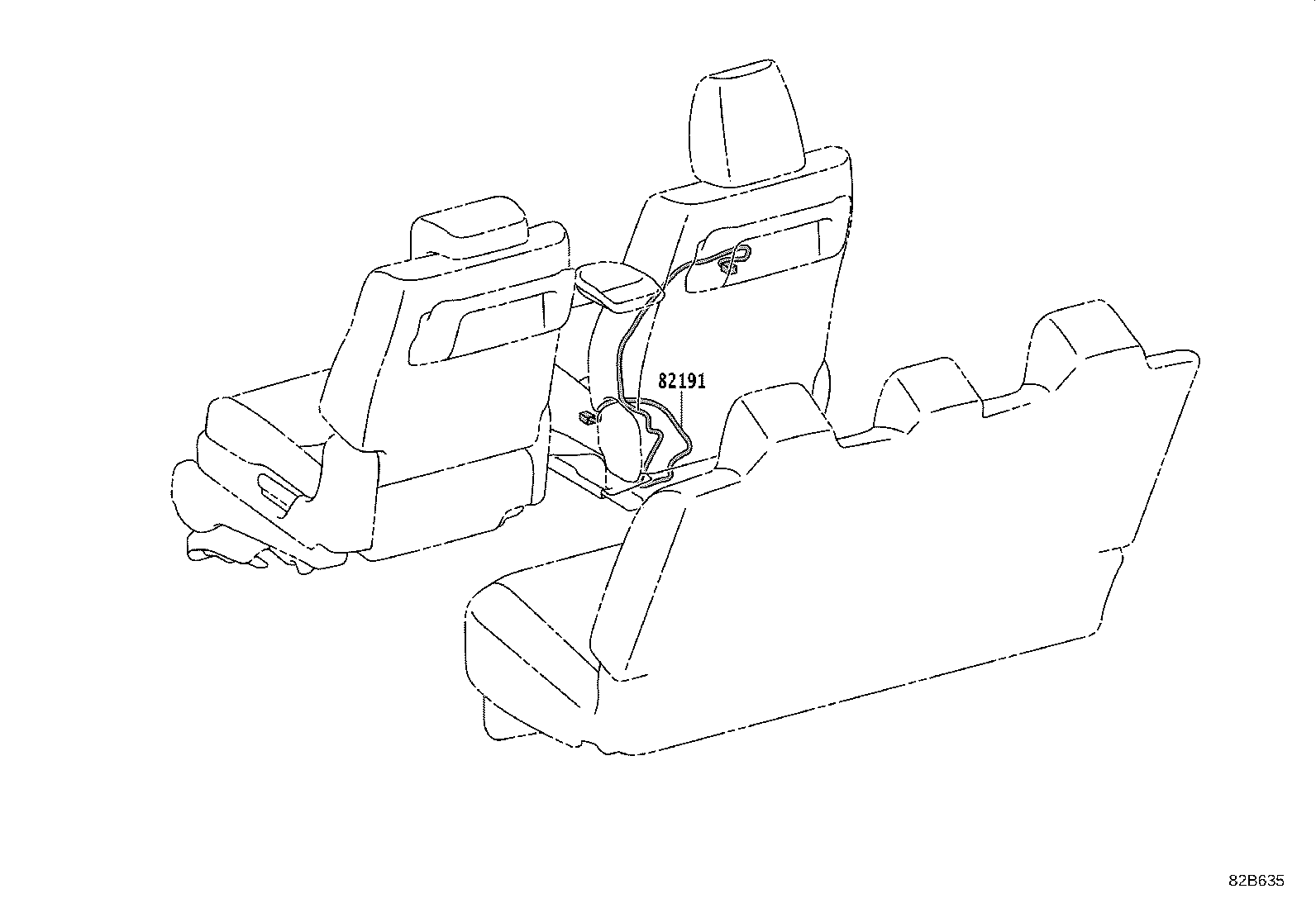

| 82191 | Wire, Front Seat, RH |
| 82412 | Wire, Fuel Gage |
| 82413A | Wire, Fuel Tank |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82712A | Support, Wiring Harness |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82816B | Cover, Wiring Harness Protector, NO.1 |

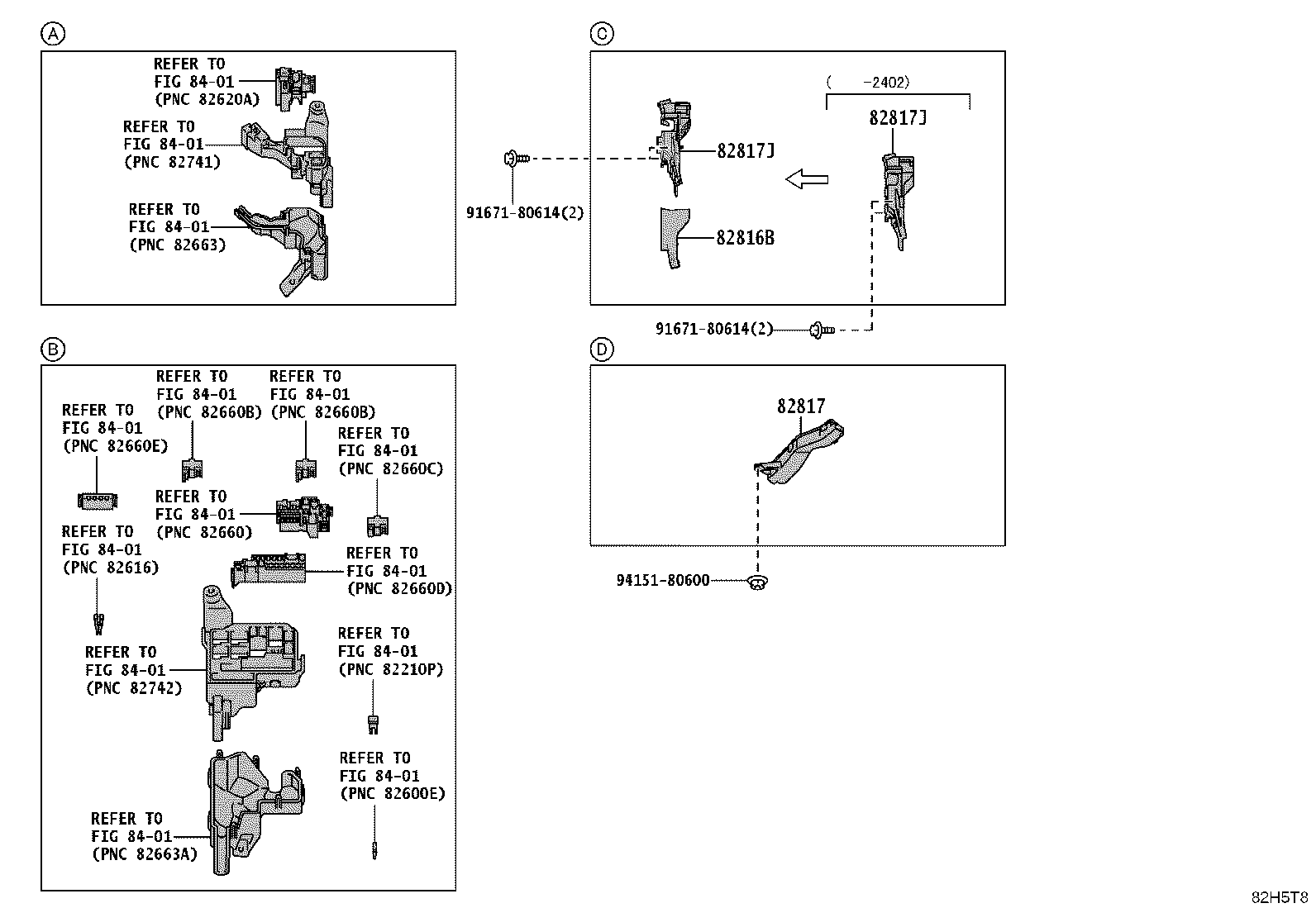

| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
