Toyota Comfort

2017-10 → present · chassis NTP10 · catalogue 333320 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

12 part groups · 3 illustrations

Illustrations

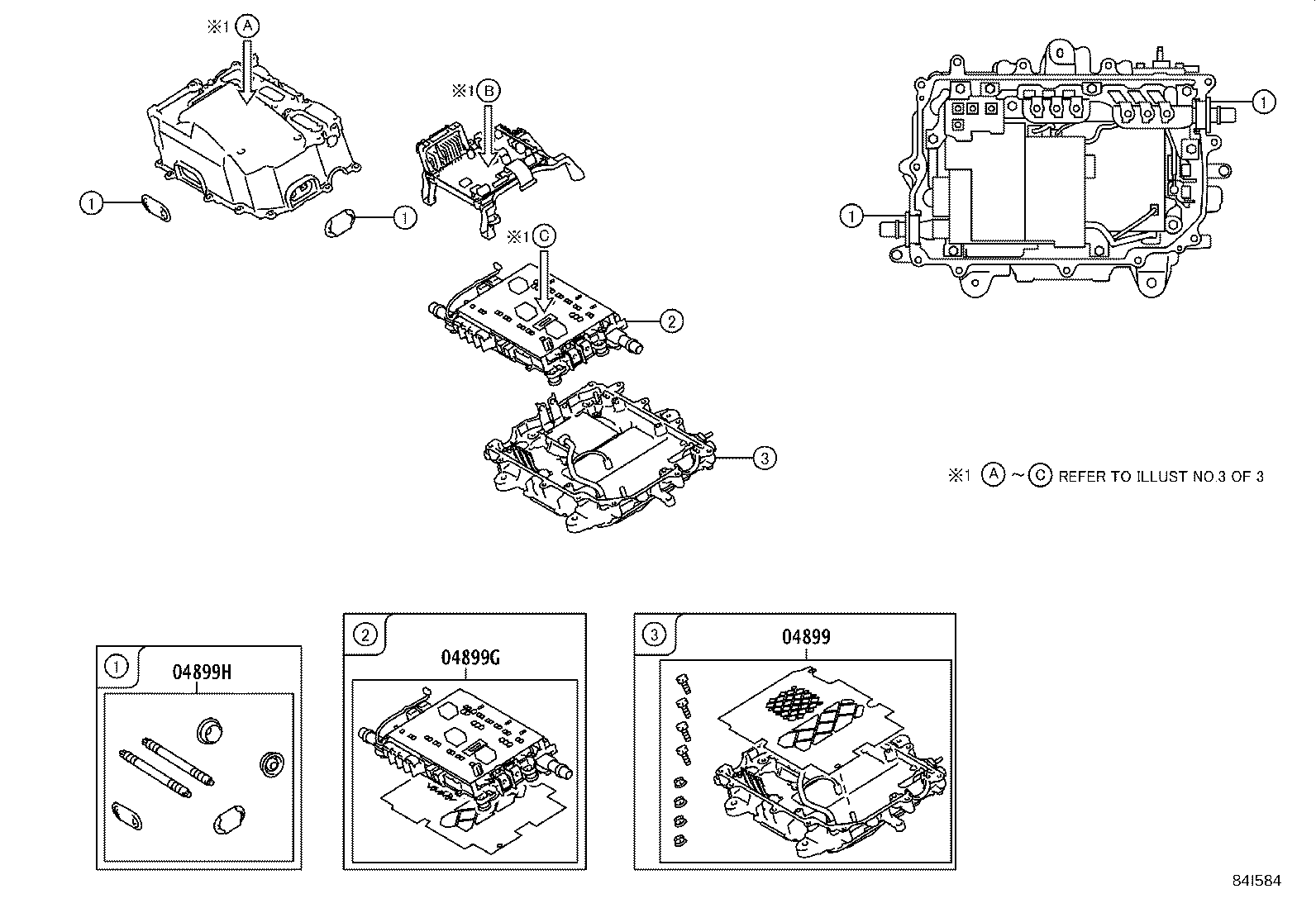

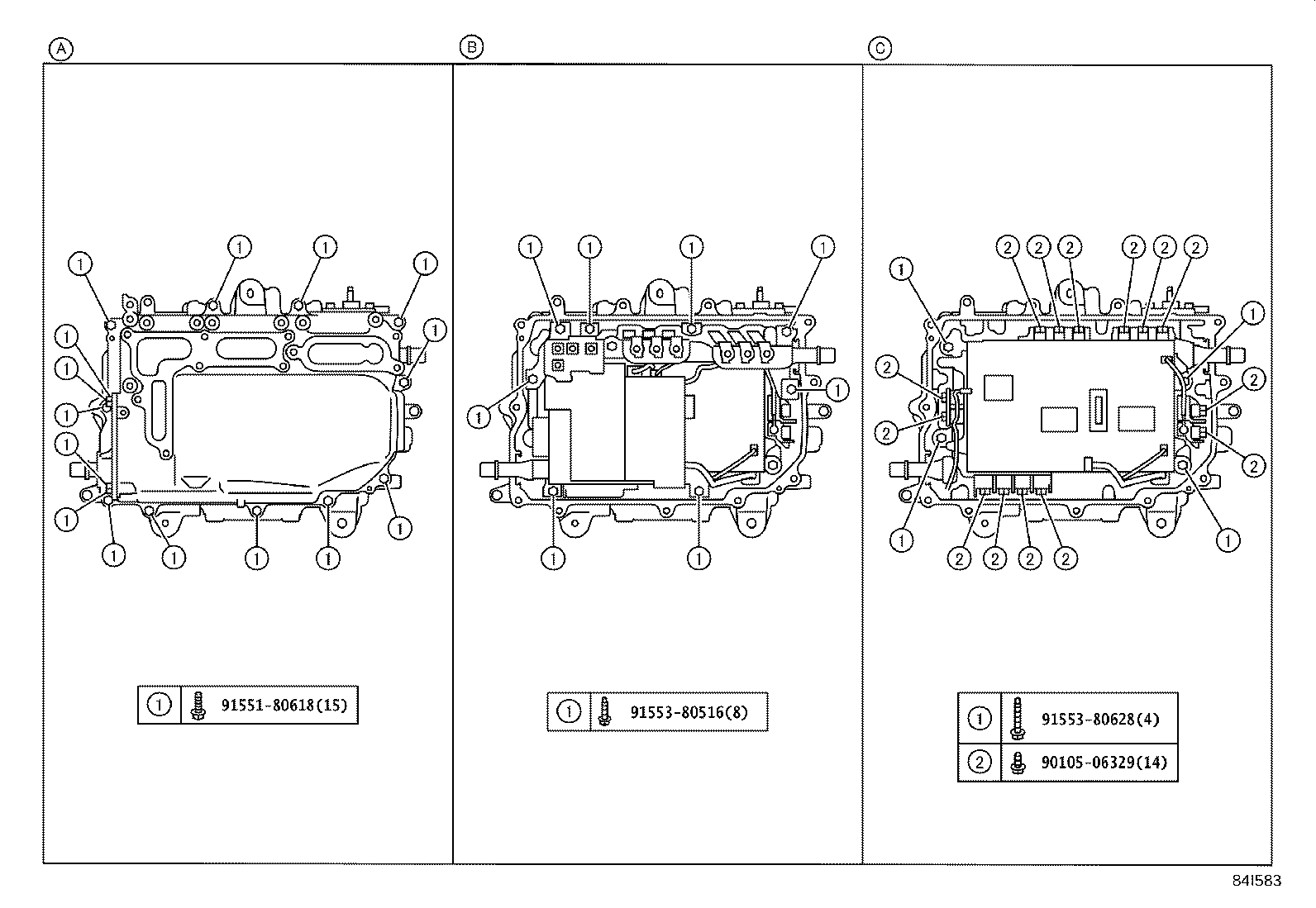

Figure 84I581B 84I581B 2017-10 → — Figure 84I584 84I584 2017-10 → — Figure 84I583 84I583 2017-10 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899G Transistor Kit, Power Module Intelligent
04899H Plug Kit, Inverter Drain
86210G Fuse, High Voltage
G9110 Bracket Assy, Inverter
G9200 Inverter Assy, W/Converter
G920H Computer Sub-assy, Motor Generator Control
G920J Sensor Sub-assy, Inverter Current
G9221 Cover, Inverter
G9223 Cover, Inverter Terminal
G922L Cover, Inverter Signal Connector
G9234 Plate, Inverter Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
