Toyota Lexus GS450H
2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · General
Supported model
Data version 2012-01

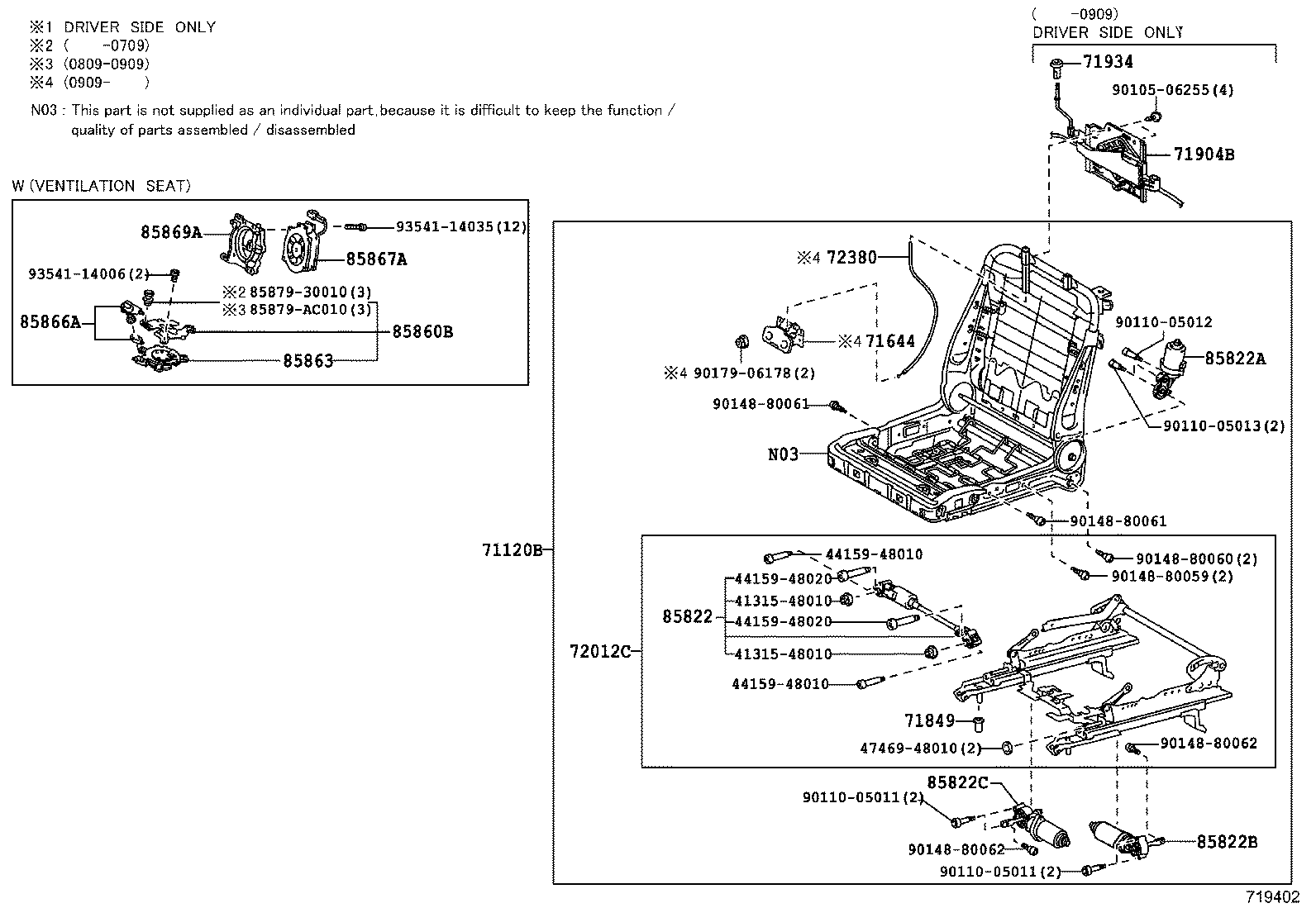

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71120B — Frame Assy, Front Seat W/Adjuster, LH | ||||
| 71120-30121 |
Frame Assy, Front Seat W/Adjuster, LH
2008-06 → 2009-09
ended
|
GWS191 LHD | — | |
| 71120-30400 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 71120-30400 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 71120-30410 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 RHD | — | |
| 71120-30430 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 71120-30430 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 71120-30430 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 71120-30430 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 71120-30440 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 RHD | — | |
| 71120-30440 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 RHD | — | |
| 71120-30500 |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 71120-30510 |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 RHD | — | |
| 71120-30520 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 RHD | — | |
| 71120-30520 note |
Frame Assy, Front Seat W/Adjuster, LH
2009-09 → 2011-12
ended
|
GWS191 RHD | — | |
| 71644 — Unit, Active Headrest, Lwr | ||||
| 71644-30020 |
Unit, Active Headrest, Lwr
2009-09 → 2011-04
ended
|
GWS191 | — | |
| 71644-30021 |
Unit, Active Headrest, Lwr
2011-04 → 2011-12
ended
|
GWS191 | — | |
| 71849 — Cap, Seat Adjuster Cover, LH | ||||
| 71848-33010 |
Cap, Seat Adjuster Cover, LH
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 71848-33010 |
Cap, Seat Adjuster Cover, LH
2007-09 → 2011-12
ended
|
GWS191 | — | |
| 71904B — Adjuster Sub-assy, Front Seat Headrest | ||||
| 71904-30060 |
Adjuster Sub-assy, Front Seat Headrest
2006-02 → 2007-09
ended
|
GWS191 LHD | — | |
| 71904-30060 |
Adjuster Sub-assy, Front Seat Headrest
2007-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 71934 — Button, Front Seat Headrest Lock Release | ||||
| 71934-30010 |
Button, Front Seat Headrest Lock Release
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 71934-30010 |
Button, Front Seat Headrest Lock Release
2007-09 → 2009-09
ended
|
GWS191 | — | |
| 72012C — Adjuster Sub-assy, Front Seat, LH | ||||
| 72012-30140 |
Adjuster Sub-assy, Front Seat, LH
2006-02 → 2007-09
ended
|
GWS191 LHD | — | |
| 72012-30160 |
Adjuster Sub-assy, Front Seat, LH
2006-02 → 2007-09
ended
|
GWS191 RHD | — | |
| 72012-30140 |
Adjuster Sub-assy, Front Seat, LH
2007-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 72012-30140 note |
Adjuster Sub-assy, Front Seat, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 72012-30140 note |
Adjuster Sub-assy, Front Seat, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 72012-30160 |
Adjuster Sub-assy, Front Seat, LH
2007-09 → 2009-09
ended
|
GWS191 RHD | — | |
| 72012-30160 note |
Adjuster Sub-assy, Front Seat, LH
2009-09 → 2011-12
ended
|
GWS191 RHD | — | |
| 72012-30220 |
Adjuster Sub-assy, Front Seat, LH
2009-09 → 2011-12
ended
|
GWS191 RHD | — | |
| 72012-30230 |
Adjuster Sub-assy, Front Seat, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 72380 — Cable Assy, Seat Adjuster Control, NO.2 | ||||
| 72380-30020 |
Cable Assy, Seat Adjuster Control, NO.2
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85822 — Motor Assy, Power Seat Slide, LH | ||||
| 85801-30190 |
Motor Assy, Power Seat Slide, LH
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 85801-30160 |
Motor Assy, Power Seat Slide, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-30190 |
Motor Assy, Power Seat Slide, LH
2007-09 → 2009-09
ended
|
GWS191 | — | |
| 85801-30190 note |
Motor Assy, Power Seat Slide, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-30190 note |
Motor Assy, Power Seat Slide, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85822A — Motor Assy, Power Seat Reclining, LH | ||||
| 85801-60020 |
Motor Assy, Power Seat Reclining, LH
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 85801-28050 |
Motor Assy, Power Seat Reclining, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60020 |
Motor Assy, Power Seat Reclining, LH
2007-09 → 2009-09
ended
|
GWS191 | — | |
| 85801-60020 note |
Motor Assy, Power Seat Reclining, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60020 note |
Motor Assy, Power Seat Reclining, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85801-60020 note |
Motor Assy, Power Seat Reclining, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85801-60020 note |
Motor Assy, Power Seat Reclining, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60020 note |
Motor Assy, Power Seat Reclining, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85801-60020 note |
Motor Assy, Power Seat Reclining, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60020 note |
Motor Assy, Power Seat Reclining, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85822B — Motor Assy, Power Seat Tilt, LH | ||||
| 85801-60040 |
Motor Assy, Power Seat Tilt, LH
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 85801-28080 |
Motor Assy, Power Seat Tilt, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60040 |
Motor Assy, Power Seat Tilt, LH
2007-09 → 2009-09
ended
|
GWS191 | — | |
| 85801-60040 note |
Motor Assy, Power Seat Tilt, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60040 note |
Motor Assy, Power Seat Tilt, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85801-60040 note |
Motor Assy, Power Seat Tilt, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85801-60040 note |
Motor Assy, Power Seat Tilt, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60040 note |
Motor Assy, Power Seat Tilt, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85801-60040 note |
Motor Assy, Power Seat Tilt, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60040 note |
Motor Assy, Power Seat Tilt, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85822C — Motor Assy, Power Seat Lifter, LH | ||||
| 85801-60030 |
Motor Assy, Power Seat Lifter, LH
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 85801-28070 |
Motor Assy, Power Seat Lifter, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60030 note |
Motor Assy, Power Seat Lifter, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85801-60030 note |
Motor Assy, Power Seat Lifter, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60030 note |
Motor Assy, Power Seat Lifter, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85801-60030 note |
Motor Assy, Power Seat Lifter, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85801-60030 note |
Motor Assy, Power Seat Lifter, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85801-60030 note |
Motor Assy, Power Seat Lifter, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85801-60030 |
Motor Assy, Power Seat Lifter, LH
2007-09 → 2009-09
ended
|
GWS191 | — | |
| 85801-60030 note |
Motor Assy, Power Seat Lifter, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85860B — Blower Assy, Seat Cushion Climate Control, LH | ||||
| 85860-30010 note |
Blower Assy, Seat Cushion Climate Control, LH
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 85801-30070 note |
Blower Assy, Seat Cushion Climate Control, LH
2007-09 → 2008-09
ended
|
GWS191 | — | |
| 85860-30020 note |
Blower Assy, Seat Cushion Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85860-30020 note |
Blower Assy, Seat Cushion Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85860-30020 note |
Blower Assy, Seat Cushion Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85860-30020 note |
Blower Assy, Seat Cushion Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85860-30020 note |
Blower Assy, Seat Cushion Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85860-33010 note |
Blower Assy, Seat Cushion Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 85860-33010 note |
Blower Assy, Seat Cushion Climate Control, LH
2008-09 → 2009-08
ended
|
GWS191 | — | |
| 85860-33010 note |
Blower Assy, Seat Cushion Climate Control, LH
2008-09 → 2009-08
ended
|
GWS191 | — | |
| 85860-33010 note |
Blower Assy, Seat Cushion Climate Control, LH
2008-09 → 2009-08
ended
|
GWS191 LHD | — | |
| 85863 — Blower, Seat Climate Control, LH | ||||
| 85862-30010 note |
Blower, Seat Climate Control, LH
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 85862-30020 note |
Blower, Seat Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85862-30020 note |
Blower, Seat Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85862-30020 note |
Blower, Seat Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85862-30020 note |
Blower, Seat Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85862-30020 note |
Blower, Seat Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85862-33020 note |
Blower, Seat Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 85862-33020 note |
Blower, Seat Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 | — | |
| 85862-33020 note |
Blower, Seat Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 | — | |
| 85862-33020 note |
Blower, Seat Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 85866A — Duct, Seat Cushion Climate Control, LH | ||||
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2008-06 → 2009-09
ended
|
GWS191 | — | |
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2007-09 → 2009-09
ended
|
GWS191 | — | |
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2007-09 → 2008-06
ended
|
GWS191 | — | |
| 85866-30010 note |
Duct, Seat Cushion Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85867A — Blower, Seatback Climate Control, LH | ||||
| 85867-30010 note |
Blower, Seatback Climate Control, LH
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 85867-30010 note |
Blower, Seatback Climate Control, LH
2007-09 → 2008-06
ended
|
GWS191 | — | |
| 85867-30010 note |
Blower, Seatback Climate Control, LH
2007-09 → 2008-09
ended
|
GWS191 | — | |
| 85867-30010 note |
Blower, Seatback Climate Control, LH
2008-06 → 2008-09
ended
|
GWS191 | — | |
| 85867-33010 note |
Blower, Seatback Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85867-33010 note |
Blower, Seatback Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85867-33010 note |
Blower, Seatback Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85867-33010 note |
Blower, Seatback Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85867-33010 note |
Blower, Seatback Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85867-33010 note |
Blower, Seatback Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 | — | |
| 85867-33010 note |
Blower, Seatback Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 | — | |
| 85867-33010 note |
Blower, Seatback Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 85867-33010 note |
Blower, Seatback Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 85869A — Cover, Seatback Climate Control, LH | ||||
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2006-02 → 2007-09
ended
|
GWS191 | — | |
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2007-09 → 2008-06
ended
|
GWS191 | — | |
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2007-09 → 2009-09
ended
|
GWS191 | — | |
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2008-06 → 2009-09
ended
|
GWS191 | — | |
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2008-09 → 2009-09
ended
|
GWS191 LHD | — | |
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 LHD | — | |
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
| 85869-30010 note |
Cover, Seatback Climate Control, LH
2009-09 → 2011-12
ended
|
GWS191 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
