Toyota Lexus GS450H
2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · General
Supported model
Data version 2012-01

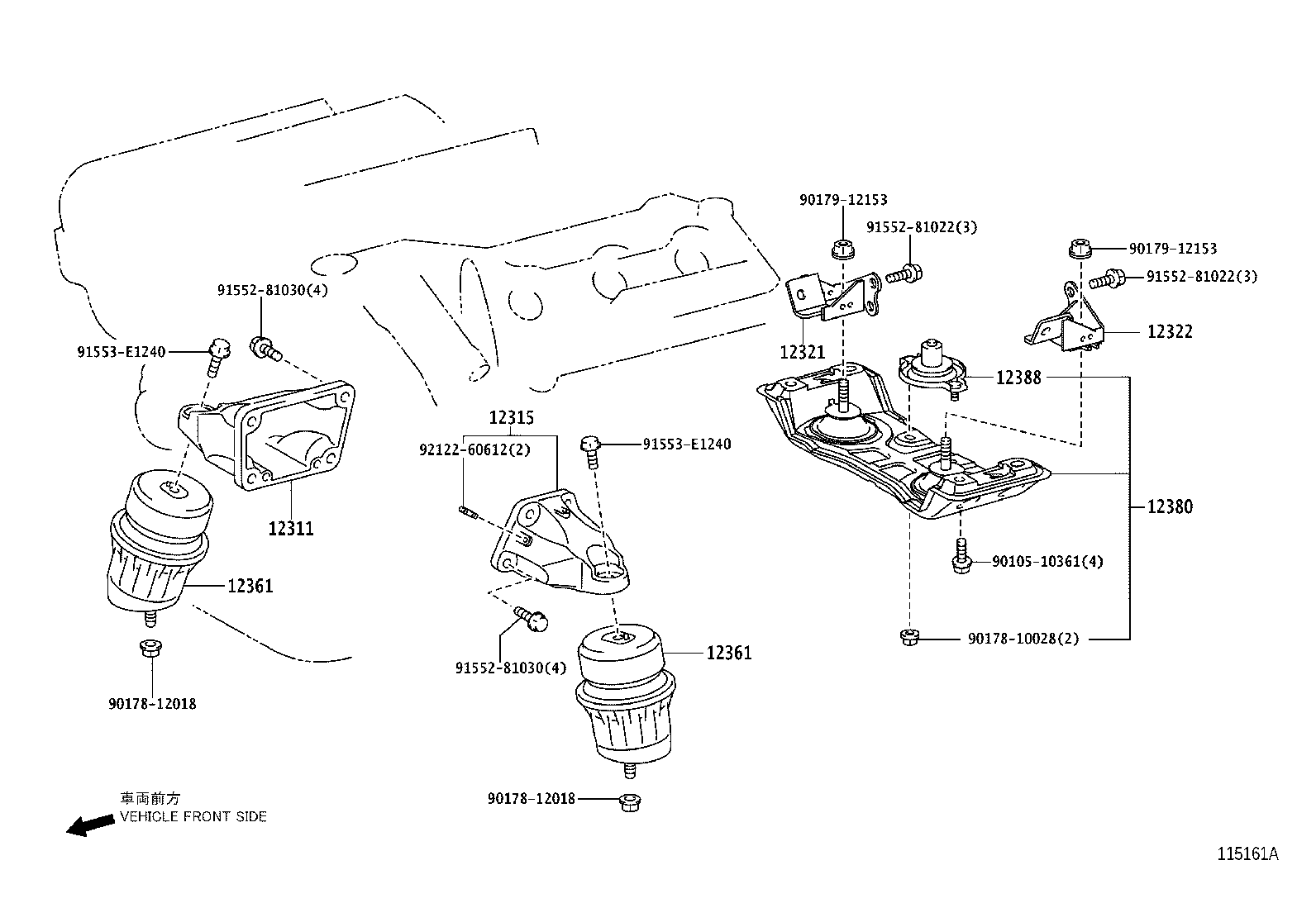

Mounting
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12321 | Bracket, Engine Mounting, Rear, NO.1 |
| 12322 | Bracket, Engine Mounting, Rear NO.2 |
| 12361 | Insulator, Engine Mounting, Front |
| 12380 | Insulator Assy, Engine Mounting, Rear |
| 12388 | Stopper, Engine Mounting Bracket, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
