Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · General

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

16 part groups · 2 illustrations

Illustrations

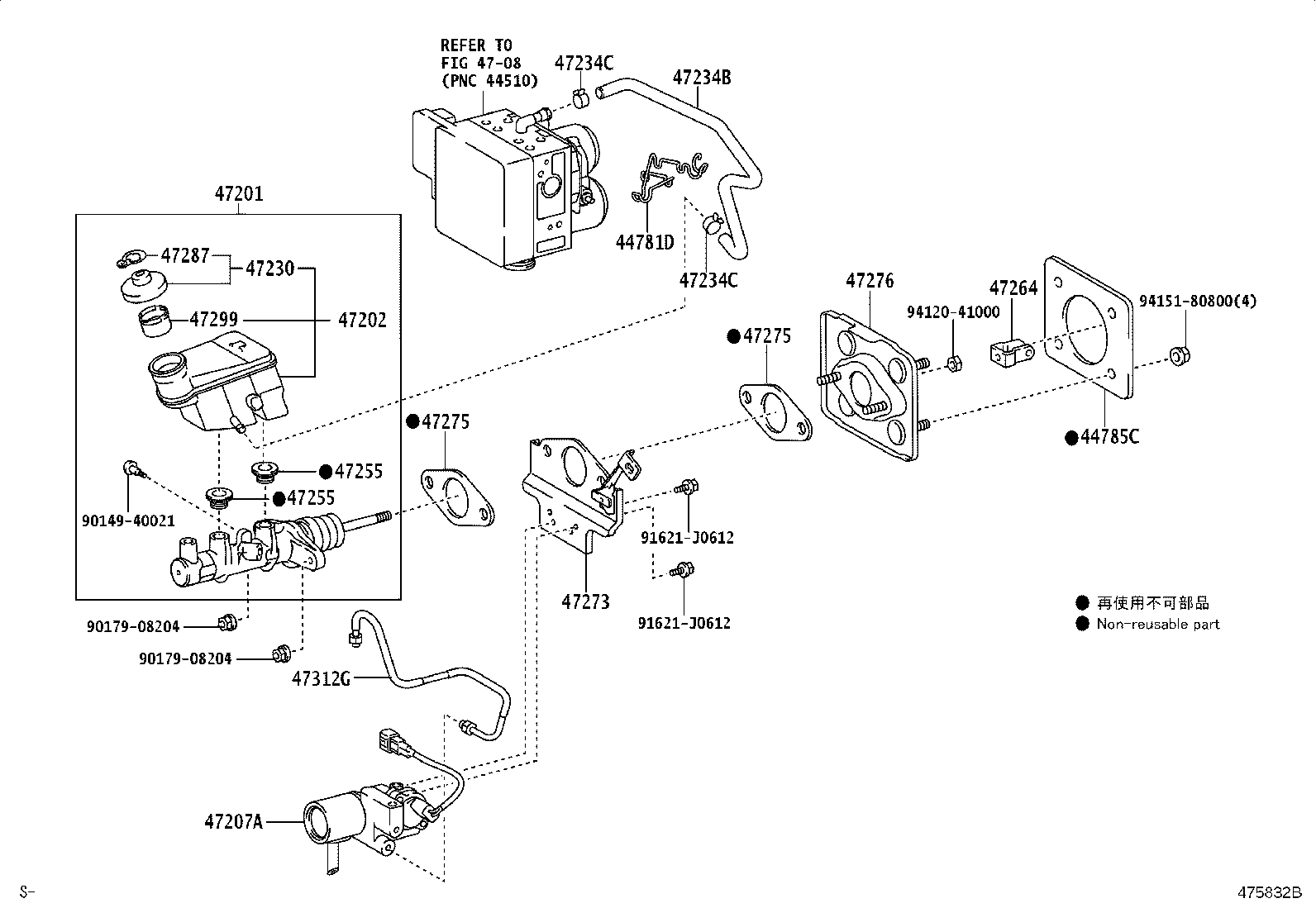

Figure 475833B 475833B 2006-02 → — Figure 475832B 475832B 2006-02 → —

Part groups

PNCDescription
44781D Bracket, Reservoir Hose
44785C Gasket, Brake Booster
47201 Cylinder Sub-assy, Brake Master
47202 Reservoir Sub-assy, Brake Master Cylinder
47207A Cylinder Sub-assy, Brake Stroke Simulator
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234B Tube, Reservoir, NO.1
47234C Clip(FOR RESERVOIR TUBE NO.1)
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47273 Bracket, Brake Stroke Simulator
47275 Gasket, Brake Master Cylinder
47276 Bracket, Brake Master Cylinder
47287 Label, Brake Fluid Information
47299 Strainer, Brake Master Cylinder Reservoir
47312G Tube, Brake Stroke Simulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
