Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · General

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

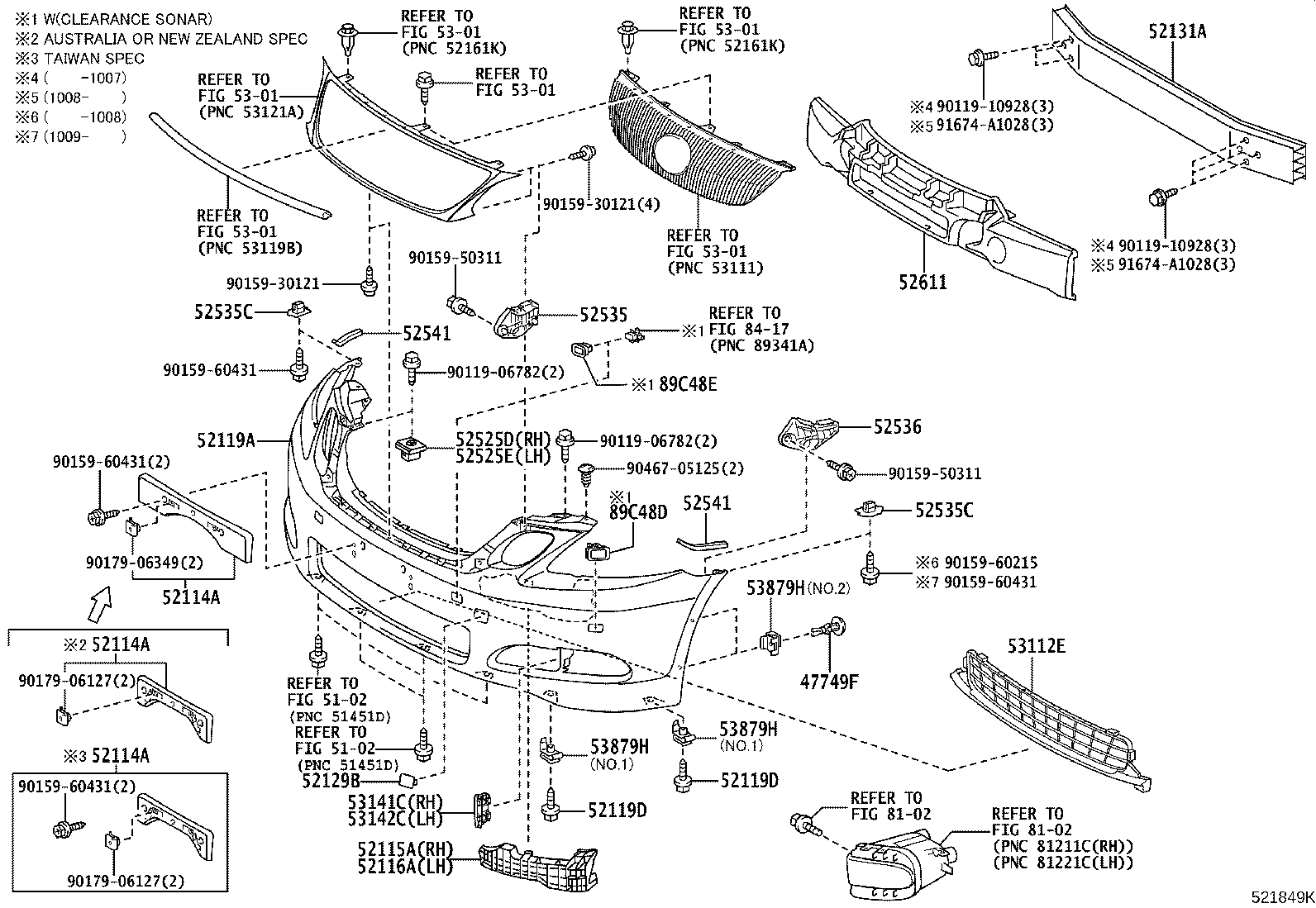

Figure 521529K 521529K 2006-02 → 2007-09 Figure 521849K 521849K 2007-09 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52525D Retainer, Front Bumper Bracket, RH
52525E Retainer, Front Bumper Bracket, LH
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52541 Protector, Front Bumper
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
53879H Retainer, Front Fender Liner
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
