Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · General

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

6 part groups · 2 illustrations

Illustrations

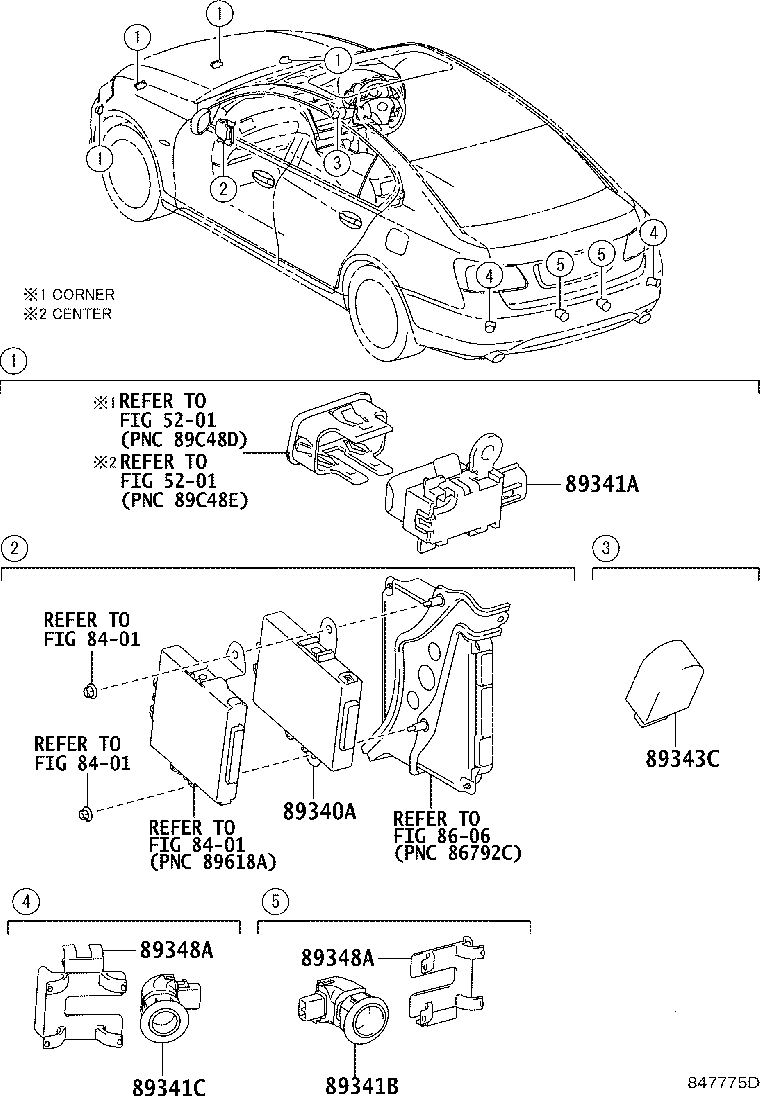

Figure 847774D 847774D 2006-02 → — Figure 847775D 847775D 2006-02 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89343C Buzzer, Clearance Warning, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
