Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · General

Supported model Data version 2012-01

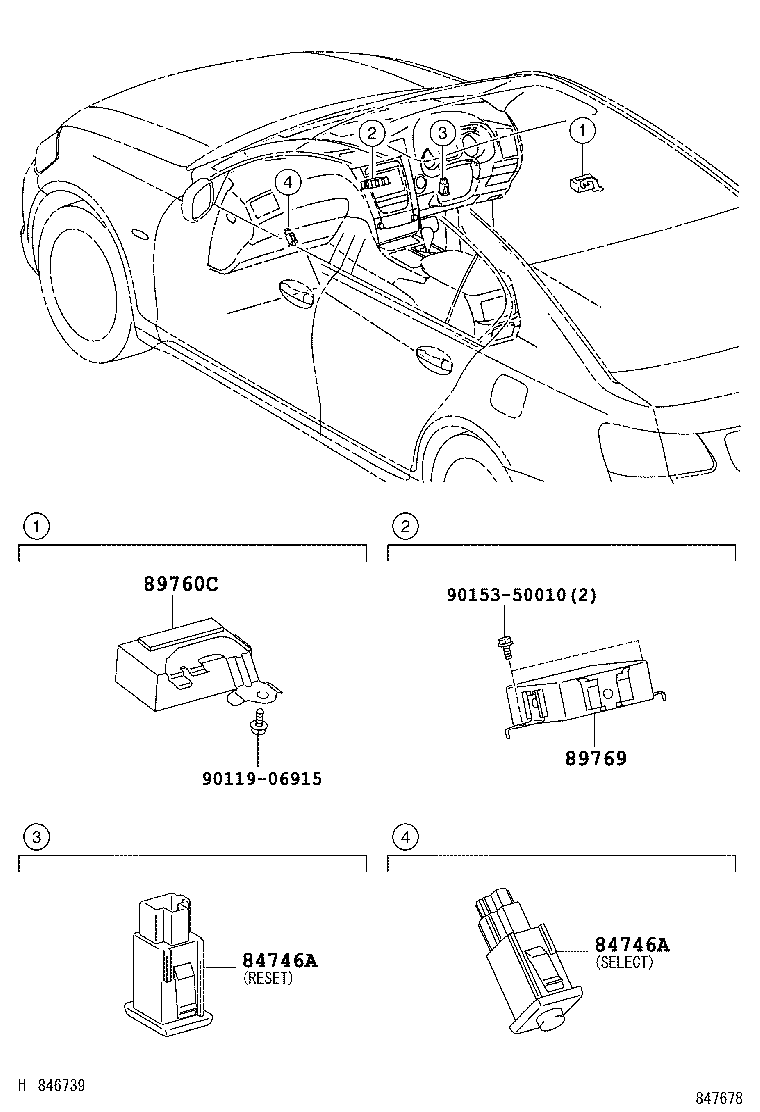

Tire Pressure Warning System

3 part groups · 2 illustrations

PNC	Description
84746A	Switch, Tire Pressure Warning, NO.1
89760C	Receiver Assy, Tire Pressure Monitor
89769	Computer, Tire Pressure Monitor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
