Toyota Alphard Hev/Phev

2024-05 → present · chassis AZSH36,37 · catalogue 33A210 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (HEV OR BEV OR FCEV)

21 part groups · 2 illustrations

Illustrations

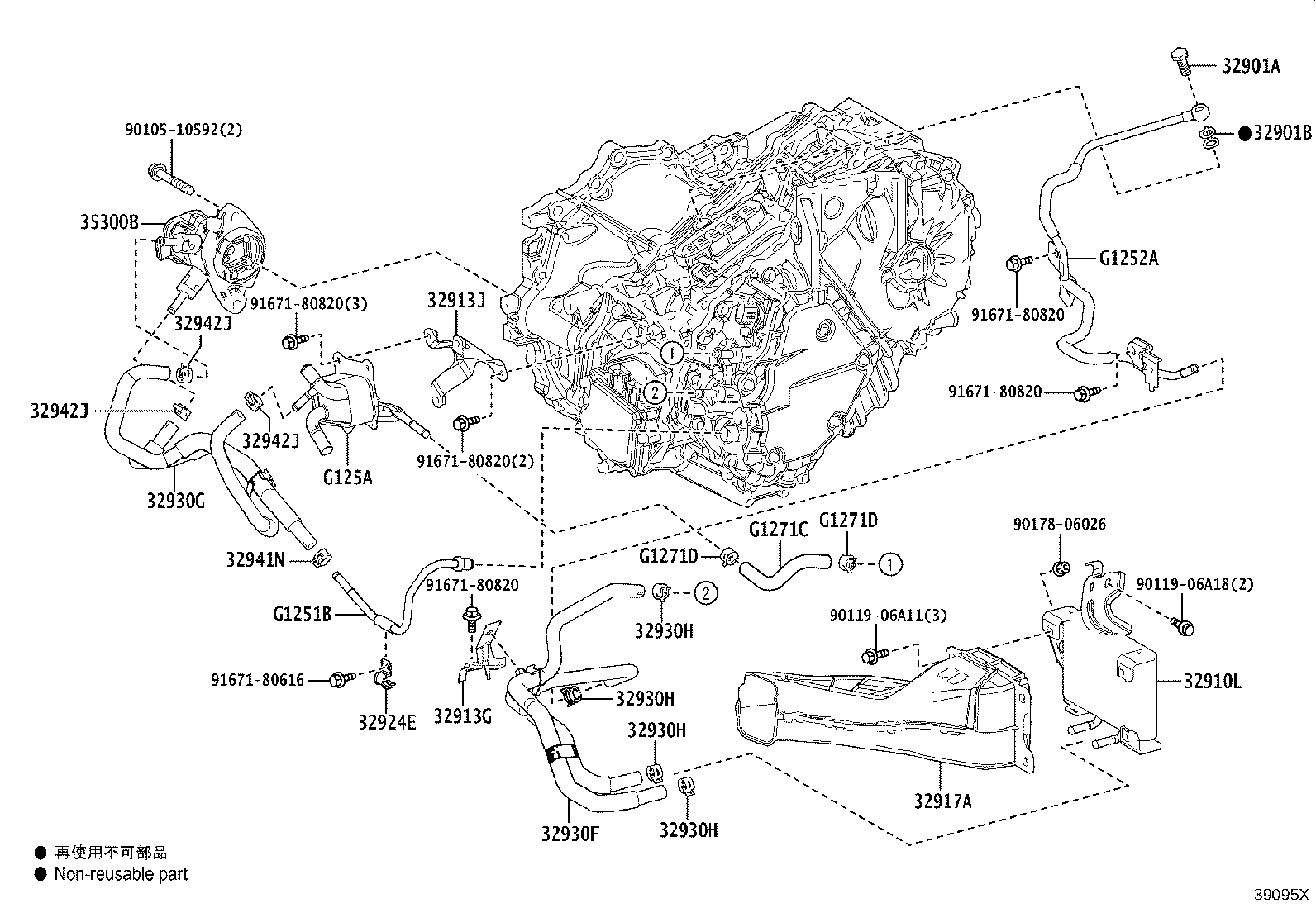

Figure 39095W 39095W 2024-05 → — Figure 39095X 39095X 2024-09 → —

Part groups

PNCDescription
32901A Bolt, Union(FOR OIL COOLER)
32901B Gasket(FOR OIL COOLER UNION)
32910L Cooler Assy, Oil
32913G Bracket, Transmission Oil Cooler
32913J Bracket, Transmission Oil Cooler, NO.2
32917A Duct, Transmission Oil Cooler Air
32923P Clamp, Oil Cooler Tube, NO.1
32924E Clamp, Oil Cooler Tube, NO.2
32930F Hose Assy, Transmission Oil Cooler, NO.1
32930G Hose Assy, Transmission Oil Cooler, NO.2
32930H Clip, NO.1(FOR OIL COOLER HOSE)
32941N Clip, NO.1(FOR OIL COOLER HOSE)
32942J Clip, NO.2(FOR OIL COOLER HOSE)
35300B Pump Assy, Oil W/Motor
44781E Bracket, Hose
G1251B Pipe, Motor Cooling, NO.1
G1252A Pipe, Motor Cooling, NO.2
G125A Cooler, Motor Cooling
G1271C Hose, Motor Cooling, NO.1
G1271D Clip, NO.1(FOR MOTOR COOLING HOSE)
G1272C Hose, Motor Cooling, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
