Toyota Alphard Hev/Phev

2024-05 → present · chassis AZSH36,37 · catalogue 33A210 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 2 illustrations

Illustrations

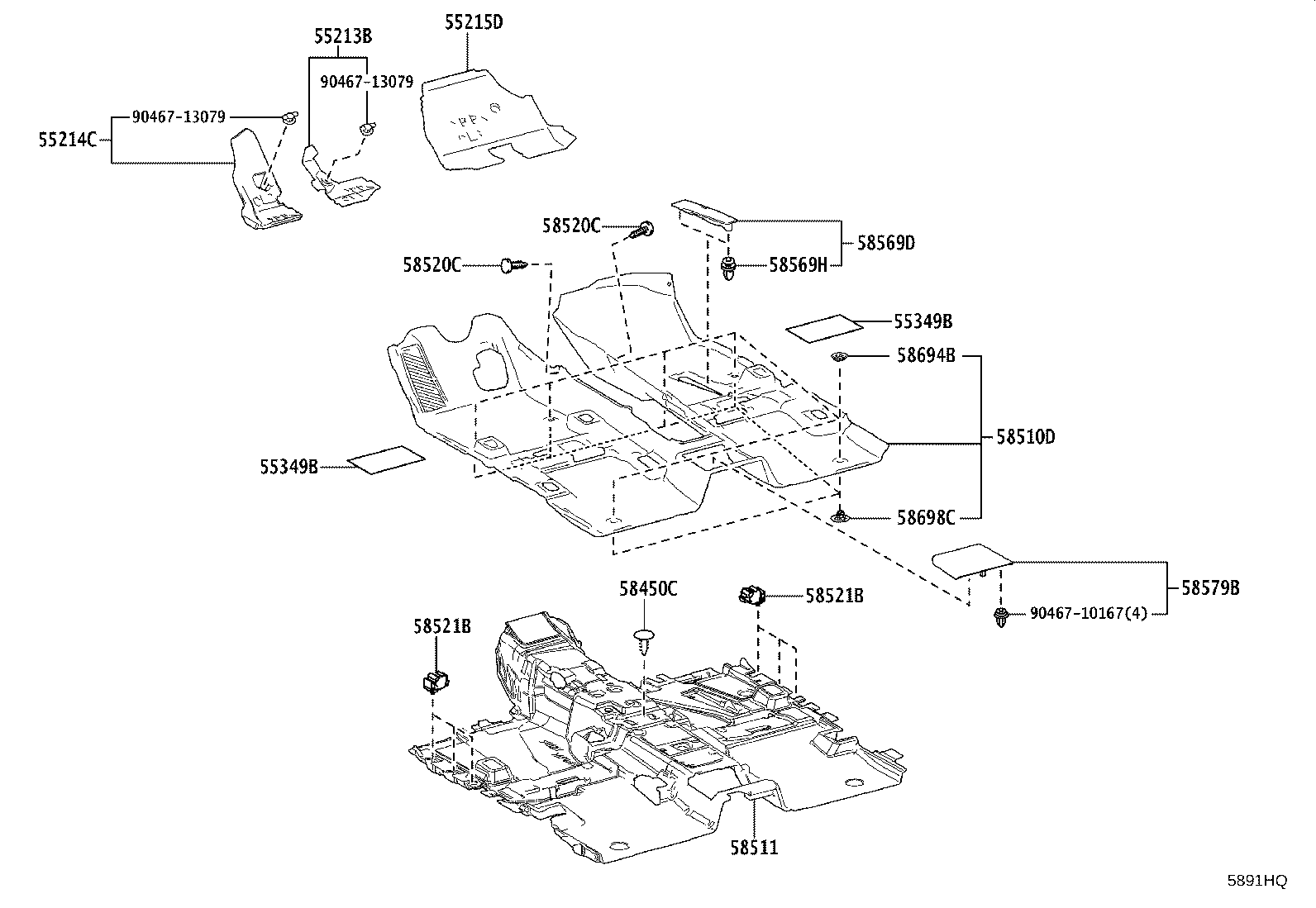

Figure 5891HP 5891HP 2024-05 → — Figure 5891HQ 5891HQ 2024-05 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
55349B Sheet, Activated Carbon
58450C Clip
58510D Carpet Assy, Floor, Front
58511 Mat, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58569D Cover, Front Floor Caution Plate
58569H Clip, Front Floor Caution Plate Cover, NO.1
58579B Pad, Rear Floor
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
