Roof Panel & Back Window Glass

21 part groups · 3 illustrations

Illustrations

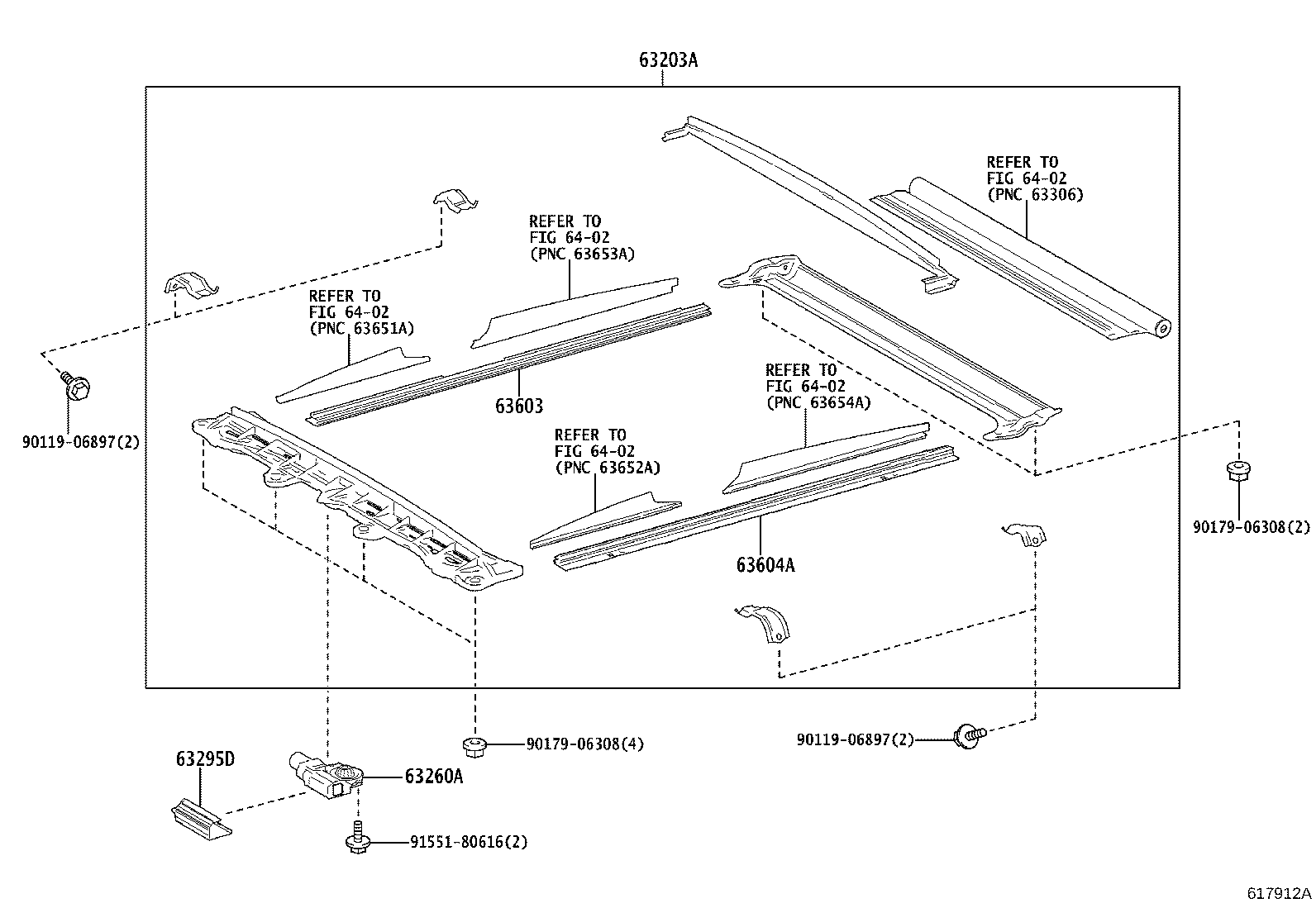

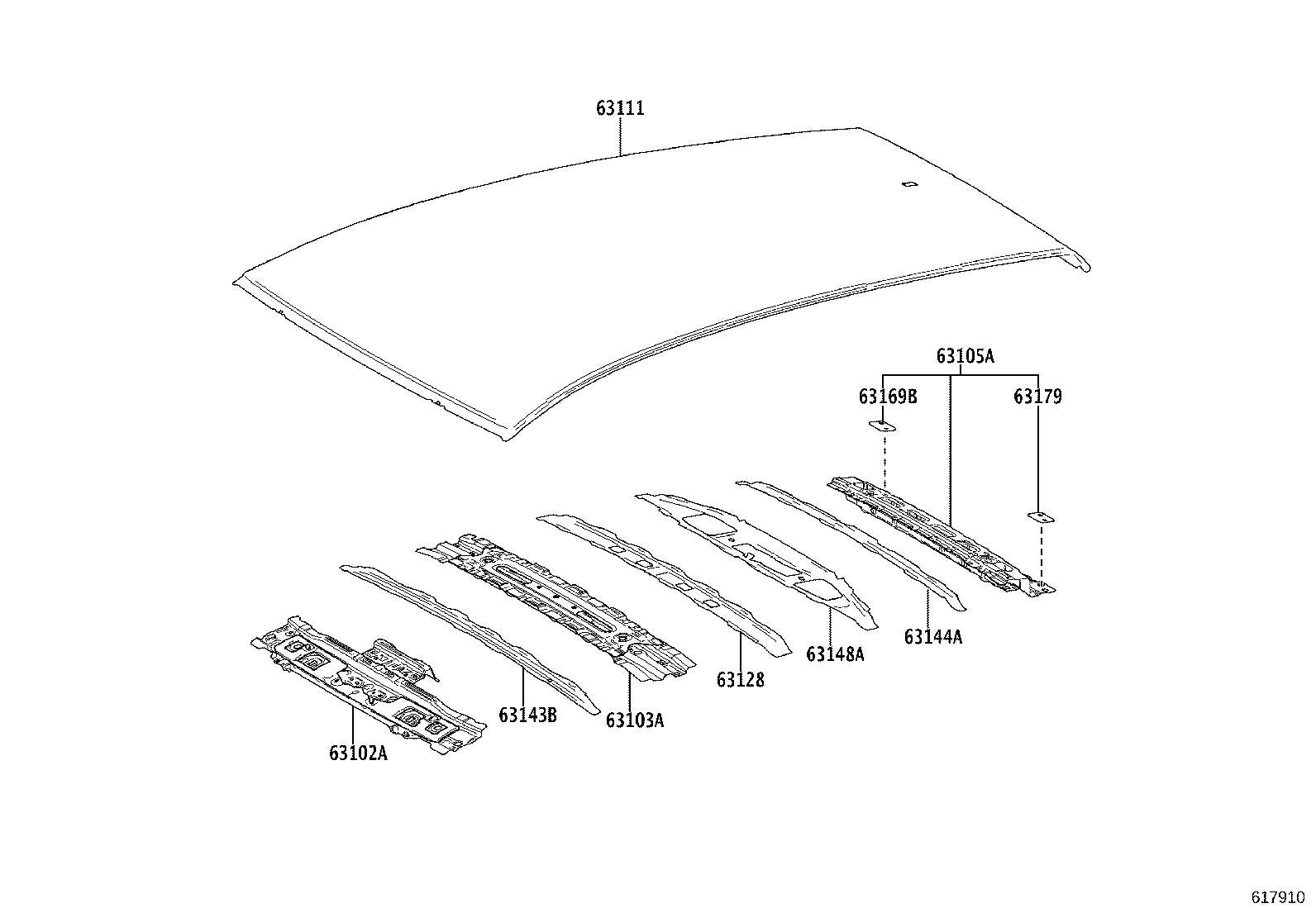

Figure 617911A 617911A 2024-05 → — Figure 617910 617910 2024-05 → — Figure 617912A 617912A 2024-05 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63105A Frame Sub-assy, Back Door Opening
63108E Reinforcement Sub-assy, Roof Panel, NO.6
63111 Panel, Roof
63113B Panel, Roof, Rear
63128 Reinforcement, Roof Panel, NO.6
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63148A Reinforcement, Roof Panel, NO.7
63169B Plate, Roof Panel Reinforcement, RH
63179 Plate, Roof Panel Reinforcement, LH
63201M Glass Sub-assy, Roof Window, NO.1
63203A Housing Sub-assy, Sliding Roof OR Removable Roof
63215A Moulding, Roof Window, Upper
63227M Clip, Roof Window, Lower
63227N Clip, Roof Window, Lower, NO.2
63260A Gear Sub-assy, Sliding Roof Drive
63295D Pad, Sliding Roof Housing
63603 Rail Sub-assy, Sliding Roof Drive, RH
63604A Rail Sub-assy, Sliding Roof Drive, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
