Toyota Alphard Hev/Phev

2024-05 → present · chassis AZSH36,37 · catalogue 33A210 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

18 part groups · 3 illustrations

Illustrations

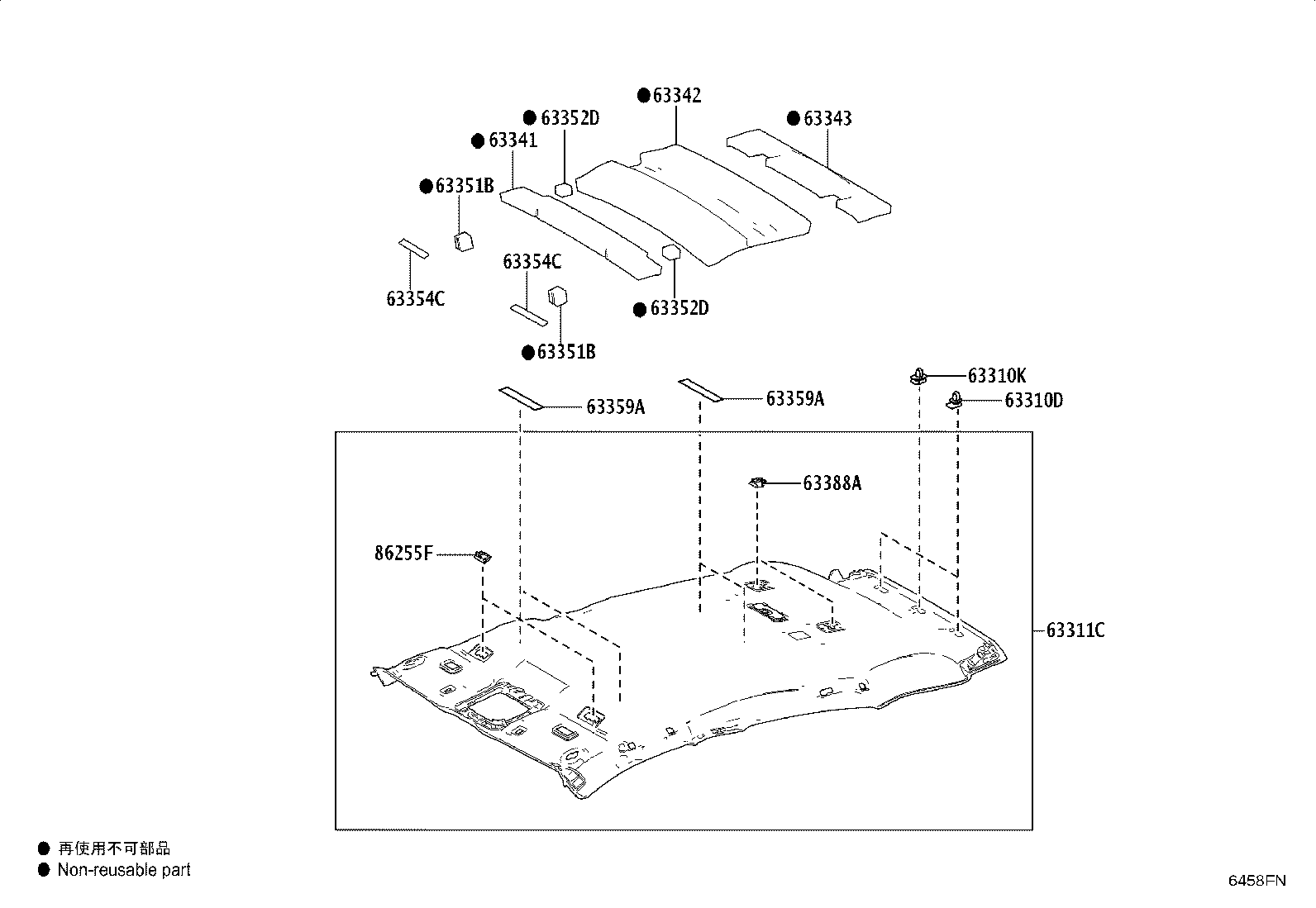

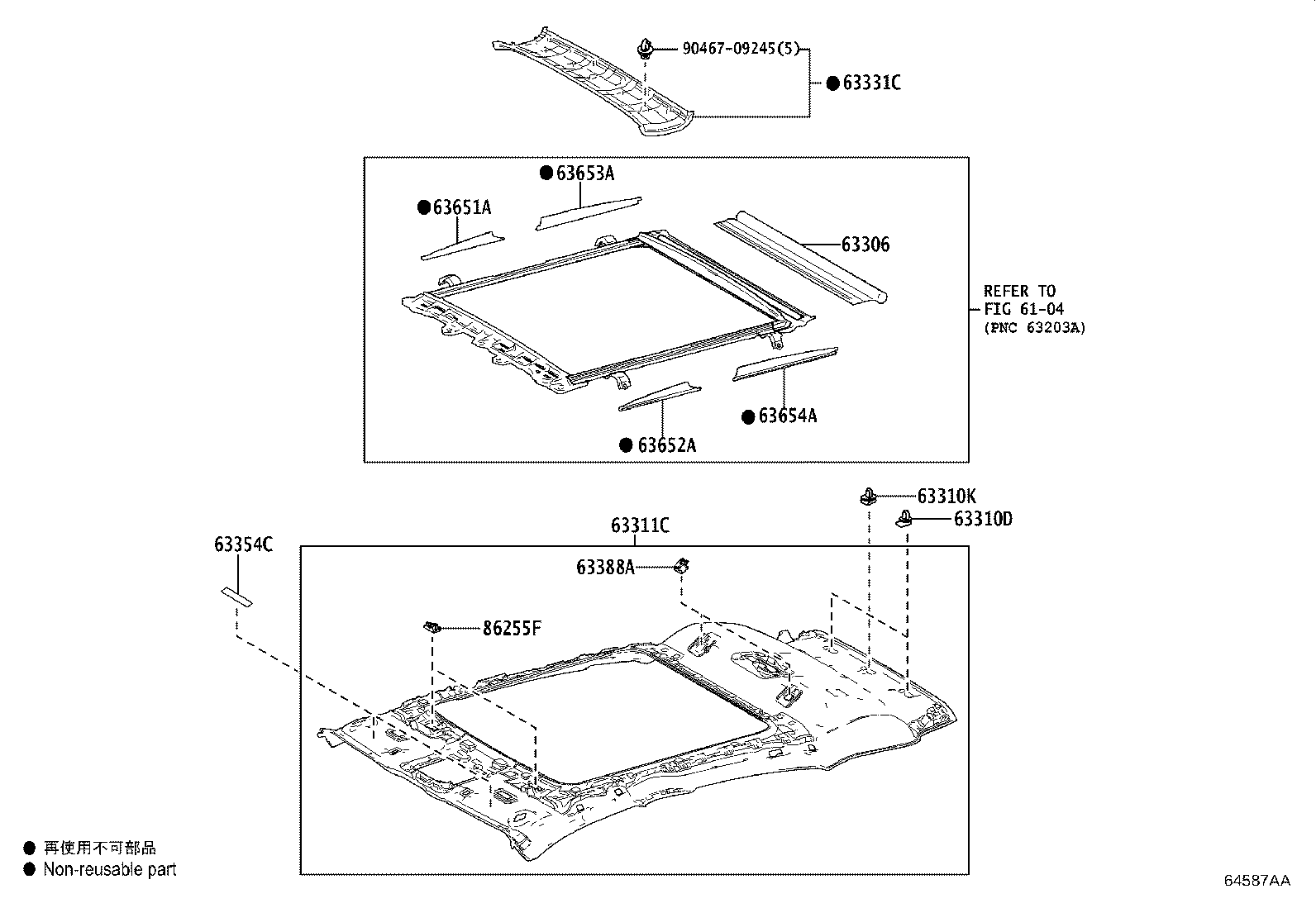

Figure 645879A 645879A 2024-05 → 2024-09 Figure 6458FN 6458FN 2024-09 → — Figure 64587AA 64587AA 2024-05 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310D Clip, Roof Headlining
63310K Clip
63311C Headlining, Roof
63331C Protector, Roof Center Reinforcement
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63354C Pad, Roof Headlining Front Side
63359A Pad, Roof Silencer, NO.18
63388A Cover, Roof Headlining Holder
63651A Garnish, Sunshade, NO.1 RH
63652A Garnish, Sunshade, NO.1 LH
63653A Garnish, Sunshade, NO.2 RH
63654A Garnish, Sunshade, NO.2 LH
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
