Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH36,37 · catalogue 33A210 · General
Supported model
Data version 2024-05

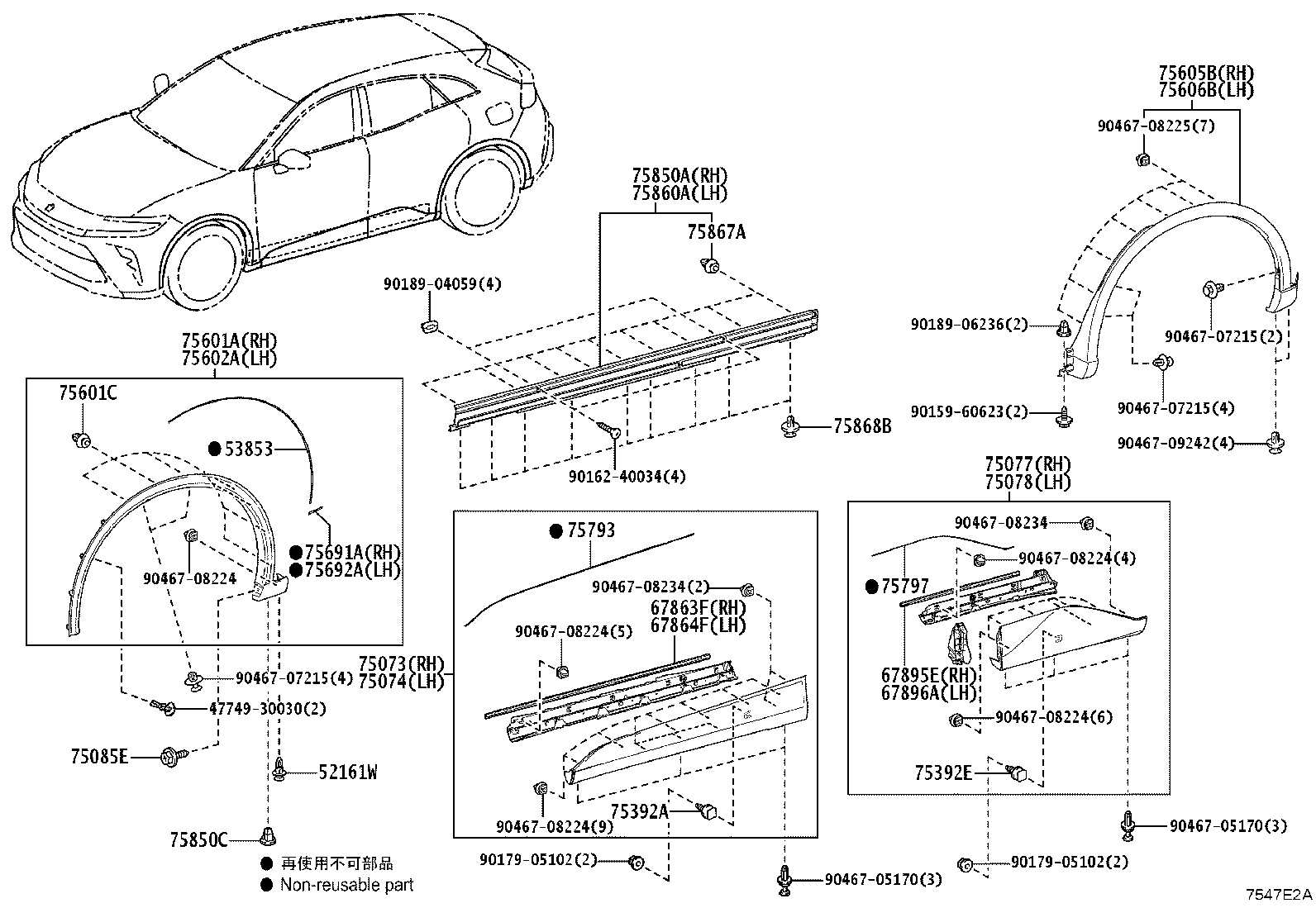

Side Moulding
47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161W | Piece, Front Bumper |
| 53853 | Pad, Front Wheel Opening Extension, NO.3 |
| 67495C | Cover, Front Door Front Lower Frame, Upper RH |
| 67496C | Cover, Front Door Front Lower Frame, Upper LH |
| 67863F | Weatherstrip, Front Door, NO.2 RH |
| 67864F | Weatherstrip, Front Door, NO.2 LH |
| 67895E | Weatherstrip, Rear Door, NO.3 RH |
| 67896A | Weatherstrip, Rear Door, NO.3 LH |
| 75073 | Moulding Sub-assy, Front Door, Outside Lower RH |
| 75074 | Moulding Sub-assy, Front Door, Outside Lower LH |
| 75077 | Moulding Sub-assy, Rear Door Outside Lower RH |
| 75078 | Moulding Sub-assy, Rear Door Outside Lower LH |
| 75085E | Screw, NO.1 |
| 75392A | Retainer, Outside Moulding, NO.1 |
| 75392E | Retainer, Outside Moulding, NO.1 |
| 75551E | Moulding, Roof Drip Side Finish, RH |
| 75552E | Moulding, Roof Drip Side Finish, LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75601C | Clip, Front Fender Moulding |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75691A | Pad, Front Fender Outside Moulding, RH |
| 75692A | Pad, Front Fender Outside Moulding, LH |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755A | Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75756D | Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75761B | Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75762B | Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765B | Moulding, Rear Door Window Frame, RH(REAR PILLAR SIDE) |
| 75766B | Moulding, Rear Door Window Frame, LH(REAR PILLAR SIDE) |
| 75792 | Clip, Door Window Frame Moulding |
| 75793 | Pad, Front Door Outside Moulding, Upper |
| 75797 | Pad, Rear Door Outside Moulding, Upper |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75850C | Grommet, NO.1 |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75867A | Clip, Rocker Panel Moulding |
| 75868B | Clip, Rocker Panel Moulding, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
