Toyota Alphard Hev/Phev

2024-05 → present · chassis AZSH36,37 · catalogue 33A210 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

106 part groups · 17 illustrations

Illustrations

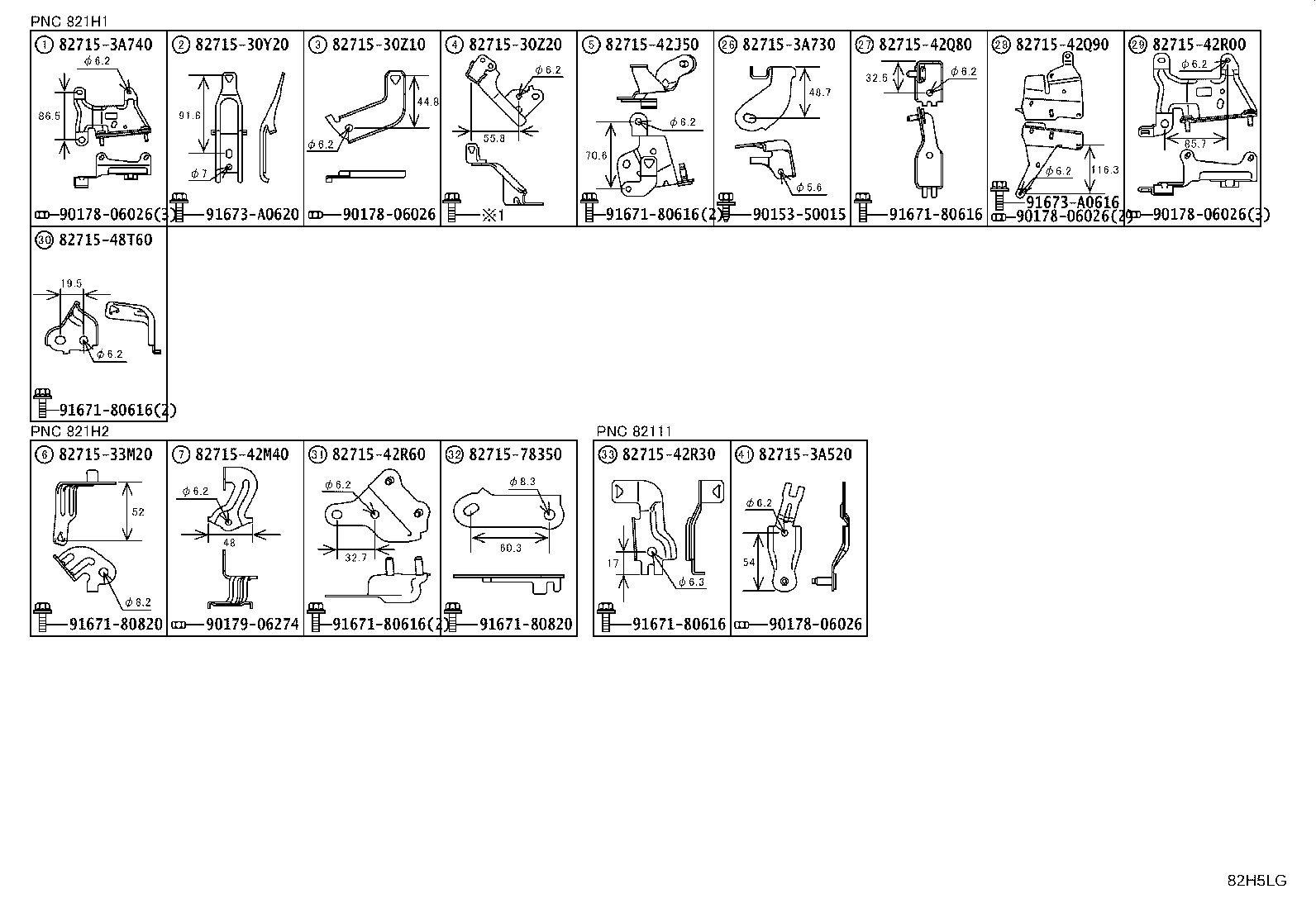

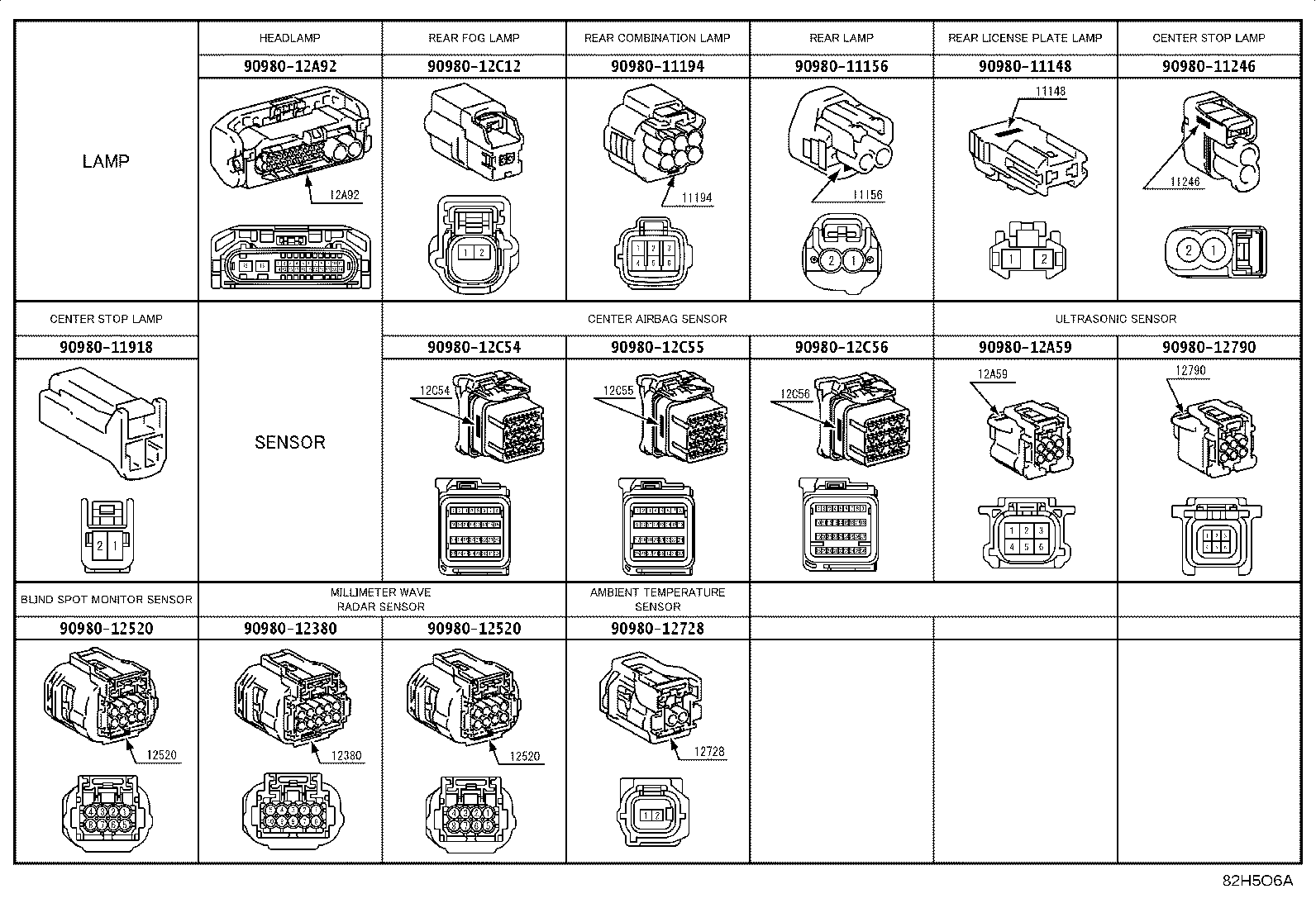

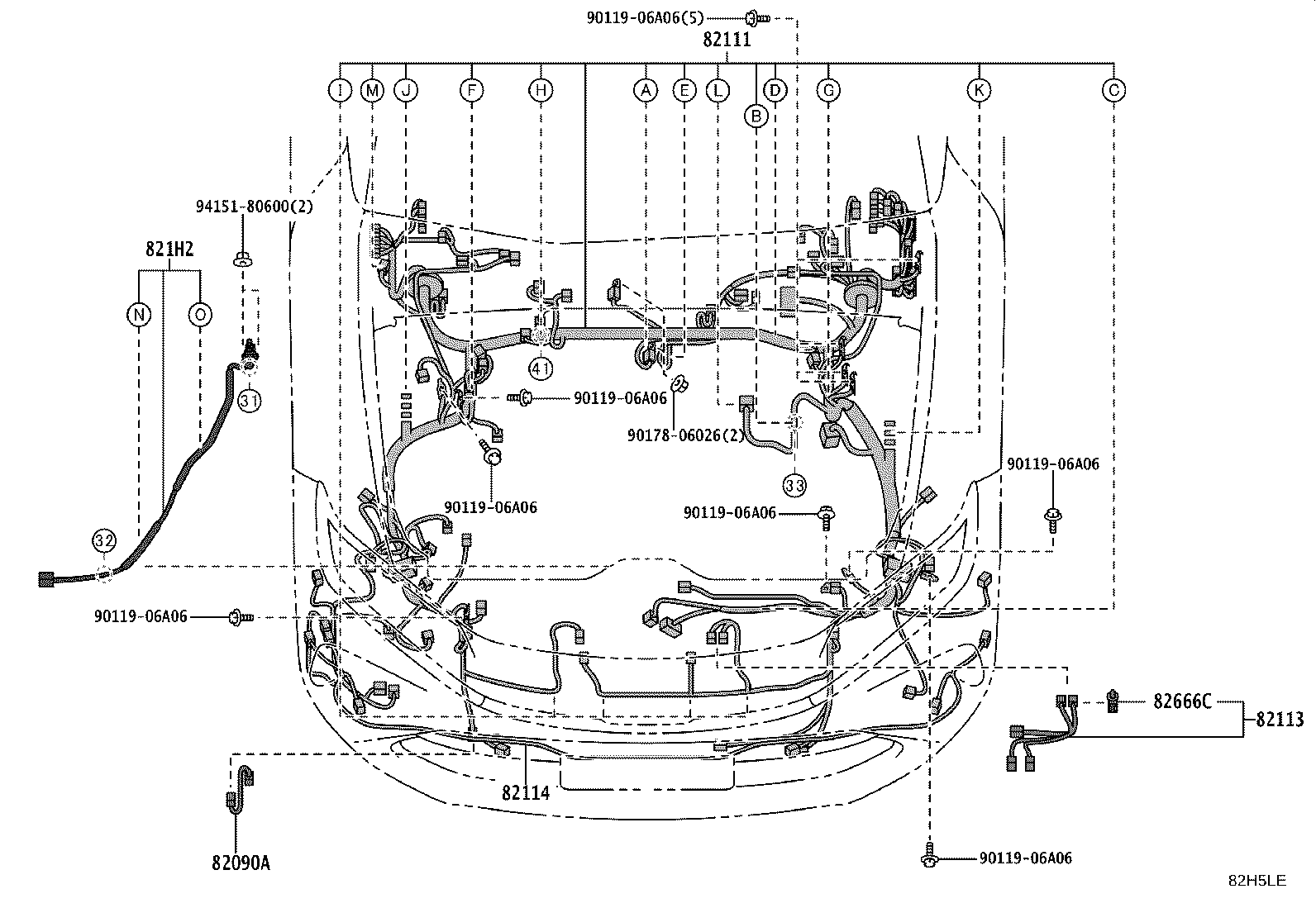

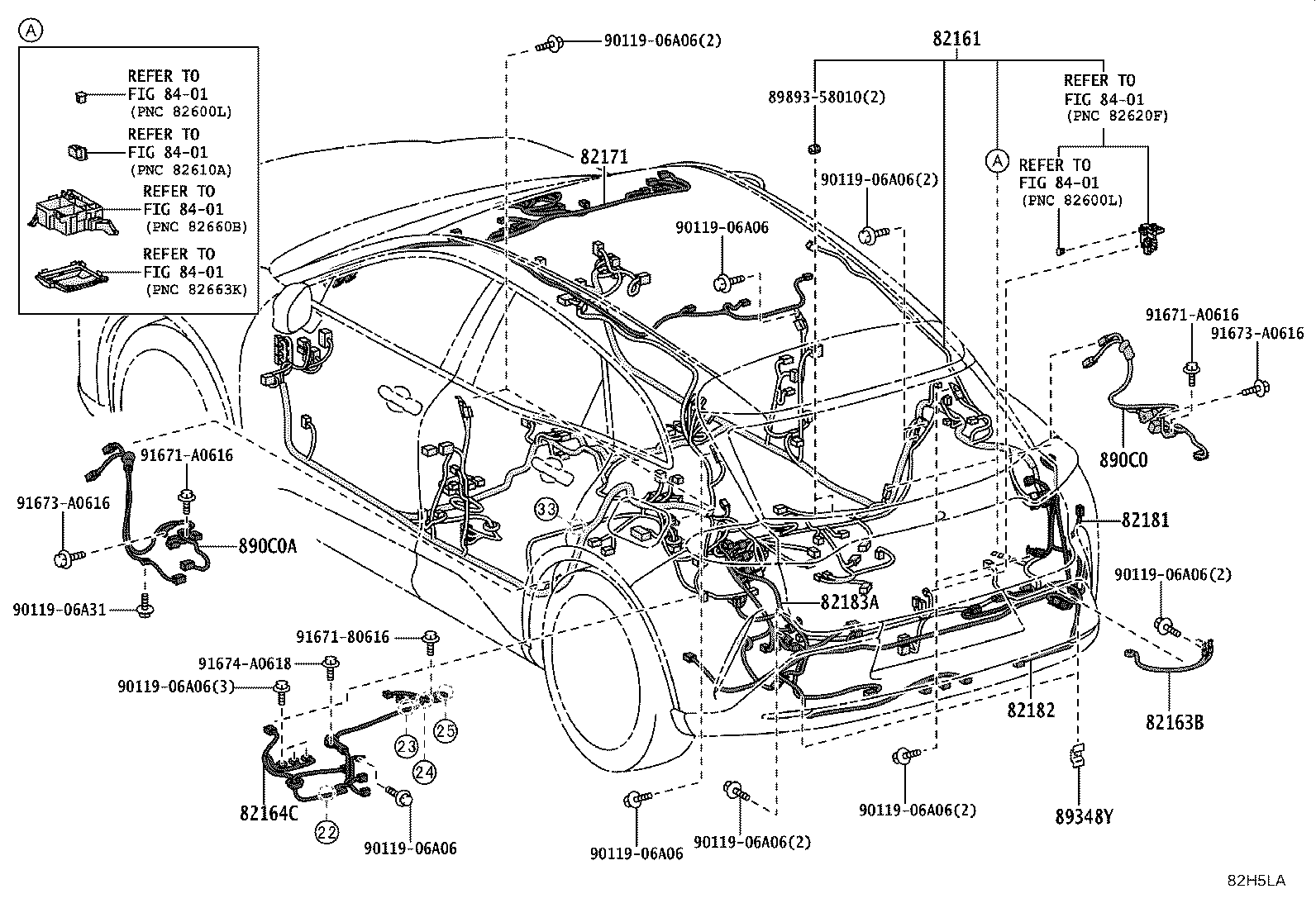

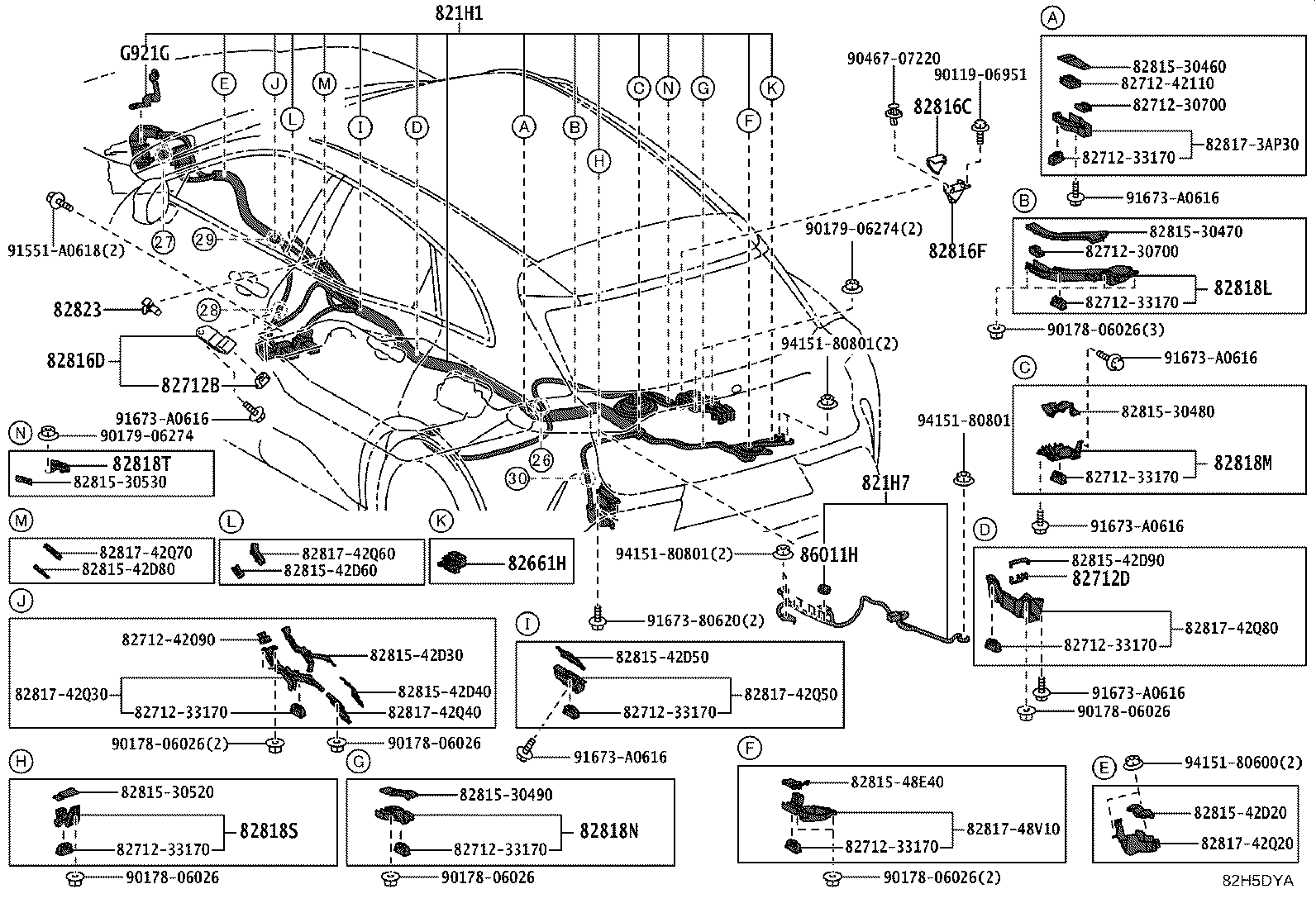

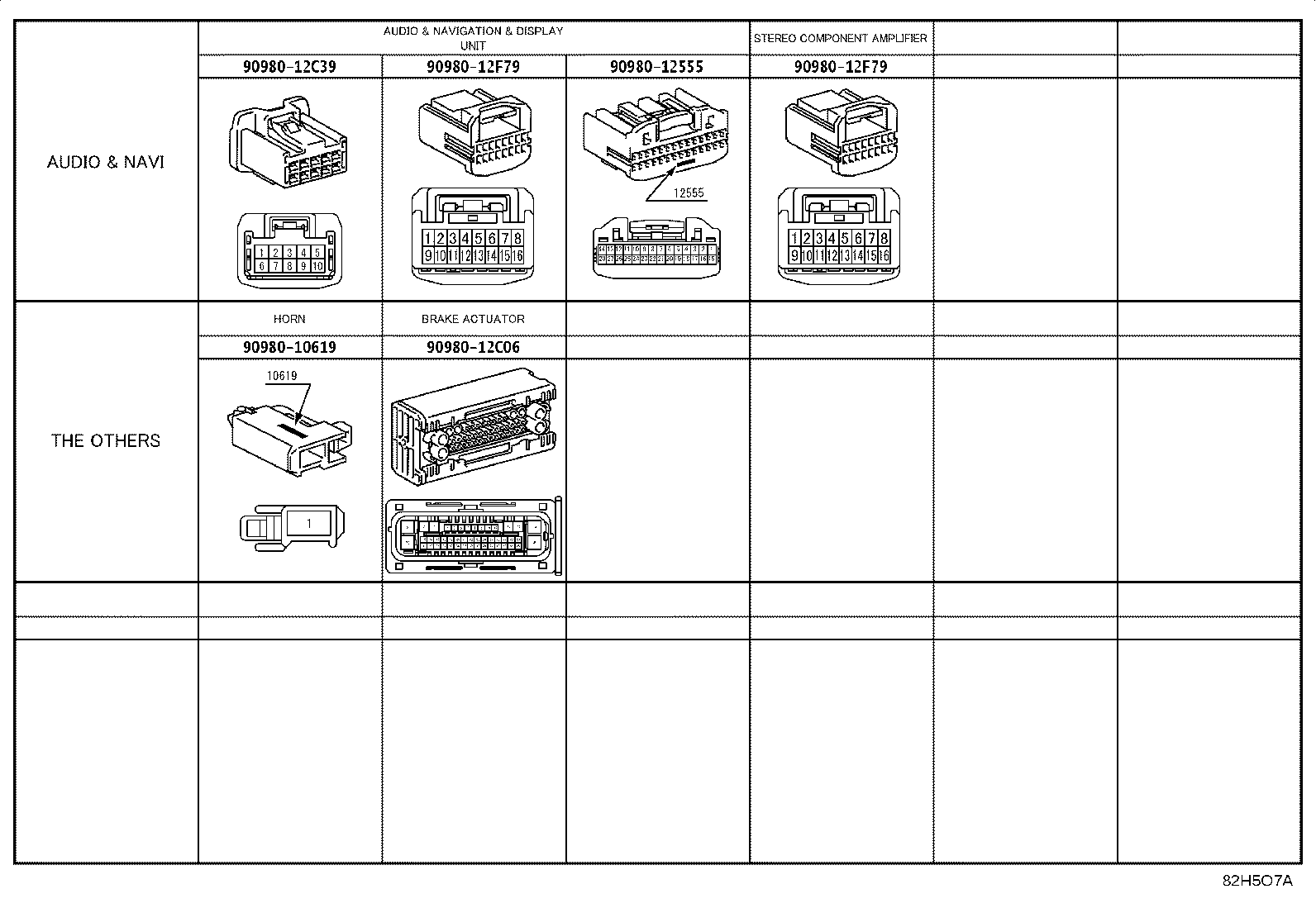

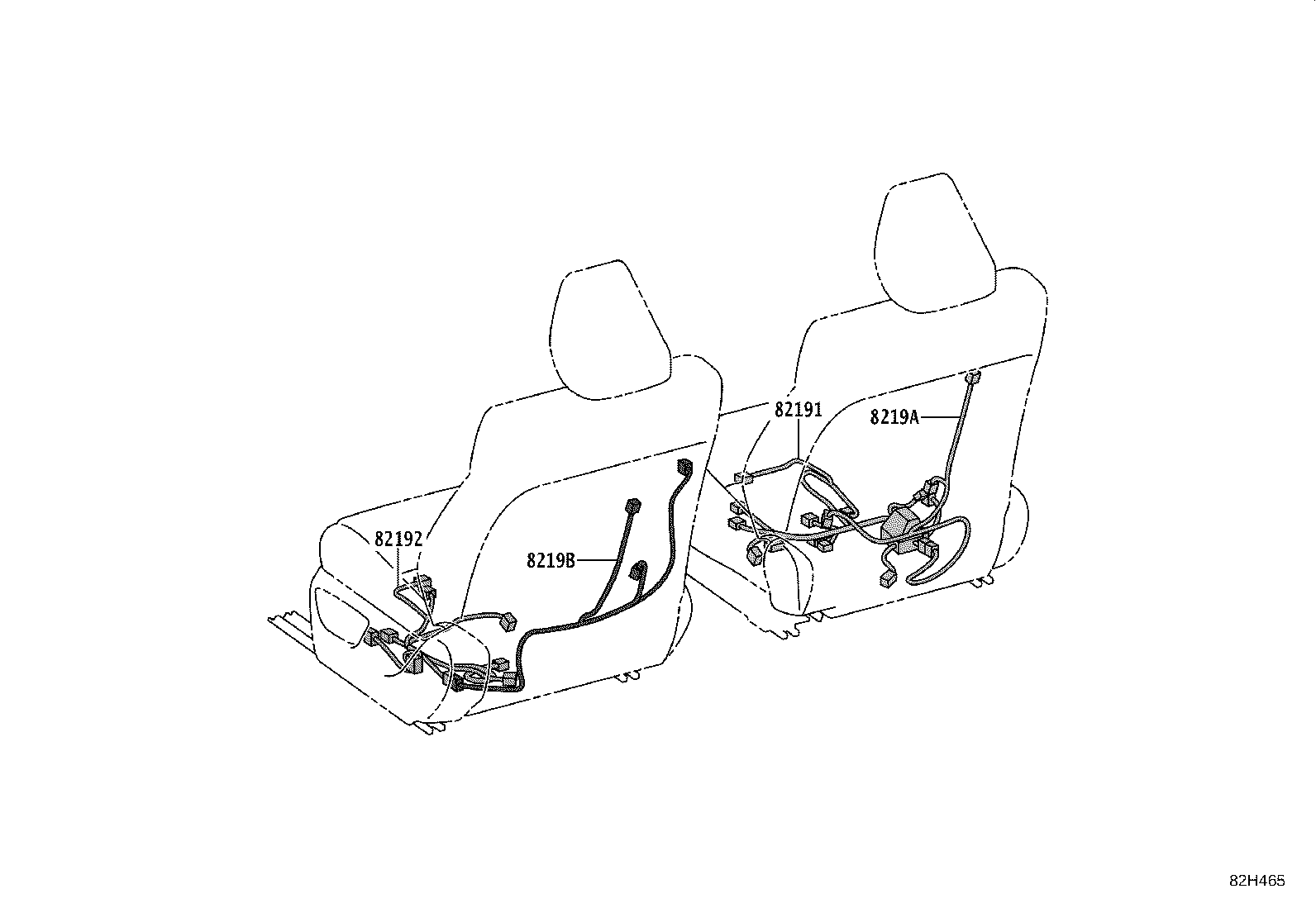

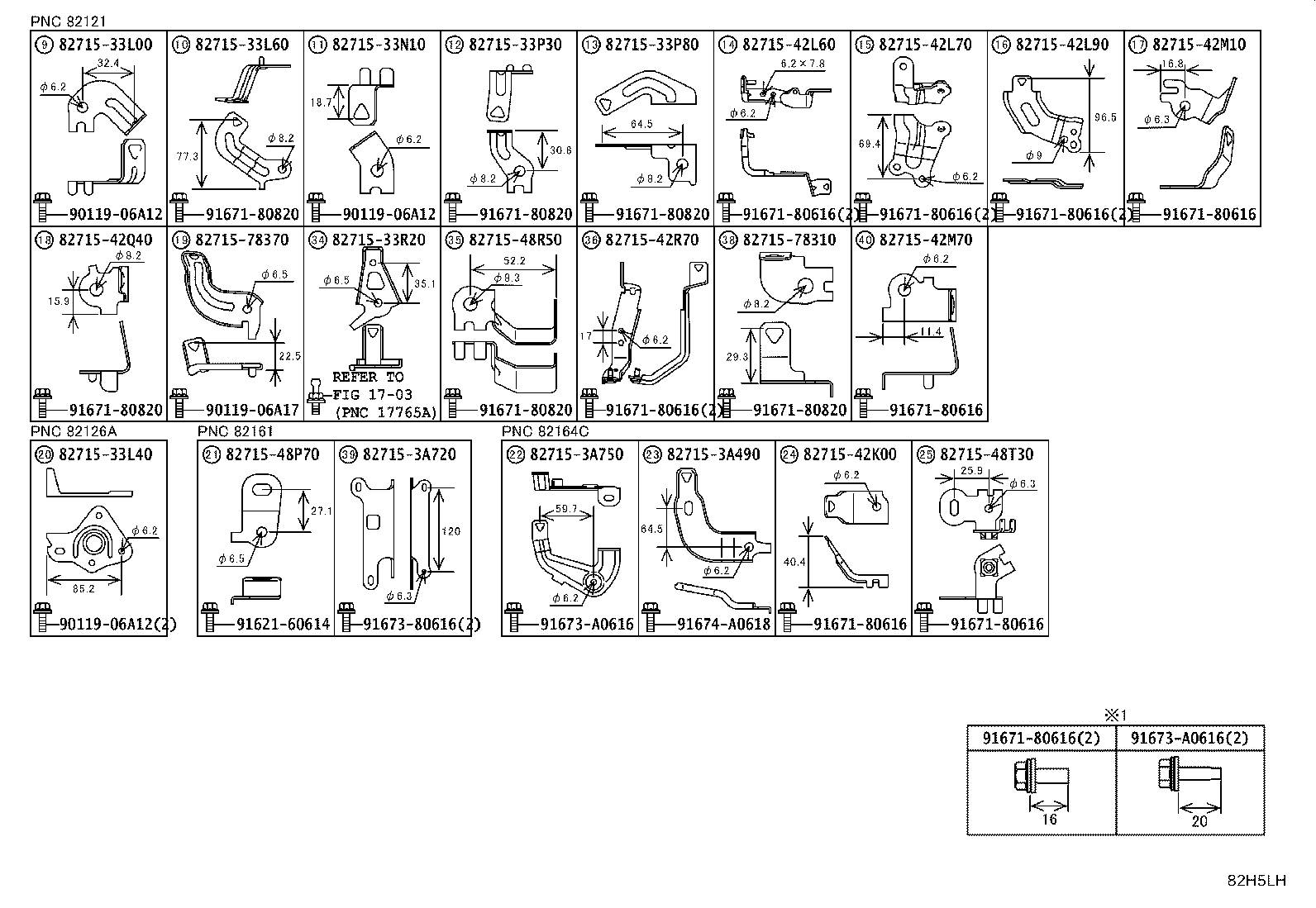

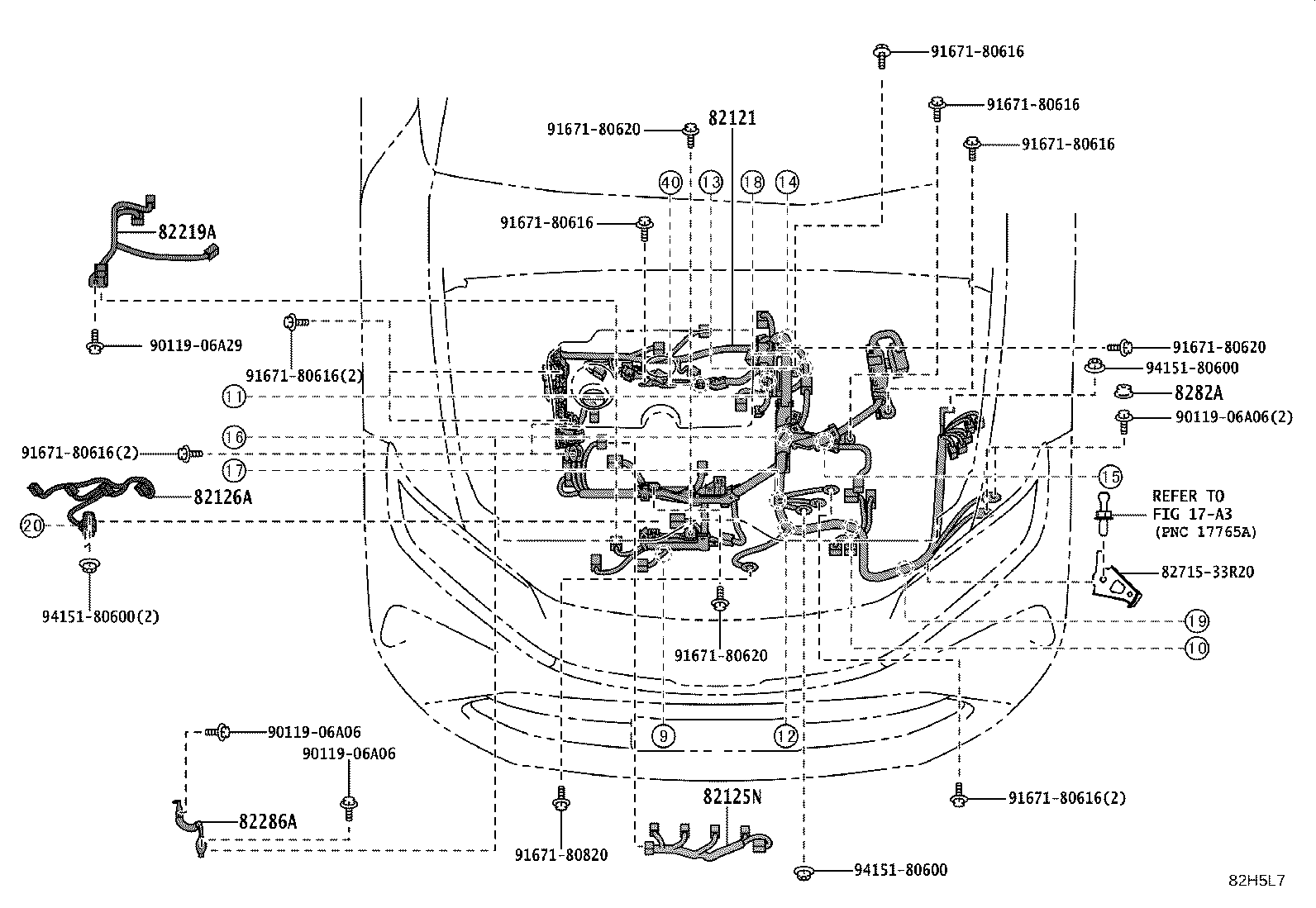

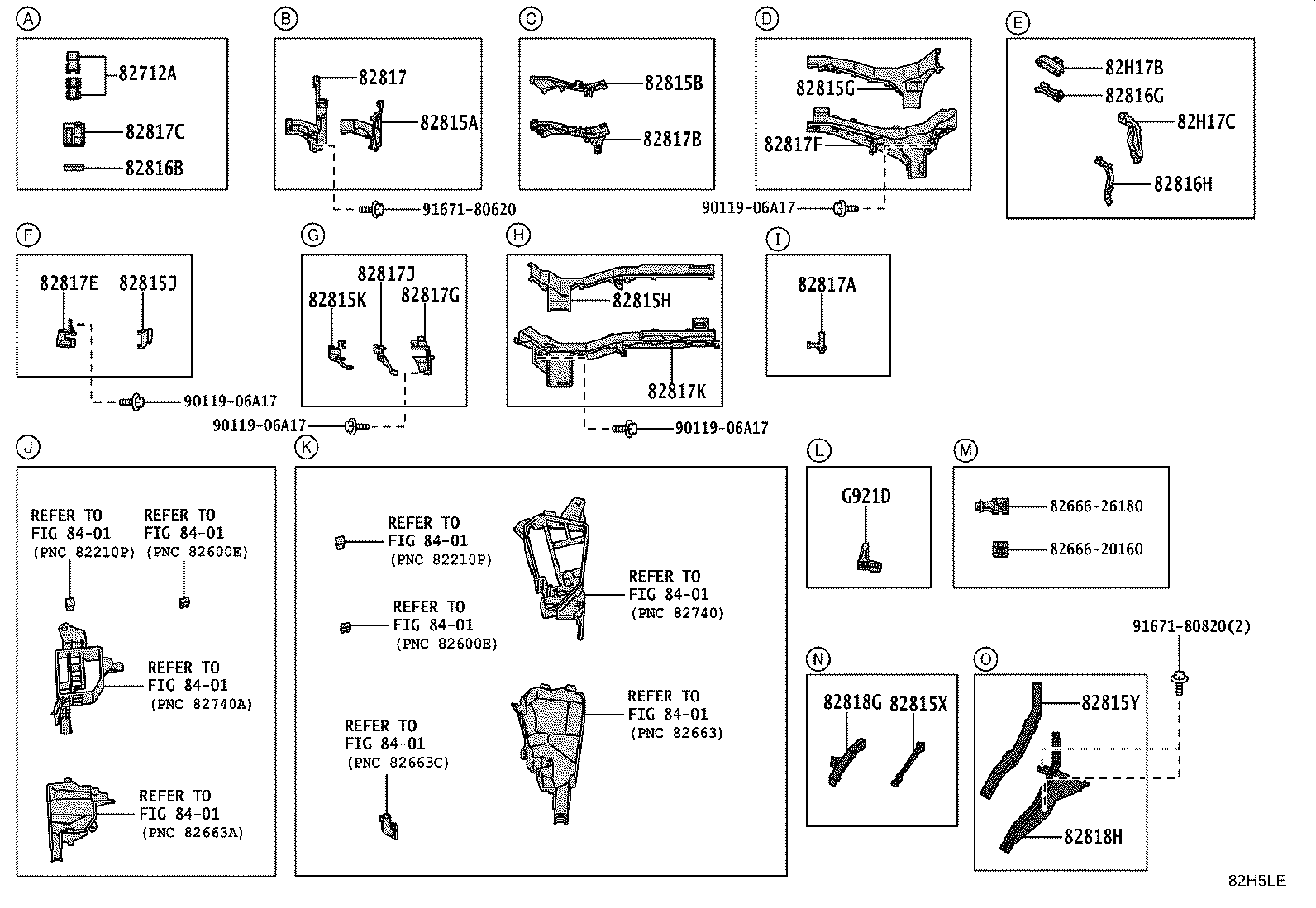

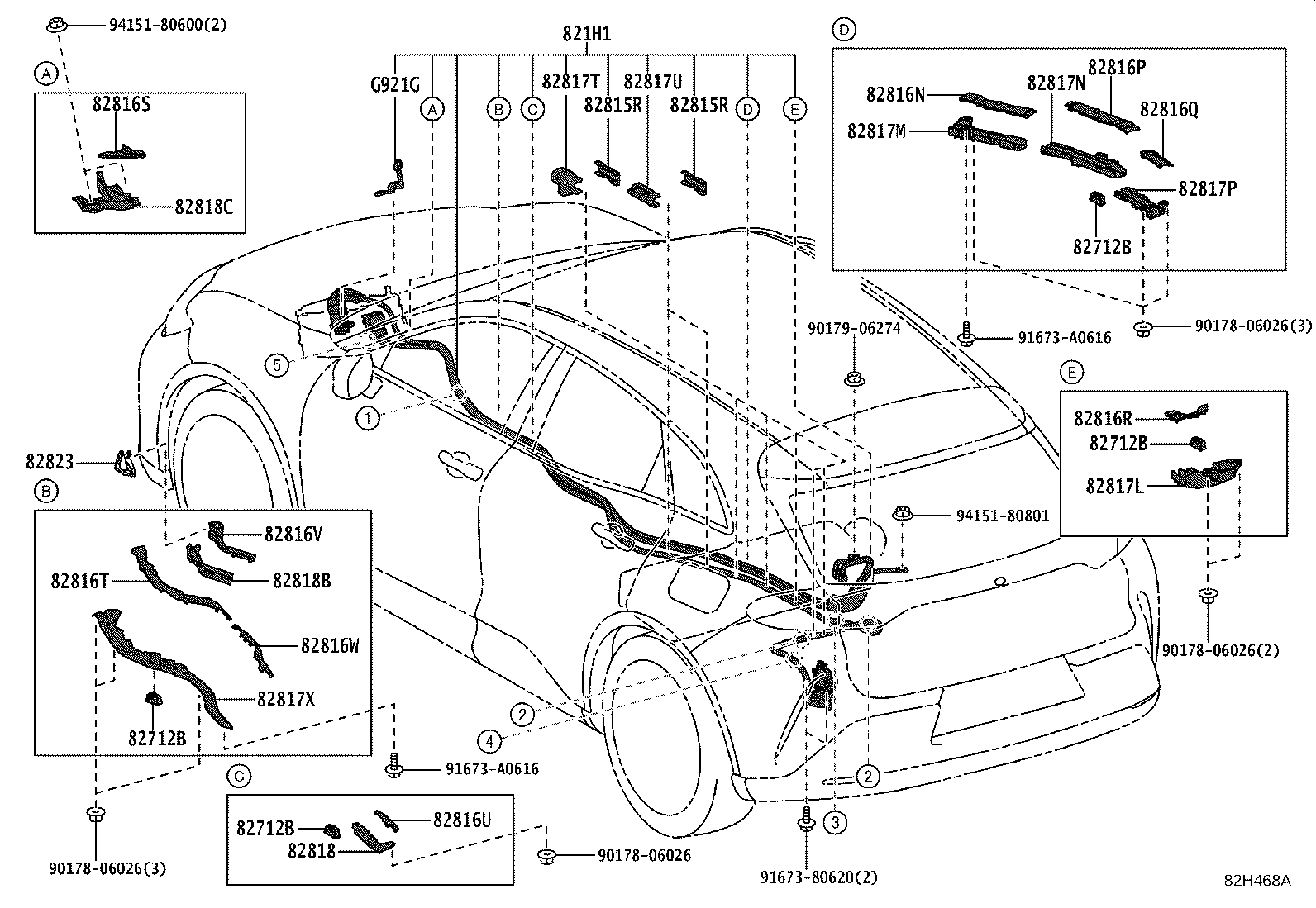

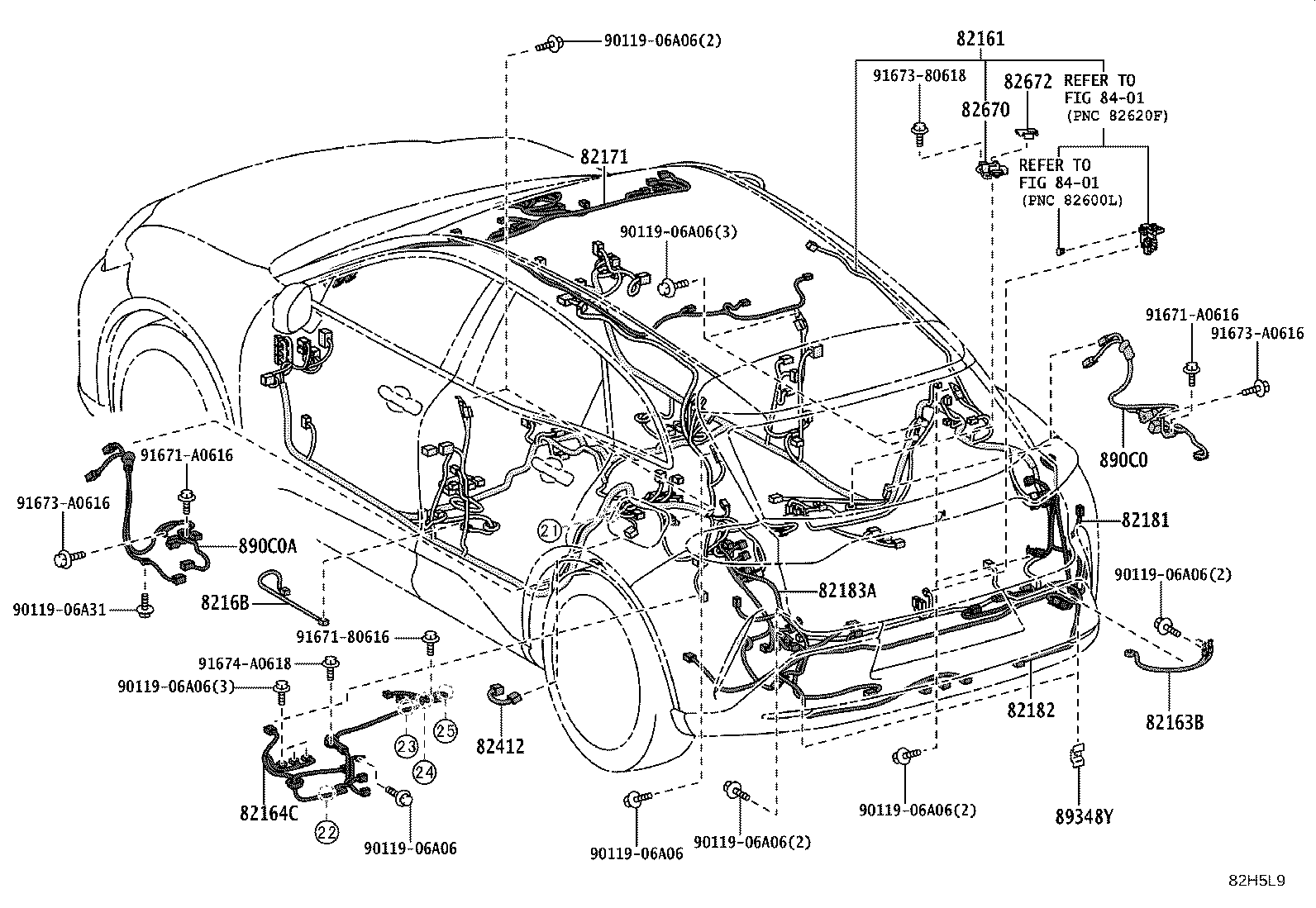

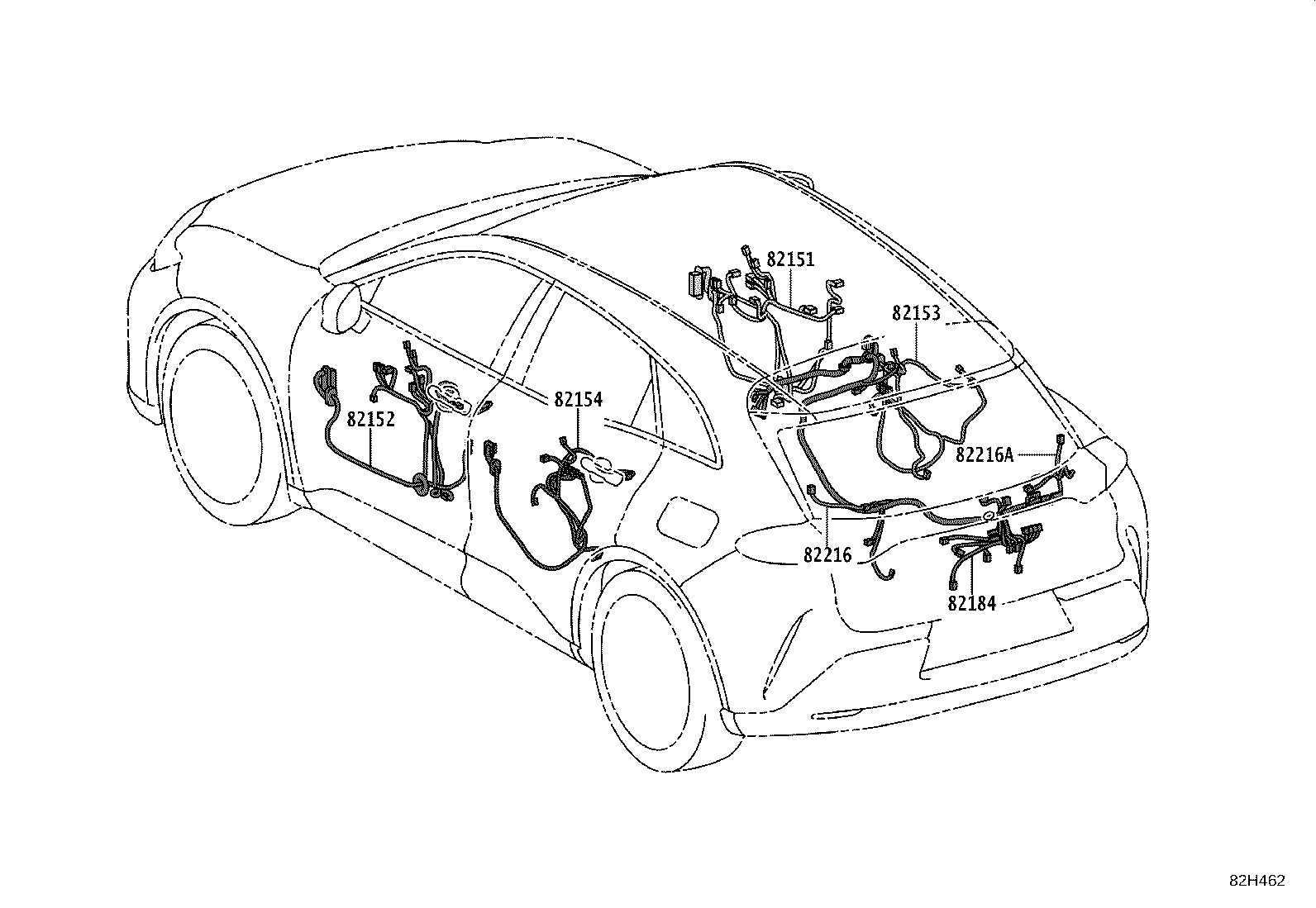

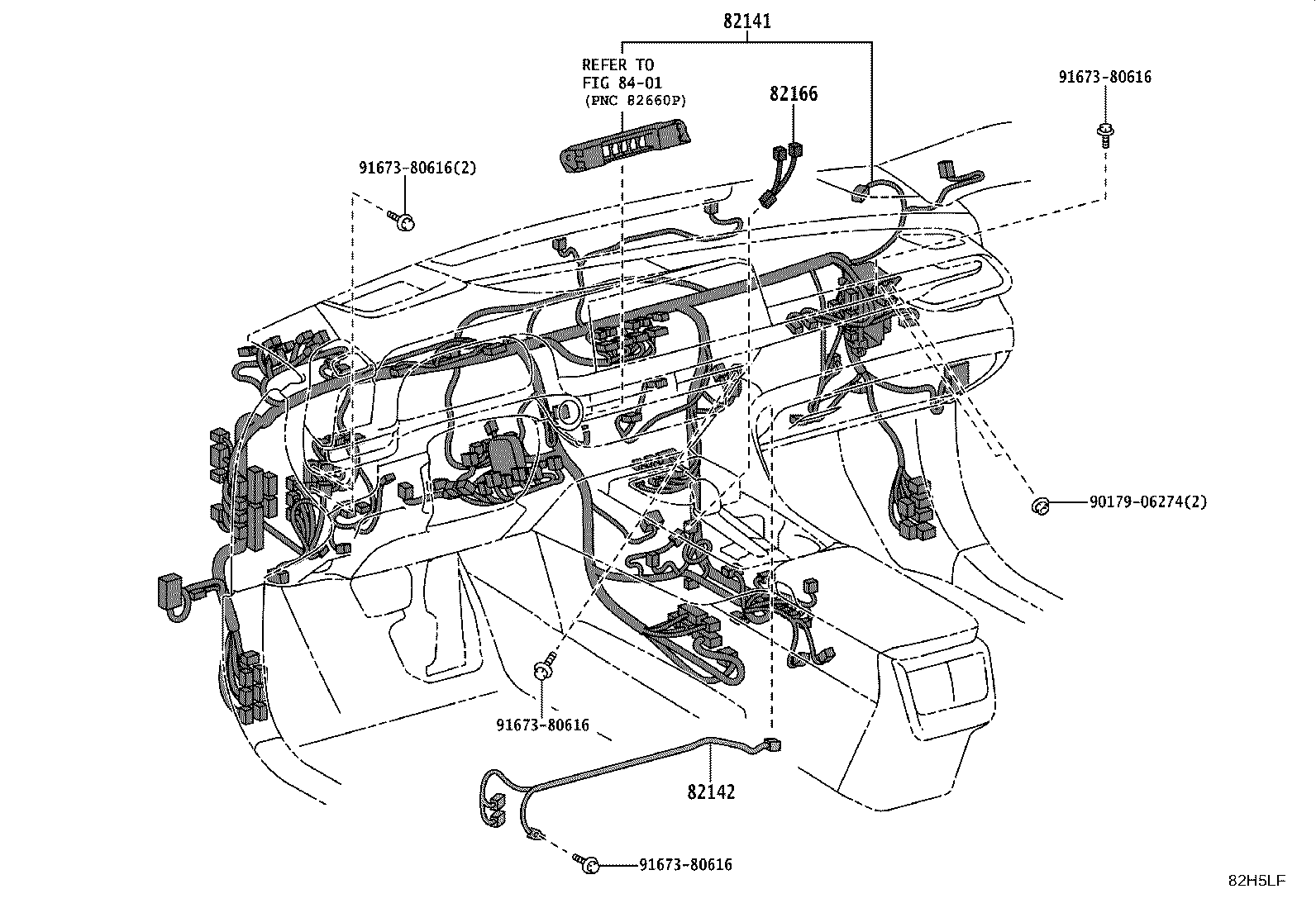

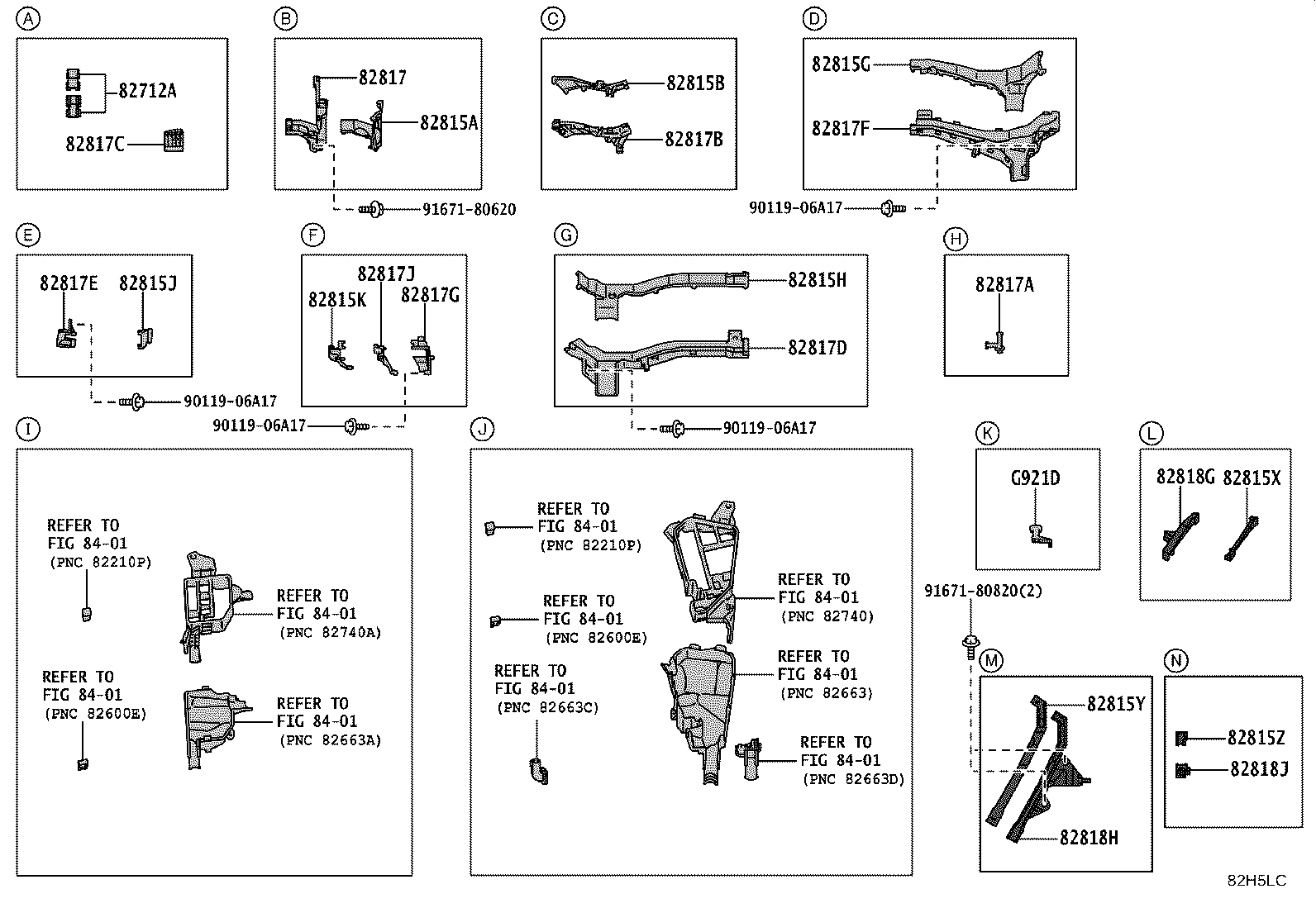

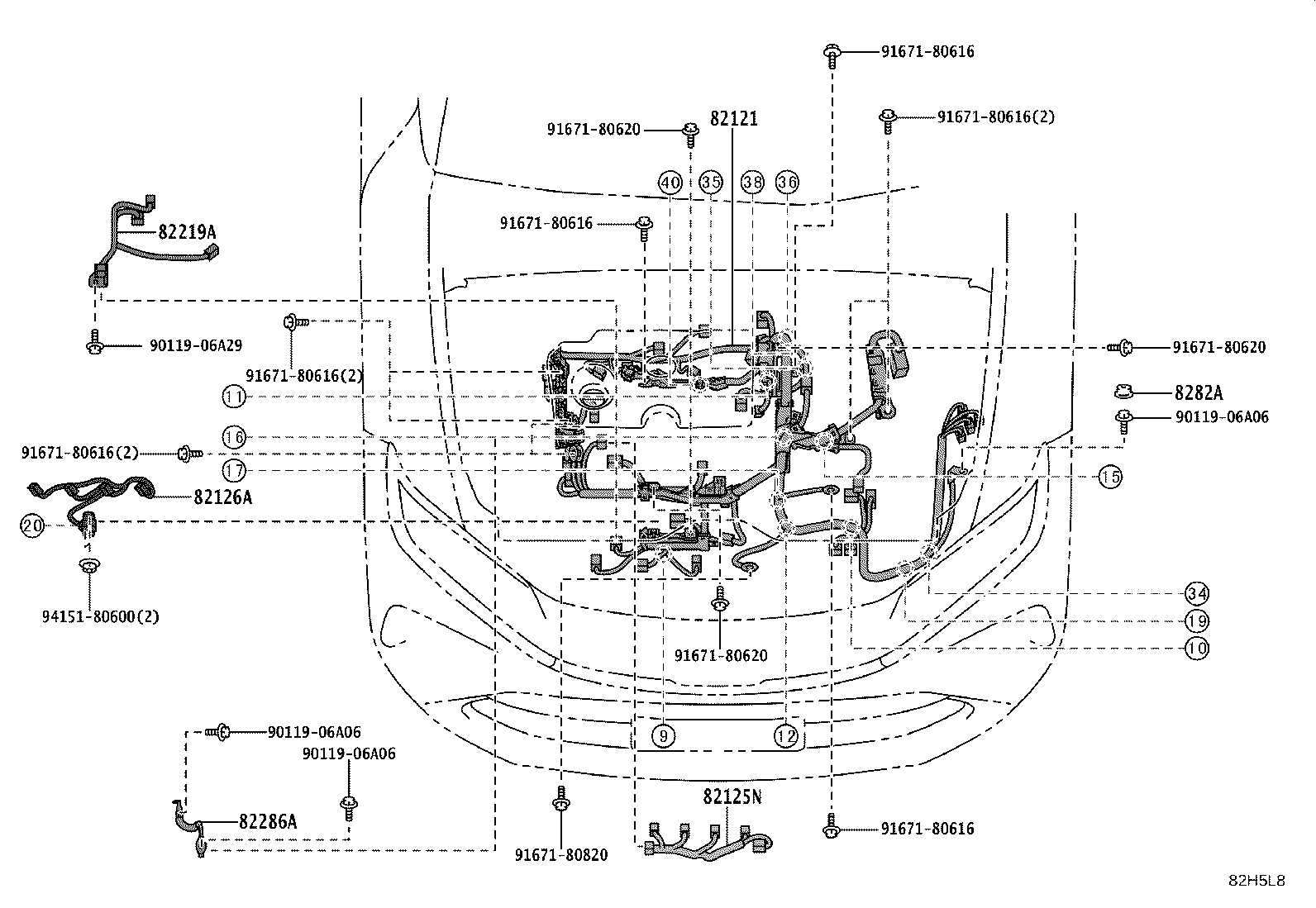

Figure 82H5LB 82H5LB 2024-05 → — Figure 82H5LC 82H5LC 2024-05 → — Figure 82H5LD 82H5LD 2024-05 → — Figure 82H5LE 82H5LE 2024-05 → — Figure 82H5L7 82H5L7 2024-05 → — Figure 82H5L8 82H5L8 2024-05 → — Figure 82H5LF 82H5LF 2024-05 → — Figure 82H462 82H462 2024-05 → — Figure 82H5L9 82H5L9 2024-05 → — Figure 82H5LA 82H5LA 2024-05 → — Figure 82H468A 82H468A 2024-05 → — Figure 82H5DYA 82H5DYA 2024-05 → — Figure 82H465 82H465 2024-05 → — Figure 82H5LG 82H5LG 2024-05 → — Figure 82H5LH 82H5LH 2024-05 → — Figure 82H5O6A 82H5O6A 2024-05 → — Figure 82H5O7A 82H5O7A 2024-05 → —

Part groups

PNCDescription
82090A Wire Assy, Extension
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163B Wire, Floor NO.5
82164C Wire, Floor, NO.4
82166 Wire, Console Box
8216B Wire, Floor NO.8
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H7 Wire, High Voltage Floor Under, NO.3
82216 Wire, Rear Window Defogger
82216A Wire, Rear Window Defogger
82219A Wire, Sensor
82286A Wire, Earth, NO.2
82412 Wire, Fuel Gage
82661H Cover, Relay Block
82666C Holder, Connector NO.4
82670 Block Assy, Junction, NO.1
82672 Cover, Junktion Block
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712D Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815R Cover, Wiring Harness Protector, NO.14
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816N Cover, Wiring Harness Protector, NO.11
82816P Cover, Wiring Harness Protector, NO.12
82816Q Cover, Wiring Harness Protector, NO.13
82816R Cover, Wiring Harness Protector, NO.14
82816S Cover, Wiring Harness Protector, NO.15
82816T Cover, Wiring Harness Protector, NO.16
82816U Cover, Wiring Harness Protector, NO.17
82816V Cover, Wiring Harness Protector, NO.18
82816W Cover, Wiring Harness Protector, NO.19
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82821E Cover, Connector
82823 Cap, Terminal, NO.1
8282A Cap, Earth Bolt, NO.1
82H17B Protector, Wiring Harness, NO.1
82H17C Protector, Wiring Harness, NO.2
86011H Filter, Noise
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348Y Clip, Ultrasonic Sensor, Rear
G921D Protector, Inverter Connector Cover
G921G Protector, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
