Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH36,37 · catalogue 33A210 · General
Supported model
Data version 2024-05
Switch & Relay & Computer
137 part groups · 13 illustrations

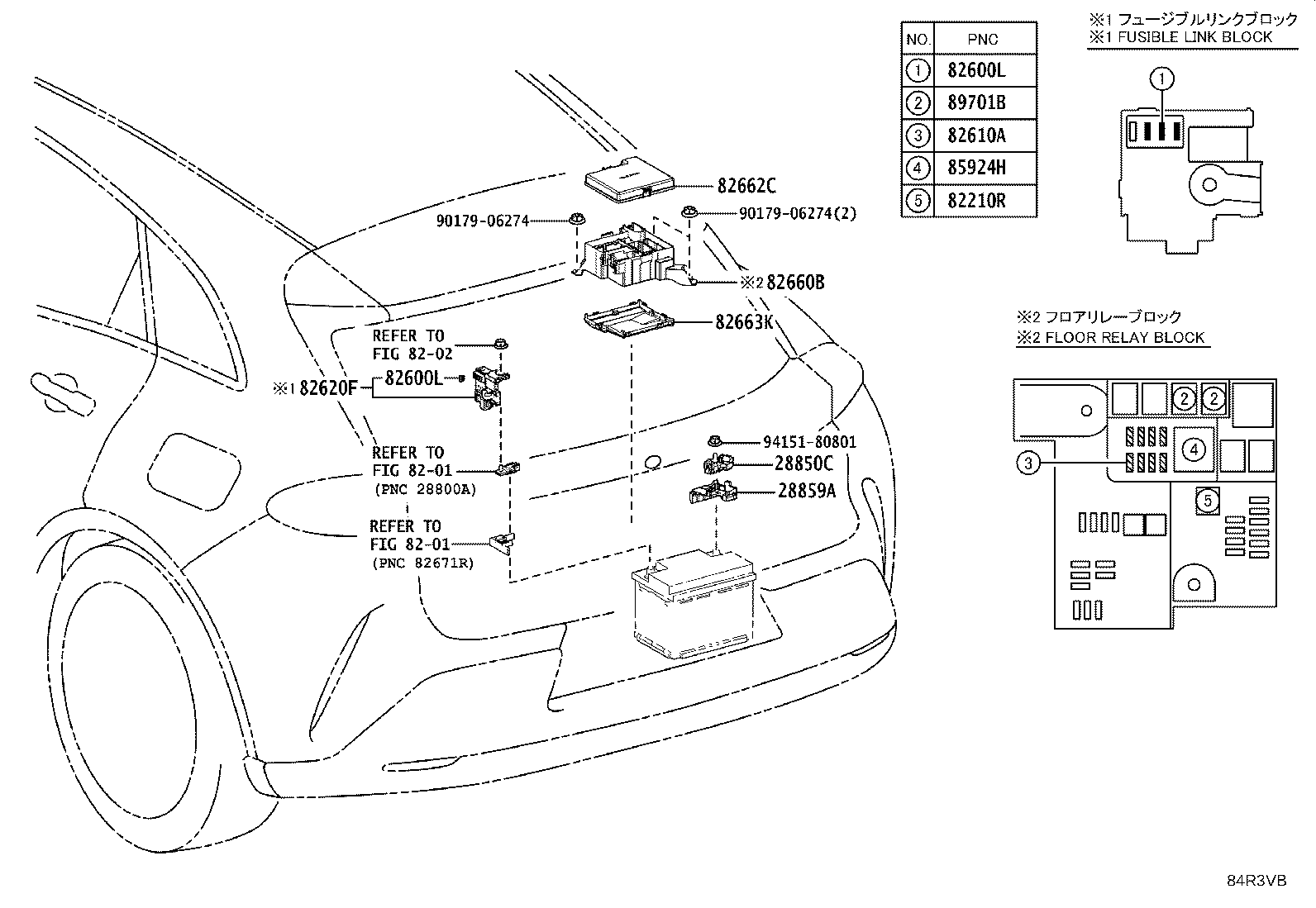

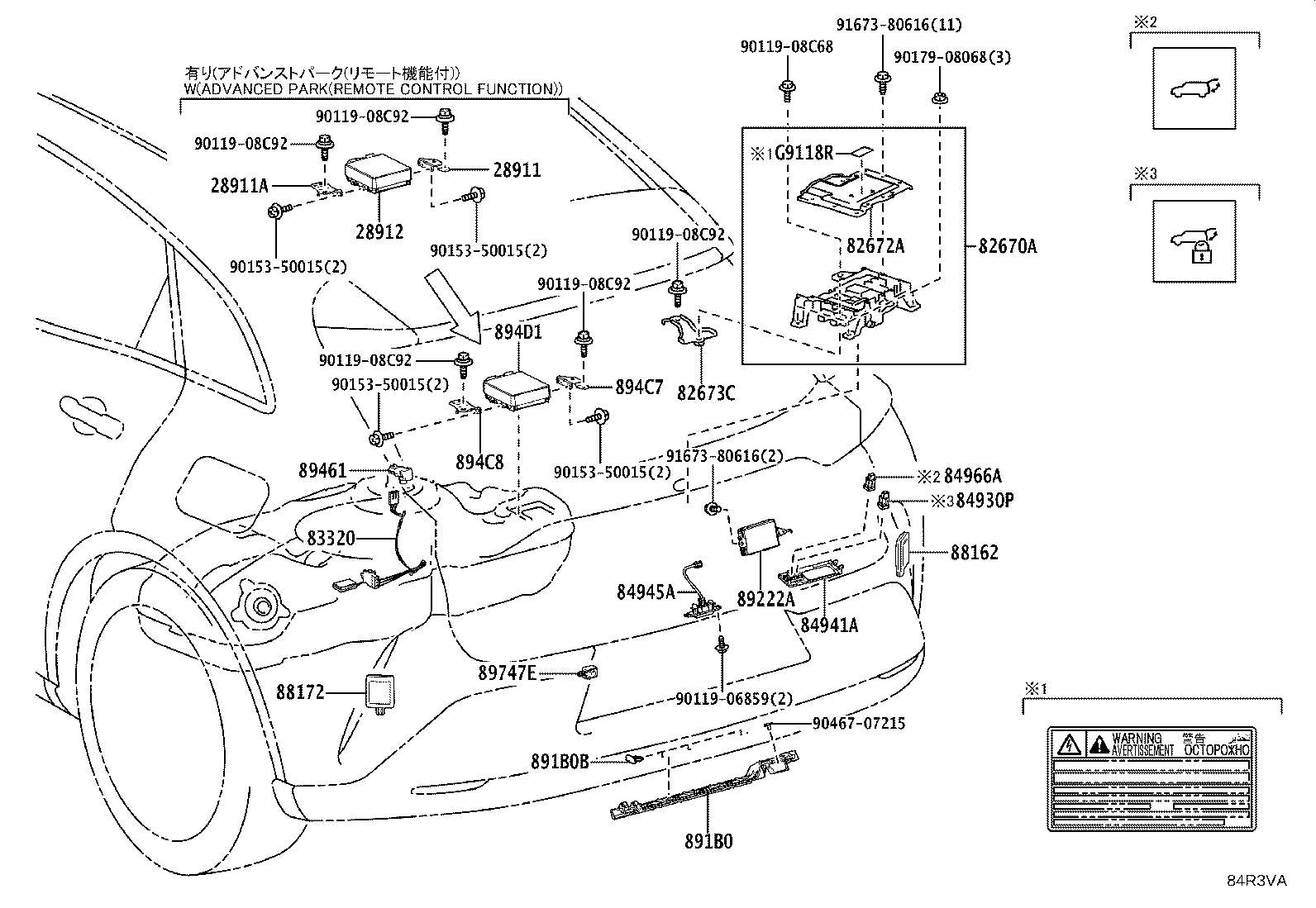

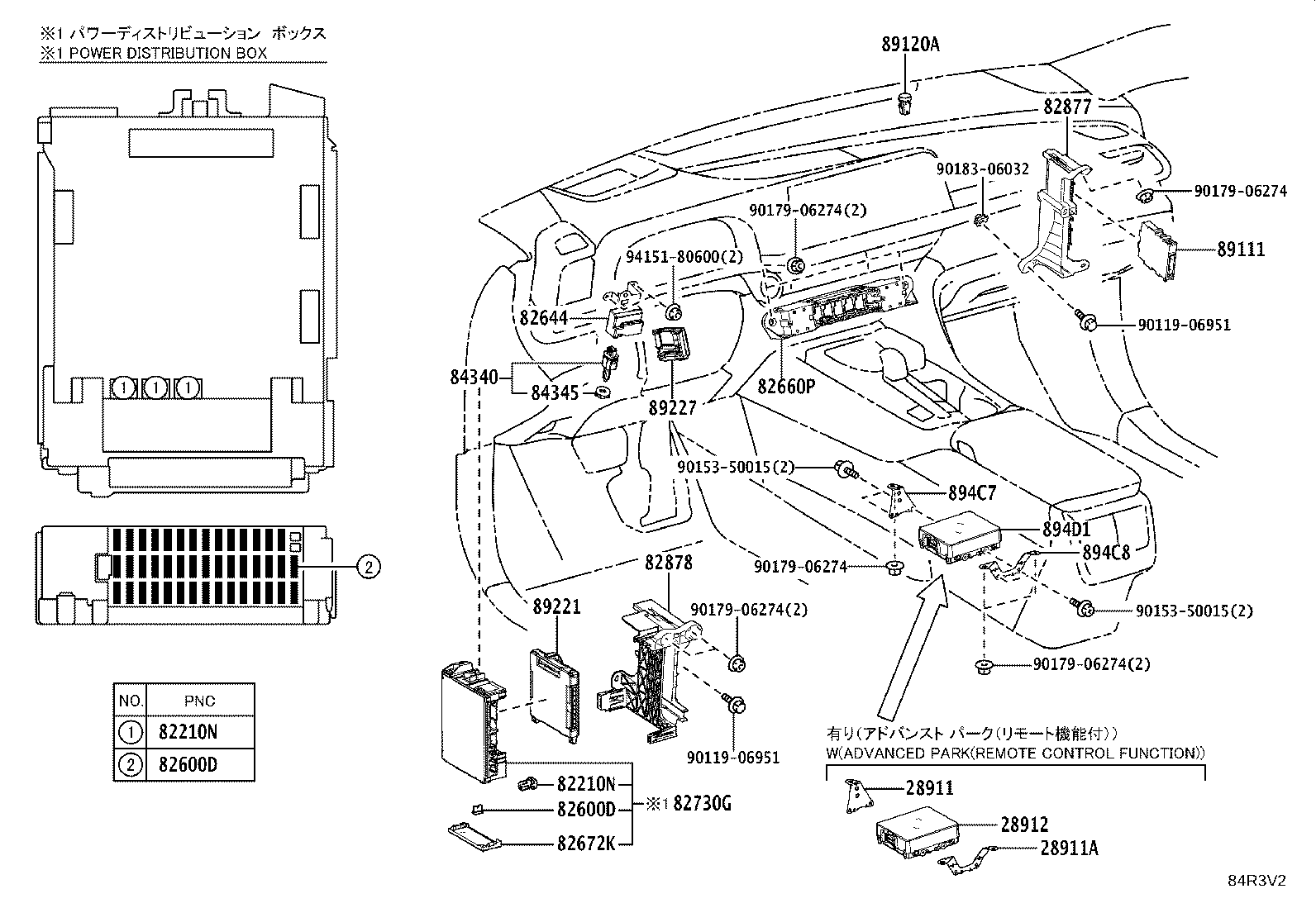

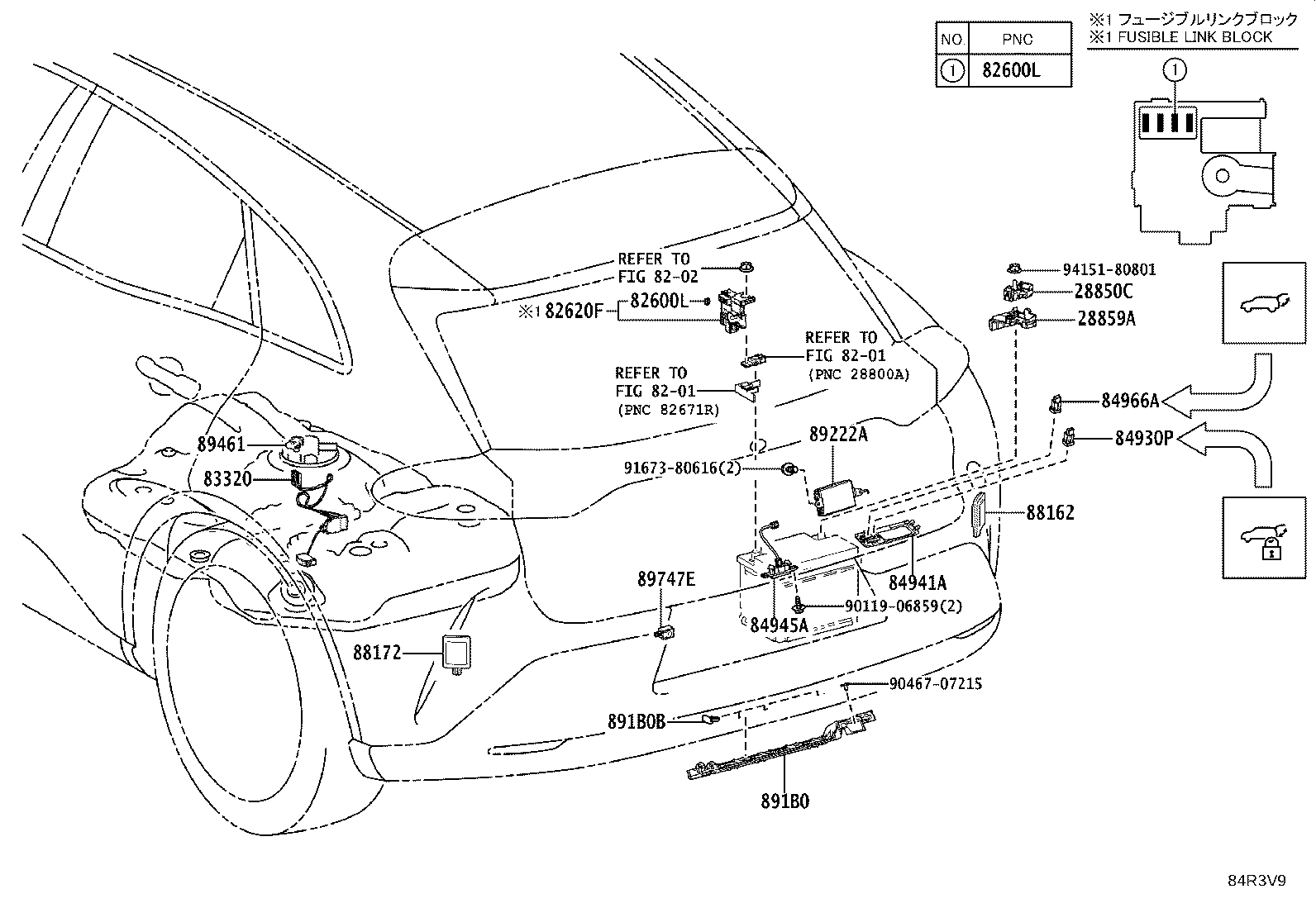

Illustrations
Part groups
| PNC | Description |
|---|---|
| 28371J | Relay, Igb |
| 28371L | Relay, Igp |
| 28371S | Relay, Igr, NO.3 |
| 28800R | Relay, Battery Fan |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 28911 | Bracket, Integration Control Supply, NO.1 |
| 28911A | Bracket, Integration Control Supply, NO.2 |
| 28912 | Supply, Integration Control |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82210R | Luggage Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82600L | Luggage Room Fuse |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620F | Block Assy, Fusible Link |
| 82644 | Computer, Semiconductor Power Integration |
| 82660B | Block Assy, Relay |
| 82660P | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82663D | Cover, Relay Block, Lower, NO.5 |
| 82663K | Cover, Relay Block, Lower, NO.6 |
| 82670A | Block Assy, Junction, NO.1 |
| 82672A | Cover, Junction Block |
| 82672K | Cover, Power Distribution Box |
| 82673C | Bracket, Junction Block |
| 82715W | Bracket, Wiring Harness Clamp |
| 82715X | Bracket, Wiring Harness Clamp, NO.2 |

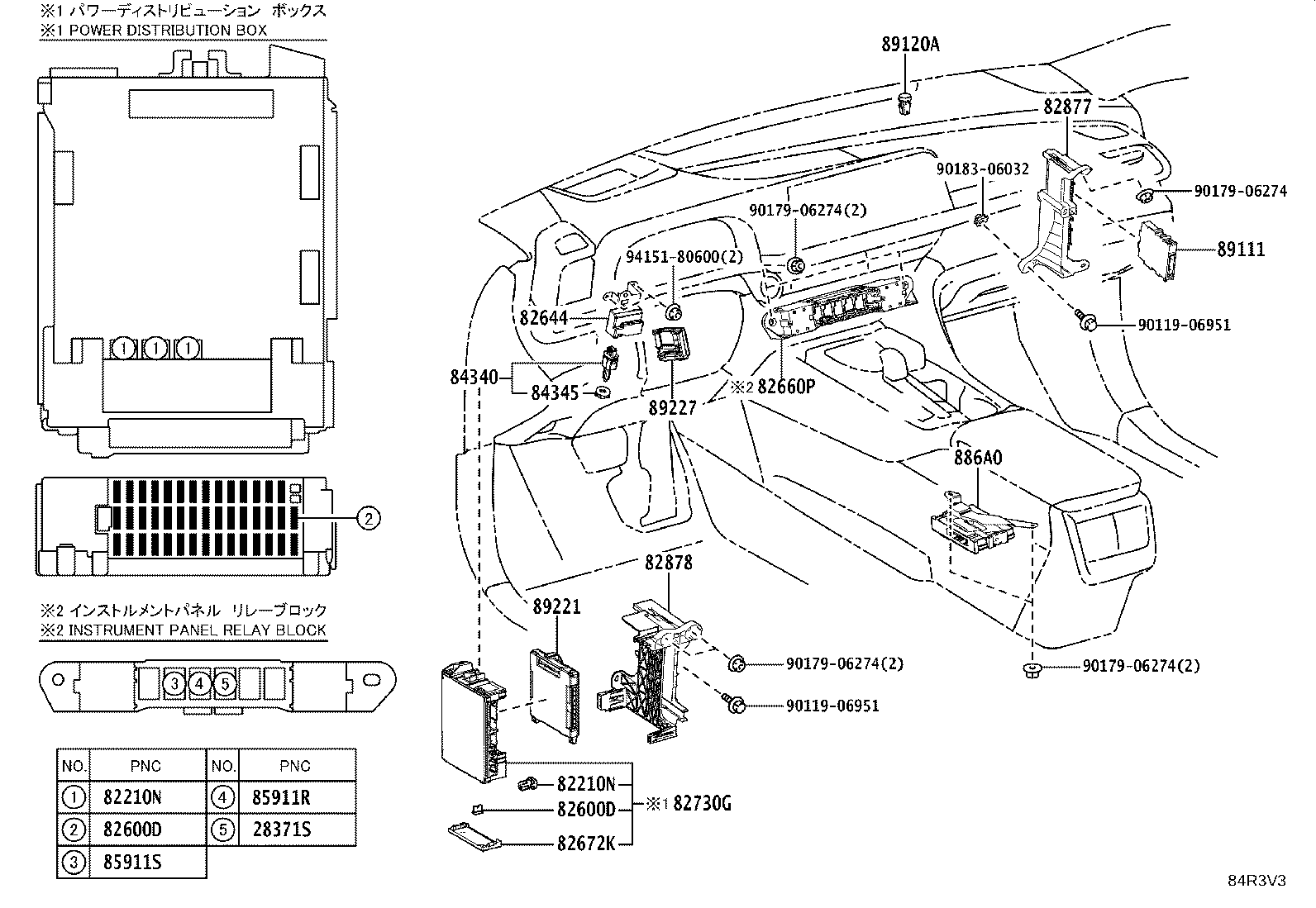

| 82730G | Box Assy, Power Distribution |

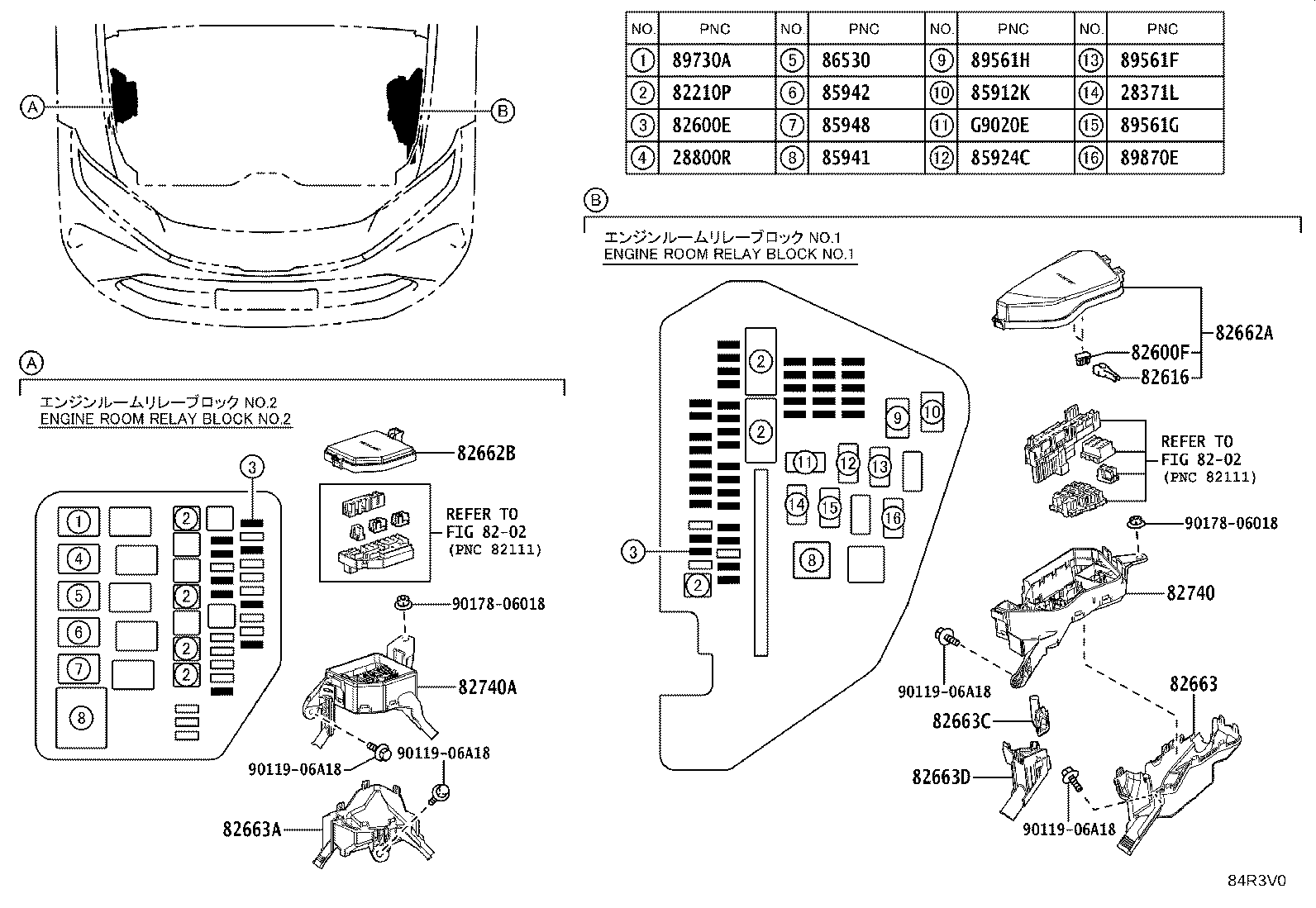

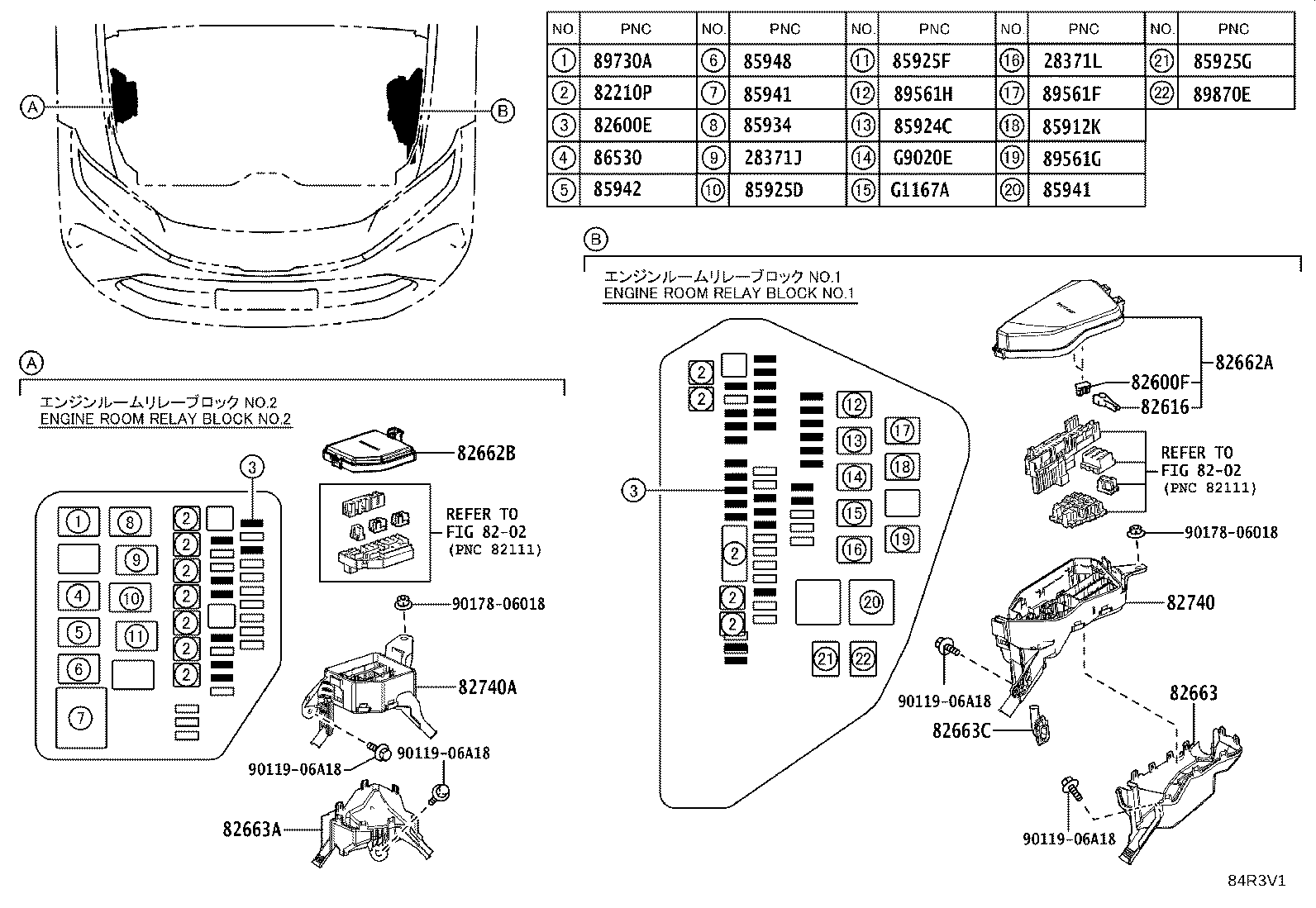

| 82740 | Block Assy, Engine Room Relay |
| 82740A | Block Assy, Engine Room Relay, NO.2 |
| 82877 | Box, Computer Integration, RH |
| 82878 | Box, Computer Integration, LH |
| 83320 | Gage Assy, Fuel Sender |
| 84040 | Master Switch Assy,Multiplex Network |

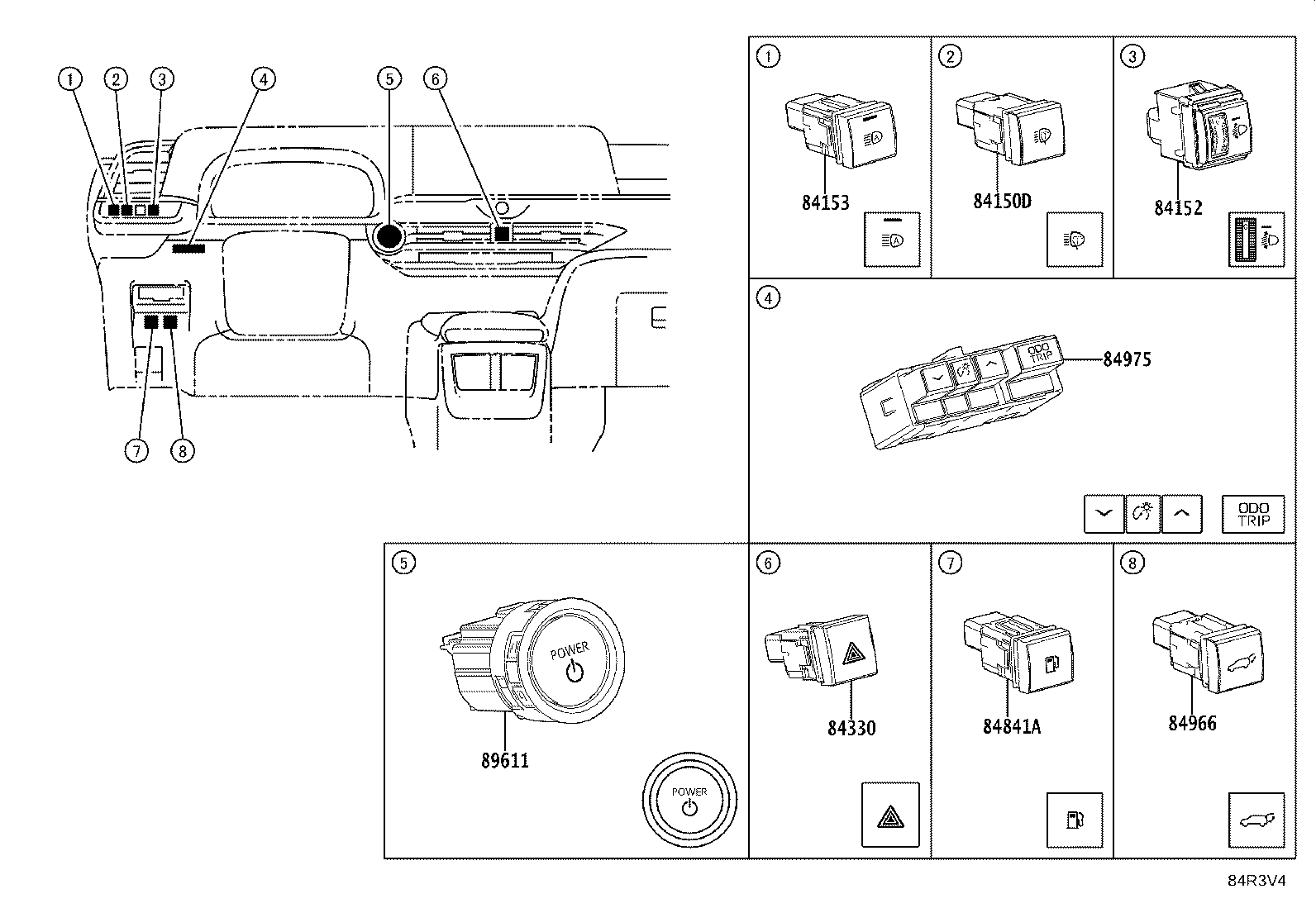

| 84150D | Switch Assy, Headlamp Cleaner |
| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |

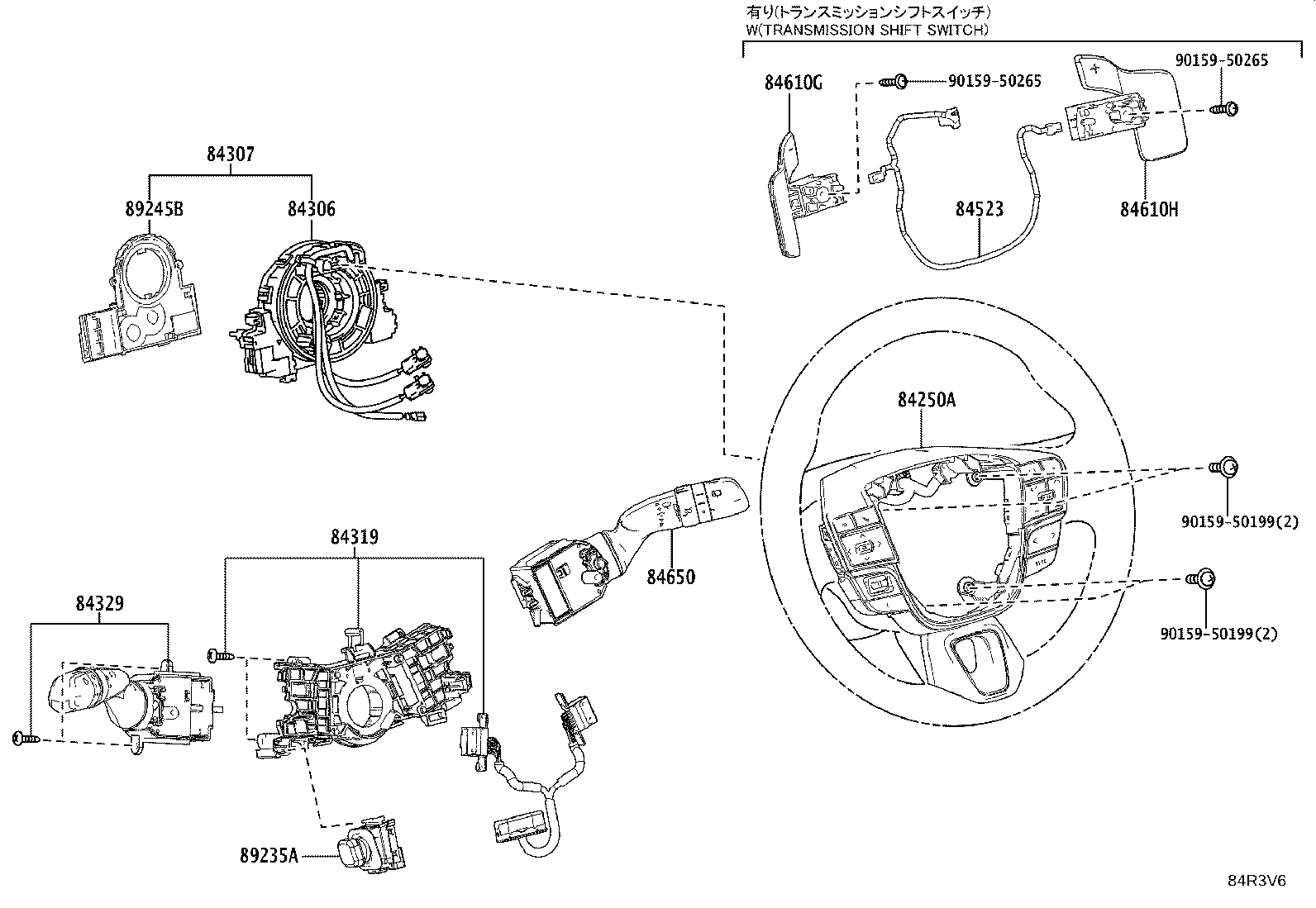

| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |

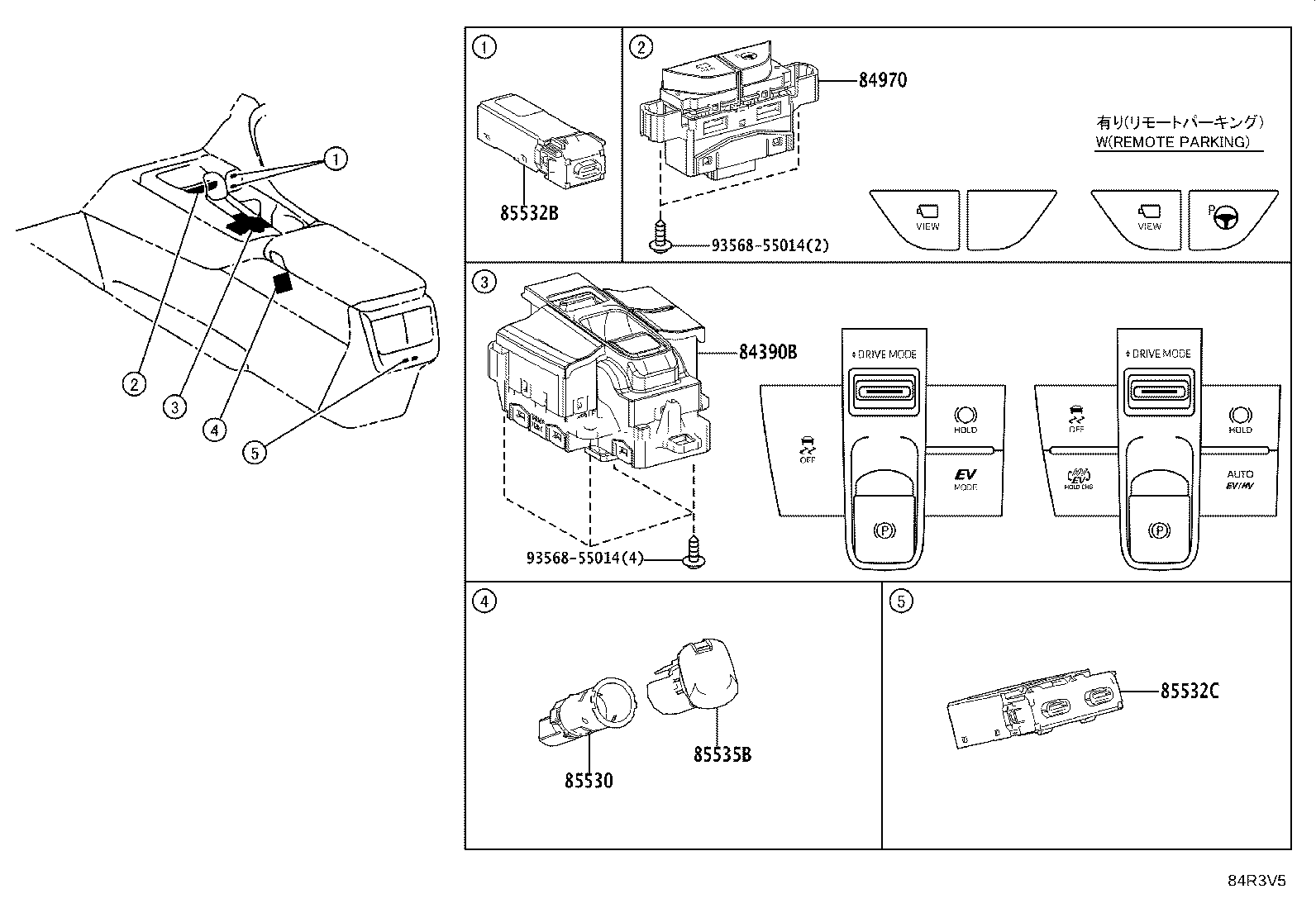

| 84390B | Switch Assy, Electric Parking Brake |
| 84523 | Wire, Switch NO.1 |
| 84610G | Switch Assy, Transmission Shift, NO.1 |
| 84610H | Switch Assy, Transmission Shift, NO.2 |
| 84650 | Switch Assy, Windshield Wiper |
| 84751R | Switch, Seat Heater(REAR) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84841A | Switch, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |

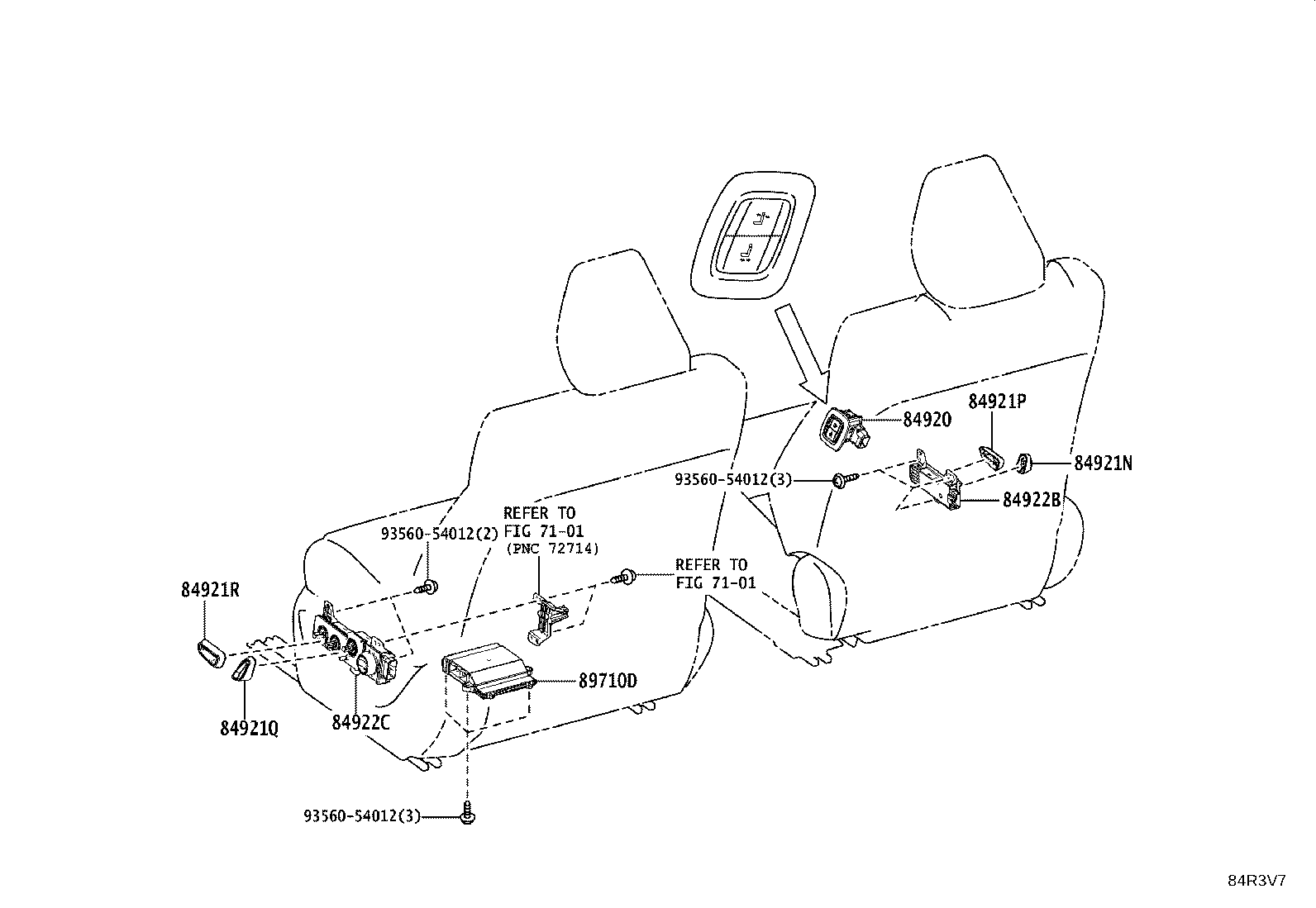

| 84920 | Switch Assy, Power Seat |
| 84921N | Knob, Power Seat Switch, RH (FOR RECLINING) |
| 84921P | Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL) |
| 84921Q | Knob, Power Seat Switch, LH (FOR RECLINING) |
| 84921R | Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84930P | Switch Assy, Door Control |
| 84941A | Base, Switch |
| 84945A | Switch, Luggage Electrical Key |
| 84966 | Switch, Power Back Door Control |
| 84966A | Switch, Power Back Door Control, NO.1 |
| 84970 | Switch Assy, Combination |
| 84975 | Switch, Trip |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85532B | Socket, Usb Charger |
| 85532C | Socket, Usb Charger, NO.2 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85911R | Relay, Rear Seat Heater, RH |
| 85911S | Relay, Rear Seat Heater, LH |
| 85912K | Relay, Vvt |
| 85924C | Relay, Igct |
| 85924H | Relay, Igct-scene |
| 85925D | Relay, Ptc Heater |
| 85925F | Relay, Ptc Heater NO.2 |
| 85925G | Relay, Ptc Heater NO.3 |
| 85934 | Relay, Magnet-clutch |
| 85941 | Relay, Windshield Washer |
| 85942 | Relay, Headlamp Cleaner Control |
| 85948 | Relay, Windshield Wiper |
| 86530 | Relay Assy, Horn |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 886A0 | Computer Assy, Heat Pump |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 891B0 | Sensor Assy, Kick Door Control |
| 891B0B | Retainer, Kick Door Control Sensor |
| 89221 | Computer, Multiplex Network Body |

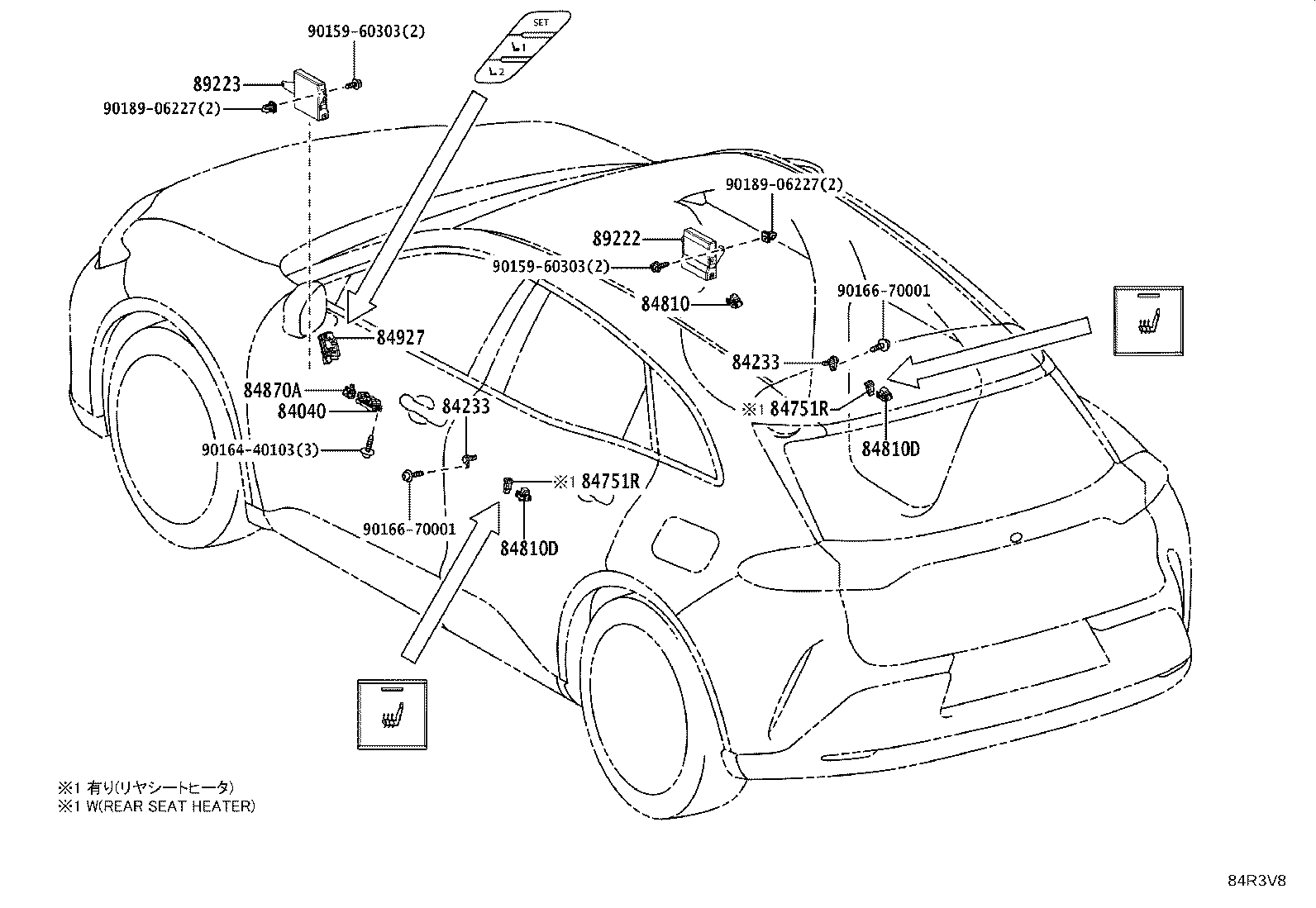

| 89222 | Computer, Multiplex Network Door, Front RH |
| 89222A | Computer, Multiplex Network Door |
| 89223 | Computer, Multiplex Network Door, Front LH |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89422A | Sensor, Water Temperature |
| 89422N | Sensor, Water Temperature, NO.2 |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89461 | Sensor, Vapor Pressure |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 8946A | Bracket, Exhaust Sensor Clamp |
| 8946AA | Bracket, Exhaust Sensor Clamp, NO.2 |
| 89481B | Sensor, Differential Pressure |
| 894C7 | Bracket, Shift Control Computer, NO.1 |
| 894C8 | Bracket, Shift Control Computer, NO.2 |
| 894D1 | Supply, Shift Control |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89701B | Relay, Plugin Charge Control |
| 89710D | Computer Assy, Position Control, LH |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89747E | Buzzer, Power Back Door Warning |
| 89870E | Relay, Electronic Driver Unit |
| G1167A | Relay (FOR OIL PUMP MOTOR) |
| G9020E | Relay, Hybrid Water Pump |
| G9118R | Label, Unit Controller Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
