Toyota Alphard Hev/Phev

2024-05 → present · chassis AZSH36,37 · catalogue 33A210 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

DC/DC Converter & Charger(BEV OR FCEV)

23 part groups · 3 illustrations

Illustrations

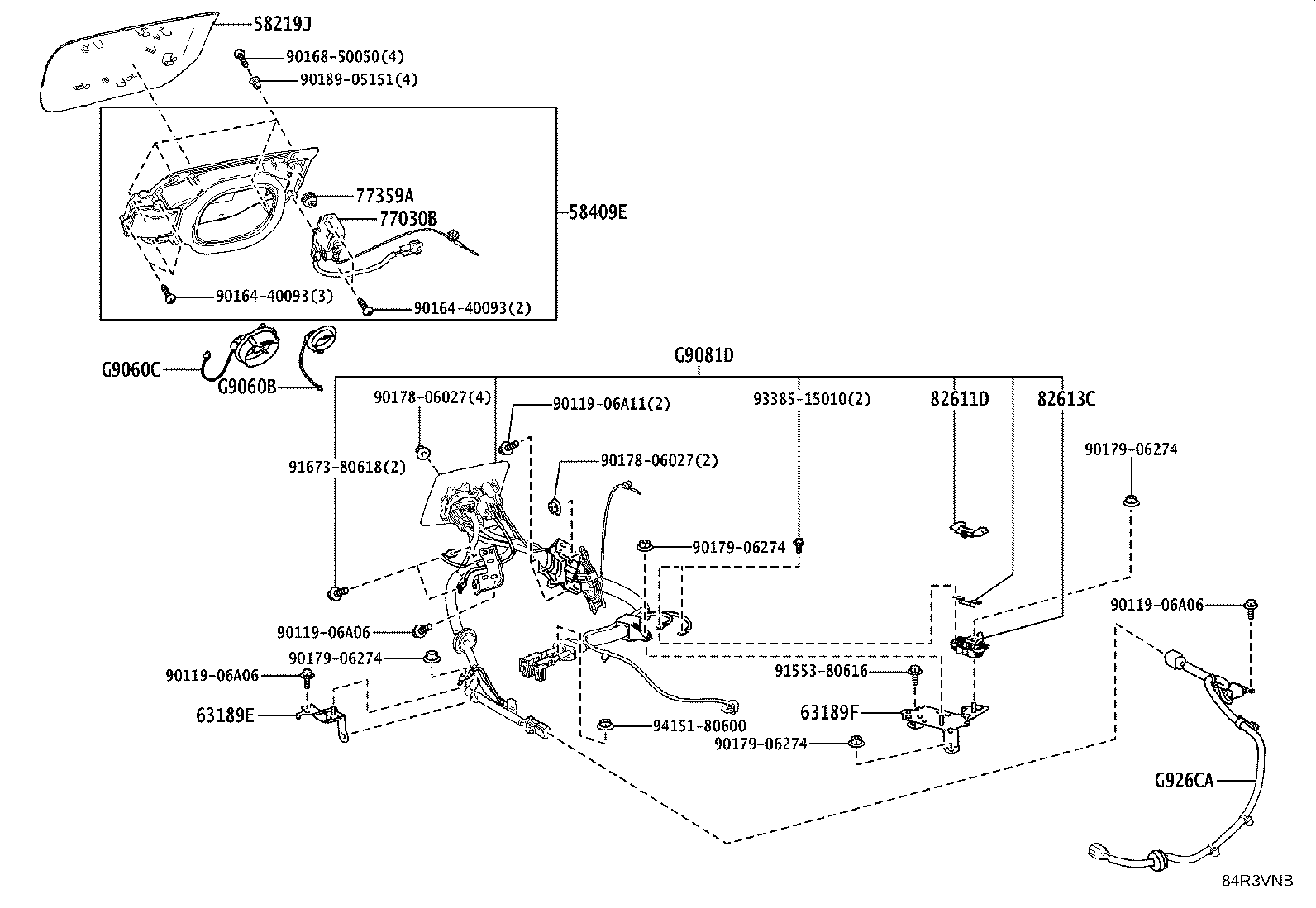

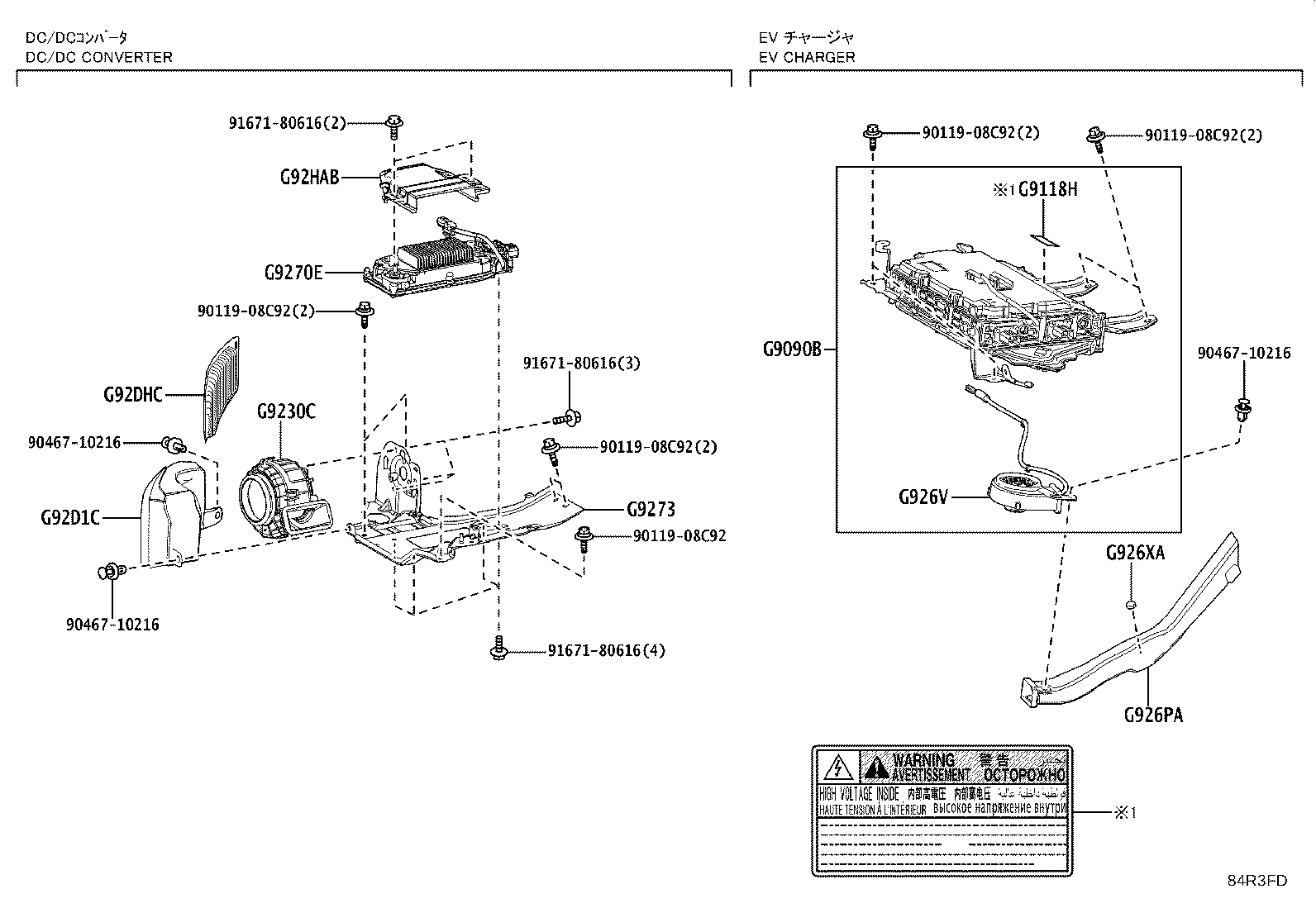

Figure 84R3VM 84R3VM 2024-09 → — Figure 84R3FD 84R3FD 2024-09 → — Figure 84R3VNB 84R3VNB 2024-09 → —

Part groups

PNCDescription
58219J Cover, Battery Box
58409E Lid Sub-assy, Battery Charger Connector Opening
63189E Bracket, Wiring Harness Connector
63189F Bracket, Terminal Stand
77030B Lock Assy, Charge Lid W/Motor
77359A Seal, Fuel Filler Opening Lid Lock
82611D Cover, Fuse Block
82613C Block, Fuse Base
G9060B Cover, Connector
G9060C Cover, Connector, NO.2
G9081D Cable, DC Charger Inlet
G9090B Charger Assy, Electric Vehicle
G9118H Label, EV Unit Controller Caution, NO.1
G9230C Blower Assy, DC/DC Converter Cooling
G926CA Wire, EV Charger
G926PA Duct, Charger Exhaust, NO.1
G926V Blower, Charger Cooling
G926XA Clip, Charger Exhaust Duct
G9270E DC/DC Converter Assy
G9273 Bracket, DC/DC Converter
G92D1C Duct, DC/DC Converter Intake, NO.1
G92DHC Filter, DC/DC Converter Intake, NO.1
G92HAB Duct, DC/DC Converter Cooling Exhaust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
