Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH36,37 · catalogue 33A210 · General
Supported model
Data version 2024-05
Heating & Air Conditioning - Control & Air Duct
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

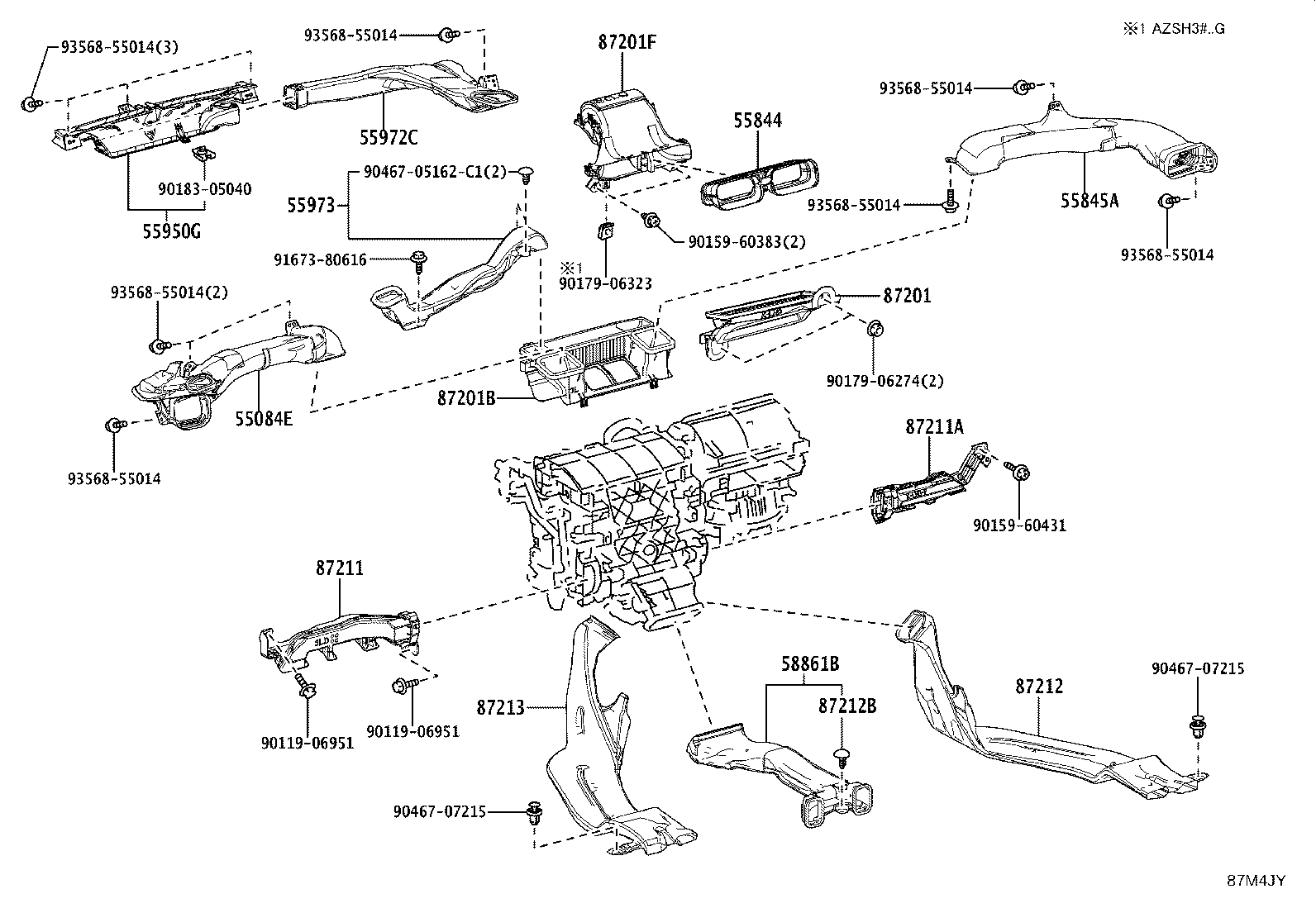

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55900 | Control Assy, Air Conditioner |
| 55950G | Nozzle Assy, Defroster |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55973 | Duct, Side Defroster Nozzle, NO.3 |
| 58861B | Duct, Console Box, NO.1 |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87201F | Duct Sub-assy, Air, NO.3 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212B | Clip, Air Duct |
| 87213 | Duct, Air, Rear NO.2 |

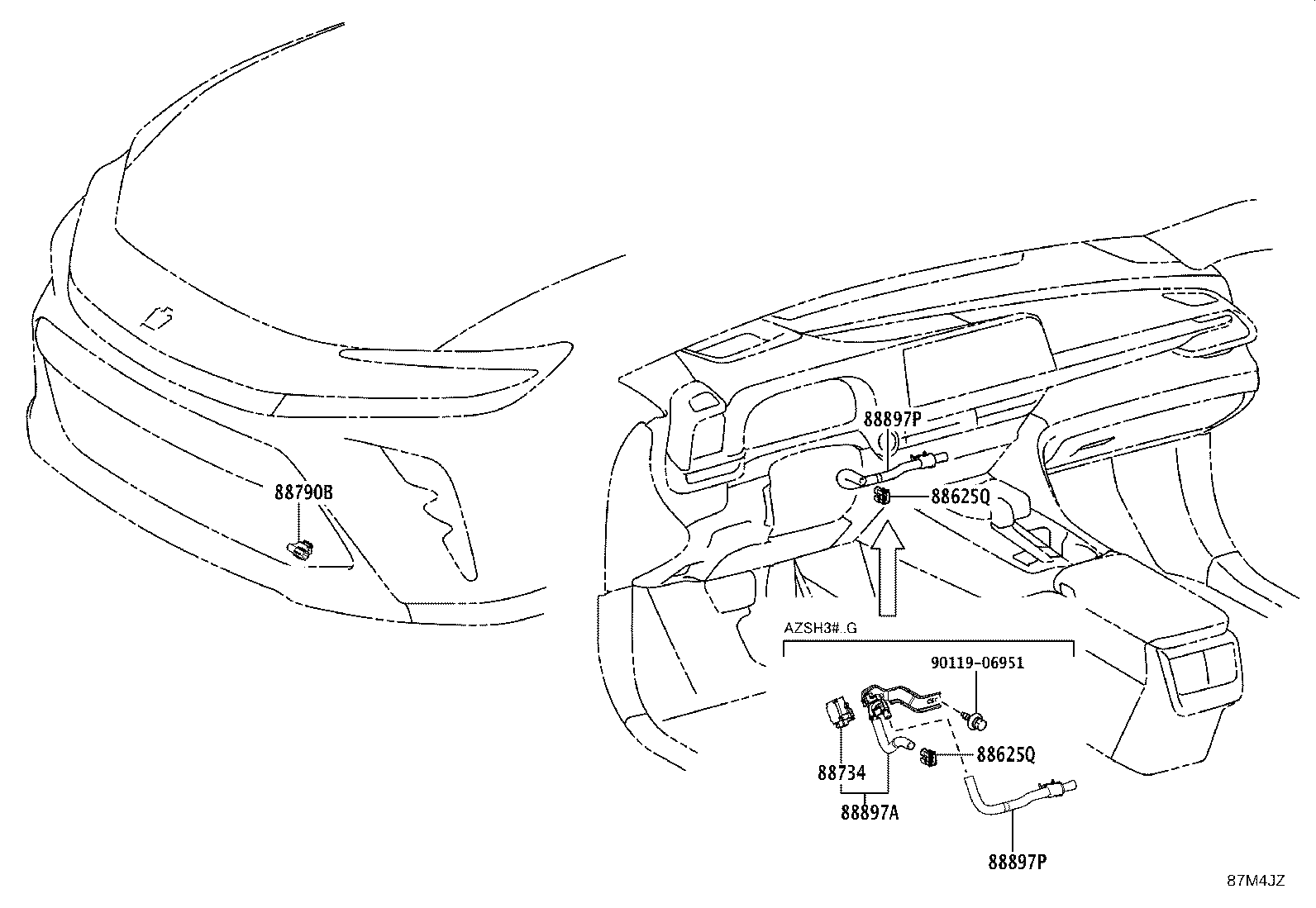

| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88734 | Sensor, Air Conditioner Particulate Matter |
| 88790B | Thermistor Assy |
| 88897A | Pipe, Aspirator |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
