Toyota Crown

2024-05 → present · chassis AZSH32,KZSM30 · catalogue 33B210 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

6 part groups · 2 illustrations

Illustrations

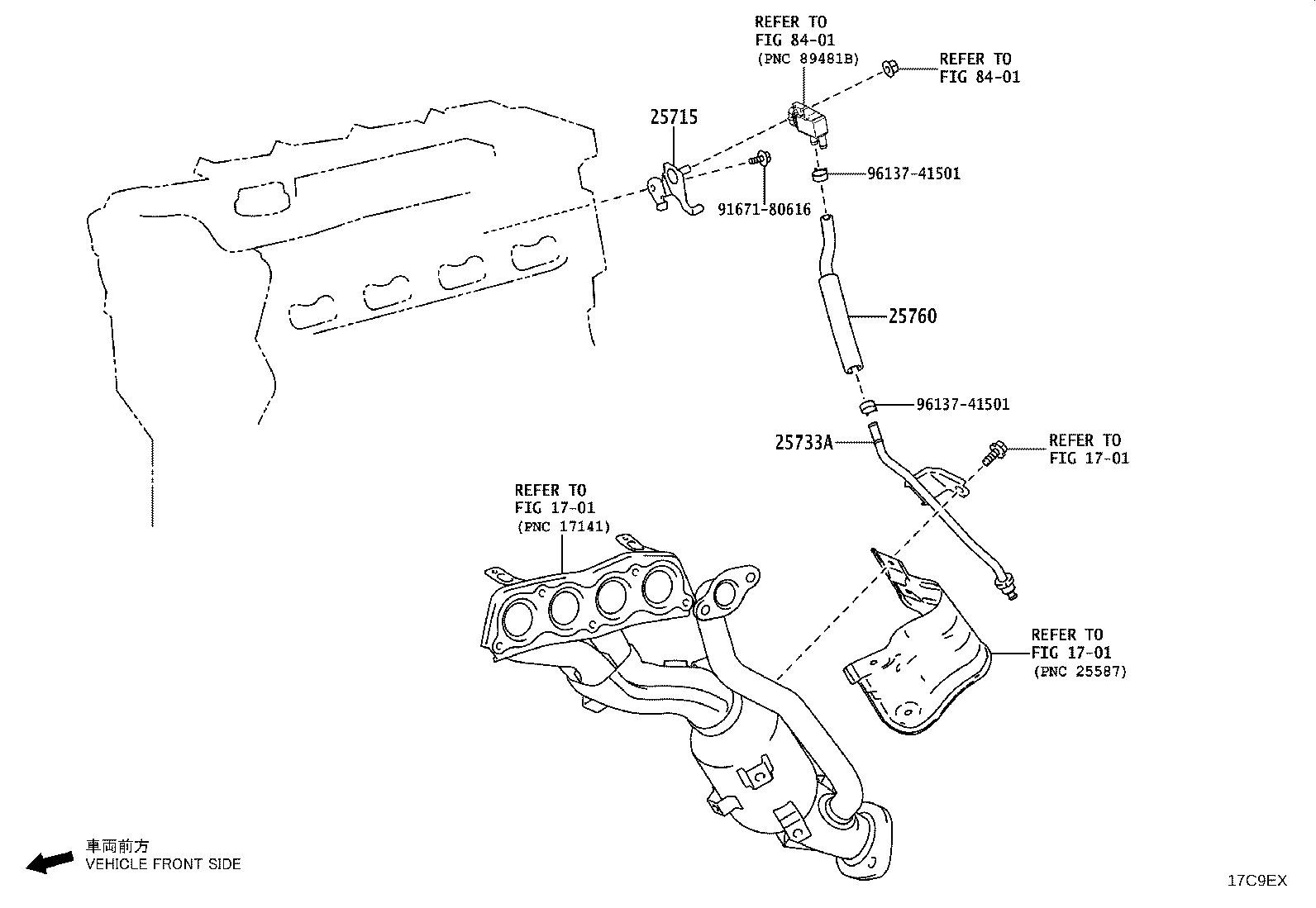

Figure 17C9EW 17C9EW 2024-05 → — Figure 17C9EX 17C9EX 2024-05 → —

Part groups

PNCDescription
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
25715 Bracket, Emission Control Valve
25733A Pipe, Vacuum, NO.1
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
