Toyota Crown

2024-05 → present · chassis AZSH32,KZSM30 · catalogue 33B210 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

34 part groups · 4 illustrations

Illustrations

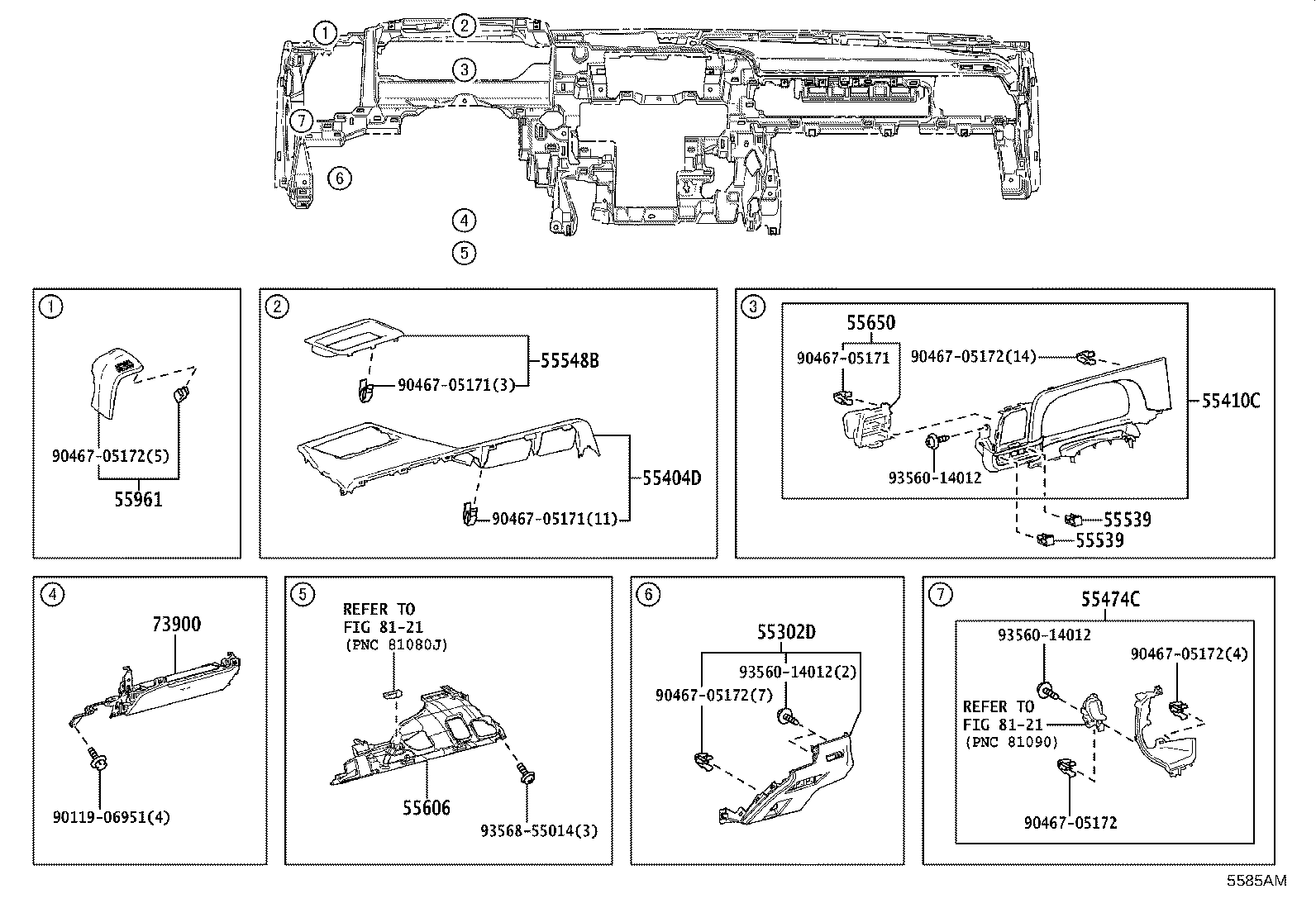

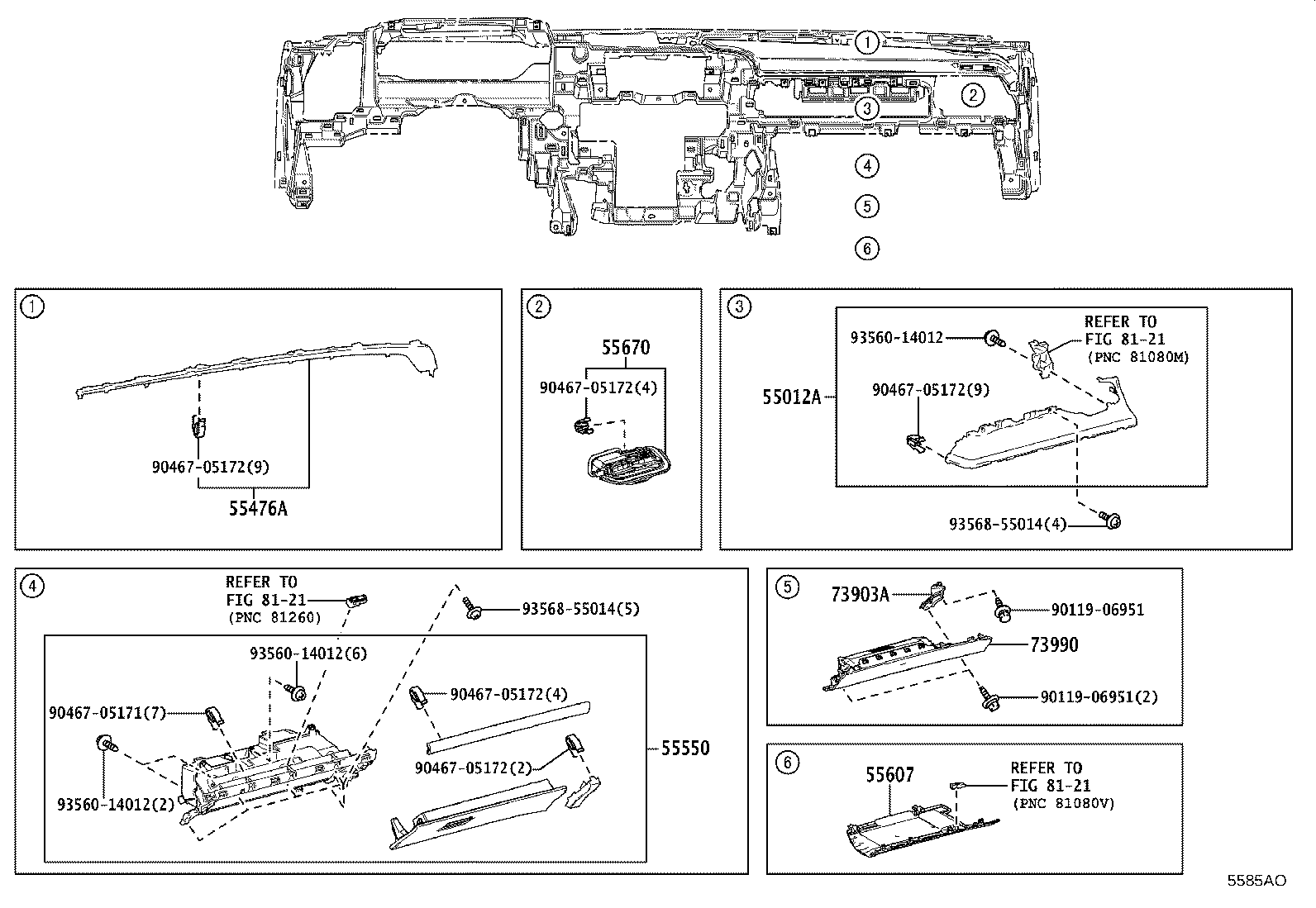

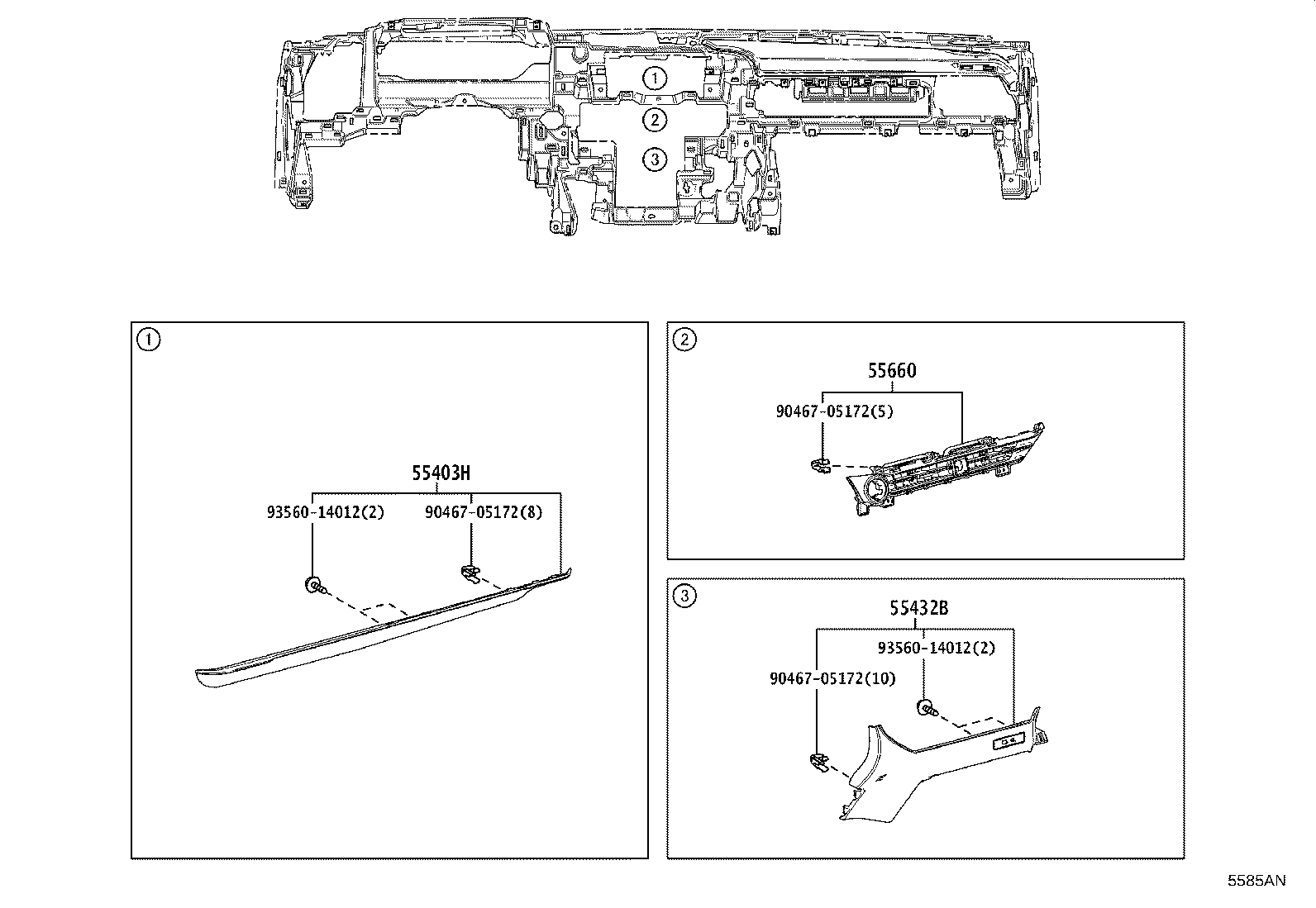

Figure 5585AL 5585AL 2024-05 → — Figure 5585AM 5585AM 2024-05 → — Figure 5585AN 5585AN 2024-05 → — Figure 5585AO 5585AO 2024-05 → —

Part groups

PNCDescription
55012A Garnish Sub-assy, Instrument Panel, NO.2
55302D Panel Sub-assy, Instrument, Lower, NO.1
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55400 Pad Assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55403H Pad Sub-assy, Instrument Panel, Lower NO.2
55404D Panel Sub-assy, Instrument Cluster Finish
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55410C Panel Assy, Instrument Cluster Finish
55432B Panel, Instrument Panel Finish, Lower
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55476A Garnish, Instrument Cluster Finish Panel, NO.3
55510F Cover Assy, Speaker Opening, NO.1
55539 Cover, Spare Switch Hole
55548B Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
73900 Airbag Assy, Instrument Panel, Lower NO.1
73903A Bracket Sub-assy, Airbag Instrument Panel, Lower
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
