Toyota Crown
2024-05 → present · chassis AZSH32,KZSM30 · catalogue 33B210 · General
Supported model
Data version 2024-06

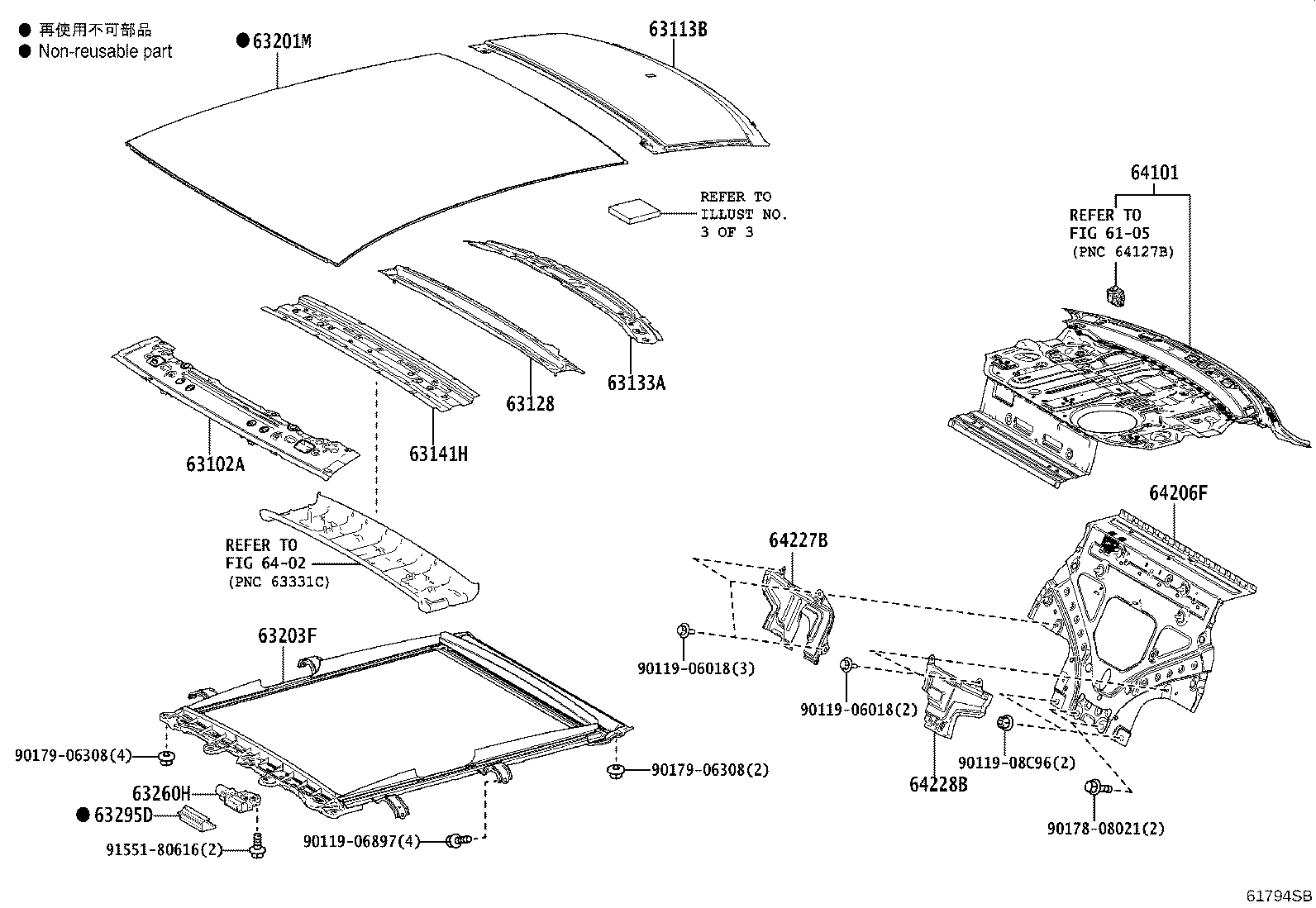

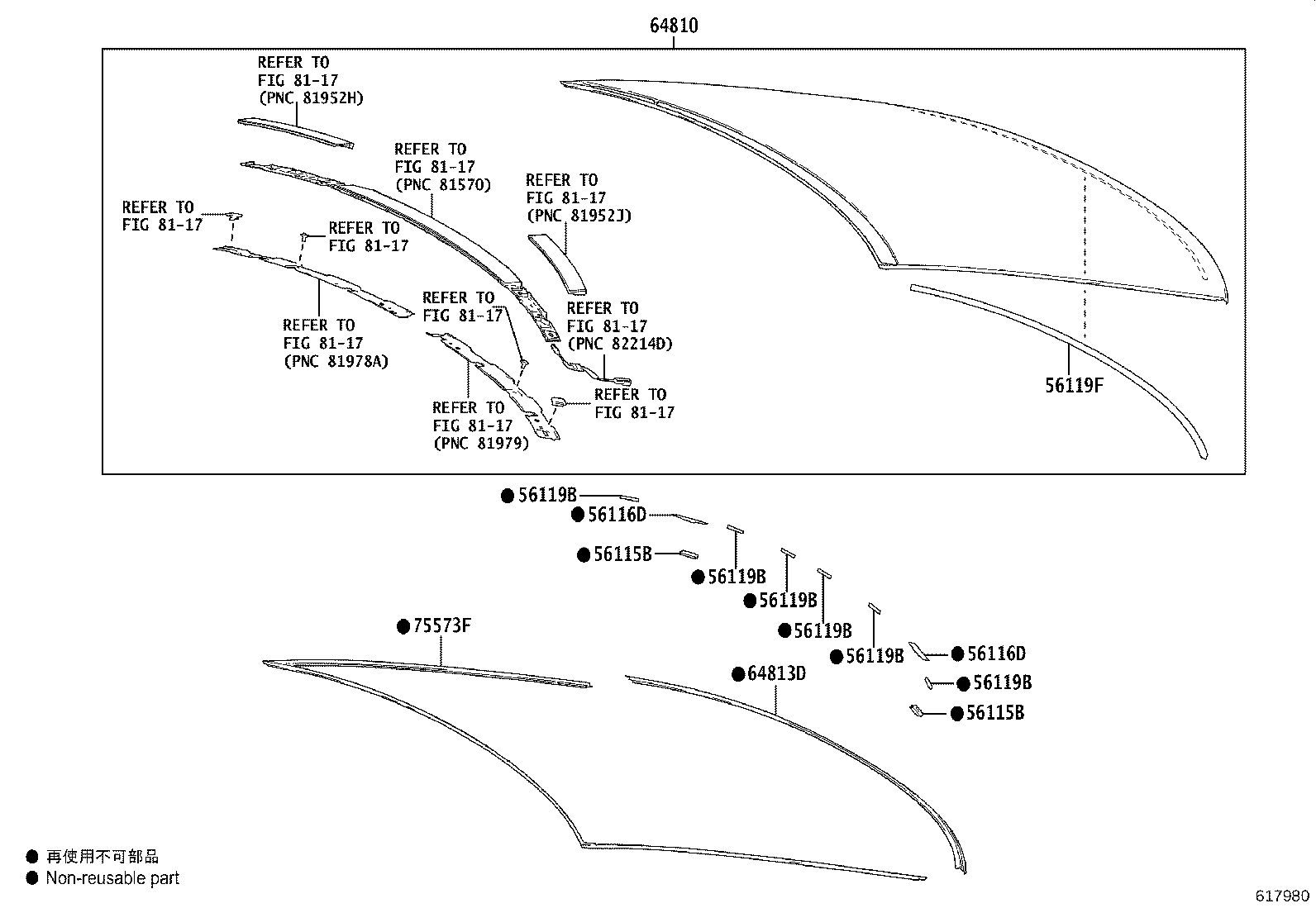

Roof Panel & Back Window Glass
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 56119B | Dam, Back Window Glass Adhesive |
| 56119F | Seal, Windshield Glass |
| 63102A | Panel Sub-assy, Windshield Header |
| 63107E | Reinforcement Sub-assy, Roof Panel, NO.5 |
| 63111 | Panel, Roof |
| 63113B | Panel, Roof, Rear |
| 63128 | Reinforcement, Roof Panel, NO.6 |
| 63133A | Frame, Back Window, Upper |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63201M | Glass Sub-assy, Roof Window, NO.1 |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63260H | Gear Assy, Sliding Roof Drive |
| 63295D | Pad, Sliding Roof Housing |
| 64101 | Panel Sub-assy, Upper Back |
| 64206F | Panel Sub-assy, Room Partition |
| 64227B | Extension, Center Floor TO Blace, NO.1 |
| 64228B | Extension, Center Floor TO Brace, NO.2 |
| 64810 | Window Assy, Back |
| 64813D | Dam, Back Window Glass Adhesive |
| 75573F | Moulding, Back Window, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
