Toyota Crown

2024-05 → present · chassis AZSH32,KZSM30 · catalogue 33B210 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

14 part groups · 2 illustrations

Illustrations

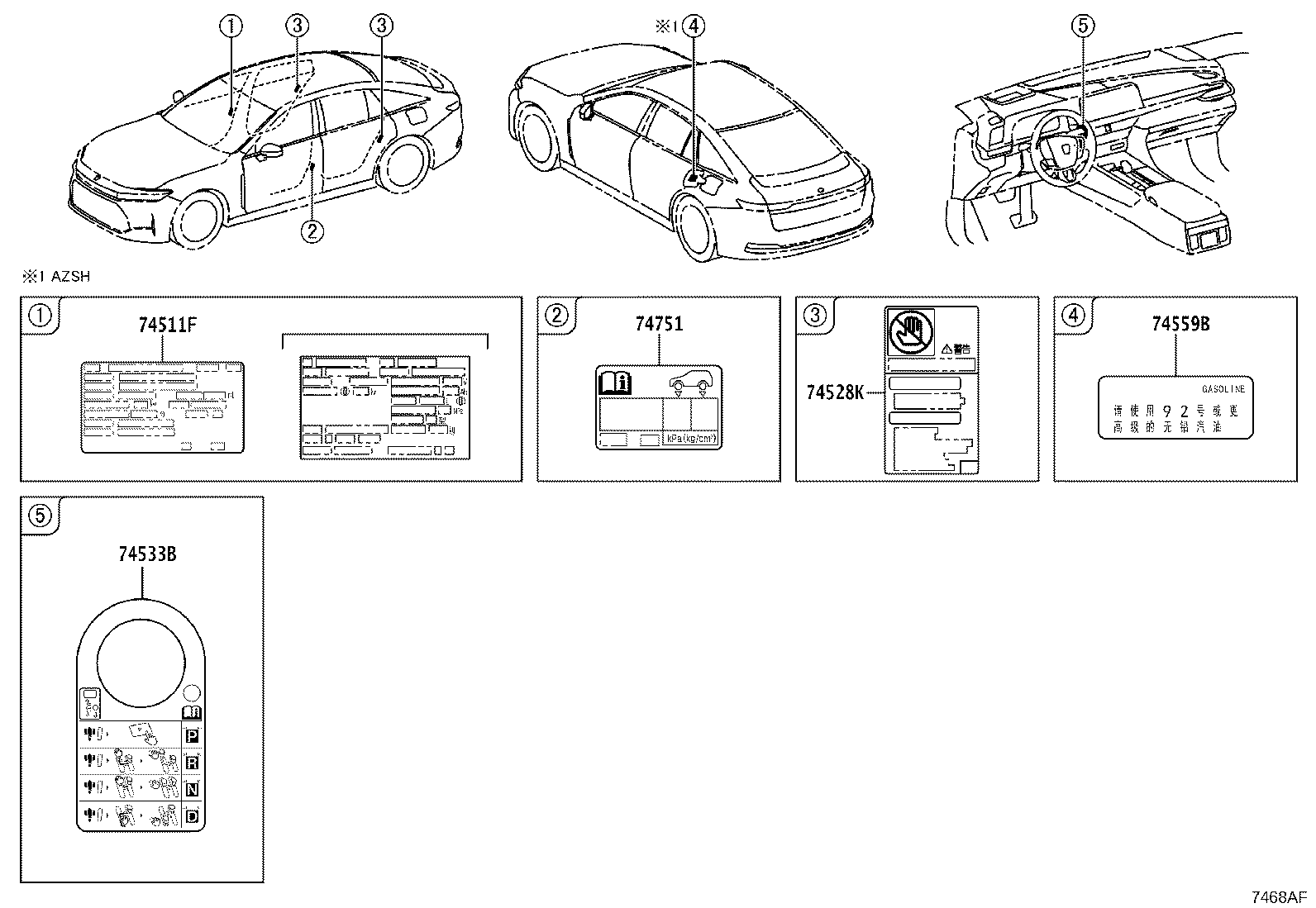

Figure 7468AC 7468AC 2024-05 → — Figure 7468AF 7468AF 2024-05 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
1A1A7 Label, FC Stack Notice
288A2 Label, Battery Location
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528K Label, Door Closer Caution
74533B Plate, Shifting Instruction
74559B Label, Fuel Information
74571D Film, Label Cover
74751 Label, Tire Pressure Information
77A58 Label, Hydrogen Tank Traceability
77A59 Label, Hydrogen Fueling Caution
77A61 Label, Hydrogen Tank Pressure Information
88723E Label, Cooler Service Caution
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
