Toyota Crown

2024-05 → present · chassis AZSH32,KZSM30 · catalogue 33B210 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

21 part groups · 2 illustrations

Illustrations

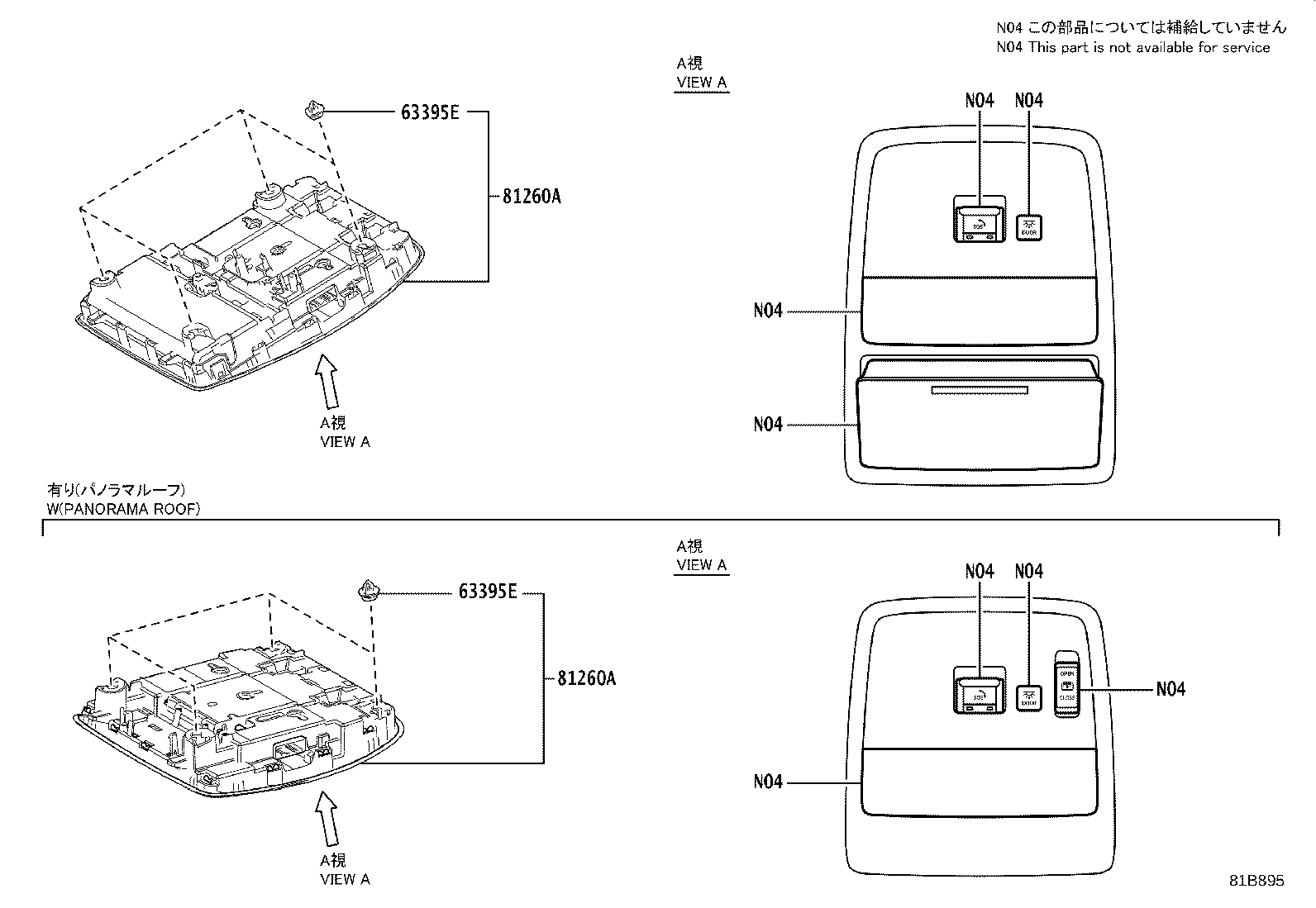

Figure 81B8ELA 81B8ELA 2024-05 → — Figure 81B895 81B895 2024-05 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080V Lamp Assy, Interior Illumination, NO.2
81080W Lamp Assy, Interior Illumination, NO.3
81090 Lamp Assy, Interior Illumination, NO.2
81230D Lamp Assy, Front Door Courtesy, RH
81230E Lamp Assy, Front Door Courtesy, LH
81230F Lamp Assy, Rear Door Courtesy, RH
81230G Lamp Assy, Rear Door Courtesy, LH
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
81360T Lamp Assy, Spot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
