Toyota Crown
2024-05 → present · chassis AZSH32,KZSM30 · catalogue 33B210 · General
Supported model
Data version 2024-06
Wiring & Clamp
109 part groups · 12 illustrations
Part groups
| PNC | Description |
|---|---|
| 77AAA | Wire, Hydrogen Tank Valve |
| 82001 | Cable, Bond, NO.1 |
| 82111 | Wire, Engine Room Main |
| 82111C | Wire, Front Compartment, Main |
| 82113A | Wire, Front Compartment, NO.3 |
| 82114C | Wire, Front Compartment, NO.4 |
| 82119C | Wire, Engine Room, NO.5 |
| 82121 | Wire, Engine |
| 82121D | Wire, Motor |
| 82122B | Wire, Motor, NO.2 |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |

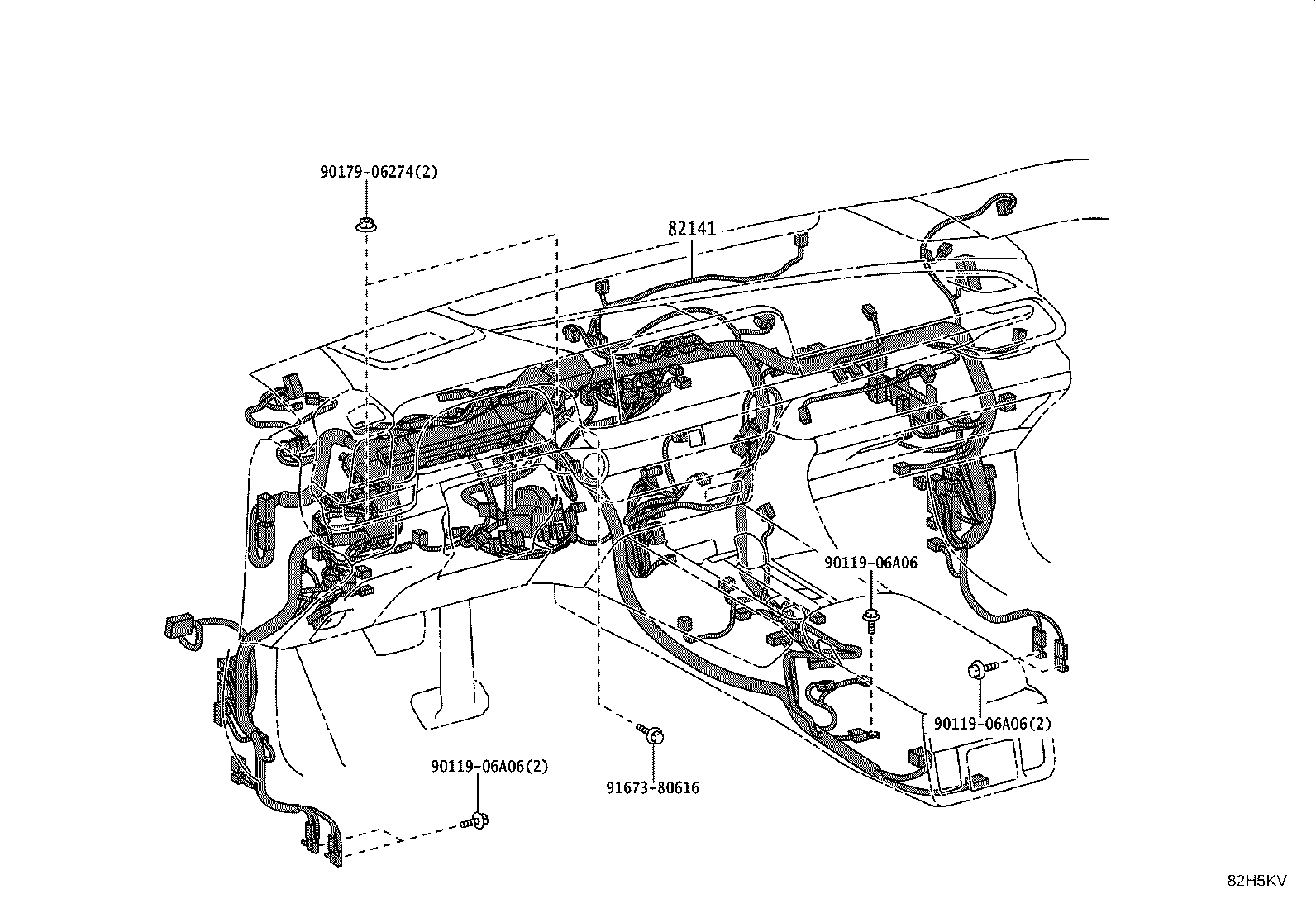

| 82141 | Wire, Instrument Panel |

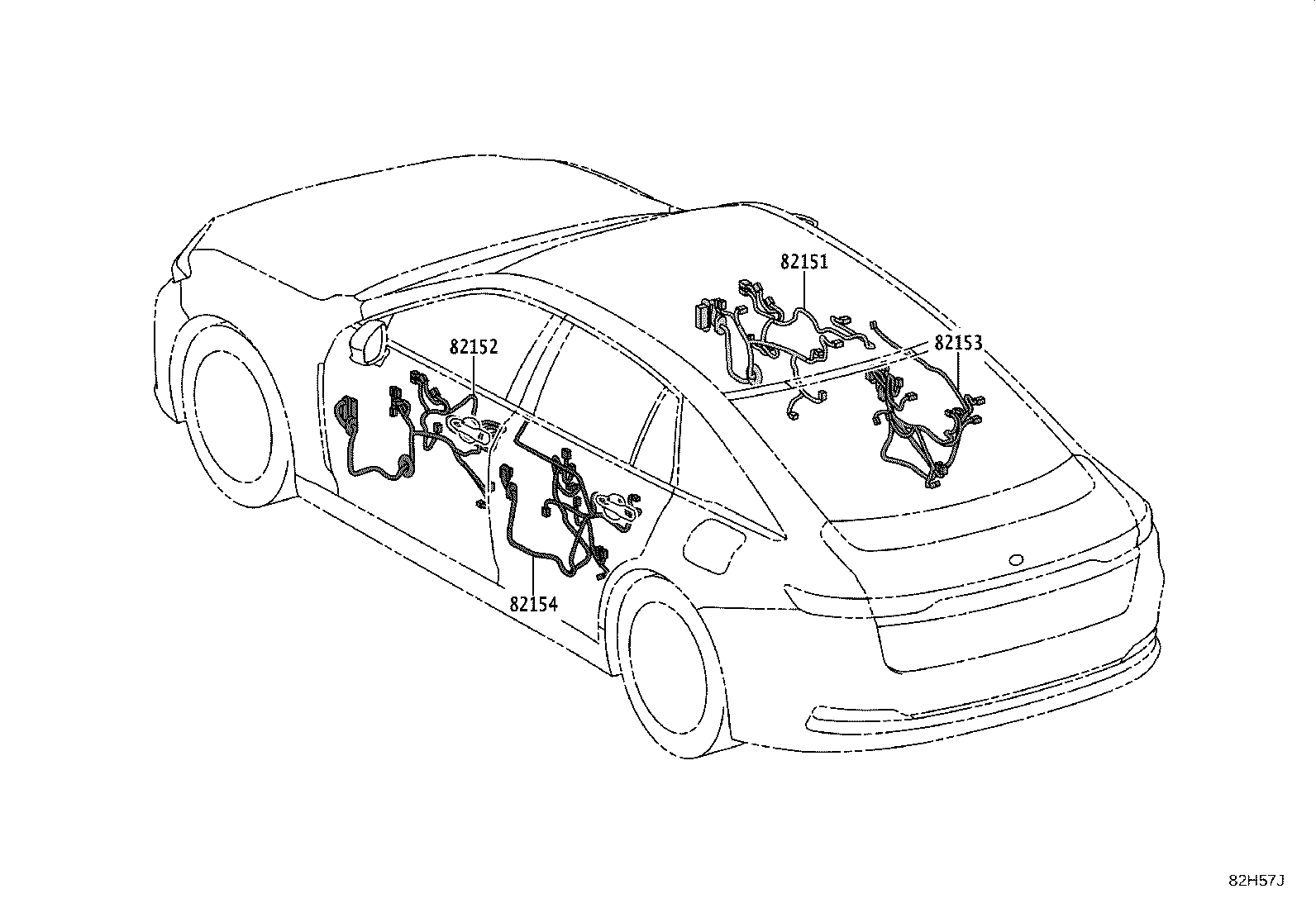

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

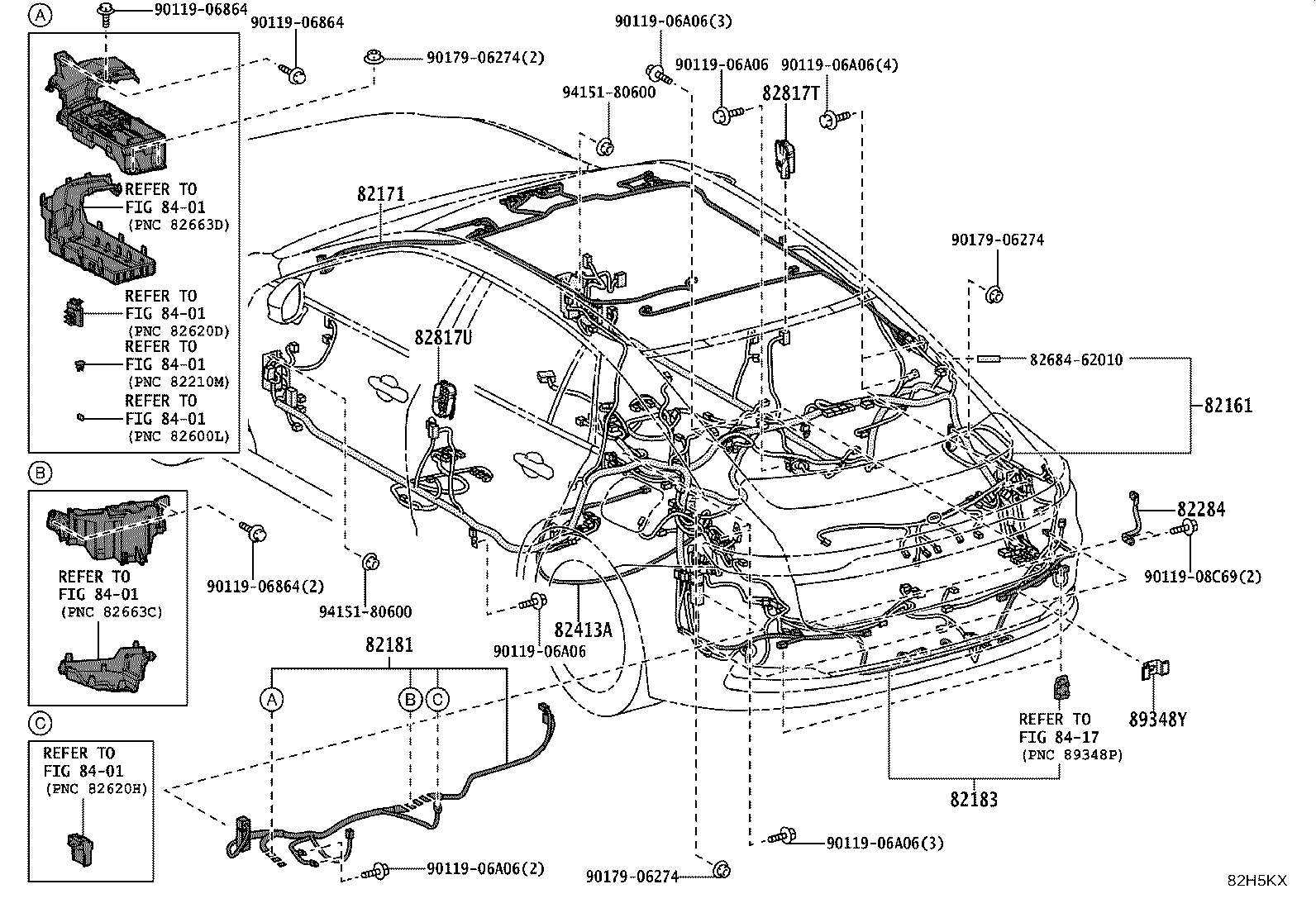

| 82161 | Wire, Floor |
| 82163 | Wire, Floor, NO.3 |
| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82193 | Wire, Rear Seat, RH |
| 82194 | Wire, Rear Seat, LH |
| 82195 | Wire, Rear Seat, RH NO.2 |
| 82196 | Wire, Rear Seat, LH NO.2 |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 821H1 | Wire, Floor Under |
| 821H2 | Wire, HV Air Conditioner |
| 821H3 | Wire, HV Battery Pack |
| 821H3C | Wire, High Voltage Battery Pack |
| 821H4 | Wire, HV Socket Inverter |
| 82284 | Wire, Earth |
| 82286A | Wire, Earth, NO.2 |
| 82413A | Wire, Fuel Tank |
| 82666A | Holder, Connector NO.2 |
| 82666Y | Holder, Connector NO.18 |
| 82684 | Label, Cut High Voltage Electricity |
| 82712A | Support, Wiring Harness |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818D | Protector, Wiring Harness, NO.5 |
| 82818E | Protector, Wiring Harness, NO.6 |
| 82818F | Protector, Wiring Harness, NO.7 |
| 82818G | Protector, Wiring Harness, NO.8 |
| 82818H | Protector, Wiring Harness, NO.9 |
| 82818J | Protector, Wiring Harness, NO.10 |
| 82818K | Protector, Wiring Harness, NO.11 |
| 82818L | Protector, Wiring Harness, NO.12 |
| 82818M | Protector, Wiring Harness, NO.13 |
| 82818N | Protector, Wiring Harness, NO.14 |
| 82818S | Protector, Wiring Harness, NO.15 |
| 82818T | Protector, Wiring Harness, NO.16 |
| 82818U | Protector, Wiring Harness, NO.17 |
| 82818V | Protector, Wiring Harness, NO.18 |
| 82818W | Protector, Wiring Harness, NO.19 |
| 82818X | Protector, Wiring Harness, NO.20 |
| 82818Y | Protector, Wiring Harness, NO.21 |
| 82818Z | Protector, Wiring Harness, NO.22 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82821N | Cover, Connector |
| 82821P | Cover, Connector |
| 82821R | Cover, Connector |
| 82821U | Cover, Connector |
| 82821V | Cover, Connector |
| 82821W | Cover, Connector |
| 82821X | Cover, Connector |
| 82821Y | Cover, Connector |
| 82H17B | Protector, Wiring Harness, NO.1 |
| 82H21C | Cover, Connector |
| 82H21D | Cover, Connector |
| 82H21G | Cover, Connector |
| 82H21H | Cover, Connector |
| 82H21J | Cover, Connector |
| 82H21M | Cover, Connector |
| 82H21N | Cover, Connector |
| 82H21P | Cover, Connector |
| 82H21Q | Cover, Connector |
| 82H21S | Cover, Connector |
| 82H21V | Cover, Connector |
| 82H21W | Cover, Connector |
| 82H21X | Cover, Connector |
| 82H21Y | Cover, Connector |
| 82H21Z | Cover, Connector |
| 82T21 | Cover, Connector |
| 82T21A | Cover, Connector |
| 82T21B | Cover, Connector |
| 89348X | Clip, Ultrasonic Sensor, Front |
| 89348Y | Clip, Ultrasonic Sensor, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
