Toyota Crown
2024-05 → present · chassis AZSH32,KZSM30 · catalogue 33B210 · General
Supported model
Data version 2024-06

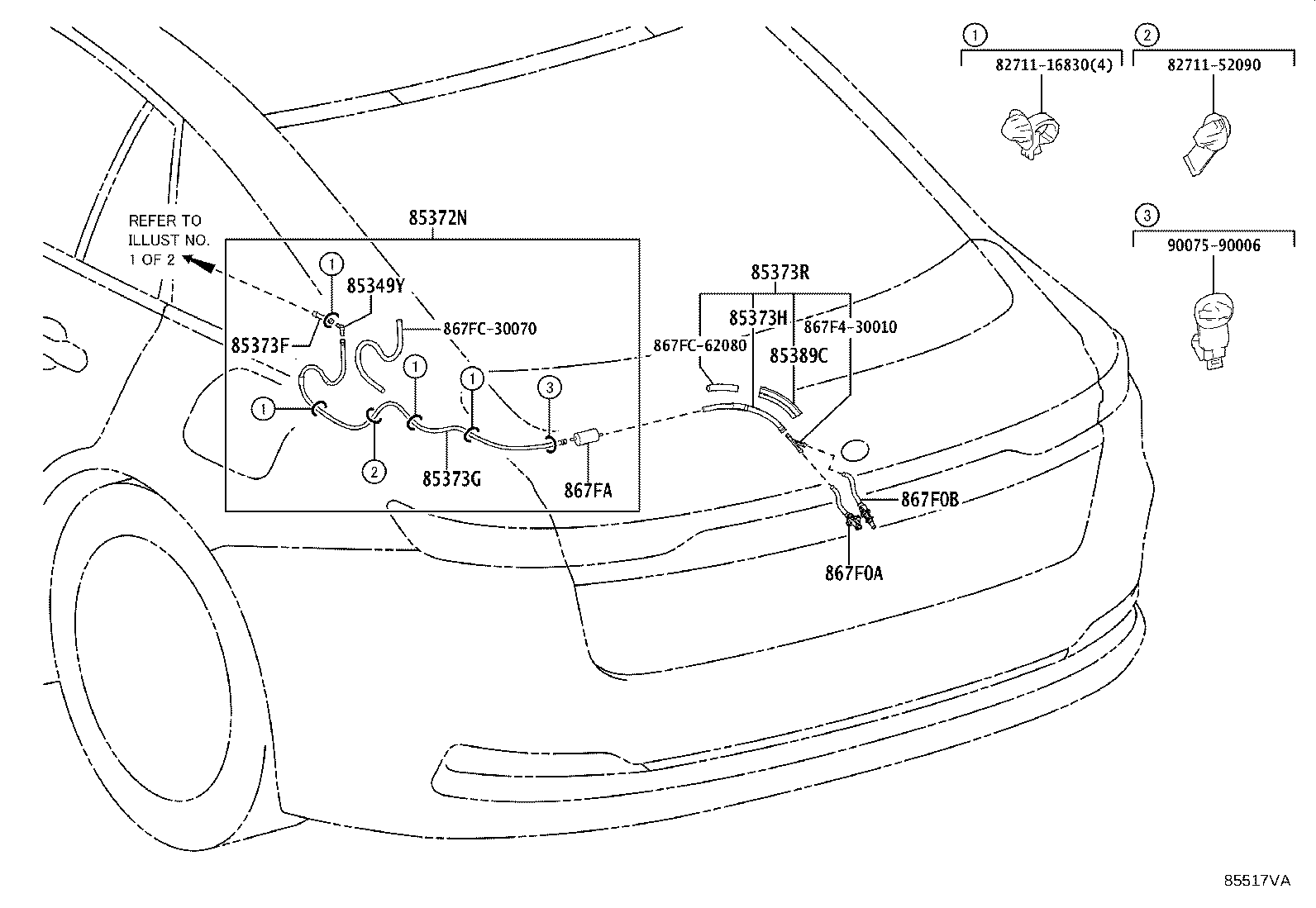

Rear Washer
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85310R | Motor Assy, Rear Washer |
| 85330S | Bush, Rear Washer Jar |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85348Y | Joint, Rear Washer Hose, NO.5 |
| 85349F | Joint, Rear Washer Hose, NO.1 |
| 85349K | Joint, Rear Washer Elbow, NO.2 |
| 85349W | Joint, Rear Washer Elbow, NO.4 |
| 85349Y | Joint, Rear Washer Elbow, NO.5 |
| 85349Z | Joint, Rear Washer Hose, NO.6 |
| 85370D | Hose Assy, Rear Washer, NO.1 |
| 85370E | Hose Assy, Rear Washer, NO.2 |
| 85370F | Hose Assy, Rear Washer, NO.3 |
| 85370H | Hose Assy, Rear Washer, NO.4 |
| 85371N | Clamp, Rear Washer Hose |
| 85371P | Clamp, Rear Washer Hose, NO.2 |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372S | Hose, Rear Washer (FROM JOINT TO JOINT), NO.4 |
| 85372W | Hose, Rear Washer (FROM JOINT TO JOINT), NO.5 |
| 85372X | Hose, Rear Washer (FROM JOINT TO JOINT), NO.6 |
| 85373F | Hose, Rear Washer(FROM JOINT TO JOINT), NO.8 |
| 85373G | Hose, Rear Washer(FROM JOINT TO JOINT), NO.9 |
| 85373H | Hose, Rear Washer(FROM JOINT TO JOINT), NO.10 |
| 85373J | Hose, Rear Washer(FROM JOINT TO JOINT), NO.11 |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
| 85379B | Grommet, Washer, A |
| 85389C | Protector, Washer |
| 85C73 | Hose, Rear Washer, NO.12(FROM JOINT TO JOINT) |
| 867F0A | Nozzle Assy, Camera Cleaner, NO.1 |
| 867F0B | Nozzle Assy, Camera Cleaner, NO.2 |
| 867FA | Filter, Cleaner Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
