Toyota Crown

2024-05 → present · chassis AZSH32,KZSM30 · catalogue 33B210 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

9 part groups · 3 illustrations

Illustrations

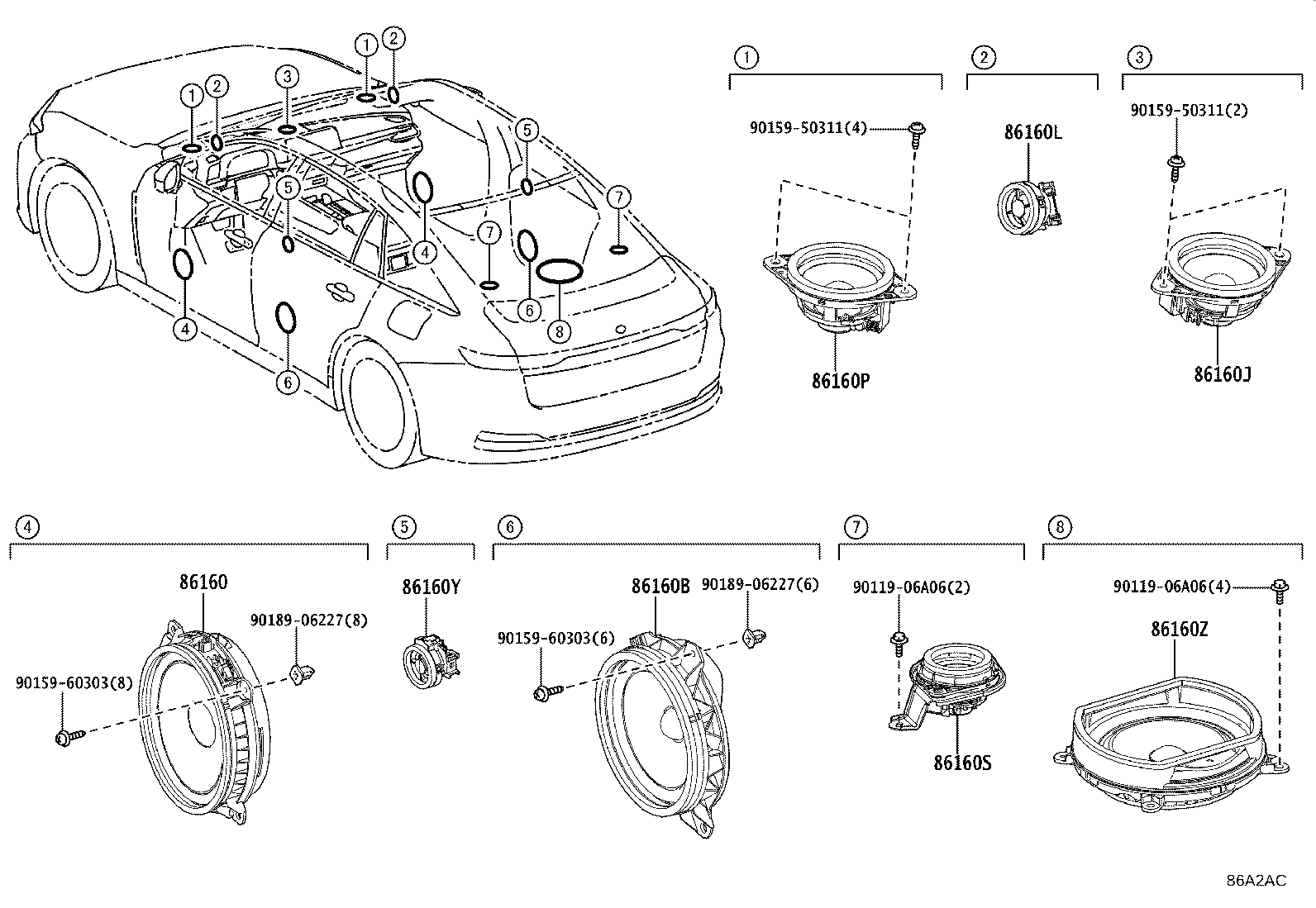

Figure 86A2AB 86A2AB 2024-05 → — Figure 86A2AC 86A2AC 2024-05 → — Figure 86A24I 86A24I 2024-05 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160P Speaker Assy, Front NO.2
86160S Speaker Set
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
86240A Equalizer Assy,Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
