Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

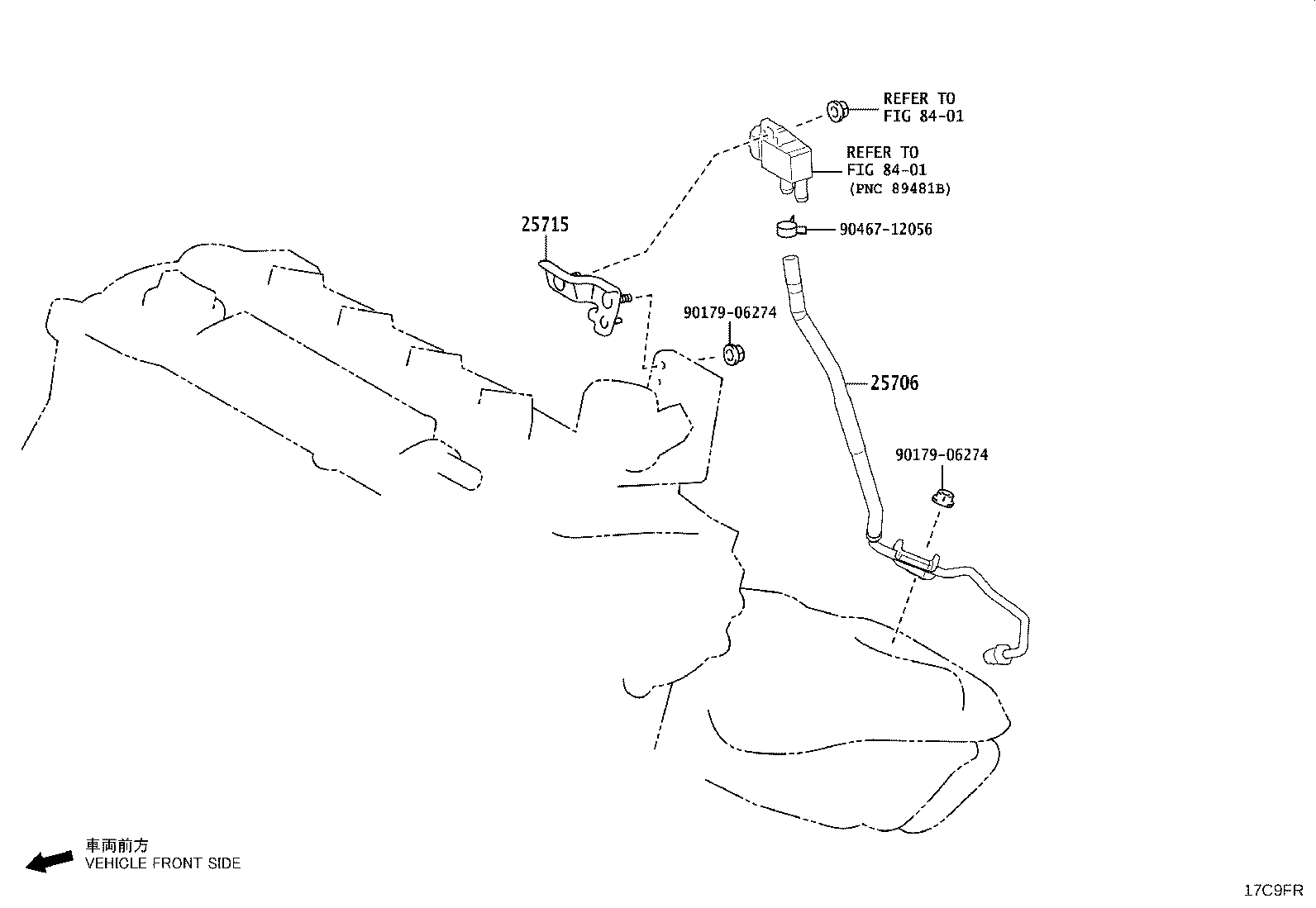

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 25706 — Pipe Sub-assy, Vacuum Transmitting, NO.1 | ||||
| 25706-25010 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
2024-05 → —
|
A25 AZSH38 | — | |
| 25706-25010 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
2024-09 → —
|
A25 AZSH39 | — | |
| 25715 — Bracket, Emission Control Valve | ||||
| 25715-25010 |
Bracket, Emission Control Valve
2024-05 → —
|
A25 AZSH38 | — | |
| 25715-25010 |
Bracket, Emission Control Valve
2024-09 → —
|
A25 AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
