Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

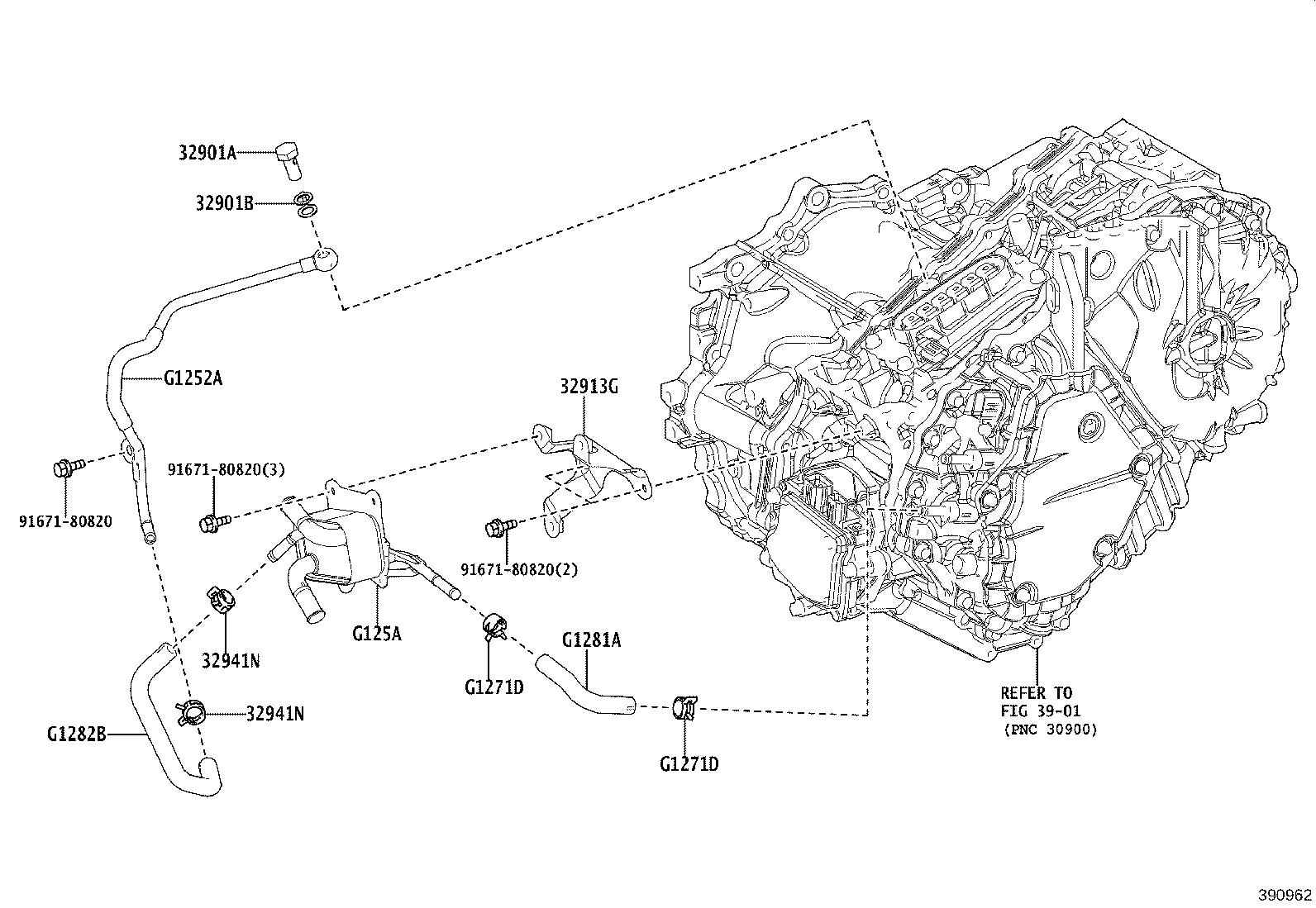

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 32901A — Bolt, Union(FOR OIL COOLER) | ||||
| 90401-12039 |
Bolt, Union(FOR OIL COOLER)
2024-05 → —
|
AZSH38 | — | |
| 90401-12039 |
Bolt, Union(FOR OIL COOLER)
2024-09 → —
|
AZSH39 | — | |
| 32901B — Gasket(FOR OIL COOLER UNION) | ||||
| 90430-12037 |
Gasket(FOR OIL COOLER UNION)
2024-05 → —
|
AZSH38 | — | |
| 90430-12037 |
Gasket(FOR OIL COOLER UNION)
2024-09 → —
|
AZSH39 | — | |
| 32913G — Bracket, Transmission Oil Cooler | ||||
| 32913-42050 |
Bracket, Transmission Oil Cooler
2024-09 → —
|
AZSH39 | — | |
| 32913-78030 |
Bracket, Transmission Oil Cooler
2024-05 → —
|
AZSH38 | — | |
| 32941N — Clip, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
Clip, NO.1(FOR OIL COOLER HOSE)
2024-05 → —
|
AZSH38 | — | |
| G1252A — Pipe, Motor Cooling, NO.2 | ||||
| G1252-42010 |
Pipe, Motor Cooling, NO.2
2024-09 → —
|
AZSH39 | — | |
| G1252-78010 |
Pipe, Motor Cooling, NO.2
2024-05 → —
|
AZSH38 | — | |
| G125A — Cooler, Motor Cooling | ||||
| G125A-48020 |
Cooler, Motor Cooling
2024-05 → —
|
AZSH38 | — | |
| G125A-48020 |
Cooler, Motor Cooling
2024-09 → —
|
AZSH39 | — | |
| G1271D — Clip, NO.1(FOR MOTOR COOLING HOSE) | ||||
| 90466-16004 |
Clip, NO.1(FOR MOTOR COOLING HOSE)
2024-05 → —
|
AZSH38 | — | |
| 90466-16004 |
Clip, NO.1(FOR MOTOR COOLING HOSE)
2024-09 → —
|
AZSH39 | — | |
| G1281A — Hose, Motor Inlet | ||||
| G1281-78010 |
Hose, Motor Inlet
2024-05 → —
|
AZSH38 | — | |
| G1282B — Hose, Motor Outlet | ||||
| G1282-78010 |
Hose, Motor Outlet
2024-05 → —
|
AZSH38 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
