Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

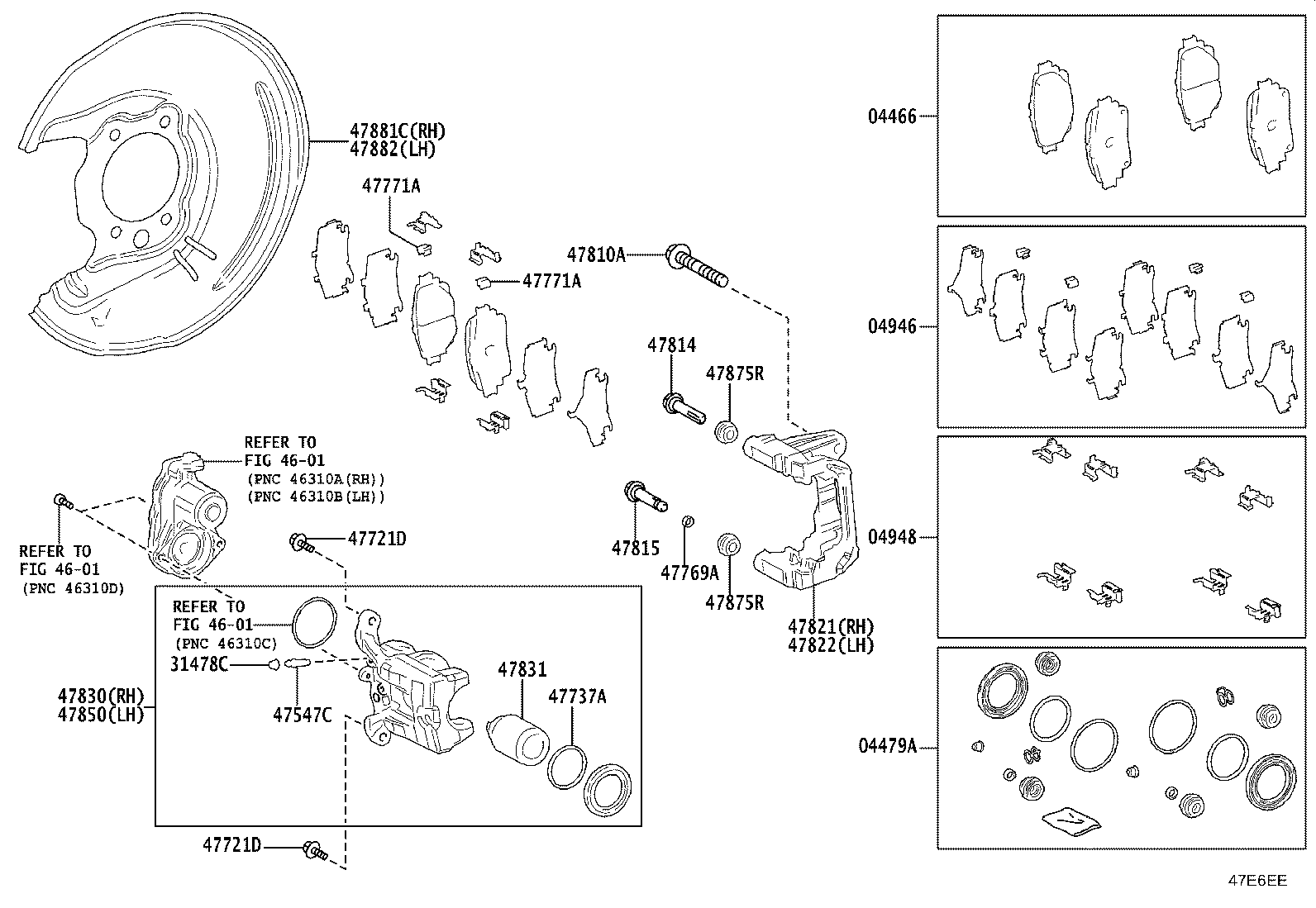

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04466 — Pad Kit, Disc Brake, Rear | ||||
| 04466-30410 note |
Pad Kit, Disc Brake, Rear
2024-05 → —
|
AZSH38 | — | |
| 04466-48170 note |
Pad Kit, Disc Brake, Rear
2024-09 → —
|
AZSH39 | — | |
| 04479A — Cylinder Kit, Disc Brake, Rear | ||||
| 04479-42110 |
Cylinder Kit, Disc Brake, Rear
2024-05 → —
|
AZSH38 | — | |
| 04479-58031 |
Cylinder Kit, Disc Brake, Rear
2024-09 → —
|
AZSH39 | — | |
| 04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) | ||||
| 04946-30280 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2024-05 → —
|
AZSH38 | — | |
| 04946-48140 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2024-09 → —
|
AZSH39 | — | |
| 04948 — Fitting Kit, Disc Brake, Rear | ||||
| 04948-12071 |
Fitting Kit, Disc Brake, Rear
2024-09 → —
|
AZSH39 | — | |
| 04948-V2010 |
Fitting Kit, Disc Brake, Rear
2024-05 → —
|
AZSH38 | — | |
| 31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2024-05 → —
|
AZSH3# | — | |
| 47547C — Plug, Bleeder(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2024-05 → —
|
AZSH3# | — | |
| 47721D — Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90015-AA603 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2024-05 → —
|
AZSH3# | — | |
| 47737A — Seal, Rear Disc Brake Cylinder Piston | ||||
| 47737-28040 |
Seal, Rear Disc Brake Cylinder Piston
2024-05 → —
|
AZSH38 | — | |
| 47769A — Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-50010 |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2024-05 → —
|
AZSH3# | — | |
| 47771A — Plate, Pad Wear Indicator(FOR REAR DISC BRAKE) | ||||
| 47871-78010 |
Plate, Pad Wear Indicator(FOR REAR DISC BRAKE)
2024-05 → —
|
AZSH38 | — | |
| 47810A — Bolt, Hexagon(FOR REAR CALIPER) | ||||
| 90105-12426 |
Bolt, Hexagon(FOR REAR CALIPER)
2024-05 → —
|
AZSH38 | — | |
| 90105-14218 |
Bolt, Hexagon(FOR REAR CALIPER)
2024-09 → —
|
AZSH39 | — | |
| 47814 — Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-78010 |
Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2024-05 → —
|
AZSH3# | — | |
| 47815 — Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-78010 |
Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
2024-05 → —
|
AZSH3# | — | |
| 47821 — Mounting, Rear Disc Brake Cylinder, RH | ||||
| 47821-42100 |
Mounting, Rear Disc Brake Cylinder, RH
2024-05 → —
|
AZSH38 | — | |
| 47821-48160 |
Mounting, Rear Disc Brake Cylinder, RH
2024-09 → —
|
AZSH39 | — | |
| 47822 — Mounting, Rear Disc Brake Cylinder, LH | ||||
| 47822-42090 |
Mounting, Rear Disc Brake Cylinder, LH
2024-05 → —
|
AZSH38 | — | |
| 47822-48160 |
Mounting, Rear Disc Brake Cylinder, LH
2024-09 → —
|
AZSH39 | — | |
| 47830 — Cylinder Assy, Disc Brake, Rear RH | ||||
| 47830-48160 |
Cylinder Assy, Disc Brake, Rear RH
2024-09 → —
|
AZSH39 | — | |
| 47850-42090 |
Cylinder Assy, Disc Brake, Rear RH
2024-05 → —
|
AZSH38 | — | |
| 47831 — Piston, Rear Disc Brake | ||||
| 47831-30460 |
Piston, Rear Disc Brake
2024-09 → —
|
AZSH39 | — | |
| 47831-58040 |
Piston, Rear Disc Brake
2024-05 → —
|
AZSH38 | — | |
| 47850 — Cylinder Assy, Disc Brake, Rear LH | ||||
| 47830-42100 |
Cylinder Assy, Disc Brake, Rear LH
2024-05 → —
|
AZSH38 | — | |
| 47850-48160 |
Cylinder Assy, Disc Brake, Rear LH
2024-09 → —
|
AZSH39 | — | |
| 47875R — Boot, Bush Dust(FOR REAR DISC BRAKE) | ||||
| 47875-33270 |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2024-05 → —
|
AZSH3# | — | |
| 47881C — Cover, Disc Brake Dust, Rear RH | ||||
| 47881-48020 |
Cover, Disc Brake Dust, Rear RH
2024-05 → —
|
AZSH3# | — | |
| 47882 — Cover, Disc Brake Dust, Rear LH | ||||
| 47882-48020 |
Cover, Disc Brake Dust, Rear LH
2024-05 → —
|
AZSH3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
