Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

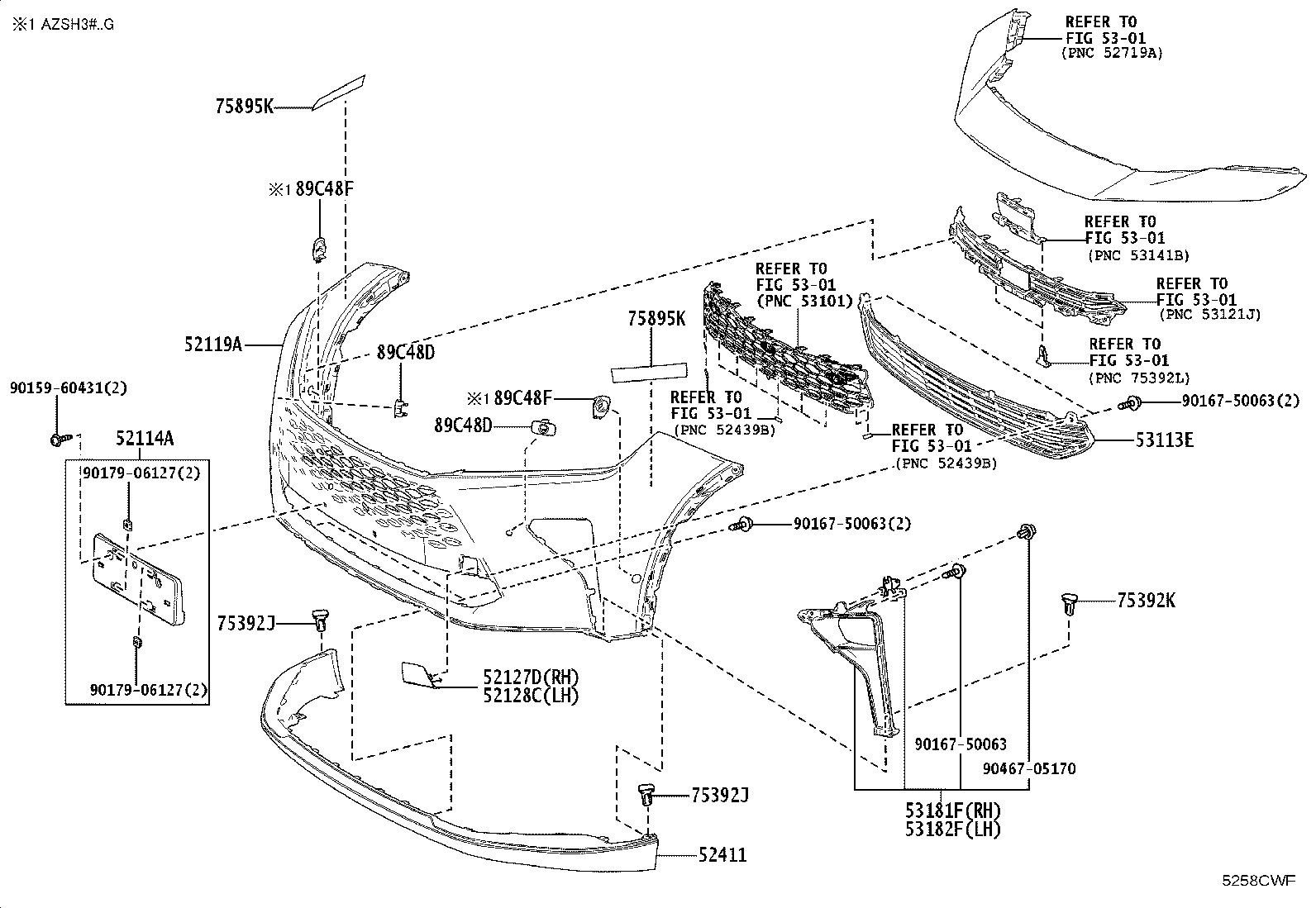

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-30440 |
Bracket, Front Bumper Extension Mounting
2024-09 → —
|
AZSH39 | — | |
| 52114-30470 |
Bracket, Front Bumper Extension Mounting
2024-05 → —
|
AZSH38 | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-3K940 note |
Cover, Front Bumper
2024-05 → —
|
AZSH38 M | — | |
| 52119-3K941 note |
Cover, Front Bumper
2024-05 → —
|
AZSH38 G | — | |
| 52119-3K944 note |
Cover, Front Bumper
2024-09 → —
|
AZSH39 | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 52127-30906 note |
Cover, Front Bumper Hole, RH
2024-05 → —
|
AZSH3# | — | |
| 52128C — Cover, Front Bumper Hole, LH | ||||
| 52128-30902 note |
Cover, Front Bumper Hole, LH
2024-05 → —
|
AZSH3# | — | |
| 52411 — Guard, Front Bumper | ||||
| 52411-30040 |
Guard, Front Bumper
2024-05 → —
|
AZSH3# | — | |
| 53113E — Grille, Radiator, Lower NO.2 | ||||
| 53113-30550 |
Grille, Radiator, Lower NO.2
2024-05 → —
|
AZSH3# | — | |
| 53181F — Cover, Headlamp, RH | ||||
| 53181-30070 |
Cover, Headlamp, RH
2024-05 → —
|
AZSH3# | — | |
| 53182F — Cover, Headlamp, LH | ||||
| 53182-30080 |
Cover, Headlamp, LH
2024-05 → —
|
AZSH3# | — | |
| 75392J — Retainer, Outside Moulding | ||||
| 75392-35220 |
Retainer, Outside Moulding
2024-05 → —
|
AZSH3# | — | |
| 75392K — Retainer, Outside Moulding, NO.2 | ||||
| 75392-35220 |
Retainer, Outside Moulding, NO.2
2024-05 → —
|
AZSH3# | — | |
| 75895K — Tape, Moulding, NO.1 | ||||
| 75895-53010 |
Tape, Moulding, NO.1
2024-05 → —
|
AZSH3# | — | |
| 89C48D — Retainer, Ultrasonic Sensor, Front Corner | ||||
| 89348-46070 |
Retainer, Ultrasonic Sensor, Front Corner
2024-05 → —
|
AZSH3# | — | |
| 89C48F — Retainer, Ultrasonic Sensor, Front Side | ||||
| 89348-30860-A0 note |
Retainer, Ultrasonic Sensor, Front Side
2024-05 → —
|
AZSH3# G | — | |
| 89348-30860-B0 note |
Retainer, Ultrasonic Sensor, Front Side
2024-05 → —
|
AZSH38 G | — | |
| 89348-30860-B0 note |
Retainer, Ultrasonic Sensor, Front Side
2024-09 → —
|
AZSH39 | — | |
| 89348-30860-C0 note |
Retainer, Ultrasonic Sensor, Front Side
2024-05 → —
|
AZSH3# G | — | |
| 89348-30860-D1 note |
Retainer, Ultrasonic Sensor, Front Side
2024-05 → —
|
AZSH3# G | — | |
| 89348-30860-E1 note |
Retainer, Ultrasonic Sensor, Front Side
2024-05 → —
|
AZSH3# G | — | |
| 89348-30870-A0 note |
Retainer, Ultrasonic Sensor, Front Side
2024-05 → —
|
AZSH3# G | — | |
| 89348-30870-B0 note |
Retainer, Ultrasonic Sensor, Front Side
2024-05 → —
|
AZSH38 G | — | |
| 89348-30870-B0 note |
Retainer, Ultrasonic Sensor, Front Side
2024-09 → —
|
AZSH39 | — | |
| 89348-30870-C0 note |
Retainer, Ultrasonic Sensor, Front Side
2024-05 → —
|
AZSH3# G | — | |
| 89348-30870-D1 note |
Retainer, Ultrasonic Sensor, Front Side
2024-05 → —
|
AZSH3# G | — | |
| 89348-30870-E1 note |
Retainer, Ultrasonic Sensor, Front Side
2024-05 → —
|
AZSH3# G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
