Toyota Alphard Hev/Phev
2024-05 → present · chassis AZSH38,39 · catalogue 33C210 · General
Supported model
Data version 2024-05

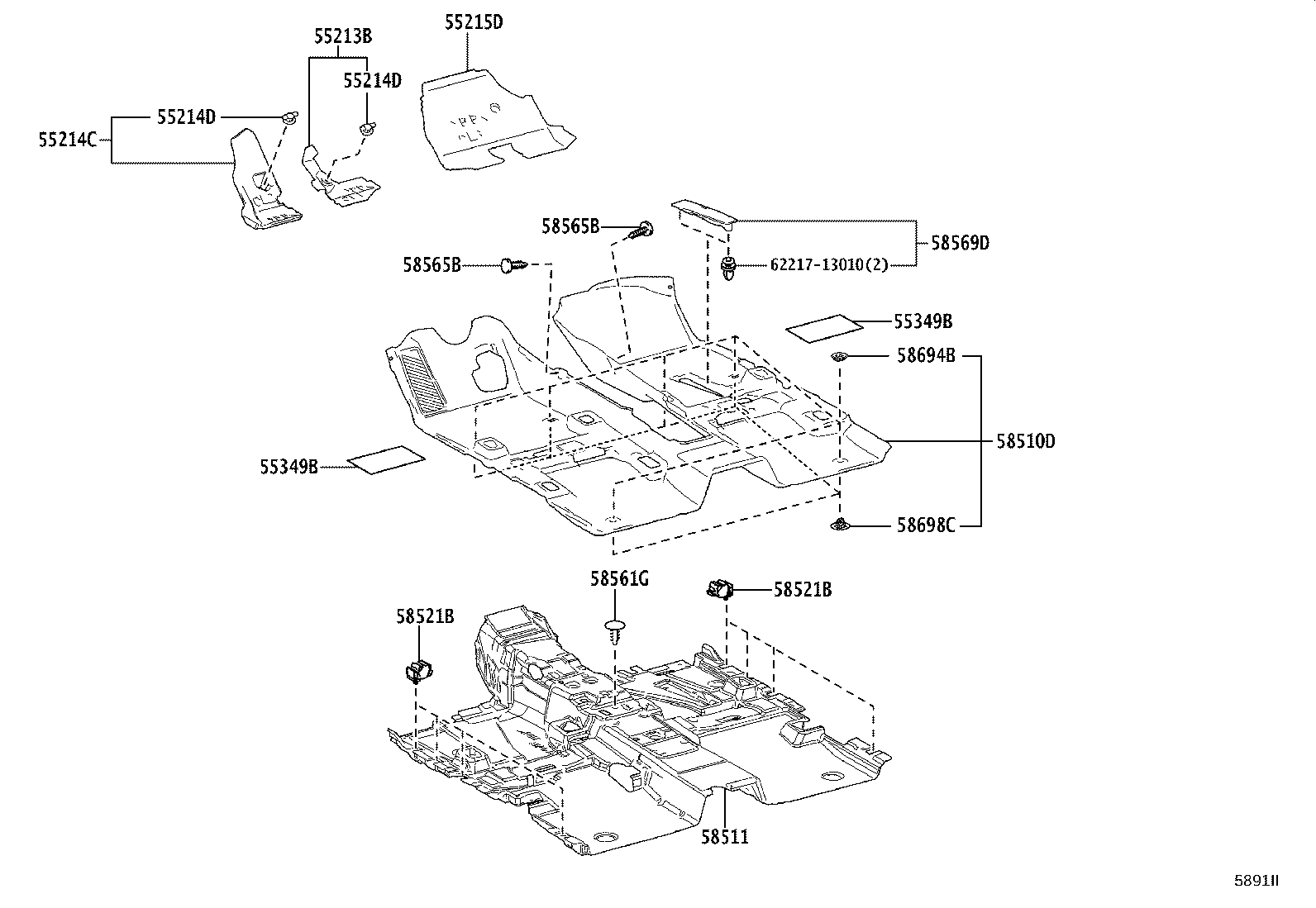

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55213B — Pad, Dash Panel Insulator, NO.1 | ||||
| 55213-30480 |
Pad, Dash Panel Insulator, NO.1
2024-09 → —
|
AZSH39 | — | |
| 55213-30480 |
Pad, Dash Panel Insulator, NO.1
2024-05 → —
|
AZSH38 | — | |
| 55214C — Pad, Dash Panel Insulator, NO.2 | ||||
| 55214-30150 |
Pad, Dash Panel Insulator, NO.2
2024-05 → —
|
AZSH38 | — | |
| 55214-30150 |
Pad, Dash Panel Insulator, NO.2
2024-09 → —
|
AZSH39 | — | |
| 55214D — Clip(FOR DASH PANEL INSULATOR PAD) | ||||
| 90467-13079 |
Clip(FOR DASH PANEL INSULATOR PAD)
2024-05 → —
|
AZSH38 | — | |
| 90467-13079 |
Clip(FOR DASH PANEL INSULATOR PAD)
2024-09 → —
|
AZSH39 | — | |
| 55215D — Pad, Dash Panel Insulator, NO.3 | ||||
| 55215-30390 |
Pad, Dash Panel Insulator, NO.3
2024-05 → —
|
AZSH38 | — | |
| 55215-30390 |
Pad, Dash Panel Insulator, NO.3
2024-09 → —
|
AZSH39 | — | |
| 55349B — Sheet, Activated Carbon | ||||
| 55349-48090 |
Sheet, Activated Carbon
2024-05 → —
|
AZSH38 | — | |
| 55349-48090 |
Sheet, Activated Carbon
2024-09 → —
|
AZSH39 | — | |
| 58510D — Carpet Assy, Floor, Front | ||||
| 58510-30G10-C1 note |
Carpet Assy, Floor, Front
2024-05 → —
|
AZSH38 M | — | |
| 58510-30G10-C1 note |
Carpet Assy, Floor, Front
2024-05 → —
|
AZSH38 G | — | |
| 58510-30M30-C0 note |
Carpet Assy, Floor, Front
2024-09 → —
|
AZSH39 | — | |
| 58511 — Mat, Floor, Front | ||||
| 58511-30A40 |
Mat, Floor, Front
2024-09 → —
|
AZSH39 | — | |
| 58511-30A50 |
Mat, Floor, Front
2024-05 → —
|
AZSH38 | — | |
| 58521B — Hook, Floor Carpet | ||||
| 58521-33060 |
Hook, Floor Carpet
2024-05 → —
|
AZSH38 | — | |
| 58521-33060 |
Hook, Floor Carpet
2024-09 → —
|
AZSH39 | — | |
| 58561G — Clip(FOR FRONT FLOOR SILENCER) | ||||
| 90467-07042-C4 note |
Clip(FOR FRONT FLOOR SILENCER)
2024-05 → —
|
AZSH38 | — | |
| 90467-07042-C4 note |
Clip(FOR FRONT FLOOR SILENCER)
2024-09 → —
|
AZSH39 | — | |
| 58565B — Clip | ||||
| 90467-05164-C7 note |
Clip
2024-05 → —
|
AZSH38 | — | |
| 90467-05164-C7 note |
Clip
2024-09 → —
|
AZSH39 | — | |
| 58569D — Cover, Front Floor Caution Plate | ||||
| 58569-30040-C0 note |
Cover, Front Floor Caution Plate
2024-05 → —
|
AZSH38 M | — | |
| 58569-30040-C0 note |
Cover, Front Floor Caution Plate
2024-05 → —
|
AZSH38 G | — | |
| 58569-30040-C0 note |
Cover, Front Floor Caution Plate
2024-09 → —
|
AZSH39 | — | |
| 58694B — Plate, Mat Set, Upper | ||||
| 58694-33010 |
Plate, Mat Set, Upper
2024-05 → —
|
AZSH38 | — | |
| 58694-33010 |
Plate, Mat Set, Upper
2024-09 → —
|
AZSH39 | — | |
| 58698C — Plate, Mat Set, Lower | ||||
| 58698-33010 |
Plate, Mat Set, Lower
2024-05 → —
|
AZSH38 | — | |
| 58698-33010 |
Plate, Mat Set, Lower
2024-09 → —
|
AZSH39 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
